1. Увод
Thank you for choosing the Ingco LED Flashlight Model HCFL186503. This manual provides essential information for the safe and efficient use of your new flashlight. Please read it thoroughly before operation and retain it for future reference.
The Ingco HCFL186503 is a robust LED flashlight designed for various lighting needs, featuring multiple brightness modes and a durable aluminum alloy construction.
2. Безбедносне информације
- Безбедност ока: Do not look directly into the LED light beam. The intense light can cause temporary vision impairment or permanent eye damage.
- деца: Држите батеријску лампу и њене компоненте ван домашаја деце.
- Безбедност батерије:
- Use only the specified 18650 Lithium-ion battery.
- Немојте мешати старе и нове батерије или различите типове батерија.
- Не бацајте батерије у ватру; могу експлодирати.
- If the flashlight will not be used for an extended period, remove the battery to prevent leakage.
- Ensure correct battery polarity (+/-) when inserting.
- топлота: The flashlight head may become warm during prolonged use, especially on high brightness settings. Handle with care.
- Утицај: While impact-resistant, avoid dropping the flashlight from excessive heights to prevent damage.
3. Садржај пакета
Carefully unpack the box and ensure all items are present and in good condition. If any items are missing or damaged, contact your retailer.
- Ingco LED Flashlight HCFL186503
- 18650 Литијум-јонска батерија
- УСБ кабл за пуњење

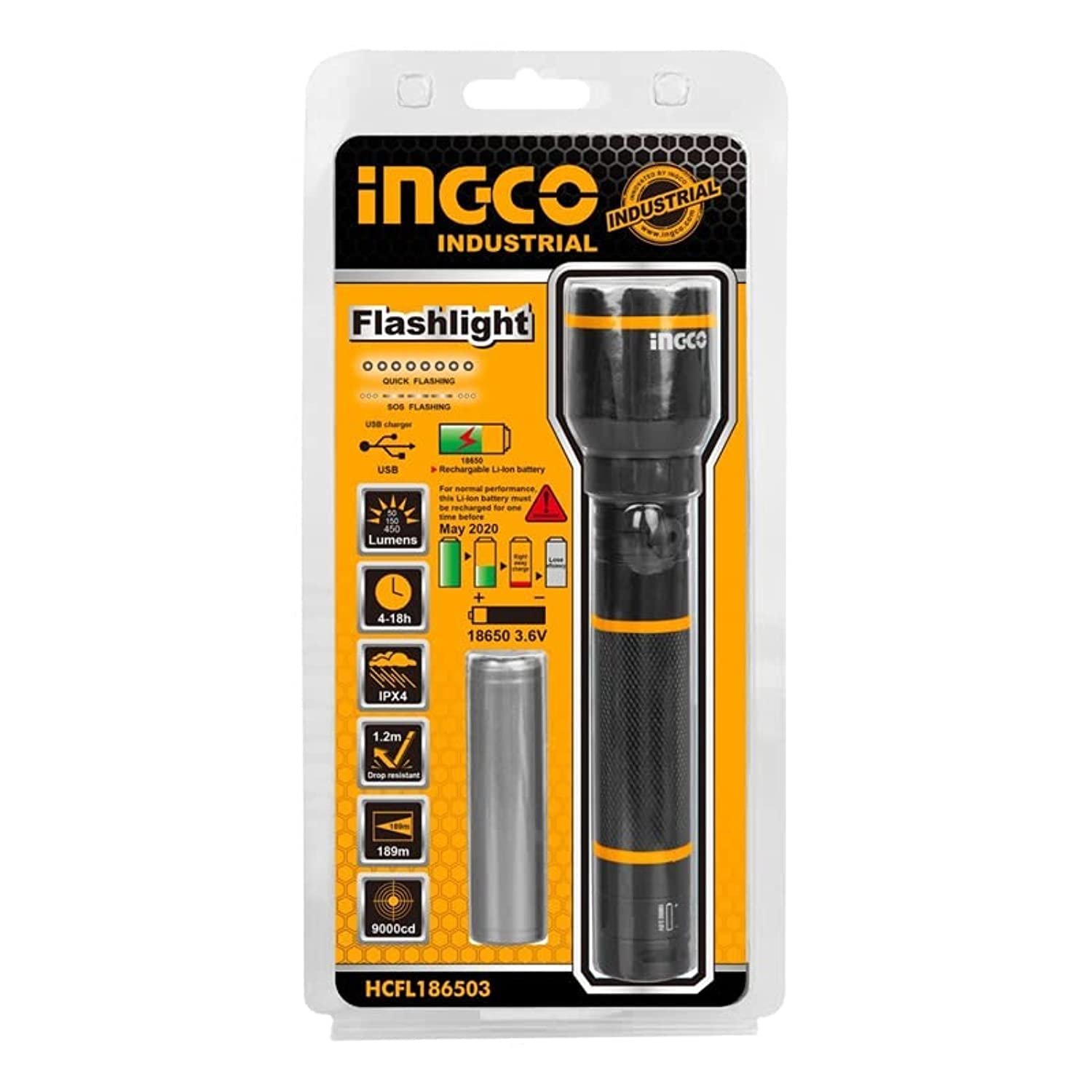

Image 1: Ingco LED Flashlight HCFL186503, showing the flashlight, 18650 battery, USB charging cable, and product packaging.
4. Подешавање
4.1 Инсталација батерије
- Одврните задњи поклопац батеријске лампе окретањем у смеру супротном од казаљке на сату.
- Insert the 18650 Lithium-ion battery with the positive (+) end facing towards the flashlight head (LED).
- Заврните поклопац задњег дела у смеру казаљке на сату док се чврсто не затегне.
4.2 Пуњење батерије
The flashlight uses a rechargeable 18650 Lithium-ion battery. It is recommended to fully charge the battery before first use.
- Locate the charging port on the flashlight (typically under a rubber cover near the head or on the battery itself if it has a built-in port).
- Connect the small end of the provided USB charging cable to the flashlight's charging port.
- Connect the larger end of the USB cable to a standard USB power adapter (e.g., phone charger, computer USB port, power bank).
- An indicator light (if present) will typically show charging status (e.g., red for charging, green for fully charged).
- Once fully charged, disconnect the USB cable and ensure the charging port cover (if applicable) is securely closed to maintain water resistance.
5. Упутство за употребу
The Ingco HCFL186503 flashlight features multiple lighting modes for various situations.
5.1 Укључивање/искључивање
Press the power button (usually located on the tail cap or side of the flashlight) to turn the flashlight ON. Press it again to turn it OFF.
5.2 Changing Brightness Modes
The flashlight offers three primary brightness modes: High, Medium, and Low. Some models may also include a Strobe or SOS mode.
- With the flashlight ON, press the power button repeatedly to cycle through the available modes. The typical sequence is High → Medium → Low → (Strobe/SOS, if present) → High.
- Release the button when you reach your desired brightness level.
6. Одржавање
- Чишћење: Обришите кућиште батеријске лампе чистом, меком крпом. За тврдокорну прљавштину, благо дamp Може се користити крпа. Не користите абразивна средства за чишћење или раствараче.
- Навоји и О-прстенови: Periodically lubricate the screw threads and O-rings with silicone grease to maintain smooth operation and water resistance.
- Одржавање батерије: Recharge the battery regularly, even if not in use, to prolong its lifespan. Avoid fully discharging the battery.
- Складиштење: Store the flashlight in a cool, dry place. If storing for an extended period, remove the battery.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Лампа се не укључује. | Батерија је празна или је неправилно уметнута. | Recharge or replace the battery. Check battery polarity. |
| Светло је слабо или трепери. | Слаба батерија. Лабави контакти. | Recharge the battery. Ensure tail cap and head are tightened. |
| Батеријска лампа се брзо загрева. | Prolonged use on High mode. | This is normal for high-power LEDs. Reduce brightness mode or turn off to cool down. |
| Tail cap or head is difficult to unscrew. | Dry threads. | Apply a small amount of silicone grease to the threads. |
8. Спецификације
| Феатуре | Спецификација |
|---|---|
| Број модела | HCFL186503 |
| Бранд | Ingco |
| Извор светлости | ЛЕД |
| Макимум Бригхтнесс | 400 лумена |
| Режими осветљења | High (400 Lumens), Medium (150 Lumens), Low (50 Lumens) |
| High Mode Runtime | 4 сата |
| Low Mode Runtime | 18 сата |
| Тип батерије | 18650 Литијум-јонски |
| Материјал | Aircraft-grade Aluminum Alloy (6N01-T6) |
| Финисх Типе | Оксидирано |
| Облик предмета | Цилиндричне |
| Димензије (пречник к дужина) | 27.5 мм к 158.3 мм |
| Тежина артикла | 200 грама |
| Посебне карактеристике | Adjustable Lighting Modes, Impact Resistant |
| Тип монтаже | Хандхелд |
| Компатибилност паметног дома | Није компатибилно |
9. Гаранција и подршка
Ingco products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Ingco website. If you encounter any issues or require technical assistance, please contact Ingco customer support through their official channels.
