1. Увод
This manual provides detailed instructions for the installation, operation, and maintenance of your Xanlite ECP50RDCW USB Rechargeable Magnetic Sensor LED Cabinet and Drawer Light. This device is designed to provide convenient, automatic illumination in dark spaces such as cabinets, drawers, and wardrobes. Please read this manual thoroughly before use to ensure proper function and safety.
2. Безбедносна упутства
- Не излажите уређај екстремним температурама, директној сунчевој светлости или високој влажности.
- Do not attempt to disassemble or modify the device. This may void the warranty and pose a safety risk.
- Држите уређај даље од воде и других течности.
- Use only the provided or a certified USB cable for charging.
- Ensure the installation surface is clean, dry, and smooth for optimal adhesive performance.
- This product contains a rechargeable battery. Dispose of the product and battery responsibly according to local regulations.
3. Садржај пакета
Проверите да ли су све компоненте присутне у пакету:

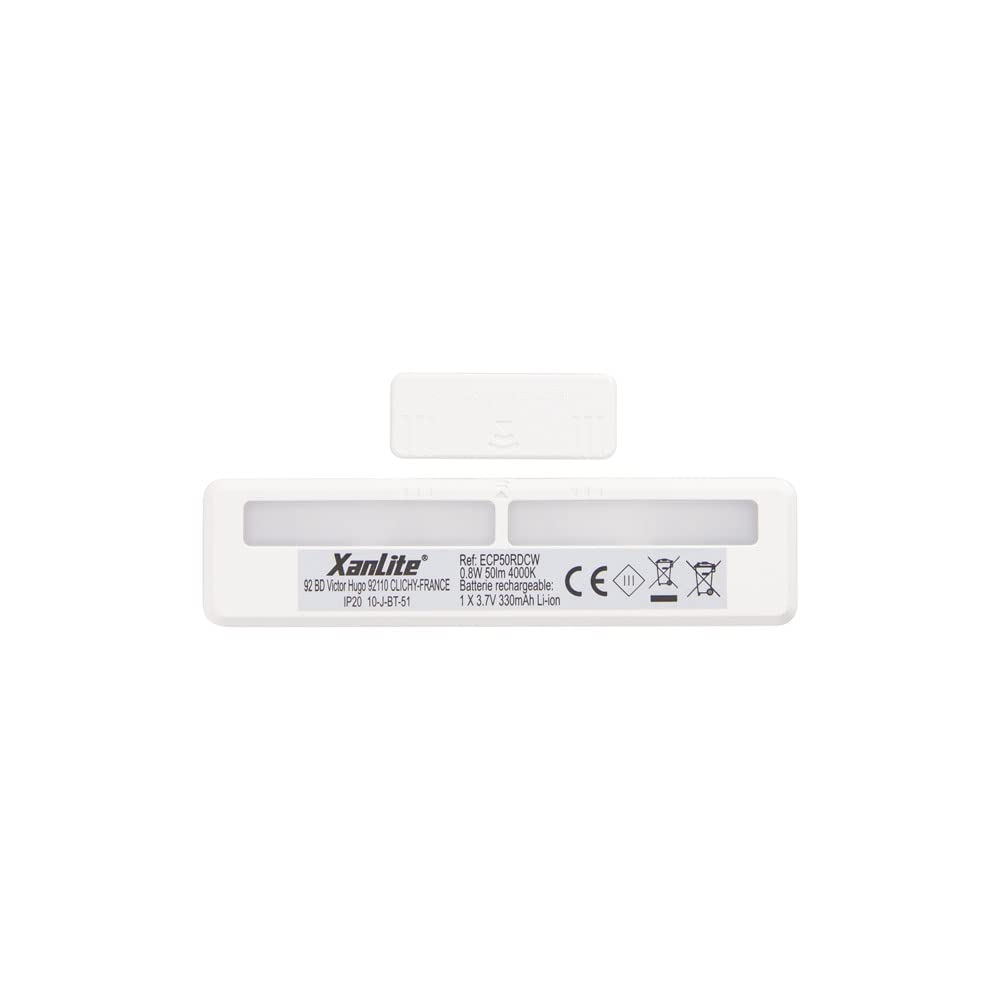

- Xanlite ECP50RDCW LED Light Unit
- УСБ кабл за пуњење
- Magnetic Mounting Strips with Adhesive
- Кориснички приручник (овај документ)
4. Карактеристике производа
- Аутоматско осветљење: Equipped with a magnetic sensor for automatic light activation.
- Пуњива батерија: Integrated battery, easily rechargeable via USB.
- Излаз светлости: Delivers 50 lumens of neutral white light.
- Једноставна инсталација: Features adhesive-based magnetic mounting for quick and secure placement.
- Енергетски ефикасан: Мала потрошња енергије за продужено трајање батерије.
- Компактан дизајн: Discreet aluminum design suitable for various interior decors.
5. Подешавање и инсталација
The Xanlite ECP50RDCW light is designed for simple, tool-free installation using its magnetic and adhesive mounting system.
- Изаберите локацију: Select a suitable location inside a cabinet, drawer, or wardrobe where you require illumination. Ensure the surface is clean, dry, and smooth.
- Припремите површину: Clean the chosen surface thoroughly to remove any dust, grease, or moisture. This ensures optimal adhesion.
- Причврстите магнетне траке: Peel the protective backing from the adhesive side of the magnetic mounting strips. Firmly press the strips onto the cleaned surface. Hold for a few seconds to ensure good contact.
- Mount Light Unit: The LED light unit has built-in magnets. Align the light unit with the installed magnetic strips on the surface. The magnets will hold the light securely in place.
- Тест сензор: Close and open the cabinet/drawer to test the magnetic sensor's functionality. The light should turn on when the cabinet/drawer is opened and turn off when closed.
6. Упутство за употребу
The Xanlite ECP50RDCW LED light operates automatically using its integrated magnetic sensor.
- Аутоматско активирање: When the light unit is installed and charged, it will automatically detect the opening of a cabinet or drawer via its magnetic sensor. The light will turn on instantly.
- Аутоматско деактивирање: When the cabinet or drawer is closed, the magnetic sensor will detect this change, and the light will automatically turn off after a short delay.
- Излаз светлости: The device provides a neutral white light with a brightness of 50 lumens, suitable for illuminating small enclosed spaces.
7. Пуњење батерије
The Xanlite ECP50RDCW features a built-in rechargeable battery. When the light output appears dim or the light does not activate reliably, it is time to recharge the unit.
- Remove Light Unit: Gently detach the LED light unit from the magnetic mounting strips.
- Повежите УСБ кабл: Locate the USB charging port on the light unit. Insert the small end of the provided USB charging cable into this port.
- Повежите се са напајањем: Plug the larger end of the USB cable into a standard USB power adapter (e.g., phone charger, computer USB port) or a power bank.
- Индикатор пуњења: The light unit may have an indicator LED that changes color (e.g., red for charging, green for fully charged). Refer to the product for specific indicator behavior.
- Reattach Light Unit: Once fully charged, disconnect the USB cable and reattach the light unit to its magnetic mounting strips.
8. Одржавање
- Чишћење: Wipe the light unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Одржавање батерије: To prolong battery life, avoid fully discharging the battery frequently. Recharge the unit when the light output diminishes. If storing for an extended period, charge the battery to about 50% every few months.
- Провера лепка: Periodically check the adhesion of the magnetic strips. If they become loose, clean the surface and reapply new adhesive strips if necessary.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Светлост се не пали. | Батерија је испражњена. Magnetic sensor not detecting movement. Light unit not properly attached. | Напуните батерију помоћу УСБ кабла. Ensure the magnetic strips are correctly positioned relative to the sensor. Reattach the light unit firmly to the magnetic strips. |
| Светло је слабо. | Ниска батерија. | Напуните батерију. |
| Light turns on/off erratically. | Interference with magnetic sensor. Лабава веза. | Ensure no other magnetic objects are near the sensor. Check if the light unit is securely attached to the magnetic strips. |
| Adhesive strips are not holding. | Површина није чиста или глатка. Old adhesive. | Clean the surface thoroughly before application. Use new, strong adhesive strips. |
10. Спецификације
| Феатуре | Детаљ |
|---|---|
| Број модела | ECP50RDCW |
| Бранд | Xanlite |
| Лигхт Типе | ЛЕД |
| Луминоус Флук | 50 лумена |
| Лигхт Цолор | Неутрал Вхите |
| Извор напајања | Пуњива батерија (УСБ) |
| Тип сензора | Магнетиц Детецтор |
| Начин монтаже | Adhesive with Magnetic Attachment |
| Материјал | Алуминијум |
| Ознака енергије | A+ |
| Тежина | 1 Kilogram (Note: This seems high for a small light, likely package weight) |
| Земља порекла | Кина |
11. Гаранција и подршка
Xanlite is committed to providing quality products and excellent customer service. If you encounter any issues with your ECP50RDCW LED light or have questions not covered in this manual, please do not hesitate to contact Xanlite customer support.
For support, please visit the official Xanlite webсајт или погледајте контакт информације које сте добили уз куповину.
