SHALL 6-in-1 Heavy Duty Staple Gun User Manual

Увод

Thank you for choosing the SHALL 6-in-1 Heavy Duty Staple Gun. This versatile tool is designed for a wide range of applications, from upholstery and crafts to wood and cable work. Its robust construction and multi-staple compatibility make it an essential tool for both heavy-duty and light-duty projects. This manual provides detailed instructions for safe and effective use, setup, operation, and maintenance of your staple gun.

Image: The SHALL 6-in-1 Heavy Duty Staple Gun, shown with various staple types and the included staple remover.

Карактеристике производа

• 6-in-1 Application: Compatible with six types of staples/nails: T50 (Heavy-duty D-staples), JT21 (Light-duty D-staples), T20 (Narrow D-staples), T25 (U-staples), 18GA Brad Nails, and PIN Nails. This broad compatibility allows for diverse project applications.


Image: Visual guide to the six staple and nail types supported by the staple gun.

• Dual-Power Mode: Features a high/low power adjustment switch, enabling customization for use on both hard and soft materials.

Image: Demonstration of the dual power switch for adapting to different material densities.
• Ергономски рукохват: Designed with a wide rubber handle for comfortable and easier squeezing, reducing hand fatigue during prolonged use.

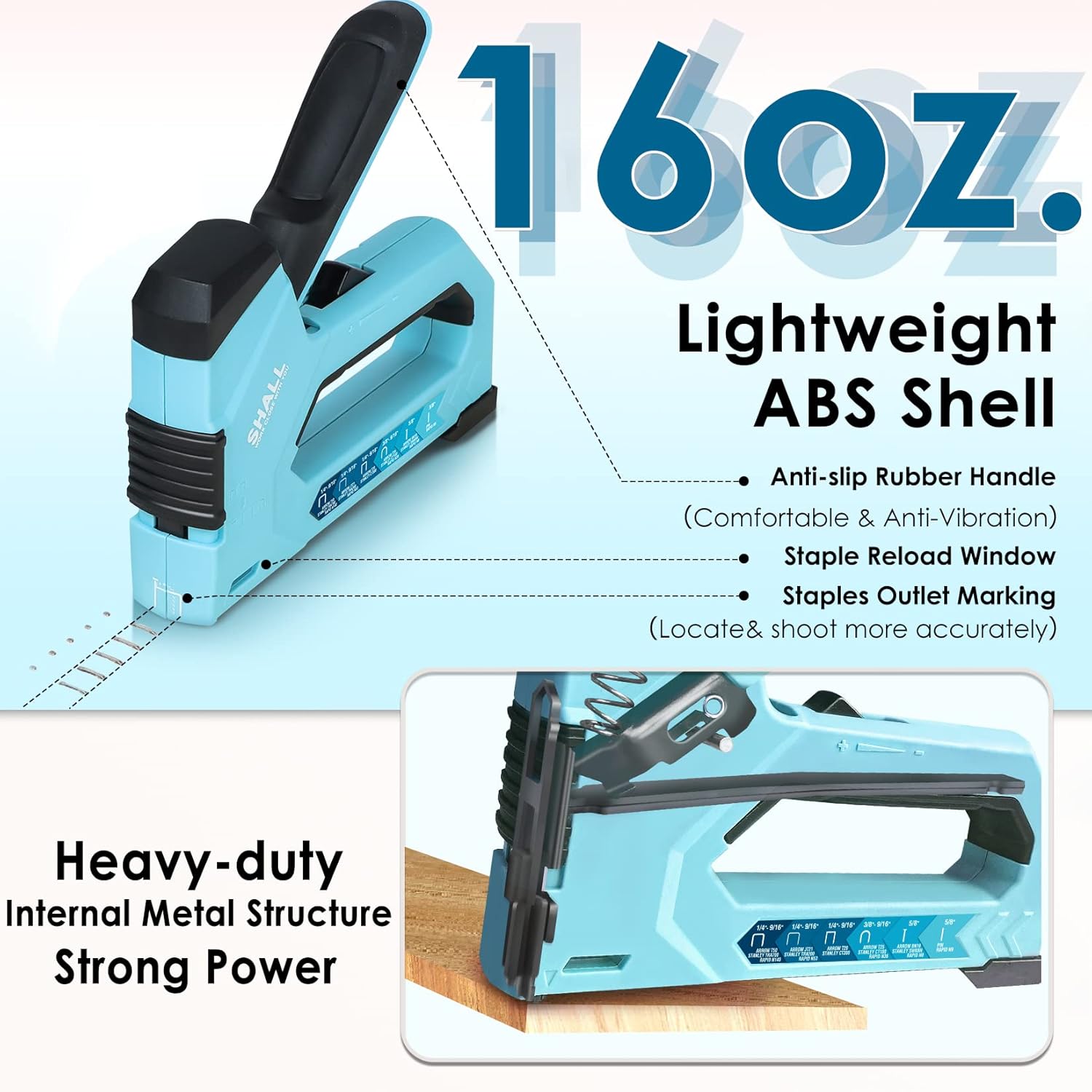

• Лаган и компактан: Weighing only 16 oz, this compact design minimizes user soreness, making it comfortable for individuals with wrist or joint issues.


Image: Features emphasizing the lightweight design and ergonomic aspects of the staple gun.

• Брава ручке: A convenient handle lock allows the tool to be stored compactly, fitting easily into narrow spaces or tool pouches.

Image: Instructions and visual examples for using the handle lock feature for storage.
• Accurate Stapling/Nailing: Features a "staples outlet marking" to enhance accuracy during operation.


Image: Detail of the staple outlet marking for improved accuracy.

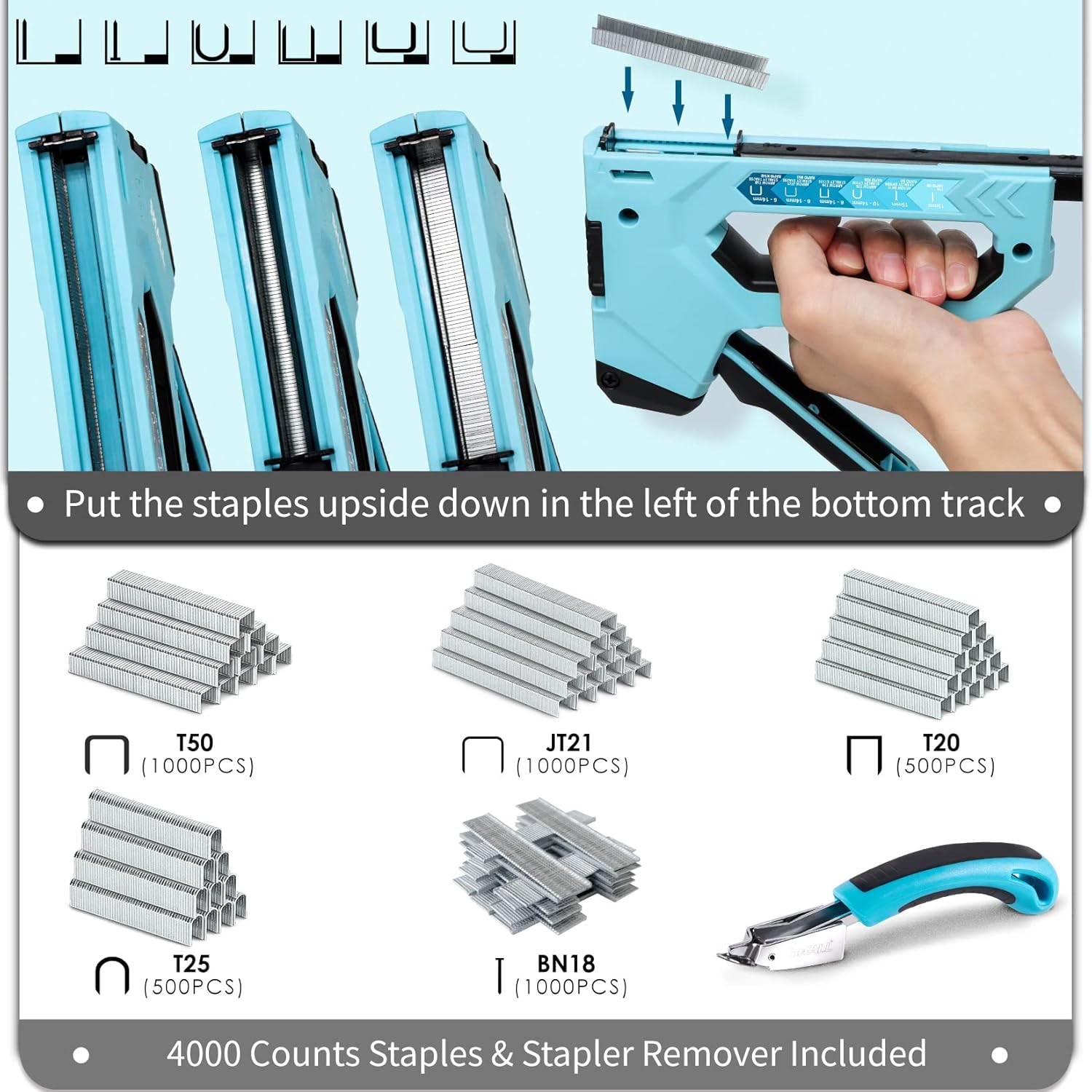

• Комплетан комплет: Includes the staple gun, a staple remover, and 4000 counts of assorted staples/nails (1000-pcs T50, 1000-pcs JT21, 500-pcs T25, 500-pcs T20, and 1000-pcs Brad Nails).


Image: Contents of the complete kit, including the staple gun, remover, and staple assortment.

Сетуп

Loading Staples/Nails

1. Ensure the staple gun is disengaged from any material and the handle is locked for safety.
2. Locate the staple loading mechanism at the bottom rear of the staple gun.
3. Pull out the pusher rod until it locks into the open position.
4. Insert the desired type of staples or nails into the loading track, ensuring they are oriented correctly (upside down, with the crown facing the bottom of the track).
5. Gently push the pusher rod back into the staple gun until it clicks into place, securing the staples.

Image: Step-by-step visual guide for loading staples into the tool.

Избор режима напајања

The SHALL 6-in-1 Staple Gun features a dual-power switch to adjust the driving force based on the material's hardness.

• High Power Mode (+): Use for harder materials such as dense wood, thick fabrics, or when a deeper penetration is required.
• Low Power Mode (-): Use for softer materials like thin fabrics, insulation, or when a shallower penetration is sufficient to prevent damage to the material.

Adjust the switch located near the handle to the appropriate setting before operation.

Image: Visual representation of the dual power switch and its effect on staple penetration.

Упутство за употребу

Општа операција

1. Припремите материјал: Ensure the material you are working on is stable and clean.
2. Position the Staple Gun: Place the nose of the staple gun firmly against the surface where you intend to drive a staple or nail. Use the "staples outlet marking" on the tool for precise placement.


Image: Detail of the staple outlet marking for accurate positioning.

3. Укључите окидач: Squeeze the handle firmly and completely to drive the staple or nail into the material. A full squeeze is necessary for proper fastening.
4. Отпусти и понови: Release the handle to allow the mechanism to reset. Reposition the gun and repeat the process as needed.

Апликације

This staple gun is suitable for a wide range of applications, including but not limited to:

• Upholstery projects (furniture, chairs)
• Занати и „уради сам“ пројекти
• Attaching fabric, canvas, or wire mesh
• Securing cable or insulation
• Light wood assembly and decoration
• Wall coverings and closet linings

Image: The SHALL 6-in-1 Heavy-duty Staple Gun in use on a wooden surface.

Image: The staple gun being used for upholstery, demonstrating its versatility.

Using the Staple Remover

The included staple remover is designed to safely and easily remove staples without damaging the material. Insert the tip of the remover under the staple and gently pry it up.

Одржавање

Чишћење и складиштење

• After each use, wipe down the staple gun with a clean, dry cloth to remove any dust or debris.
• Periodically check the staple loading mechanism for any obstructions and clear them if necessary.
• Always ensure all staples/nails are removed from the gun before engaging the handle lock for storage.
• Store the staple gun in a dry, cool place, away from direct sunlight and moisture.

Image: Proper storage using the handle lock feature.

Решавање проблема

If you encounter issues with your SHALL 6-in-1 Staple Gun, consider the following common troubleshooting steps:

• Staples Not Firing or Misfiring:
  • Check if the staple gun is loaded with the correct type and size of staples/nails.
  • Ensure the pusher rod is fully engaged and securing the staples.
  • Verify that you are squeezing the handle completely and firmly.
  • Inspect the firing mechanism for any obstructions or bent staples.
• Staples Not Penetrating Material Fully:
  • Switch to the "High Power Mode (+)" if you are on "Low Power Mode (-)".
  • Ensure the nose of the staple gun is pressed firmly against the material before firing.
  • Confirm that the staples/nails are appropriate for the material's density.
• Заглављивање хефталица:
  • Carefully open the staple loading mechanism and remove any jammed or bent staples.
  • Ensure staples are loaded correctly and are not damaged.

If problems persist, please refer to the "Warranty and Support" section for further assistance.

Спецификације

Гаранција и подршка

For any questions, concerns, or technical support regarding your SHALL 6-in-1 Heavy Duty Staple Gun, please contact SHALL customer service. Please have your model number (SH22051801) ready when contacting support.

For additional information, you may also refer to the official user manual PDF available online:

Преузмите званично упутство за употребу (PDF)
