Увод
Thank you for choosing the Tailcas USB Rechargeable Motion Sensor Cabinet Light. This manual provides detailed instructions for the safe and efficient use of your new light. Please read it thoroughly before installation and operation, and retain it for future reference.
Безбедносне информације
- This product is designed for indoor use only. Do not expose it to rain or moisture.
- Do not disassemble, repair, or modify the product. This may cause damage, electric shock, or fire.
- Држите уређај даље од извора топлоте, директне сунчеве светлости и запаљивих материјала.
- Користите само наведену јачину пуњењаtage (5V USB).
- Не гледајте директно у ЛЕД светло када је упаљено, јер то може изазвати напрезање очију.
- Чувати ван домашаја деце.
Садржај пакета
Молимо вас да проверите пакет за следеће ставке:
- Tailcas Motion Sensor Cabinet Light (3 units)
- Магнетне траке
- Двострана лепљива трака
- USB Charging Cable (not explicitly listed but implied by 'USB Rechargeable')
Карактеристике производа
- Сензор покрета и светлости: Automatically turns on when motion is detected in dark environments.
- УСБ пуњиви: Built-in 2000mAh high-capacity battery.
- Три режима рада: Sensor Mode, Always On Mode, Always Off Mode.
- Подесива осветљеност: Dimmable from 5% to 100% in Always On Mode.
- Функција меморије: Remembers the last brightness setting.
- Једноставна инсталација: Multiple mounting options including magnetic, adhesive, and hanging.
Image: Comparison highlighting the 26 LED design and USB rechargeable battery of the Tailcas light.
Инсталација
The Tailcas Motion Sensor Cabinet Light offers three convenient installation methods:
- Магнетни додатак: The light has built-in magnets. Simply attach it to any ironwork surface.
- Монтажа лепком: For non-metallic surfaces, use the provided magnetic strip with double-sided adhesive tape. Peel off the protective film from one side of the adhesive tape and attach it to the magnetic strip. Then, peel off the other side and firmly press the magnetic strip onto your desired clean, dry surface. The light can then be magnetically attached to this strip.
- Вешање: The light features hanging holes on the back. You can hang it on nails or hooks for a secure fit.

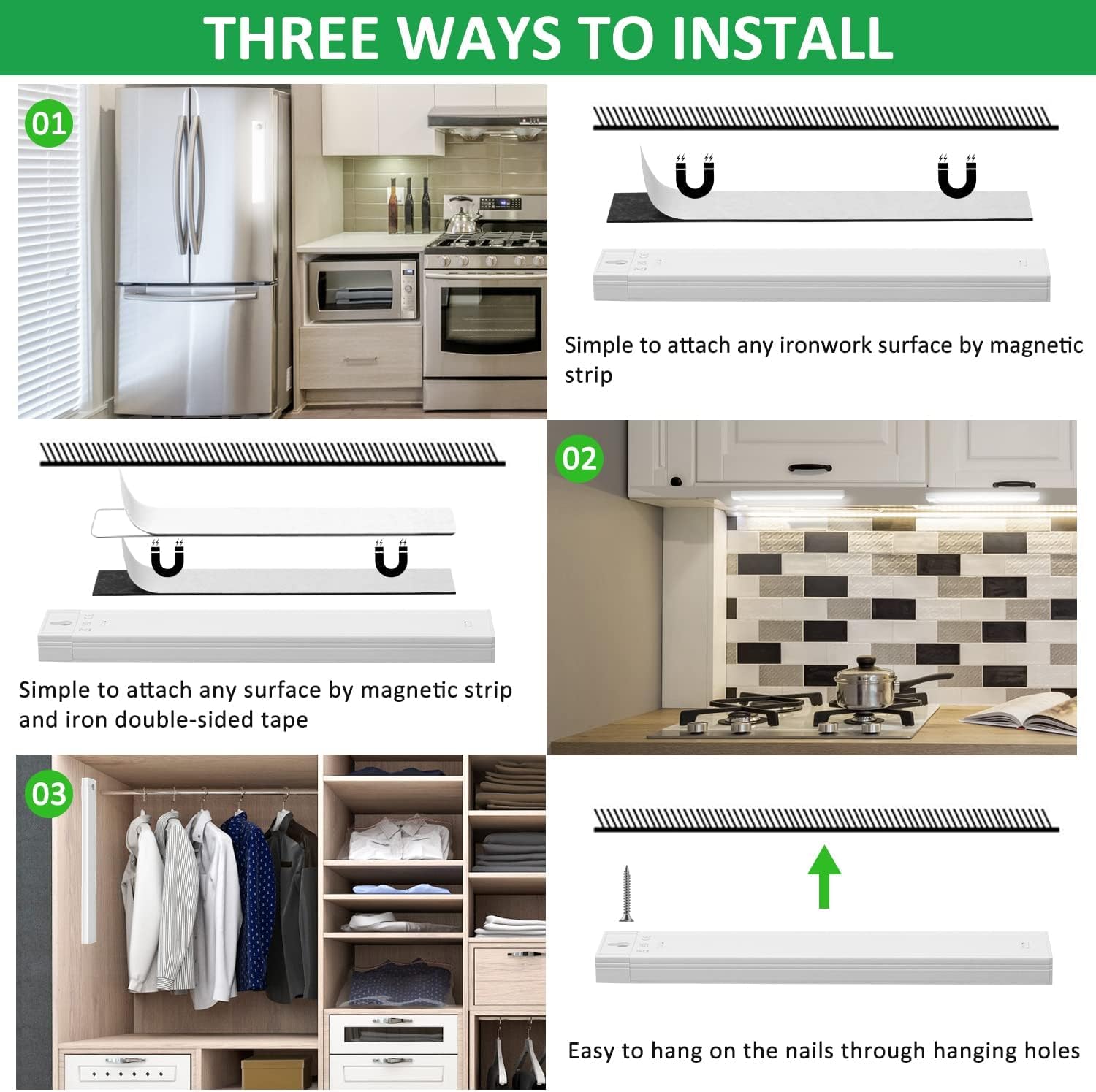

Image: Visual guide demonstrating magnetic, adhesive, and hanging installation options.
Ensure the installation surface is clean and dry for optimal adhesion.
Операција
The light features a push-button switch to cycle through its three operating modes and adjust brightness.
Радни режими:
- Mode 1: Sensor Mode (Automatic)
In this mode, the light will automatically turn on when motion is detected within a 10-foot (3-meter) range and 120-degree angle in a dark environment. It will automatically turn off after approximately 20 seconds of no motion. - Mode 2: Always On Mode
The light remains continuously on, regardless of motion or ambient light conditions. - Mode 3: Always Off Mode
Светло остаје искључено.
Подешавање осветљености:
In Алваис Он Моде, you can adjust the brightness from 5% to 100% by pressing and holding the control button. The light has a memory function that will recall your last brightness setting when you switch back to Always On Mode.
Image: Visual representation of the Sensor, Always On, and Always Off modes.
Image: Illustration of the motion and light sensor's detection capabilities.
Пуњење
The Tailcas Motion Sensor Cabinet Light is equipped with a 2000mAh rechargeable lithium-polymer battery.
- Connect the provided USB charging cable to the light's charging port and to a 5V USB power source (e.g., power bank, USB charger, laptop).
- A red indicator light typically signifies that the device is charging.
- The indicator light will turn green or off when the battery is fully charged.
- Потпуно пуњење траје отприлике 2-3 сата.
- Once fully charged, the light can last up to 50 days in Sensor Mode or 5-6 hours in Always On Mode, depending on usage.
Image: Details on the 2000mAh rechargeable battery, charging process, and battery life.
Одржавање
- Clean the light with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ensure the motion sensor lens is clear of dust and obstructions for optimal performance.
- Ако складиштите батерију дуже време, периодично је пуните како бисте продужили њен век трајања.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Light does not turn on in Sensor Mode. | 1. Insufficient ambient light (sensor mode only activates in dark). 2. No motion detected. 3. Battery is low or depleted. | 1. Test in a darker environment. 2. Ensure motion is within the detection range. 3. Charge the light. |
| Light stays on constantly in Sensor Mode. | Continuous motion within detection range. | Relocate the light to an area with less constant activity or switch to Always Off Mode. |
| Светло се не пуни. | 1. Faulty USB cable or power adapter. 2. Порт за пуњење је оштећен. | 1. Try a different USB cable and power adapter. 2. Contact customer support if the port is damaged. |
| Brightness adjustment not working. | Not in Always On Mode. | Switch the light to Always On Mode to adjust brightness. |
Спецификације
| Бранд | Таилцас |
| Број модела | 582ff97f-c4e1-494d-b473-05c1bf189514 |
| Димензије (Д к Ш к В) | 20 к 3.3 к 1.5 цм |
| Тежина | 290 грама |
| Материјал | Гвожђе |
| Извор напајања | Rechargeable Battery (2 Lithium-polymer, 2000mAh) |
| Волtage | 5 Волтс |
| Ватtage | 1.5 Ваттс |
| Лигхт Типе | ЛЕД (26 сијалице) |
| Лигхт Цолор | Бела |
| Светлосна ефикасност | 260 lumens (90 lm/W) |
| Контролни метод | Touch (Push-button) |
| Опсег сензора покрета | 10 feet (3 meters), 120 degrees |
| Водоотпорни ниво | Not waterproof (Indoor use only) |
| Врста инсталације | Adhesive/Magnet Mounting |
Гаранција и подршка
Tailcas products are manufactured to high-quality standards. For any questions, concerns, or technical support regarding your product, please refer to the retailer's return policy or contact Tailcas customer service through the platform where you purchased the item. Please have your purchase details and model number ready.
