1. Увод
This manual provides essential instructions for the safe and efficient use of your FNRIDS 7.2 kW Type 2 Portable EV Charger. Please read this manual thoroughly before operating the device and retain it for future reference. This charger is designed to provide a reliable and flexible charging solution for electric vehicles equipped with a Type 2 charging port.
2. Безбедносне информације
Your safety is paramount. The FNRIDS portable EV charger incorporates multiple safety features to ensure secure operation. Adhere to all warnings and precautions to prevent injury or damage.
- Прекострујна заштита: Automatically disconnects power if current exceeds safe limits.
- Оверволtagе Заштита: Заштитне мере против прекомерног волуменаtagе инпут.
- Заштита од цурења: Детектова и спречава цурење електричне струје.
- Заштита од превисоке температуре: Прати унутрашњу температуру и смањује снагу или се искључује ако дође до прегревања.
- Заштита тла: Осигурава правилно уземљење ради електричне сигурности.
- Заштита од кратког споја: Штити од кратких спојева.
- Материјал: Constructed from high-strength ABS material for enhanced durability and safety.
- Важно: Do not attempt to switch the charging current (amperage) while the device is actively charging your vehicle. Adjustments must be made before initiating a charge.
Image: Multiple Security Protection. This diagram highlights the comprehensive safety mechanisms integrated into the FNRIDS EV charger, ensuring a secure charging process.
Image: Internal Circuitry. A visual representation of the charger's internal components, demonstrating the robust engineering behind its protective features.
3. Производ је готовview
The FNRIDS 7.2 kW Type 2 Portable EV Charger is designed for convenient and flexible electric vehicle charging. It features a robust control box with a digital display and a 5-meter cable.
Кључне карактеристике:
- Снага пуњења: Up to 7.2 kW.
- Подесива струја: Switchable between 10A, 16A, 20A, 24A, and 32A.
- Тип конектора: IEC 62196-2 (Type 2) for vehicle connection.
- Утикач: CEE plug for wall outlet connection.
- Дужина кабла: 5 метара.
- Приказ: Digital screen for real-time charging status.
- Трајност: IP67 (as per product title) / IP65 (as per feature bullet and image) rated for water and dust resistance.
Компоненте:
- Charging Control Box: Houses the digital display, control button, and safety electronics.
- Тип 2 конектор: Plugs into your electric vehicle's charging port.
- CEE утикач: Connects to a compatible CEE wall socket.
- Кабл за пуњење: 5-meter cable connecting the control box to both the CEE plug and the Type 2 connector.
Image: EV Charging Control Box with LED Display. This image shows the central control unit, featuring a digital screen that displays charging information and a button for current selection.
Image: 7 Pins Female Plug (Type 2). A detailed view of the vehicle-side connector, highlighting its 7-pin configuration for compatibility with IEC 62196-2 standard electric vehicles.
Image: Type 2 Connector Icon. This graphic illustrates the standard Type 2 connector interface.
Image: Cable Construction. A cutaway view revealing the high-quality, oxygen-free pure copper wires and durable TPE insulation, designed for stable and safe charging.
4. Подешавање
Follow these steps to set up your FNRIDS portable EV charger for the first time.
- Прегледајте пуњач: Before each use, visually inspect the charging cable, control box, and connectors for any signs of damage, wear, or foreign objects. Do not use if damaged.
- Повежите се са утичницом: Insert the CEE plug securely into a compatible CEE wall socket. Ensure the socket is properly grounded and rated for the desired charging current.
- Select Charging Current (Optional): Before connecting to the vehicle, you can press the 'Power Button' on the control box to cycle through the available current settings (10A, 16A, 20A, 24A, 32A). Select the appropriate current based on your vehicle's requirements and the power outlet's capacity. Remember: Current cannot be changed during charging.
- Повежите се са возилом: Open your electric vehicle's charging port cover. Insert the Type 2 connector firmly into the vehicle's charging inlet. Ensure a secure connection.
- Потврдите везу: The charger's display and indicator lights will show the connection status.
Image: Vehicle Charging Setup. This image demonstrates the complete setup, from the CEE plug in the wall to the Type 2 connector in the vehicle, illustrating the charging process.
Image: CEE Plug Detail. A magnified view of the CEE plug, emphasizing its design for secure and high-power connections to industrial-grade sockets.
Image: Connecting the Charger. This image shows a user plugging the charger into an electric vehicle, highlighting the practical application of the device.
5. Упутство за употребу
Once the charger is set up, follow these steps to begin and monitor charging.
- Покрените пуњење: After connecting both the CEE plug to the power source and the Type 2 connector to your vehicle, the charging process should begin automatically or after a brief handshake period with the vehicle.
- Монитор статус пуњења: The digital display on the control box will show real-time charging information, including voltage, current, power (kW), charging time, and energy delivered (kWh).
- Индикаторска светла: The control box also features LED indicator lights to provide a quick visual status:
- First solid green light: Чека се веза.
- Three green lights alternating: Нормално пуњење.
- First green light solid, second green light flashing: Пуњење је завршено.
- Заустави пуњење: To stop charging, first disconnect the Type 2 connector from your vehicle. Then, unplug the CEE plug from the wall socket.

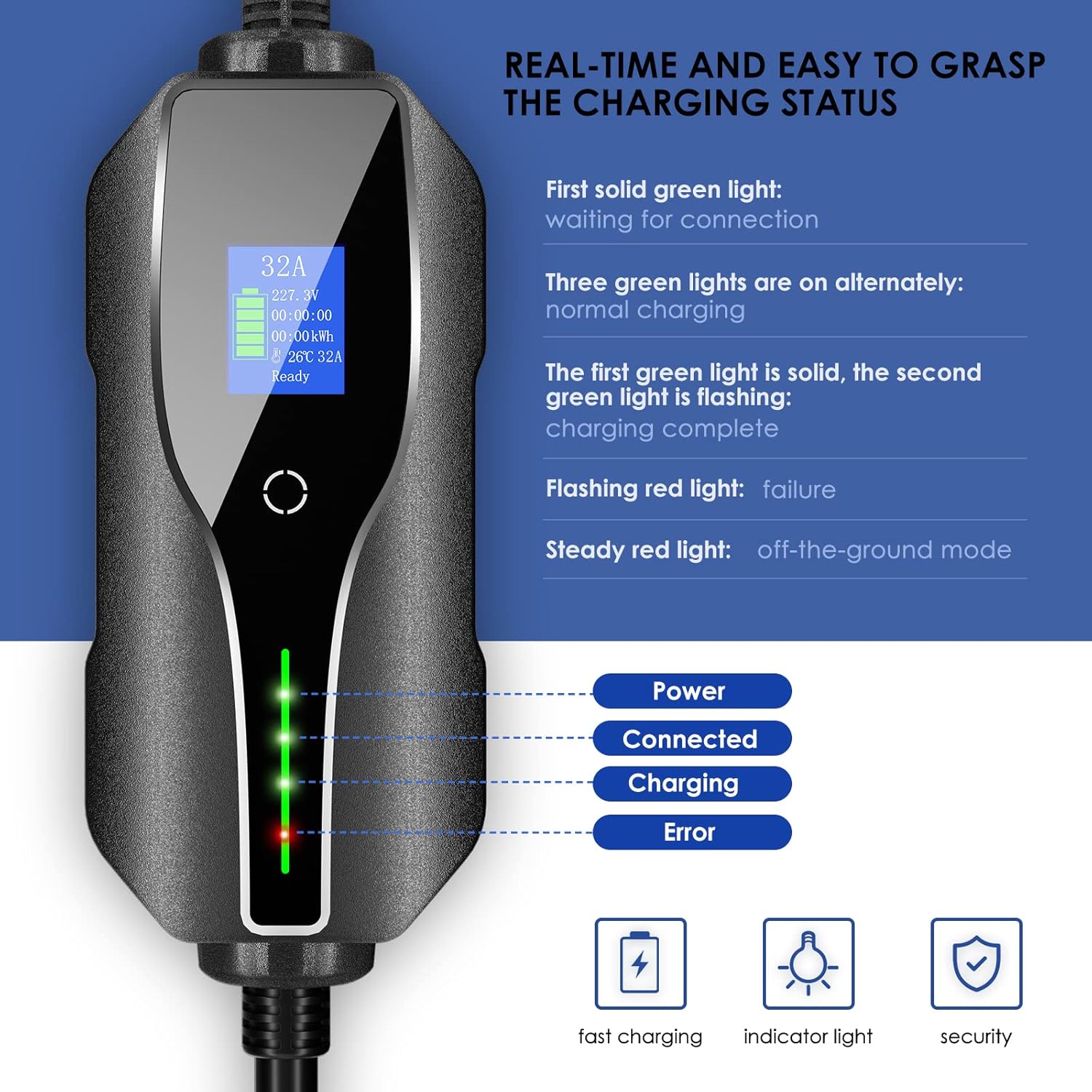

Image: Real-Time Charging Status. This image details the LED indicator lights on the control box and their corresponding charging states, providing clear visual feedback during operation.
6. Одржавање
Proper maintenance ensures the longevity and safe operation of your FNRIDS EV charger.
- Чишћење: Keep the charger clean and free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- Складиштење: When not in use, store the charger in its professional carrying bag in a dry, cool place, away from direct sunlight and extreme temperatures.
- Нега каблова: Избегавајте савијање, увијање или превртање кабла за пуњење. Увек лабаво намотајте кабл приликом складиштења.
- Отпорност на животну средину: The charger is rated IP67 (as per product title) / IP65 (as per feature bullet and image) for water and dust resistance, allowing for use in various weather conditions. However, avoid prolonged exposure to heavy rain or submersion.
- Температурни опсег: The charger is designed to operate within a wide temperature range, typically from -30°C to 50°C.
Image: Operation in Bad Weather. This image shows the charger in a snowy environment, indicating its robust design for outdoor use.
Image: IP65 Rating. This icon visually confirms the charger's protection against dust ingress and low-pressure water jets.
Image: Temperature Range. This graphic illustrates the wide operational temperature range, from extreme cold to significant heat, ensuring reliability in diverse climates.
Image: Carrying Bag. This image shows the included professional bag, designed for convenient transport and storage of the charger.
КСНУМКС. Решавање проблема
If you encounter issues with your FNRIDS EV charger, refer to the following common problems and solutions.
| Проблем | Индикатор/Дисплаи | Могући узрок / решење |
|---|---|---|
| Пуњач се не покреће | First solid green light | Charger is waiting for connection. Ensure both CEE plug and Type 2 connector are securely plugged in. Check vehicle's charging settings. |
| Пуњење се неочекивано зауставља | Трепћуће црвено светло | Indicates a failure. Disconnect and reconnect the charger. Check for power fluctuations or vehicle errors. |
| Црвено светло је стално | Стално црвено светло | Indicates 'off-the-ground mode'. This suggests a grounding issue with the power outlet. Consult an electrician to verify the outlet's grounding. Do not use if grounding is faulty. |
| No display/power | Екран искључен | Check if the CEE plug is fully inserted into a live power socket. Verify the power outlet is functioning. |
| Cannot change current | Н/А | Current can only be changed before charging begins. Disconnect from the vehicle, adjust current, then reconnect. |
If the problem persists after attempting these solutions, please contact FNRIDS customer service for further assistance.
8. Спецификације
| Феатуре | Детаљ |
|---|---|
| Бранд | ФНРИДС |
| Модел | 7.2 kW Type 2 Portable EV Charger |
| Повер | 7.2 кВ |
| Адјустабле Цуррент | 10А / 16А / 20А / 24А / 32А |
| Улазни волtage | 250 Волтс |
| Connector Type (Vehicle) | ИЕЦ 62196-2 (Тип 2) |
| Plug Type (Wall) | ЦЕЕ Плуг |
| Цабле Ленгтх | 5 метара |
| ИП Ратинг | IP67 (as per product title) / IP65 (as per feature bullet and image) |
| Димензије производа (Д к Ш к В) | 40 к 38 к 12 цм |
| Тежина артикла | 3.53 килограма |
| Цертификати | CE, IEC, TÜV |
| Портабле | Да |
9. Гаранција и подршка
FNRIDS is committed to providing high-quality products and excellent customer service.
- гаранција: Овај производ долази са једногодишњом гаранцијом од датума куповине.
- техничка подршка: Lifetime technical support is available for all FNRIDS products.
- Контактирајте нас: For any questions, issues, or to request further instructions, please contact FNRIDS customer service. We are dedicated to resolving any product-related concerns efficiently.
