Увод и безбедносне информације
Thank you for choosing the Caydo 50W LED UV Exposure Unit. This manual provides essential information for the proper setup, operation, and maintenance of your device. Please read all instructions carefully before use to ensure safety and optimal performance.
Важна безбедносна упозорења:
- UV Light Exposure: The unit emits UV light. Avoid direct eye and skin exposure to the UV light. Always wear appropriate UV protective eyewear and clothing during operation.
- електрична безбедност: This unit operates at 120V. Ensure your power outlet matches this voltage. The unit features a 3-prong grounded plug design for safety, reducing electric shock risk. Do not modify the plug or use ungrounded adapters.
- Ограничење употребе: To prevent overheating and ensure longevity, limit continuous operation to no more than 15 minutes at a time. After 15 minutes of use, turn off the unit and allow it to cool for at least 30 seconds before resuming operation.
- вентилација: Обезбедите одговарајућу вентилацију око уређаја током рада.
- Деца и кућни љубимци: Држите уређај ван домашаја деце и кућних љубимаца.
Слика 1: The 3-prong grounded plug design ensures electrical safety by reducing shock risk. A 2-pin plug lacks this grounding, increasing risk.
Упутства за подешавање
Follow these steps to assemble and prepare your Caydo 50W LED UV Exposure Unit for use.
1. Распакивање и провера компоненти:
- Пажљиво уклоните све компоненте из паковања.
- Verify that all listed components are present: 1 x UV Exposure Light Unit, 1 x Retractable and Adjustable Stand, 1 x User Manual.
- Inspect all parts for any signs of damage. If any parts are damaged or missing, contact customer support immediately.

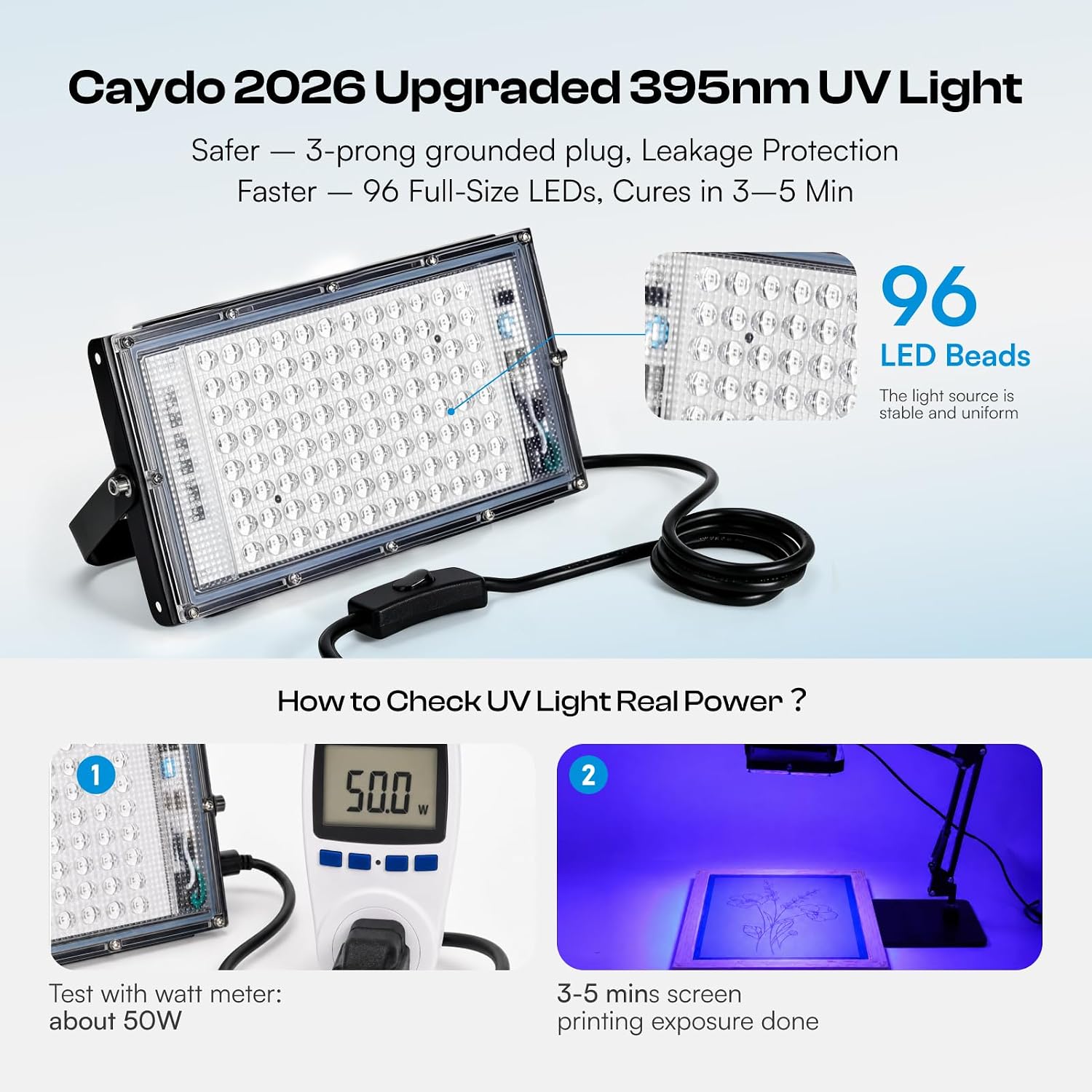

Слика 2: Unpacked components of the Caydo 50W LED UV Exposure Unit, including the light panel and adjustable stand.
2. Assembling the Stand:
- Attach the base to the main vertical pole of the stand. Ensure it is securely fastened. The textured base (weight 730.5g, size 25 x 15 cm) provides stability.
- Connect the adjustable arm to the vertical pole.
- Mount the UV exposure light unit to the adjustable arm. Use the provided fasteners to secure it firmly.
3. Повезивање напајања:
- Plug the 3-prong power cord into a compatible 120V grounded electrical outlet.
- The power cord includes an in-line ON/OFF switch for convenient control.
Упутство за употребу
This section details how to use your UV exposure unit for screen printing and cyanotype applications.
1. Adjusting Height and Angle:
- Loosen the adjustment knobs on the stand to modify the height and angle of the UV light unit.
- Position the light unit directly above your screen or cyanotype material.
- Tighten the knobs to secure the light unit in the desired position. Different heights will affect exposure times.
Слика 3: The adjustable stand allows for varying heights and angles to suit different project needs.
2. Exposure Process:
- Place your prepared screen (with emulsion) or cyanotype material under the UV light unit.
- Ensure you are wearing UV protective eyewear before turning on the light.
- Flip the ON/OFF switch on the power cord to activate the UV light. The 50W UV light has a wavelength of 395nm.
- Време излагања светлу: The typical exposure time for photosensitive emulsion is approximately 3 to 5 minutes. This duration can vary based on the emulsion thickness, the distance of the light from the material, and environmental factors. Conduct test exposures to determine the optimal time for your specific materials and setup.
- After the desired exposure time, turn off the UV light using the switch.
- Adhere to the 15-minute continuous use limit and 30-second cool-down period.
Слика 4: The UV exposure unit in operation, demonstrating the exposure process for screen printing.
3. Пријаве:
The Caydo 50W LED UV Exposure Unit is suitable for a wide range of applications, including:
- Traditional screen printing emulsion exposure.
- Cyanotype printing.
- Curing UV resin for crafts and jewelry.
- Curing gel nails (with appropriate precautions and timing).
Слика 5: Examples of the diverse applications for the Caydo UV Exposure Unit.
Одржавање
Proper maintenance ensures the longevity and optimal performance of your UV exposure unit.
1. Чишћење:
- Увек искључите јединицу из извора напајања пре чишћења.
- Use a soft, dry cloth to wipe down the exterior of the light unit and stand.
- For the light panel, use a soft, lint-free cloth. If necessary, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the LED beads or housing.
- Ensure the unit is completely dry before plugging it back in or storing it.
2. Складиштење:
- Store the unit in a cool, dry place away from direct sunlight and excessive dust.
- If storing for extended periods, consider disassembling the stand and packing the components in their original packaging or a protective case.
3. Heat Management:
The unit is designed with efficient heat management to prevent overheating. The PC lampshade material can withstand temperatures up to 150°C. Always adhere to the recommended usage limits (15 minutes on, 30 seconds off) to allow for proper cooling and maintain optimal performance.
Слика 6: The unit features efficient heat management to ensure stable operation.
Решавање проблема
If you encounter issues with your Caydo 50W LED UV Exposure Unit, refer to the following common problems and solutions.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Јединица се не укључује. | Нема напајања; лабава веза; неисправан прекидач. | Check if the power cord is securely plugged into a live outlet. Ensure the ON/OFF switch is in the 'ON' position. Test the outlet with another device. |
| Uneven exposure or poor curing. | Incorrect light distance; insufficient exposure time; uneven emulsion application. | Adjust the light unit's height to ensure even coverage. Increase exposure time. Ensure emulsion is applied uniformly. Conduct test exposures to fine-tune settings. |
| Уређај се неочекивано искључује. | Прегревање услед дуже употребе. | This is a safety feature. Allow the unit to cool down for at least 30 seconds after 15 minutes of continuous use. Ensure proper ventilation. |
| Light output seems weak. | Dust or debris on the light panel; aging LEDs (unlikely for new unit). | Clean the light panel as described in the Maintenance section. If the issue persists, contact customer support. |
If these solutions do not resolve the issue, please contact Caydo customer support for further assistance.
Спецификације производа
Detailed technical specifications for the Caydo 50W LED UV Exposure Unit, Model S-039E.
- Број модела: С-039Е
- Снага: 50 Ваттс
- Волtage: 120 волти (АЦ)
- Тип извора светлости: ЛЕД (диода која емитује светлост)
- УВ таласна дужина: 395 нм
- Број ЛЕД перли: 96 (Full-Size LEDs)
- Product Dimensions (Light Unit): Approximately 24 cm (9.5 inches) L x 13 cm (5.1 inches) W
- Димензије производа (укупне): 33 к 19.2 к 9 цм (Д к Ш к В)
- Тежина артикла: 1.92 Kilograms (including stand)
- Основна тежина: 730.5 г
- Основне димензије: 25 к 15 цм
- Боја: Црно
- Материјал: Metal housing, PC lampхладовина
- Карактеристике: ON/OFF switch button, adjustable angle and height lamp stand, textured stable base, uniform illumination, high energy output, 3-5 minute exposure time.
- Укључене компоненте: UV Exposure Light Unit, Light Stand, User Manual.
Гаранција и подршка
Caydo is committed to providing high-quality products. For any questions, concerns, or technical support regarding your 50W LED UV Exposure Unit, please contact our customer service team. Please have your model number (S-039E) and purchase information ready when contacting support.
Specific warranty details may vary by region and retailer. Please refer to your purchase documentation or contact the seller for information regarding warranty coverage and return policies.
