Ledvion Motion Detector (Model: Noir) User Manual

Увод

This manual provides detailed instructions for the installation, operation, and maintenance of your Ledvion Motion Detector. This 360-degree motion sensor is designed for both indoor and outdoor use, featuring a day/night sensor and an 8-meter detection range. Please read this manual carefully before installation and use to ensure proper function and safety.

The motion detector is made from durable black plastic and is designed to integrate seamlessly with various environments. It can be connected to incandescent lamps up to 1200W and LED lampс до 600В.

Производ је завршенview

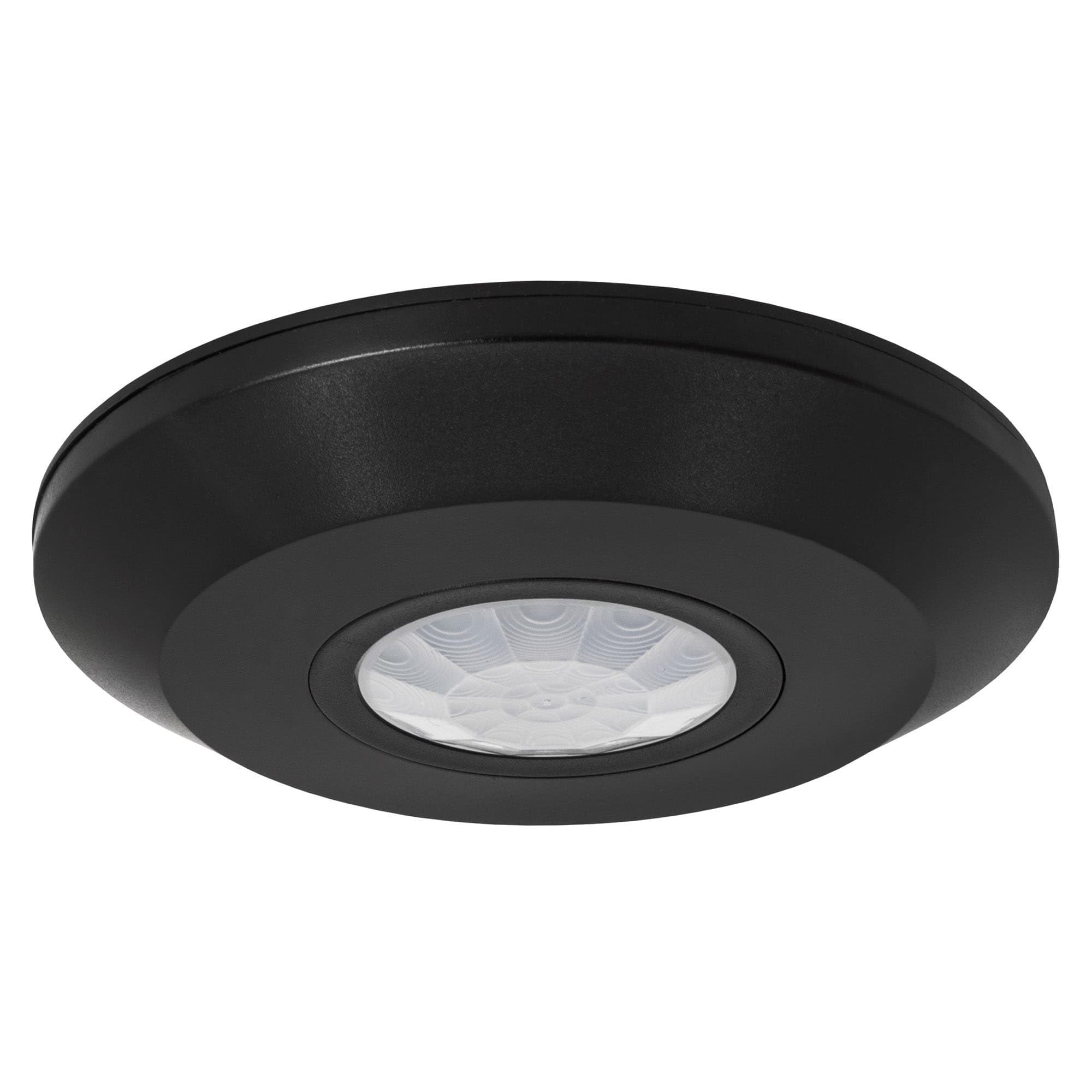

Слика 1: Предња страна view of the Ledvion Motion Detector. This image shows the sleek black design with the central sensor dome.

The Ledvion Motion Detector is a compact, ceiling-mountable device designed to automatically switch connected lighting based on detected movement and ambient light levels. Its 360-degree detection capability ensures comprehensive coverage.

Кључне карактеристике:

• 360-Degree Detection: Provides full area coverage.
• Day/Night Sensor (LUX Adjustment): Allows adjustment of ambient light threshold for activation.
• Подесиво временско кашњење: Configurable lighting duration from 10 seconds to 30 minutes.
• Широки опсег детекције: До 8 метара.
• Висина инсталације: Optimal performance between 2.2 and 4 meters.
• Висока носивост: Supports incandescent lamps up to 1200W and LED lampс до 600В.
• Издржљива конструкција: IP65 protection rating, suitable for indoor and outdoor use.

Безбедносне информације

• Увек искључите напајање пре инсталације или одржавања.
• Инсталацију треба да обави квалификовани електричар ако нисте сигурни.
• Do not exceed the maximum load capacity for connected lighting.
• Ensure the mounting surface is stable and can support the device.
• Keep the device away from direct heat sources or excessive moisture.

Подешавање и инсталација

The Ledvion Motion Detector is designed for quick and easy installation using the provided screws and wall plugs.

Кораци инсталације:

1. Изаберите локацију: Select a suitable location on the ceiling, ensuring it is within the recommended installation height of 2.2 to 4 meters. The detection range is up to 8 meters, so consider the area you wish to cover.
2. Искључите напајање: Before beginning any electrical work, ensure the main power supply to the installation area is switched off at the circuit breaker.
3. Монтажа:
   • Carefully detach the mounting base from the detector unit.
   • Position the mounting base on the desired ceiling location and mark the drilling points.
   • Избушите рупе и уметните приложене зидне типлове.
   • Secure the mounting base to the ceiling using the provided screws.
4. Ожичење:
   • Connect the electrical wires to the terminals on the detector unit according to the wiring diagram (refer to the diagram on the device or packaging if available). Typically, this involves Live (L), Neutral (N), and Switched Live (L').
   • Уверите се да су сви прикључци сигурни и правилно изоловани.
5. Attach Detector: Once wiring is complete, carefully attach the detector unit to the mounting base, ensuring it clicks securely into place.
6. Врати снагу: Switch the main power supply back on.

Слика 2: Прample of the motion detector installed on a wall, demonstrating its discreet design.

Figure 3: Illustration of the 360-degree detection range and recommended installation height (2.2 - 4 meters) with an 8-meter detection distance.

Упутство за употребу

The Ledvion Motion Detector features adjustable settings for both ambient light (LUX) and time delay (TIME).

Подешавање подешавања:

The adjustment dials are typically located on the detector unit, often under a removable cover or on the back. Refer to Figure 4 for an exampле.

Слика 4: View of the adjustable dials for TIME and LUX settings on the motion detector.

1. Временско кашњење (TIME): This setting determines how long the connected light remains on after motion is no longer detected.
   • Rotate the "TIME" dial to set the desired duration.
   • The range is typically from a minimum of 10 seconds to a maximum of 30 minutes.
2. Амбијентално светло (LUX): This setting determines the ambient light level at which the detector will activate.
   • Rotate the "LUX" dial.
   • Setting it towards the "sun" symbol (higher LUX value) means the detector will only activate in brighter conditions (e.g., during the day).
   • Setting it towards the "moon" symbol (lower LUX value) means the detector will activate in darker conditions (e.g., only at night or in low light).
   • The adjustable range is typically between 3 and 2000 LUX.

тестирање: After adjusting settings, test the detector by moving within its detection zone. Observe if the light activates as expected and stays on for the set duration.

Одржавање

The Ledvion Motion Detector requires minimal maintenance to ensure optimal performance.

• Чишћење: Periodically wipe the sensor lens and housing with a soft, dry cloth to remove dust or dirt. Do not use abrasive cleaners or solvents.
• инспекција: Regularly check for any visible damage to the housing or wiring. If damage is found, disconnect power and have it inspected by a qualified technician.
• Препреке: Ensure there are no new obstructions (e.g., furniture, plants) blocking the sensor's field of view, which could affect detection performance.

Решавање проблема

If problems persist after attempting these solutions, please contact Ledvion customer support.

Спецификације

Figure 5: Dimensions of the Ledvion Motion Detector.

Гаранција

This Ledvion product comes with a 2 година гаранције from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.

Figure 6: Warranty information, emphasizing the product's durable construction.

Сачувајте доказ о куповини за гаранцијске захтеве.

Подршка

For further assistance, technical support, or warranty inquiries, please contact Ledvion customer service through their official webсајт или продавницу где је производ купљен.

Више информација и контакт податке можете пронаћи на Ledvion Brand Store.
