Timex TW2V72300ZV

Timex Marlin Jet Automatic 38mm Watch

Instruction Manual - Model TW2V72300ZV

Увод

This manual provides essential information for the proper setup, operation, maintenance, and care of your Timex Marlin Jet Automatic 38mm Watch. Please read these instructions carefully to ensure optimal performance and longevity of your timepiece.

Your Timex Marlin Jet watch features an automatic self-winding mechanical movement, which is powered by the motion of your wrist. It does not require a battery.

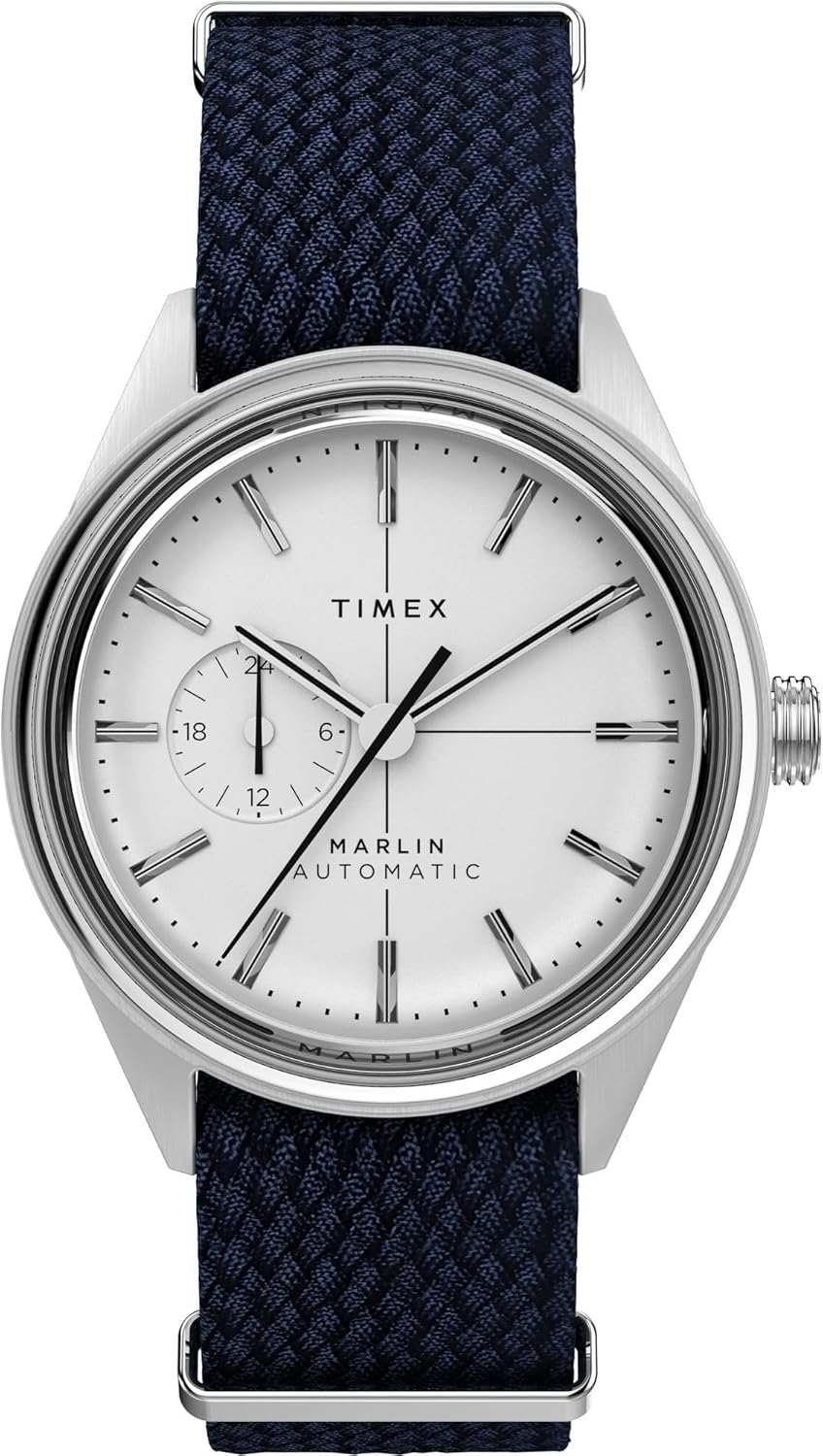

Timex Marlin Jet Automatic 38mm watch with a white dial, stainless steel case, and blue fabric strap.

Image: The Timex Marlin Jet Automatic 38mm watch, showcasing its white dial, polished stainless steel case, and blue fabric slip-thru strap.

Сетуп

1. Почетно навијање

Since your watch is automatic, it is powered by motion. If the watch has stopped or is running low on power, it may need an initial manual wind. To manually wind the watch:

  1. Gently pull the crown (the small knob on the side of the watch) out to position 1 (time setting position).
  2. Rotate the crown clockwise approximately 20-30 times. This will build up a power reserve.
  3. Push the crown back into its normal operating position.
  4. The watch will also wind itself as you wear it throughout the day.

2. Подешавање времена

To set the time on your Timex Marlin Jet Automatic watch:

  1. Pull the crown out to position 1 (the outermost position).
  2. Rotate the crown in either direction to move the hands until the desired time is displayed.
  3. Када подесите време, вратите круницу у нормалан радни положај (положај 0).

3. Подешавање каиша

Your watch comes with a blue slip-thru fabric strap. To adjust the fit:

  • Thread the strap through the spring bars on the watch case.
  • Adjust the strap length by pulling it through the buckle until it fits comfortably and securely on your wrist.
  • Ensure the buckle is fastened correctly.

Video: Timex Sizing Chart. This video provides a visual guide on how different Timex watch case sizes appear on wrists of varying dimensions, helping users determine the ideal watch size for their wrist.

Управљање сатом

Аутоматиц Мовемент

The Timex Marlin Jet Automatic watch is powered by an automatic mechanical movement. This means the watch is wound by the natural motion of your arm and wrist. When worn regularly, the watch should maintain its power reserve. If the watch is not worn for an extended period (typically 40 hours or more), it may stop and require manual winding as described in the 'Initial Winding' section.

Water Resistance (50 Meters / 5 ATM)

Your watch is water resistant up to 50 meters (5 ATM). This means it is suitable for short periods of recreational swimming, showering, or washing hands. It is не погодно за роњење, роњење са маском или дуже активности на води. Увек се уверите да је круница потпуно утиснута пре било каквог контакта са водом.

  • немој operate the crown while the watch is wet or submerged in water.
  • Избегавајте излагање сата екстремним температурним променама, које могу утицати на његову водоотпорност.

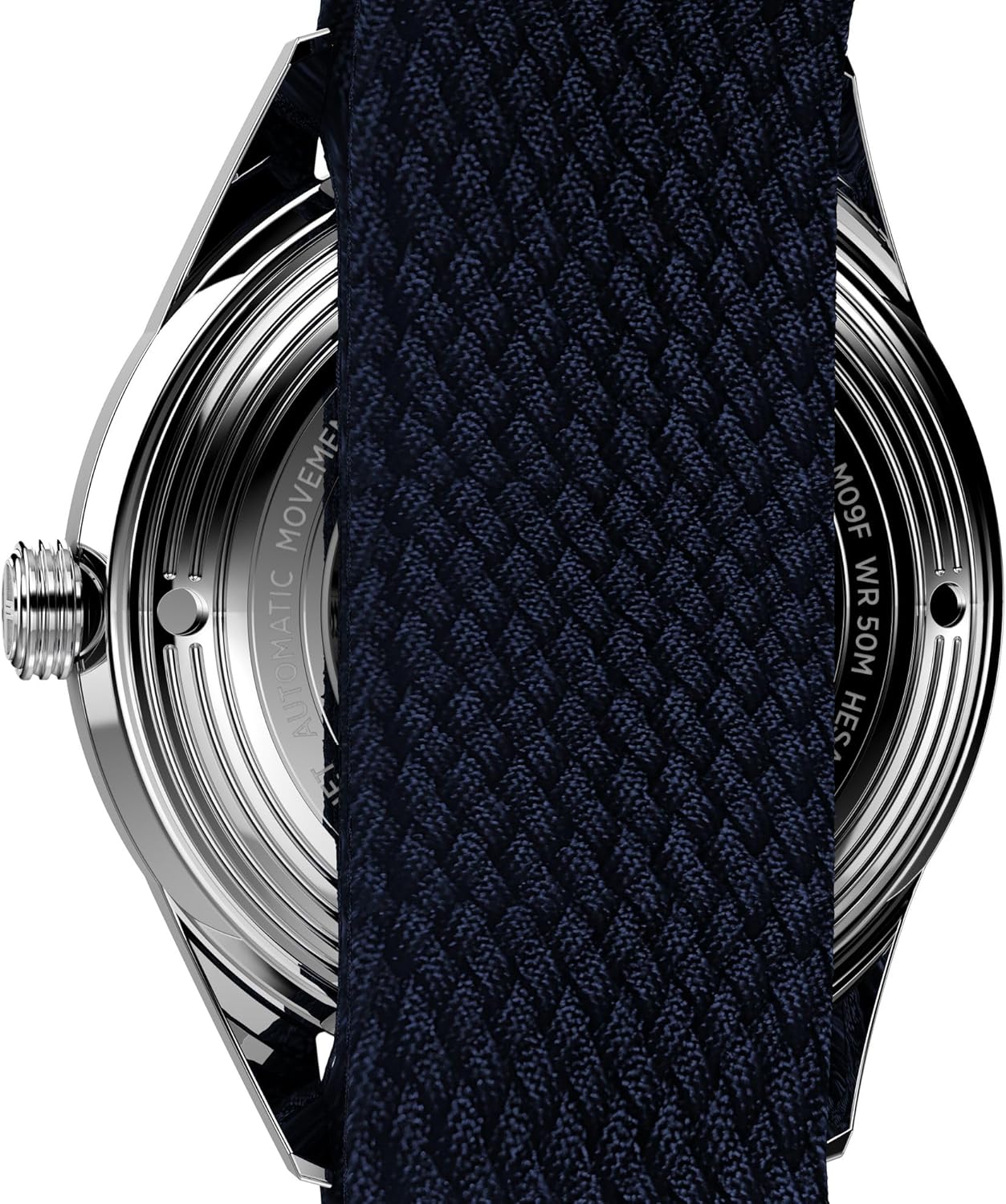

Close-up of the Timex Marlin Jet Automatic watch case back, showing 'AUTOMATIC MOVEMENT' and 'WR 50M' engravings.

Image: Close-up of the watch case back, indicating 'AUTOMATIC MOVEMENT' and 'WR 50M' (Water Resistant 50 Meters).

Одржавање

Чишћење сата

To keep your watch looking its best:

  • Wipe the case and crystal with a soft, dry cloth.
  • For the fabric strap, a mild soap and water solution can be used with a soft brush, then rinse thoroughly and allow to air dry completely before reattaching to the watch or wearing.
  • Избегавајте употребу јаких хемикалија или абразивних материјала, јер они могу оштетити завршну обраду сата.

Складиштење

When not wearing your watch, store it in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, consider placing it in a watch winder to keep the automatic movement running and lubricated.

Avoiding Magnetic Fields

Automatic watches can be affected by strong magnetic fields, which may cause them to run inaccurately. Keep your watch away from strong magnets found in speakers, refrigerators, and certain electronic devices.

Угаони предњи део view of the Timex Marlin Jet Automatic watch, showcasing the white dial and blue fabric strap.

Слика: Под углом view of the Timex Marlin Jet watch, highlighting the dial and strap texture.

Решавање проблема

Сат не ради

If your automatic watch has stopped, it likely needs to be wound. Wear the watch for several hours or manually wind it by rotating the crown clockwise 20-30 times while it is in position 0 (fully pushed in). Consistent daily wear should keep the watch powered.

Нетачност времена

Minor variations in timekeeping are normal for mechanical watches. However, if your watch is consistently running too fast or too slow, consider the following:

  • Insufficient Winding: Ensure the watch is adequately wound by wearing it regularly or manually winding it.
  • Магнетне сметње: Check if the watch has been exposed to strong magnetic fields. If so, demagnetization by a professional watchmaker may be required.
  • Утицај: A strong impact could affect the movement. If the issue persists, professional inspection is recommended.

Спецификације

Назив модела Marlin Jet Automatic
Број модела TW2V72300ZV
Пречник кућишта 38 мм
Материјал кућишта нерђајући челик
Боја бирања Бела
Цристал Акрил
Мовемент Типе Аутоматско самонавијање
Отпорност на воду 50 метара (5 банкомата)
Тип траке Fabric (Blue slip-thru double layer)
Банд Видтх 19 мм
Банд Ленгтх 8 инча
Тип копче Копча

Информације о гаранцији

Your Timex Marlin Jet Automatic watch is covered by a Limited Warranty. The terms and conditions of this warranty typically cover manufacturing defects in materials and workmanship under normal use. The warranty period and specific coverage details may vary by region.

For complete and up-to-date warranty information, please refer to the official Timex webсајт или гарантни лист који сте добили уз куповину. Сачувајте доказ о куповини за потребе подношења захтева за гаранцију.

Корисничка подршка

Should you require assistance with your Timex Marlin Jet Automatic watch, or if you have questions not covered in this manual, please contact Timex customer service.

  • Посетите званичника Timex продавница на Амазону за више информација о производу и ресурсе за подршку.
  • Refer to the contact information provided on the Timex official website for direct customer service inquiries.
