Truper BASE-3 Digital Precision Scale User Manual

1. Увод

This manual provides instructions for the proper use and maintenance of your Truper BASE-3 Digital Precision Scale. Please read this manual thoroughly before operating the device to ensure safe and efficient use. This scale is designed for precise weighing of various items up to 3 kg.

2. Карактеристике производа

• LCD Display with Green Backlight: Provides enhanced visibility of measurements in various lighting conditions.
• Removable Stainless Steel Plate: Durable and easy to clean, designed for hygiene and convenience.
• Функција таре: Allows you to subtract the weight of a container to obtain the net weight of its contents.
• Компактан и лаган дизајн: Ensures portability and easy storage.
• Сензор високе прецизности: Delivers accurate and reliable measurements.
• Piece Counting Function: Facilitates counting multiple small items of uniform weight.
• Опције двоструког напајања: Operates for up to 31 hours with its rechargeable battery or 20 hours with standard batteries.

Image 1: Truper BASE-3 Digital Precision Scale highlighting its key components: the removable stainless steel plate, the LCD display with green backlight, and the durable ABS body.

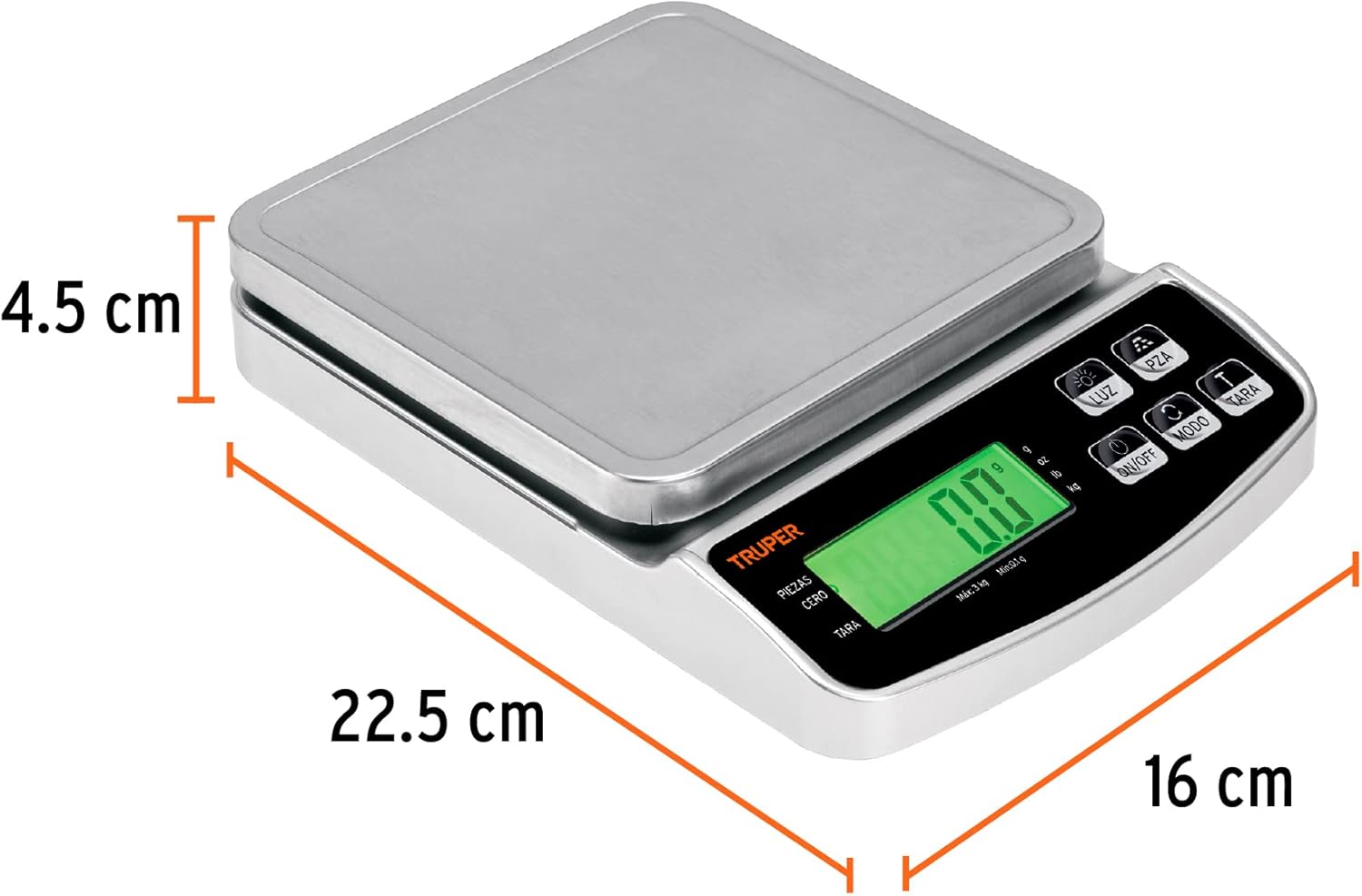

Image 2: The Truper BASE-3 Digital Precision Scale with its physical dimensions indicated for reference.

3. Подешавање

1. Распакивање: Пажљиво извадите вагу из амбалаже. Сачувајте амбалажу за будуће складиштење или транспорт.
2. Извор напајања: The scale operates on a rechargeable battery and can also use standard batteries. Ensure the rechargeable battery is charged or insert fresh standard batteries if needed.
3. Пласман: Place the scale on a firm, flat, and stable surface to ensure accurate readings. Avoid placing it on soft or uneven surfaces.
4. Почетно укључивање: Press the 'ON/OFF' button to turn on the scale. The display should light up and show '0.00'.

4. Операција

4.1. Укључивање/искључивање

• Да бисте укључили вагу, притисните дугме ОН/ОФФ дугме.
• Да бисте искључили вагу, притисните и држите ОН/ОФФ button for a few seconds until the display turns off. The scale also features an auto-off function to conserve battery power.

4.2. Конверзија јединица

The scale supports multiple units of measurement. To change the unit:

1. Са укљученом вагом, притисните УНИТ button (often labeled 'g/oz' or 'MODE').
2. Each press will cycle through available units such as grams (g), kilograms (kg), pounds (lb), and ounces (oz).
3. Select your desired unit before weighing.

4.3. Функција тарирања

The Tare function allows you to weigh items in a container without including the container's weight.

1. Place an empty container on the scale's stainless steel plate.
2. Wait for the display to stabilize and show the container's weight.
3. Притисните тастер ТАРЕ button. The display will reset to '0.00'.
4. Add the items you wish to weigh into the container. The display will now show only the net weight of the items.
5. To clear the tare, remove all items and the container from the scale, then press the ТАРЕ button again if the display does not automatically return to '0.00'.

4.4. Piece Counting Function

This function is useful for counting a large number of small, uniform items.

1. Turn on the scale and ensure the display shows '0.00'.
2. Place a known quantity of items (e.g., 10, 20, 50, or 100 pieces) on the scale.
3. Притисните и држите ПЦС (Piece Counting) button until a number (e.g., '25', '50', '100') appears on the display.
4. Користите УНИТ дугме за одабир сample size that matches the number of items you placed on the scale.
5. Притисните тастер ПЦС button again to confirm. The display will now show the count of the sampле.
6. Uklonite sample items. The display should return to '0.00'.
7. You can now place any quantity of the same items on the scale, and it will display the count.

5. Одржавање

• Чишћење: Обришите вагу меком, дamp cloth. Do not use abrasive cleaners or immerse the scale in water. The stainless steel plate can be removed for separate cleaning.
• Складиштење: Чувајте вагу на хладном и сувом месту. Избегавајте екстремне температуре и влажност.
• Одржавање батерије: If using standard batteries, remove them if the scale will not be used for an extended period to prevent leakage. For the rechargeable battery, ensure it is charged periodically to maintain its lifespan.
• Руковање: Handle the scale with care. Avoid dropping it or subjecting it to strong impacts, as this can affect its precision.

КСНУМКС. Решавање проблема

If you encounter issues with your Truper BASE-3 scale, consider the following:

• Нетачна очитавања: Ensure the scale is on a flat, stable surface. Check if the battery is low and replace or recharge if necessary. Avoid placing the scale near strong electromagnetic fields.
• Екран се не укључује: Verify that the batteries are correctly installed and have sufficient charge. If using the rechargeable battery, ensure it is charged.
• Scale Not Responding: Try turning the scale off and on again. If the issue persists, remove and reinsert the batteries (if applicable) or fully charge the rechargeable battery.

For persistent problems, please contact Truper customer support.

7. Спецификације

8. Гаранција и подршка

The Truper BASE-3 Digital Precision Scale comes with a 1-year warranty from the date of purchase. For warranty claims, technical support, or any inquiries, please refer to the contact information provided on the product packaging or visit the official Truper webсајту.

Image 3: Product packaging for the Truper BASE-3 scale, which typically contains detailed warranty and support information.
