1. Важне информације о безбедности
Please read all instructions carefully before using your new Krib Bling Compact Chest Freezer. Keep this manual for future reference.
- електрична безбедност: Ensure the freezer is plugged into a grounded electrical outlet with the correct voltagе (120 волти). Не користите продужне каблове.
- вентилација: Maintain adequate space around the freezer for proper air circulation. Do not block ventilation openings.
- Пласман: Place the freezer on a firm, level surface away from direct sunlight, heat sources, and extreme cold.
- Безбедност деце: Supervise children to ensure they do not play with the appliance. Old freezers can be dangerous if children get trapped inside.
- Запаљиви материјали: Не складиштите експлозивне материје као што су аеросолне лименке са запаљивим горивом у овом уређају.
- Одмрзавање: Use only the provided defrosting scraper or plastic tools. Do not use sharp metal objects to remove ice.
2. Производ је готовview
The Krib Bling 3.5 Cu.Ft Compact Chest Freezer is designed for efficient and convenient frozen food storage in various settings, including homes, kitchens, and offices. Its compact size and thoughtful features make it a versatile appliance.
Figure 2.1: Premium Features of the Krib Bling Chest Freezer, including a removable basket, fixed lid position, antifouling interior, drain hole, and a defrosting scraper.

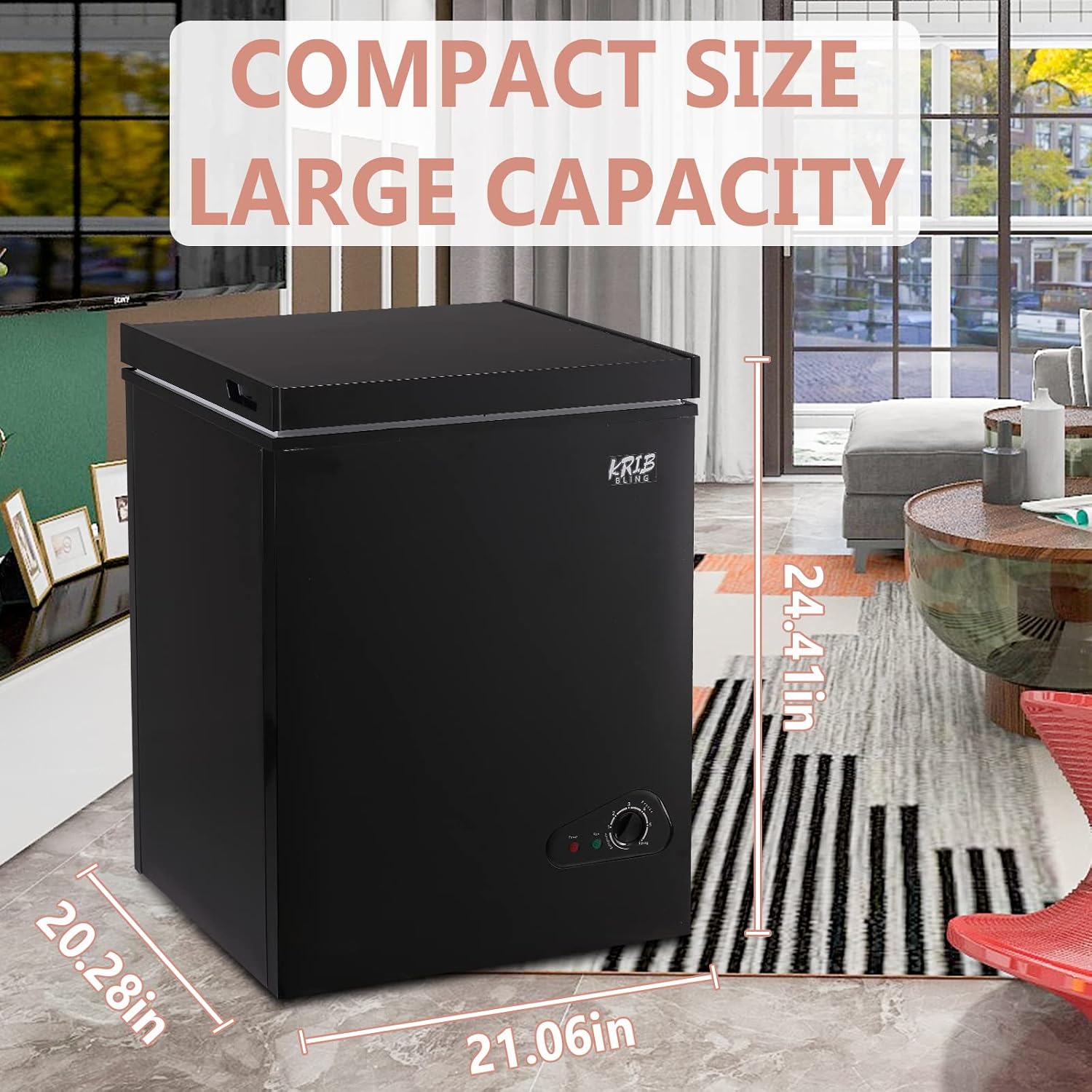

Figure 2.2: The compact dimensions of the Krib Bling Chest Freezer (20.28''D x 21.06''W x 24.41''H) allow for placement in various small spaces.
Кључне карактеристике:
- Компактан дизајн: Ideal for small spaces like apartments, offices, or garages.
- Flexible Temperature Control: External adjustable thermostat with 7 temperature levels.
- Уклоњива корпа: За организовано складиштење мањих предмета.
- Рад са ниским нивоом буке: Ради на приближно 38 dB.
- Енергетски ефикасан: Дизајниран за ниску потрошњу енергије.
- Издржљив материјал: Stain-resistant interior for easy cleaning.
3. Подешавање и инсталација
3.1 Распакивање
Carefully remove all packaging materials, including any protective film or tape. Inspect the freezer for any signs of damage during transit. It is recommended to keep the freezer upright for at least 24 hours before plugging it in to allow the refrigerant to settle.
3.2 Постављање
Choose a location that is dry, well-ventilated, and away from direct sunlight or heat sources (e.g., stove, radiator). Ensure there is sufficient space around the freezer for proper air circulation (at least 4 inches on all sides and top). Place the freezer on a strong, level floor to prevent vibrations and ensure proper operation.
Figure 3.1: The compact design allows for flexible placement in various rooms, such as a living area or kitchen corner.
3.3 Почетно укључивање
After allowing the freezer to stand upright for 24 hours, plug it into a dedicated 120V grounded outlet. The power indicator light will illuminate. Allow the freezer to cool down for several hours before loading it with food.
Видео 3.1: Оверview of the Krib Bling Chest Freezer, demonstrating its compact size, interior space, and temperature control dial. This video highlights the ease of setup and general appearance of the black model.
4. Упутство за употребу
4.1 Подешавање температуре
Your Krib Bling chest freezer features an external adjustable thermostat with 7 temperature levels. The dial is located on the lower front panel of the freezer.
- Rotate the dial to select your desired temperature setting.
- Setting 1 is the least cold, suitable for items that need to be kept cool but not deeply frozen.
- Setting 7 provides the deepest freeze for long-term storage of frozen goods.
- Adjust the setting gradually and monitor the internal temperature to find the optimal level for your needs.
Figure 4.1: The freezer offers a 7-level temperature range, allowing precise control for various freezing needs.
Figure 4.2: Close-up of the external temperature control dial, offering 7 levels of adjustment for optimal freezing.
4.2 Пуњење замрзивача
The 3.5 Cu.Ft capacity provides ample space for various frozen items. Utilize the removable basket for smaller, frequently accessed items to prevent them from being crushed or lost at the bottom.
Figure 4.3: The 3.5 Cu.Ft interior with a removable basket, suitable for organizing various frozen foods.
Figure 4.4: Store a variety of items, from meats and seafood to ice cream and beverages, to maintain freshness.
5. Одржавање
5.1 Одмрзавање
Over time, frost may build up inside the freezer. For optimal performance and energy efficiency, defrost the freezer when the frost layer is about 0.2 inches (5 mm) thick.
- Искључите замрзивач из утичнице.
- Извадите све намирнице и чувајте их у другом замрзивачу или хладњаку.
- Open the lid and place a towel or shallow pan under the drainage hole located at the bottom of the freezer to collect water.
- Use the provided defrosting scraper to gently remove ice. Do not use sharp metal objects.
- Након одмрзавања, обришите унутрашњост сувом меком крпом.
- Plug the freezer back in and allow it to cool before returning food.
Figure 5.1: Use the provided defrosting scraper to safely remove ice buildup.
Figure 5.2: The convenient drainage hole facilitates water removal during defrosting.
5.2 Чишћење
The interior of the freezer is made of stain-resistant material, making it easy to clean.
- Искључите замрзивач пре чишћења.
- Обришите унутрашњост меком крпом dampнапуњен благим детерџентом и водом.
- For the exterior, use a soft cloth and a mild cleaner. Avoid abrasive cleaners or solvents.
- Ensure all surfaces are dry before plugging the freezer back in.
КСНУМКС. Решавање проблема
If you experience issues with your freezer, refer to the following common problems and solutions:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Замрзивач не ради. | No power, tripped circuit breaker, or unplugged. | Проверите напајање, ресетујте прекидач, уверите се да је утикач добро учвршћен. |
| Замрзивач није довољно хладан. | Temperature setting too high, door not closed properly, excessive frost, or warm environment. | Adjust temperature to a lower setting, ensure door seal is tight, defrost if necessary, move freezer to a cooler location. |
| Прекомерна бука. | Freezer not level, objects touching the back/sides, or normal operating sounds. | Level the freezer, ensure clearance from walls/objects. Some operational noises (e.g., compressor hum) are normal. |
| Врата се не затварају у потпуности. | Food packages obstructing, gasket dirty/damaged, or freezer not level. | Rearrange contents, clean/replace gasket, level the freezer. |
7. Спецификације
Detailed technical specifications for your Krib Bling 3.5 Cu.Ft Compact Chest Freezer:
| Феатуре | Спецификација |
|---|---|
| Димензије производа (Д x Ш x В) | 20.28 cm x 21.06 cm x 24.41 cm |
| Капацитет | 3.5 кубних стопа |
| Боја | Црно |
| Назив модела | ФЛГ |
| Број модела | 72К |
| Волtage | 120 Волтс |
| Ватtage | 300 вати |
| Тежина артикла | 45 фунти |
| Ниво буке | 38 дБ |
| Врста материјала врата | нерђајући челик |
| Врста инсталације | Самостални |
| Укључене компоненте | Basket, Defrosting scraper |
| Цертифицатион | ЕТЛ |
8. Гаранција и корисничка подршка
8.1 Гаранција произвођача
This Krib Bling 3.5 Cu.Ft Compact Chest Freezer comes with a manufacturer's warranty for 1 year from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
8.2 Корисничка подршка
For any questions, technical assistance, or warranty claims, please refer to the contact information provided with your purchase documentation or contact the seller directly. Ensure you have your model number (FLG) and purchase date available when contacting support.
