Wattsaving Level 2 EV Charger User Manual

1. Увод

Thank you for choosing the Wattsaving Level 2 EV Charger. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your electric vehicle charging station. Please read this manual thoroughly before using the product and retain it for future reference.

2. Безбедносне информације

Your safety and the safety of others are paramount. This charger is designed with multiple safety features and is J1772-compliant, built to meet North American safety standards. Always adhere to the following safety guidelines:

• Професионална инсталација: Installation of the NEMA 14-50 outlet should be performed by a qualified electrician in accordance with all local and national electrical codes.
• Употреба на отвореном: The charger features an IP65-rated enclosure, making it durable and resistant to water and dust. However, for optimal longevity, consider installing it under a protective cover or in a sheltered location if exposed to extreme weather.
• Руковање кабловима: Always handle the charging cable and connector with care. Do not use if the cable or connector is damaged. Avoid kinking, crushing, or stretching the cable.
• Хитно заустављање: Familiarize yourself with the emergency stop button on the unit.
• RFID Security: Utilize the RFID tags for secure and authorized charging sessions.
• Деца и кућни љубимци: Држите децу и кућне љубимце даље од места пуњења током рада.

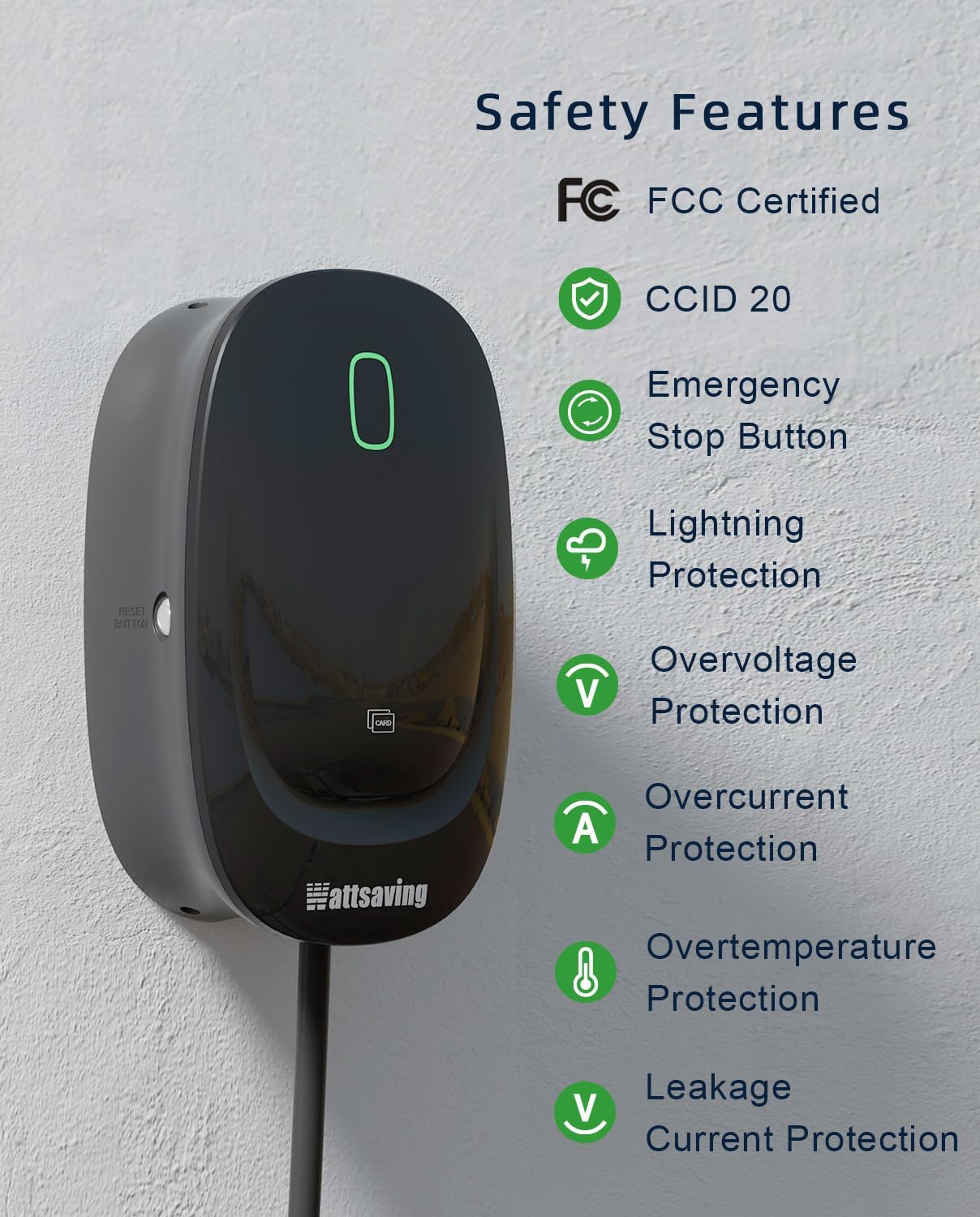

Опис слике: This image highlights the comprehensive safety features of the Wattsaving EV Charger, including FCC certification, CCID 20, emergency stop button, lightning protection, overvoltage protection, overcurrent protection, overtemperature protection, and leakage current protection.

3. Садржај пакета

Приликом распакивања, проверите да ли су укључене све следеће ставке:

• Wattsaving Level 2 EV Charger Unit with integrated 24.6 Ft Cable and J1772 Connector
• NEMA 14-50 Plug (pre-attached)
• Wall Mounting Bracket and Hardware
• RFID Cards (for secure charging activation)
• Кориснички приручник (овај документ)

4. Производ је готовview

The Wattsaving Level 2 EV Charger is designed for efficient and reliable electric vehicle charging at home. It offers fast charging capabilities and robust safety features.

Кључне карактеристике:

• Брзо пуњење: Delivers up to 9.6 kW, adding approximately 30-37 miles of range per hour.
• Универзална компатибилност: Equipped with a J1772 connector, compatible with most electric vehicles in North America.
• Једноставна инсталација: Features a NEMA 14-50 plug for straightforward setup with an existing or newly installed 240V outlet.
• Сигурно пуњење: RFID card enabled for controlled access and secure charging sessions.
• Издржљив дизајн: IP65-rated enclosure provides protection against water and dust, suitable for various environmental conditions.
• Проширени досег: Comes with a 24.6-foot cable for flexible parking and charging options.

Опис слике: The Wattsaving Level 2 EV Charger, featuring a sleek black design, is shown mounted on a wall with its charging cable neatly coiled on an accompanying cable management hook.

Опис слике: The Wattsaving EV Charger is depicted alongside its key specifications: a NEMA 14-50 plug for 40 Amp 240 Volt input, a J1772 connector for universal EV compatibility, RFID card enablement for secure access, and fast charging capabilities adding up to 37 miles of range per hour.

Опис слике: The Wattsaving EV Charger is shown outdoors in rainy conditions, emphasizing its IP65-rated enclosure which ensures durability and protection against water and dust for all weather conditions.

Опис слике: The Wattsaving EV Charger is shown with its 24.6-foot long, 0.82-inch thick cable, designed to be flexible and reach hard-to-access charging ports.

5. Подешавање и инсталација

The Wattsaving Level 2 EV Charger is designed for straightforward installation. It requires a dedicated 240V NEMA 14-50 outlet.

Кораци инсталације:

1. Припремите локацију: Choose a suitable location near your parking area with access to a 240V NEMA 14-50 outlet. Ensure the surface is sturdy enough to support the charger's weight. If a NEMA 14-50 outlet is not present, consult a qualified electrician for proper installation.
2. Монтирајте пуњач: Use the provided mounting bracket and hardware to securely attach the charger unit to the wall. Ensure it is level and firmly fixed.
3. Прикључак: Insert the NEMA 14-50 plug of the charger into the dedicated 240V NEMA 14-50 outlet.
4. Управљање кабловима: Utilize the included cable management hook to neatly store the charging cable when not in use.

Важно: Always ensure the circuit breaker for the NEMA 14-50 outlet is OFF before plugging in or unplugging the charger for the first time or during maintenance.

6. Упутство за употребу

Operating your Wattsaving EV Charger is simple and secure.

Пуњење вашег возила:

1. Activate the Charger (RFID): If RFID security is enabled, swipe one of the provided RFID cards over the designated sensor area on the charger. The indicator light will change, signaling readiness.
2. Повежите се са возилом: Open your vehicle's charging port and firmly insert the J1772 connector from the Wattsaving charger. Ensure it clicks into place.
3. Пуњење почиње: The charger will automatically initiate the charging process. The indicator light on the charger will typically show a specific pattern (e.g., blinking green) to indicate active charging.
4. Пуњење монитора: You can monitor the charging status via your vehicle's dashboard or companion app, if available.
5. Крај пуњења: To end a charging session, first stop the charging from your vehicle (if applicable), then press the release button on the J1772 connector and pull it out from your vehicle's charging port.
6. Кабл за продавницу: Neatly coil the charging cable and hang it on the cable management hook to prevent damage and keep the area tidy.

Управљање РФИД картицама:

The charger comes with RFID cards for secure access. By default, the RFID function might be deactivated. To activate or manage RFID:

• Refer to the specific instructions provided with your charger for enabling/disabling RFID and pairing new cards. This usually involves holding a reset button or specific sequence.
• Once activated, only authorized RFID cards can initiate a charging session.

Опис слике: This image illustrates the ease and security of charging, showing two children confidently connecting the EV charger to a vehicle, symbolizing user-friendly operation.

7. Одржавање

Regular maintenance ensures the longevity and optimal performance of your Wattsaving EV Charger.

• Чишћење: Periodically wipe down the charger unit and cable with a soft, damp крпа. Не користите јаке хемикалије или абразивна средства за чишћење. Уверите се да је уређај искључен из струје пре чишћења.
• Инспекција каблова: Regularly inspect the charging cable and connector for any signs of wear, cuts, fraying, or damage. If any damage is observed, discontinue use immediately and contact customer support.
• Тачке везе: Ensure the NEMA 14-50 plug and the J1772 connector are free from dirt, debris, or moisture before each use.
• Складиштење: When not in use, always store the charging cable neatly on the provided hook to prevent tangling or damage.

КСНУМКС. Решавање проблема

If you encounter issues with your Wattsaving EV Charger, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Wattsaving customer support for assistance.

9. Спецификације

10. Гаранција и подршка

Wattsaving stands behind the quality of its products.

• гаранција: This Wattsaving Level 2 EV Charger comes with a 2 година гаранције од датума куповине. Ова гаранција покрива недостатке у материјалу и изради при нормалној употреби. Молимо вас да сачувате доказ о куповини за потребе подношења захтева за гаранцију.
• техничка подршка: Wattsaving provides exceptional technical support. If you have any questions, require assistance with installation, or encounter any issues not covered in the troubleshooting section, please contact Wattsaving customer service.

For support, please visit the official Wattsaving webсајт или погледајте контакт информације које се налазе на паковању производа.
