Увод
This manual provides detailed instructions for the PUSOKEI SQ11 Mini Camera. Please read this manual carefully before using the product to ensure proper operation and to maximize its lifespan. Keep this manual for future reference.
Безбедносне информације
- Не излажите камеру екстремним температурама, влази или прашини.
- Избегавајте испуштање или излагање камере јаким ударцима.
- Држите камеру даље од воде и других течности.
- Не покушавајте да растављате или модификујете камеру. То ће поништити гаранцију.
- Use only the provided charging cable or a compatible 5V 1A USB power source.
- Ensure the camera is used in compliance with local laws and regulations regarding surveillance.
Садржај пакета
Проверите да ли су све ставке присутне у пакету:
- 1 x PUSOKEI SQ11 Wireless Mini Camera
- 1 к Клип
- 1 к база
- 1 к кабл за пуњење
- 1 к Упутство за употребу
Image: PUSOKEI SQ11 Mini Camera with its accessories, including the camera unit, a mounting clip, a stand base, and a USB charging cable.
Производ је завршенview
The PUSOKEI SQ11 Mini Camera is a compact, high-definition security camera designed for indoor use. It features 1080p video recording, a 160-degree wide-angle lens, and night vision capabilities.

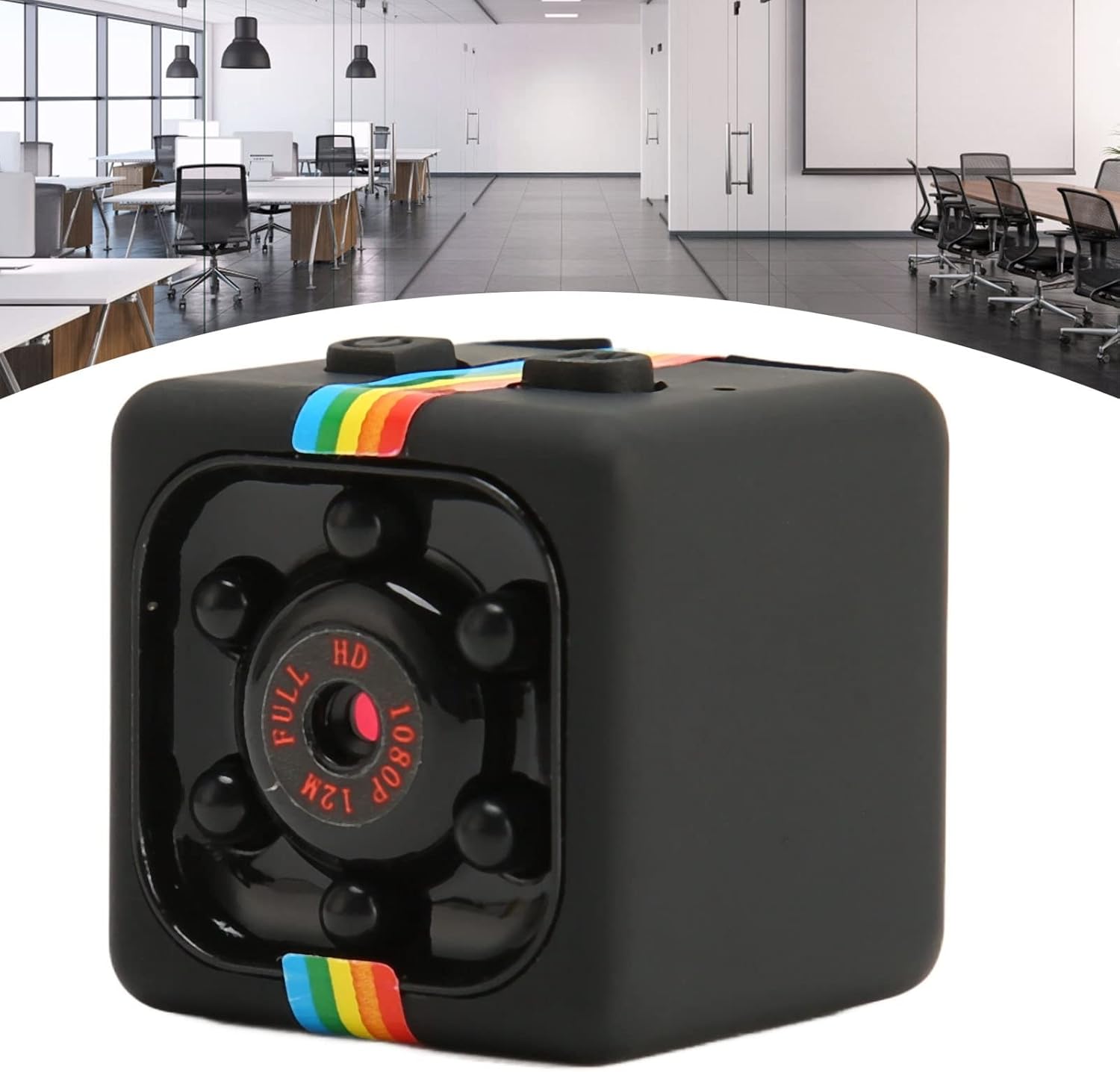

Слика: Фронт view of the PUSOKEI SQ11 Mini Camera, highlighting the lens and surrounding infrared LEDs for night vision.
Компоненте и контроле:
- Објектив: Main camera lens for video capture.
- Индикаторска светла: Status indicators for power, recording, and night vision.
- Дугме за напајање: To turn the camera on/off.
- Дугме за режим: To switch between different recording modes (e.g., video, photo).
- Микро УСБ порт: За пуњење и пренос података.
- Утор за микро СД картицу: For inserting a memory card (up to 32GB).
Сетуп
- Напуните камеру: Before first use, fully charge the camera. Connect the provided USB charging cable to the camera's Micro USB port and to a 5V 1A USB power adapter (not included) or a computer USB port. The indicator light will show charging status and turn off when fully charged.
- Убаците Мицро СД картицу: Insert a Micro SD card (up to 32GB, not included) into the card slot. Ensure the card is inserted correctly until it clicks into place. The camera requires a memory card to record video.
- Монтажа: Attach the camera to the provided clip or base. You can place the camera on a flat surface or mount it discreetly in a corner.
Image: The PUSOKEI SQ11 Mini Camera shown mounted on its adjustable base, ready for placement in a home or office environment.
Упутство за употребу
Укључивање/искључивање:
- To power on, press and hold the Power button until the indicator light turns on.
- To power off, press and hold the Power button until the indicator light turns off.
Видео снимак:
- After powering on, the camera typically enters standby mode.
- Press the Mode button to select the desired video recording mode (e.g., 1080p).
- Press the Power button once to start recording. The indicator light will flash to indicate recording is in progress.
- Press the Power button again to stop recording and save the file.
Ноћни вид:
- The camera supports night vision for clear recording in low light conditions.
- Refer to the specific instructions in the included paper manual for activating or deactivating night vision, as this may vary by firmware version.
Континуирани рад:
For extended recording, connect the camera to a 5V 1A or higher USB power source (e.g., a wall adapter or a power bank). This allows the camera to operate continuously, bypassing the internal battery's 50-minute limit.
Image: The PUSOKEI SQ11 Mini Camera positioned near a plant, demonstrating its compact size and suitability for discreet placement for continuous home monitoring.
Одржавање
- Чишћење: Use a soft, dry cloth to clean the camera body. For the lens, use a specialized lens cleaning cloth. Do not use liquid cleaners.
- Складиштење: When not in use for extended periods, store the camera in a cool, dry place.
- Одржавање батерије: To prolong battery life, avoid fully discharging the battery frequently. Charge the camera regularly, even if not in active use.
- Ажурирања фирмвера: Проверите произвођача website (if available) for any firmware updates that may improve performance or add features.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Камера се не укључује. | Слаба батерија; неисправно дугме за напајање. | Charge the camera fully. Ensure the power button is pressed correctly. |
| Не могу да снимим видео. | No Micro SD card; card full; card error; incorrect mode. | Insert a Micro SD card. Format or replace the card. Ensure sufficient storage. Check recording mode. |
| Лош квалитет видеа. | Dirty lens; low light conditions (without night vision); incorrect resolution setting. | Clean the lens. Activate night vision in low light. Ensure 1080p resolution is selected. |
| Кратко трајање батерије. | Battery degradation; continuous recording without external power. | Ensure the camera is fully charged. For extended use, connect to a continuous 5V 1A USB power source. |
Спецификације
| Модел | СК11 |
| Материјал | АБС |
| Батерија | 200 мАх литијумска батерија |
| Видео Формат | АВИ |
| Видео Ресолутион | 1920 к 1080 (1080п) |
| Видео Фраме Рате | 30 фпс |
| Имаге Ратио | 16:9 |
| Оперативно време | Approx. 50 minutes (on battery) |
| Цхаргинг Волtage | 5V |
| Подршка за складиштење | Микро СД картица (до 32 ГБ, није укључена) |
| Интерфејс | Мини КСНУМКС Пин УСБ |
| Подржани системи | Windows, OS X, Linux |
| Посебне карактеристике | ХД резолуција, ноћни вид |
| Повезивање | Жичани, бежични |
| Viewинг Англе | 160 степени |
| ИП Ратинг | ИП54 |
Гаранција и подршка
For warranty information and technical support, please refer to the documentation included with your purchase or contact PUSOKEI customer service through the retailer where the product was purchased. Keep your proof of purchase for warranty claims.
Подршка на мрежи: For additional resources or frequently asked questions, please visit the official PUSOKEI brand store on Amazon: PUSOKEI Store
