1. Увод
Thank you for choosing the Aigo AC SE 360 Rainbow 360mm Water Cooler. This all-in-one liquid cooling solution is designed to provide efficient thermal management for your high-performance CPU, featuring a 360mm triple radiator and vibrant ARGB lighting. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your product.
Image 1.1: Aigo AC SE 360 Rainbow 360mm Water Cooler assembled view.
2. Безбедносне информације
- Увек искључите напајање из рачунара пре инсталације или одржавања.
- Пажљиво рукујте компонентама како бисте избегли оштећења.
- Осигурајте правилно уземљење да бисте спречили опасности од струјног удара.
- Држите производ даље од влаге и екстремних температура.
- Не покушавајте да отворите пумпу или радијатор, јер то може поништити гаранцију и проузроковати цурење.
- Чувати ван домашаја деце.
3. Садржај пакета
Проверите да ли су све компоненте наведене у наставку присутне у вашем пакету:
- 1x Aigo AC SE 360 Water Cooler Unit (Radiator, Pump/CPU Block, Tubing)
- 3x 120mm ARGB Fans
- Mounting Hardware for Intel Sockets (LGA 115X, 1200, 1700, 2011, 2066)
- Mounting Hardware for AMD Sockets (AM2, AM3, AM4, AM5)
- Термална паста
- Fan Screws and Radiator Screws
- ARGB Controller (if included with your specific model)

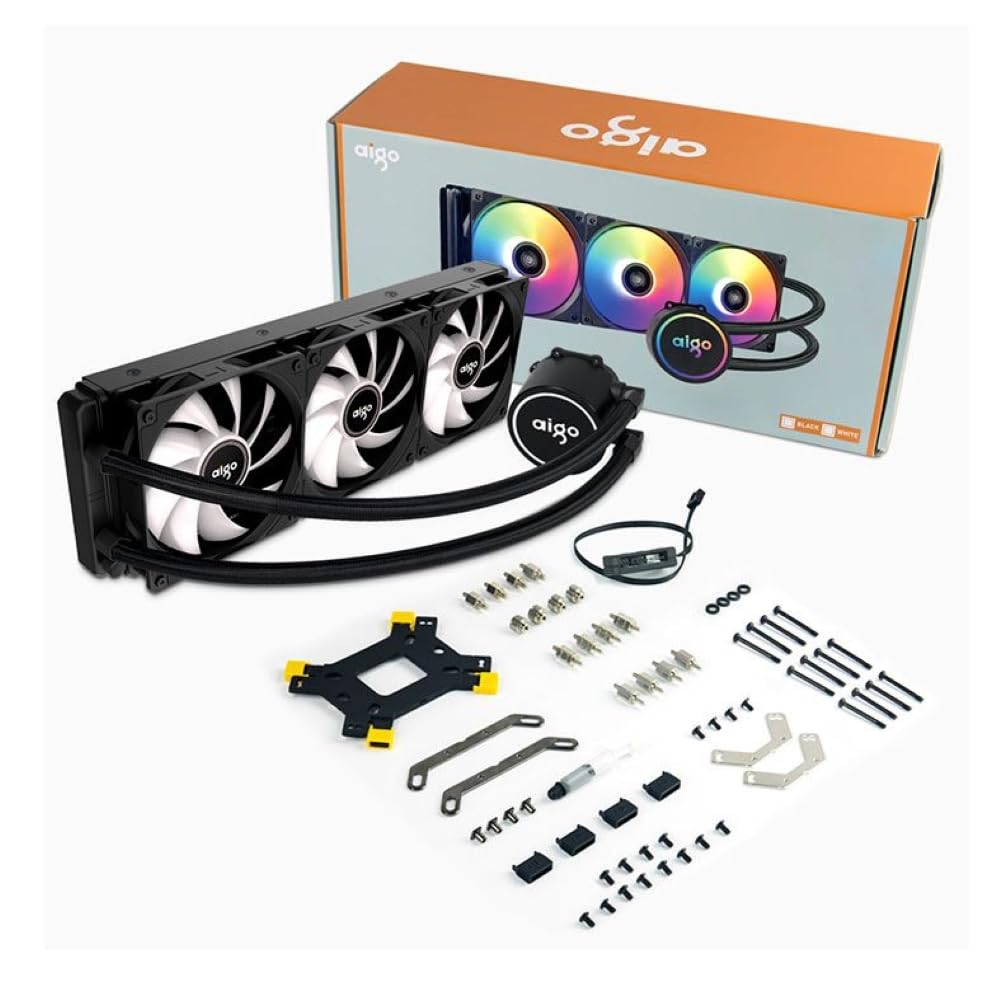

Image 3.1: All components included in the Aigo AC SE 360 package.
4. Подешавање и инсталација
Follow these steps for proper installation of your Aigo AC SE 360 Water Cooler:
- Припремите матичну плочу: Install the appropriate backplate and standoffs for your CPU socket (Intel: 115X, 1200, 1700, 2011, 2066; AMD: AM2, AM3, AM4, AM5). Refer to your motherboard manual for specific instructions.
- Нанесите термалну пасту: Clean the CPU surface. Apply a small amount of thermal paste to the center of the CPU IHS (Integrated Heat Spreader).
- Mount the CPU Block/Pump: Carefully place the CPU block onto the CPU, aligning it with the standoffs. Secure it with the provided screws, tightening them in a diagonal pattern until snug. The magnetic block design allows for easy rotation to align the logo or tubing as desired.
- Инсталирајте вентилаторе на радијатор: Attach the three 120mm ARGB fans to the radiator using the longer screws provided. Ensure the fan airflow direction is correct for your case configuration (typically blowing air through the radiator).
- Монтирајте радијатор: Install the radiator assembly into your PC case. The 360mm radiator is compatible with most ATX cases that support this size. Secure it with the appropriate screws.
- Connect Fans (Daisy Chain): The fans feature a daisy chain connection system. Connect the fans to each other in series, then connect the final fan's cable to the motherboard's fan header or an ARGB controller. This simplifies cable management by reducing the number of cables.
- Повежите ARGB осветљење: Connect the ARGB cables from the fans and pump to a 3-pin, 5V ARGB header on your motherboard or a dedicated ARGB controller. Ensure the voltage is correct (5V) to prevent damage.
- Connect Pump Power: Connect the pump's 4-pin power connector to a dedicated AIO_PUMP or CPU_FAN header on your motherboard.
- Управљање кабловима: Organize all cables neatly to ensure proper airflow and a clean build.
5. Упутство за употребу
Once installed, the Aigo AC SE 360 Water Cooler operates automatically to maintain optimal CPU temperatures. Here are key operational aspects:
- Automatic Cooling: The pump and fans will adjust their speed based on CPU temperature, ensuring efficient cooling. The pump operates at 12V with 3200 RPM, and fans operate between 800-1800 RPM.
- ARGB контрола осветљења: The Rainbow ARGB lighting can be controlled via your motherboard's ARGB software (if connected to a compatible header) or through an included ARGB controller. This allows for various lighting effects and synchronization with other ARGB components.
- Ниво буке: The cooler is designed for quiet operation, with a noise level of approximately 30 dB.
6. Одржавање
Regular maintenance helps ensure the longevity and performance of your water cooler:
- Чишћење прашине: Периодично чистите пераја хладњака и лопатице вентилатора како бисте спречили накупљање прашине, која може ометати проток ваздуха и перформансе хлађења. Користите компримовани ваздух или меку четку.
- Преглед цеви: Check the tubing for any signs of kinks, leaks, or damage.
- Монитор температуре: Користите софтвер за праћење да бисте пратили температуру процесора. Значајна повећања могу указивати на потребу за даљим прегледом или чишћењем.
- Термална паста: While not frequently required, reapplying thermal paste every few years can help maintain optimal thermal transfer.
КСНУМКС. Решавање проблема
If you encounter issues with your Aigo AC SE 360 Water Cooler, refer to the following common problems and solutions:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Високе температуре процесора | Insufficient thermal paste, poor contact, dust buildup, pump failure, fan failure. | Reapply thermal paste, ensure CPU block is securely mounted, clean radiator and fans, check pump/fan connections. |
| Вентилатори се не окрећу | Loose fan connection, incorrect fan header, faulty fan. | Check fan cables and connections, ensure connected to appropriate motherboard header, test fans individually if possible. |
| No ARGB Lighting | Loose ARGB connection, incorrect ARGB header (e.g., 12V instead of 5V), faulty ARGB component. | Verify ARGB cables are securely connected to a 3-pin, 5V ARGB header. Check motherboard manual for correct header. |
| Унусуал Ноисес | Air bubbles in loop, fan rubbing, pump issue. | Gently tilt the PC case to help dislodge air bubbles. Check for obstructions around fans. If pump noise persists, contact support. |
8. Спецификације
| Феатуре | Детаљ |
|---|---|
| Модел | AC SE 360 |
| Величина радијатора | 360 mm (394 x 120 x 27 mm) |
| Величина вентилатора | 120 мм |
| Брзина вентилатора | 800-1800 РПМ |
| Проток ваздуха | 64.05 ЦФМ |
| Статички притисак | 1.85 ммХ₂О |
| Ниво буке | 30 дБ |
| Пумп Волtage | 12 Волтс |
| Пумп Спеед | 3200 РПМ |
| Потрошња енергије | 3.24 Ваттс |
| Беаринг Типе | Керамички лежај |
| TDP Supported | 280 В |
| Компатибилне утичнице | Intel (LGA 115X, 1200, 1700, 2011, 2066), AMD (AM2, AM3, AM4, AM5) |
| Конектор за напајање | 4-пин |
| АРГБ конектор | 3-пин, 5В |
9. Гаранција и подршка
The Aigo AC SE 360 Water Cooler comes with a 12-месечна гаранција од датума куповине. Ова гаранција покрива производне недостатке у нормалним условима употребе.
For technical support, warranty claims, or any questions not covered in this manual, please contact your retailer or the Aigo customer support team. Please have your proof of purchase and product model number (ACSE360) ready when contacting support.
