Увод
Хвала вам на куповиниasing the HOOBRO Bar Table Set. This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new bar table and stools. Please read this manual carefully before assembly and retain it for future reference.
Image: The HOOBRO Bar Table Set, featuring a rustic brown tabletop, black metal frame, two backless stools, and a visible power outlet on the side of the table.
Безбедносне информације
- Увек пажљиво пратите упутства за монтажу.
- Уверите се да су сви завртњи и вијци добро затегнути пре употребе. Периодично проверавајте и по потреби поново затегните.
- Do not overload the table or stools. The bar table supports up to 264 lb (120 kg), and each stool supports up to 198 lb (90 kg).
- Држите децу даље од места монтаже. Мали делови могу представљати опасност од гушења.
- For electrical safety, do not expose the power outlet to moisture or liquids. Do not attempt to disassemble or modify the power outlet unit.
- Place the furniture on a level surface to prevent wobbling and instability.
Садржај пакета
Молимо вас да проверите да ли су све компоненте присутне пре почетка монтаже. Ако неки делови недостају или су оштећени, контактирајте корисничку подршку.
- Bar Table Top (1)
- Table Legs and Support Frames (Various)
- Power Outlet Unit with Cord (1)
- Stool Seats (2)
- Stool Legs and Support Frames (Various)
- Hardware Kit (Screws, Allen Wrench, etc.)
- Упутство за употребу (1)
Подешавање (Упутство за монтажу)
Assembly is required for this product. It is recommended to assemble on a soft, clean surface to prevent scratches. Do not fully tighten screws until all parts are loosely assembled.
Потребни алати:
- Укључен имбус кључ
Кораци склапања:
- Assemble the Bar Table Frame: Attach the table legs and support beams according to the diagrams in your separate assembly guide. Ensure the frame is stable.
- Причврстите плочу стола: Secure the rustic brown tabletop to the assembled frame using the provided screws.
- Install the Power Outlet: Mount the power outlet unit into the designated slot on the side of the table frame. Secure it with the provided screws.
- Assemble the Stool Frames: For each stool, connect the leg frames and footrests.
- Attach the Stool Seats: Secure the stool seats to the assembled stool frames.
- Завршно затезање: Once all components are loosely assembled, go back and fully tighten all screws and bolts on both the table and stools.
Image: A person seated on a HOOBRO bar stool, illustrating the comfortable footrest position. Note: This image shows a stool with a backrest, which may be part of the BF04BY01G1 bundle.
Operating the Power Outlet
The HOOBRO Bar Table is equipped with an integrated power outlet for convenient access to electricity.
Слика: Детаљна view of the power outlet unit, showing two AC outlets (120V/12A) and two USB ports (5V/2A), along with the 4.9-foot power cord.
Употреба:
- Plug the table's power cord (approximately 4.9 feet long) into a standard wall outlet.
- You can now use the two AC outlets (120V/12A) for small appliances or electronics.
- The two USB ports (5V/2A) are suitable for charging mobile devices.
Важне безбедносне напомене:
- Do not exceed the maximum electrical load for the outlets.
- Avoid spilling liquids near the power outlet.
- Unplug the table from the wall outlet when not in use or during cleaning.
Одржавање
Proper care will extend the life and appearance of your HOOBRO Bar Table Set.
- Чишћење: Обришите површине огласомamp крпом, а затим одмах обришите чистом, сувом крпом. Избегавајте абразивна средства за чишћење или јаке хемикалије које могу оштетити завршну обраду.
- Редовне провере: Периодично проверавајте све завртње и вијке како бисте били сигурни да су чврсто затегнути. По потреби поново затегните да бисте одржали стабилност.
- Просипање: Clean up spills immediately to prevent staining, especially on the rustic brown panels.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Table/Stool wobbles | Loose screws or uneven floor | Check and tighten all assembly screws. Ensure the furniture is on a level surface. |
| Утичница не ради | Not plugged in, tripped circuit, or faulty device | Ensure the table's power cord is securely plugged into a working wall outlet. Check your home's circuit breaker. Test with a different device. If issues persist, contact customer support. |
| Делови се не поравнавају током монтаже | Screws overtightened prematurely or incorrect orientation | Loosen all screws, adjust parts to align, then gradually tighten. Refer to the assembly guide for correct part orientation. |
Спецификације
- Бренд: ХООБРО
- Модел: BF45UBT01-BF04BY01G1
- Боја: Браон
- Материјал: Particleboard, Metal Frame
- Потребна монтажа: Да
- Bar Table Dimensions: 39.4 cm D x 15.7 cm Š x 36 cm V
- Stool Dimensions (each): 15.7"L x 11.8"W x 25.6"H (for backless stools shown in main image)
- Утичница: 2 AC утичнице (120V/12A), 2 USB порта (5V/2A)
- Дужина кабла за напајање: 4.9 стопа (59 инча)
- Bar Table Weight Capacity: 264 лб (120 кг)
- Stool Weight Capacity (each): 198 лб (90 кг)

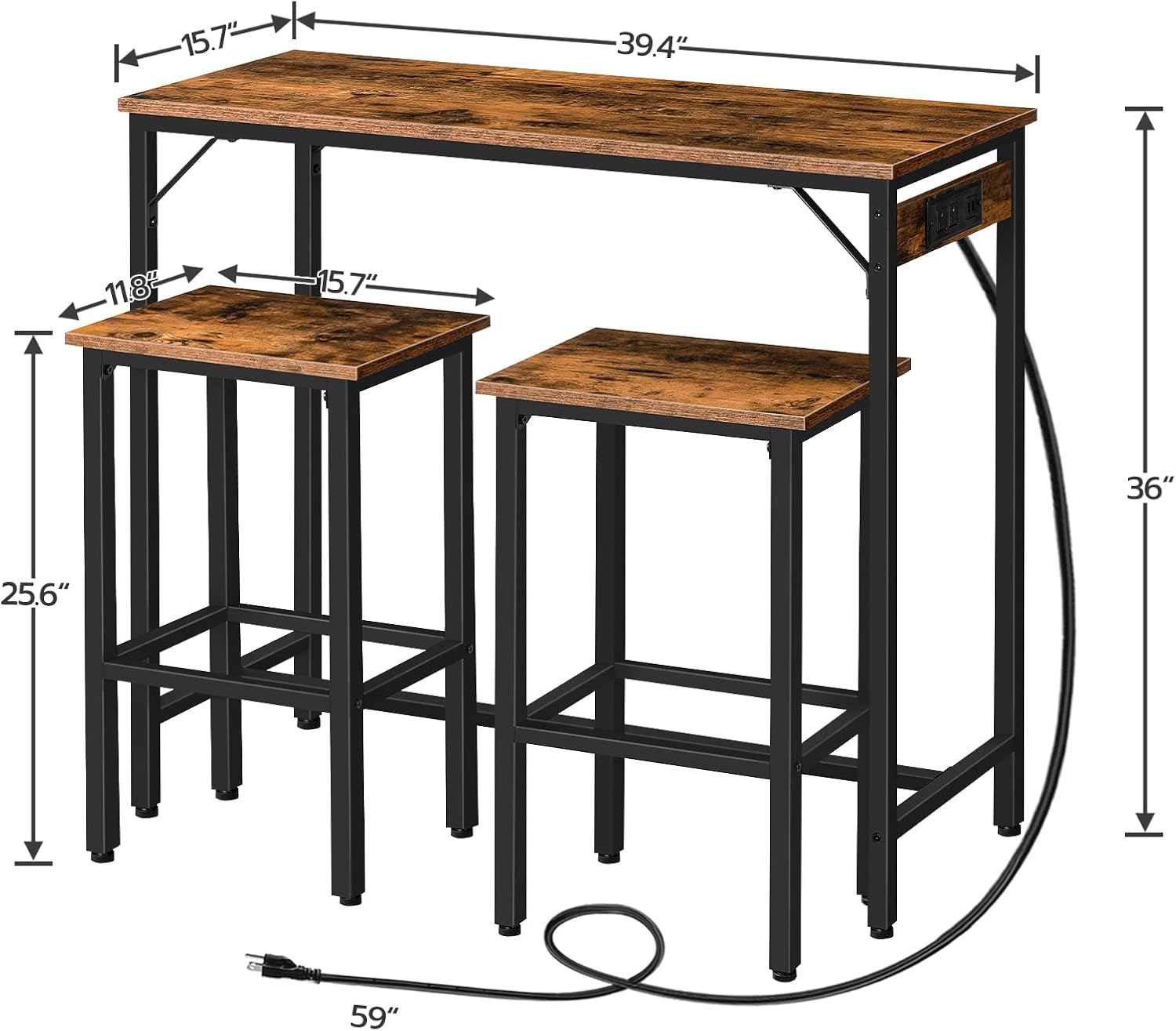

Image: Dimensional diagram illustrating the length, width, and height of the bar table and stools.
Гаранција и подршка
HOOBRO products are designed for quality and durability. For any questions, concerns, or assistance with your product, please contact HOOBRO customer support through the retailer's platform or the official HOOBRO website. Please have your model number (BF45UBT01-BF04BY01G1) and purchase information ready when contacting support.
