PARKSIDE PGHSA 20-Li Cordless Wood Cutter User Manual

Увод

Thank you for choosing the PARKSIDE PGHSA 20-Li Cordless Wood Cutter. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before first use and keep them for future reference.

The PARKSIDE PGHSA 20-Li is a versatile 20V cordless wood cutter designed for various wood and metal cutting tasks, featuring a tool-free quick-release mechanism and compatibility with all X20V Team batteries.

Производ је завршенview

Familiarize yourself with the components of your PARKSIDE PGHSA 20-Li Cordless Wood Cutter.

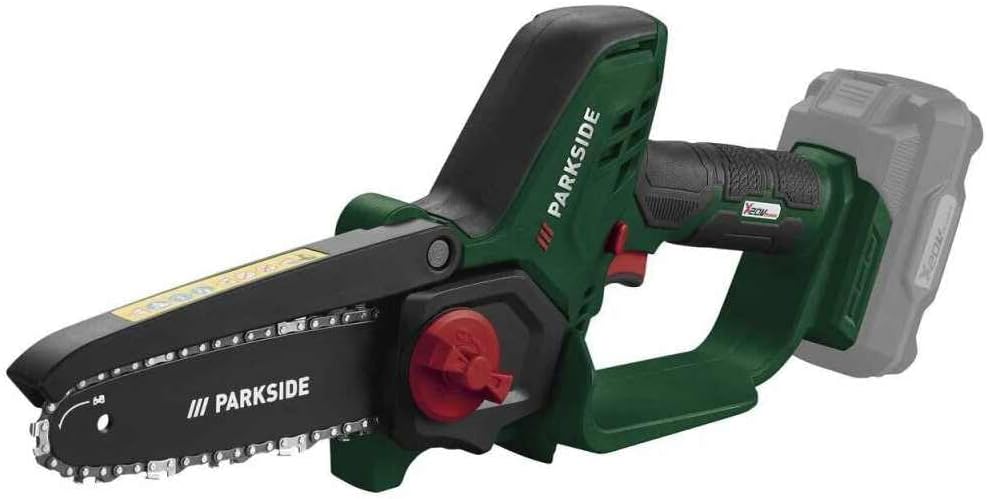

Слика 1: The PARKSIDE PGHSA 20-Li Cordless Wood Cutter, showing its compact design and chain.

Укључене компоненте:

• PARKSIDE PGHSA 20-Li Cordless Wood Cutter unit
• 20V Battery (2.0 Ah)
• Пуњач батерија
• Organic Chain Oil (Made in Germany)
• Цхаин Цовер
• Торбица за ношење

Слика 2: The X20V Team battery being charged on its dedicated charger.

Слика 3: The protective chain cover and a bottle of organic chain oil, essential for maintenance.

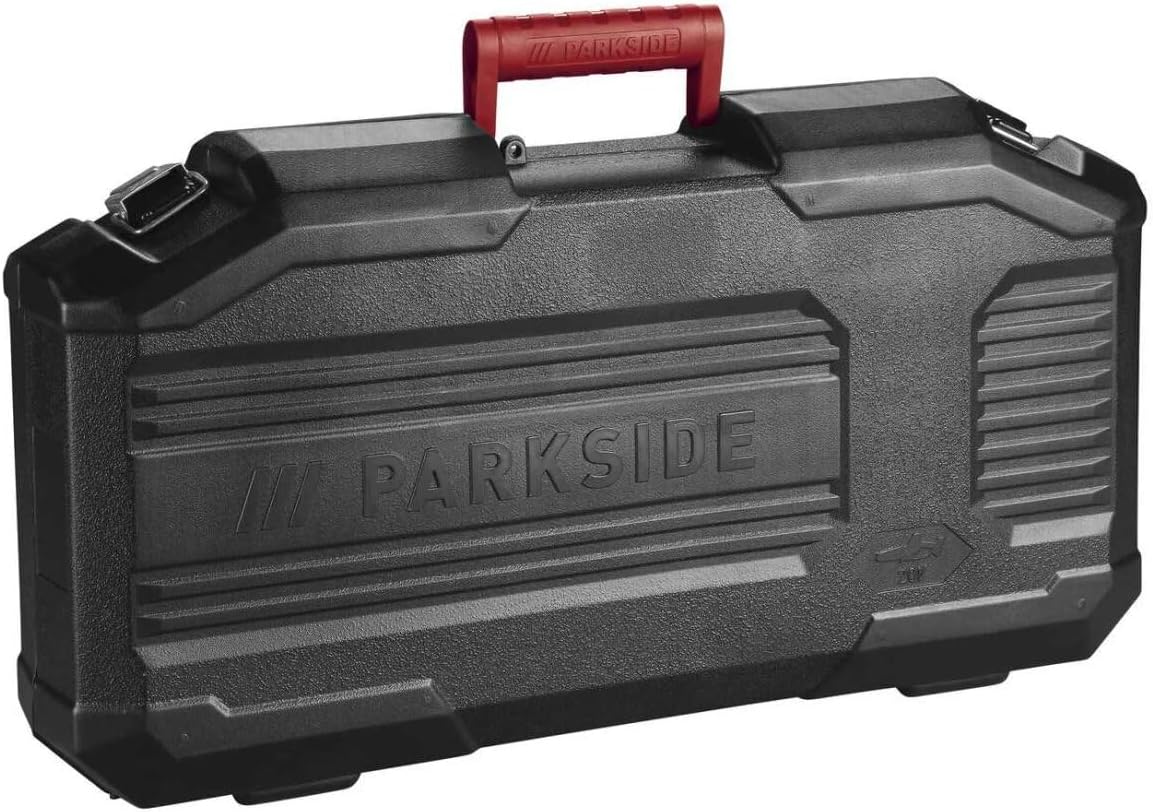

Слика 4: The robust carrying case for safe storage and transport of the wood cutter and accessories.

Сетуп

1. Пуњење батерије

1. Укључите пуњач у одговарајућу утичницу.
2. Slide the 20V battery onto the charger until it clicks into place.
3. Allow the battery to charge fully. The indicator lights on the charger will show the charging status.
4. Када се батерија потпуно напуни, извадите батерију из пуњача.

2. Installing the Chain and Guide Bar

The PGHSA 20-Li features a tool-free quick-release mechanism for easy chain and guide bar installation.

1. Ensure the battery is removed from the tool before assembly.
2. Locate the quick-release knob/lever on the side of the tool.
3. Turn or open the quick-release mechanism to loosen the chain cover.
4. Carefully place the chain around the guide bar, ensuring the cutting edges face the correct direction.
5. Fit the guide bar onto the tool, aligning it with the drive sprocket.
6. Place the chain around the drive sprocket.
7. Replace the chain cover and secure it by engaging the quick-release mechanism.
8. Adjust chain tension: The chain should be snug but still able to be pulled freely around the guide bar by hand. Refer to the markings on the tool for proper tension.

3. Подмазивање ланца

Proper lubrication is crucial for chain longevity and cutting performance.

1. Fill the oil reservoir with the provided organic chain oil.
2. Ensure the oil cap is securely fastened.
3. Before each use, check the oil level and refill if necessary.

Упутство за употребу

Мере предострожности

• Увек носите одговарајућу личну заштитну опрему (ППЕ), укључујући заштитне наочаре, рукавице и заштиту за слух.
• Ensure a stable footing and clear work area.
• Keep bystanders and pets at a safe distance.
• Never operate the tool with one hand. Always use both hands for control.
• Не користите алат у влажним условима или у близини запаљивих течности/гасова.
• Remove the battery when not in use, during maintenance, or when changing accessories.

Покретање и заустављање

1. Insert the charged battery into the tool until it clicks.
2. To start, press the safety lock-off button (if present) and then squeeze the trigger switch.
3. Да бисте зауставили, отпустите окидач.

Цуттинг Тецхникуес

• Држите алат чврсто са обе руке.
• Allow the chain to reach full speed before contacting the workpiece.
• Притискајте лагано, равномерно. Немојте форсирати алат.
• Be aware of kickback potential, especially when cutting with the tip of the guide bar.
• For cutting wood, ensure the workpiece is stable and supported.
• For cutting metal (if applicable with specific blades), follow manufacturer guidelines for appropriate blades and safety.

Одржавање

Regular maintenance ensures the longevity and safe operation of your wood cutter.

Чишћење

• Увек уклоните батерију пре чишћења.
• Clean the tool housing with a damp тканина. Немојте користити раствараче.
• Remove sawdust, chips, and debris from the guide bar groove and around the sprocket.
• Ensure the air vents are clear of obstructions.

Оштрење ланца

• A sharp chain is essential for efficient and safe cutting.
• Sharpen the chain regularly or replace it when dull or damaged.
• Refer to a specialized guide or consult a professional for proper chain sharpening techniques.

Складиштење

• Алат чувајте у његовој торби на сувом, сигурном месту, ван домашаја деце.
• Ensure the chain cover is in place during storage.
• Извадите батерију из алата пре дуготрајног складиштења.

Решавање проблема

Спецификације

Гаранција

This PARKSIDE PGHSA 20-Li Cordless Wood Cutter is covered by a Ограничена гаранција. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, unauthorized modifications, or normal wear and tear. For specific terms and conditions, please refer to the warranty card included with your product or contact Parkside customer support.

Корисничка подршка

For technical assistance, spare parts, or warranty inquiries, please contact Parkside customer support. Contact information can typically be found on the product packaging, the official Parkside website, or your purchase documentation. When contacting support, please have your product model number (PGHSA 20-Li) and purchase date available.

Онлине ресурси: Visit the official Parkside webсајт за додатне информације о производу, честа питања и ресурсе за подршку.
