Edesa EWF-6000 WH 6 KG Front-Load Washing Machine User Manual

1. Безбедносне информације

Please read these instructions carefully before installing and using the appliance. Keep this manual for future reference. Incorrect installation or use may cause damage to the appliance or injury to the user.

• Уверите се да је уређај правилно уземљен.
• Не дозвољавајте деци да се играју са машином за прање веша или да је користе.
• Не отварајте дозатор детерџента или врата током рада, посебно током циклуса са високом температуром.
• Увек искључите уређај из струје пре чишћења или одржавања.
• The appliance is equipped with a child safety lock and door lock during operation to prevent accidental opening.

2. Производ је готовview

The Edesa EWF-6000 WH is a front-load washing machine designed for efficient and convenient laundry care. It features a 6 kg capacity, 1000 RPM spin speed, and 23 wash programs.

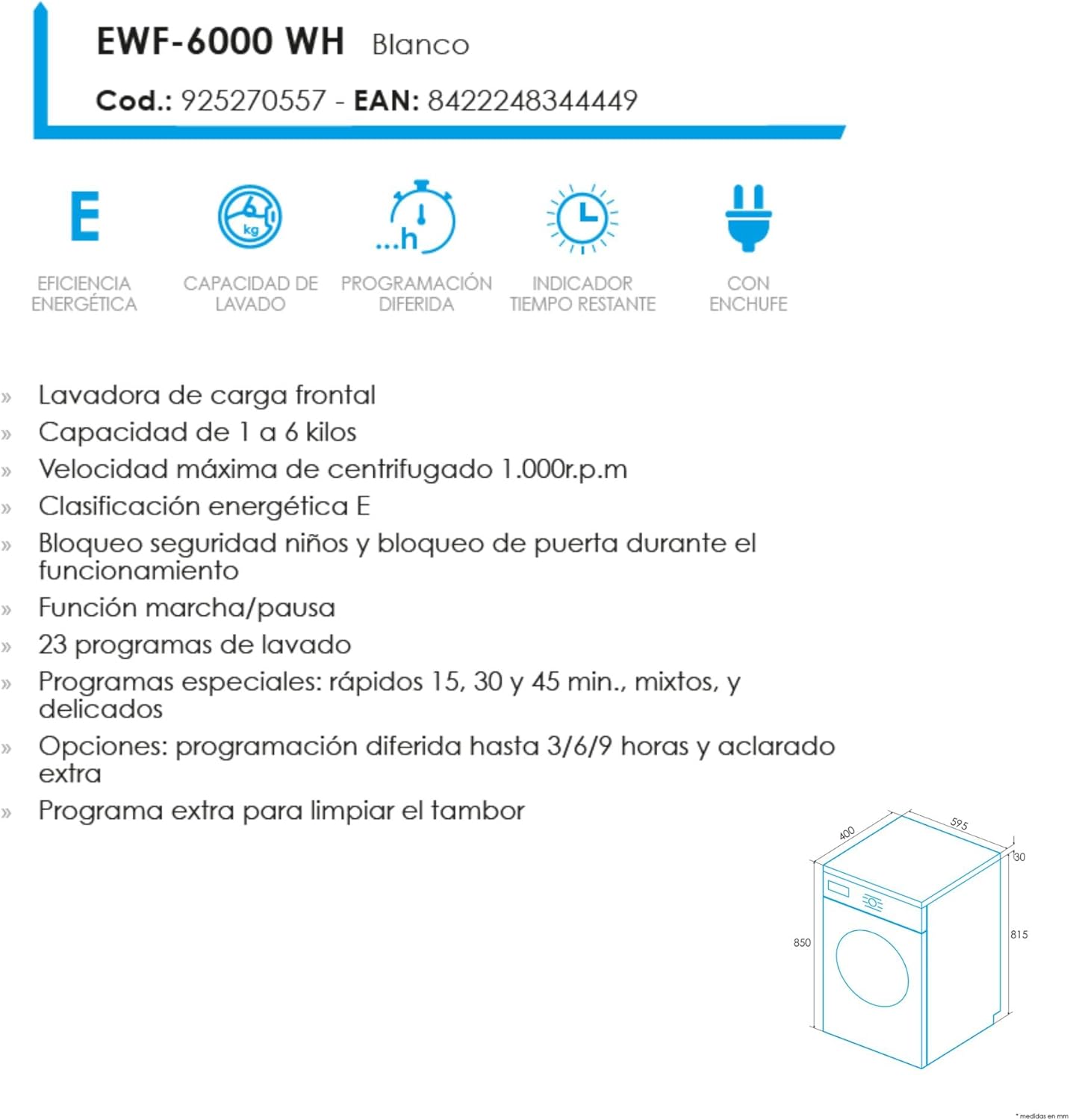

Слика 2.1: Готовоview of the Edesa EWF-6000 WH washing machine, highlighting key features and dimensions. This diagram illustrates the energy efficiency class E, 1-6 kg wash capacity, delayed programming, remaining time indicator, and power connection. It also lists features such as front-load design, 1000 rpm spin speed, child lock, start/pause function, 23 wash programs (including quick 15, 30, 45 min, mixed, and delicate), delayed programming options (3/6/9 hours), extra rinse, and a drum cleaning program.

Кључне карактеристике:

• Капацитет: 1 до 6 кг
• Обртаја центрифуге: Up to 1000 revolutions per minute (r.p.m)
• Програми прања: 23 programs, including quick cycles (15, 45, 60 minutes), mixed, and delicate options.
• Одложен почетак: Program the wash cycle to start up to 24 hours later.
• Индикатор преосталог времена: LED display shows the time left for the current cycle.
• Silence Inverter Motor: Reduces friction for a longer lifespan, increased stability, less vibration during spinning, and quieter operation.
• Енергетска ефикасност: Класа Е.
• Сигурносне карактеристике: Child lock and door lock during operation.
• Специјалне функције: Extra rinse, pre-wash, personalized wash, ECO wash.
• Drum Cleaning Program: Наменски програм за одржавање хигијене бубња.

3. Инсталација и подешавање

Распакивање:

Пажљиво уклоните сав материјал за паковање. Проверите уређај да ли је дошло до оштећења током транспорта. Одмах пријавите сваку штету продавцу.

Локација:

Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and maintenance. Avoid placing it in areas exposed to direct sunlight or extreme temperatures.

Димензије:

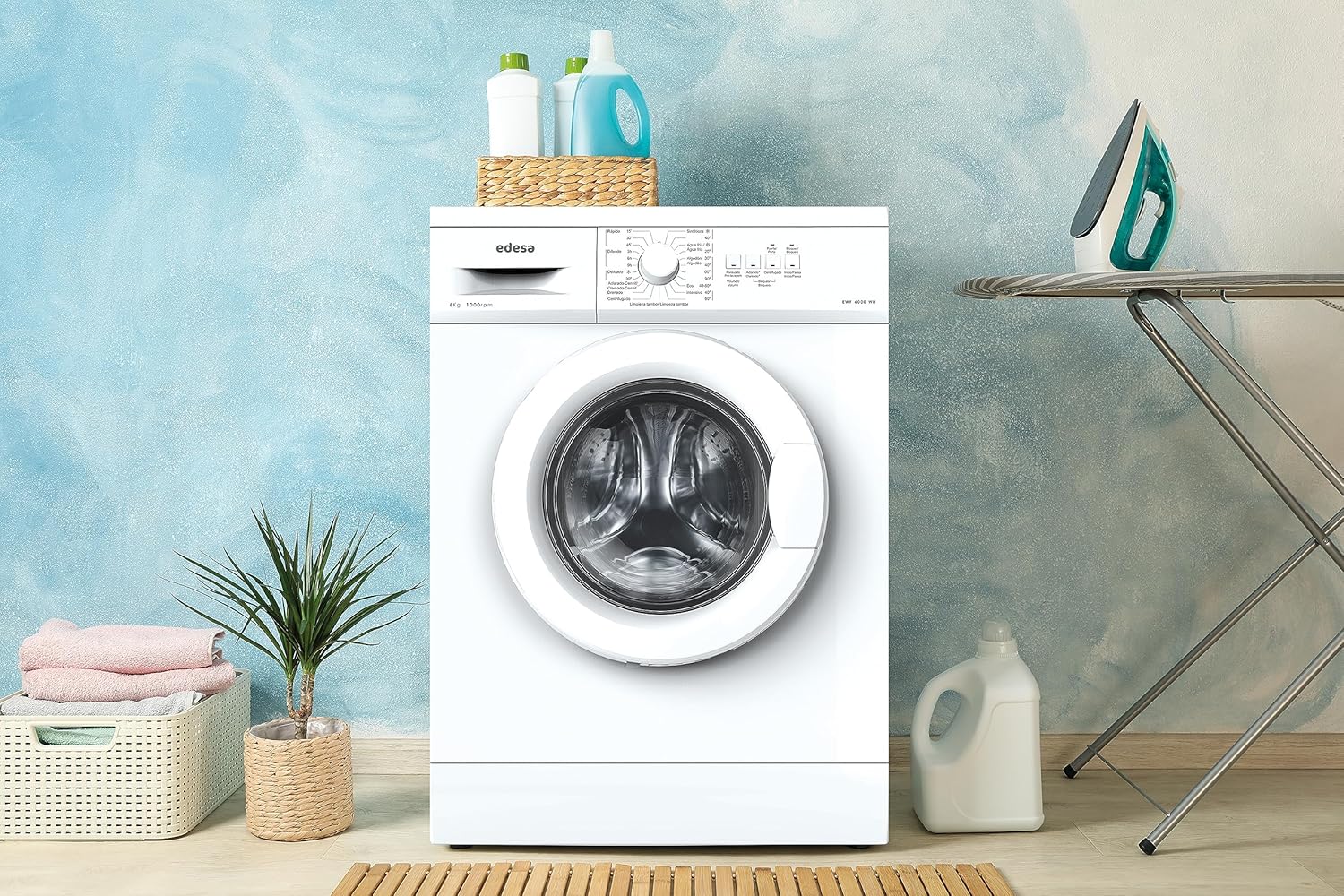

Слика 3.1: Фронт view of the Edesa EWF-6000 WH washing machine. This image shows the appliance's overall appearance, including the control panel, detergent drawer, and front-loading door.

• Димензије производа (Д x Ш x В): 65 к 55.5 к 88.5 цм
• Тежина: 57 кг

Прикључци за воду и струју:

Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain. Ensure all connections are secure to prevent leaks. Plug the power cord into a grounded electrical outlet. Refer to the local regulations for electrical and plumbing connections.

4. Операција

Контролна табла:

Слика 4.1: Цлосе-уп view of the Edesa EWF-6000 WH control panel. This image displays the program selection knob, LED display, and various function buttons for cycle customization.

The control panel features a central program selection knob, an LED display for time and status, and buttons for additional functions.

Пуњење веша:

Слика 4.2: Ентеријер view of the Edesa EWF-6000 WH washing machine drum. This image shows the spacious drum designed to accommodate various laundry items, including larger items like duvets and blankets.

Open the door and load laundry into the drum. The large hatch (up to 33 cm) facilitates easy loading and unloading of items, including duvets, blankets, sheets, and towels. Do not overload the machine; respect the 6 kg capacity.

Додавање детерџента:

Add the appropriate amount of detergent and fabric softener to the dispenser drawer. Refer to your detergent packaging for recommended dosages.

Избор програма:

Turn the program selection knob to choose one of the 23 available wash programs. The LED display will show the estimated cycle time.

• Брзи програми: 15, 45, or 60 minutes for lightly soiled items.
• Посебни програми: Mixed, Delicate, Cotton, Allergens, Baby Clothes, ECO.

Customizing the Wash:

Use the function buttons to select additional options:

• Одложен почетак: Press the delayed start button to set the desired delay (up to 24 hours).
• Додатно испирање: Додаје додатни циклус испирања.
• Предпрање: За јако запрљане предмете.
• Старт / Пауза: Press to start or pause the selected program.

Покретање прања:

Press the Start/Pause button to begin the wash cycle. The door will lock, and the remaining time will be displayed.

Крај циклуса:

Once the cycle is complete, the machine will signal, and the door will unlock. Remove your laundry promptly.

5. Одржавање

Чишћење екстеријера:

Обришите спољашњост машине за прање веша меком,amp тканина. Немојте користити абразивна средства за чишћење или раствараче.

Чишћење дозатора за детерџент:

Редовно вадите и чистите фиоку за детерџент како бисте спречили накупљање остатака.

Drum Cleaning Program:

Utilize the dedicated drum cleaning program periodically to maintain hygiene and prevent odors inside the drum.

Чишћење филтера:

Check and clean the drain pump filter regularly to remove lint and foreign objects. Refer to the full manual for detailed instructions on accessing and cleaning the filter.

КСНУМКС. Решавање проблема

Пре него што контактирате корисничку подршку, проверите следеће уобичајене проблеме:

• Машина се не покреће: Ensure the power cord is plugged in, the door is closed properly, and the Start/Pause button has been pressed. Check if there is a power outage.
• Без уноса воде: Check if the water tap is open and the water inlet hose is not kinked or blocked.
• Вода не одлази: Check if the drain hose is properly positioned and not blocked. Clean the drain pump filter.
• Прекомерне вибрације/бука: Ensure the machine is level and all transit bolts have been removed during installation. Distribute laundry evenly inside the drum.
• Кодови грешака: Ако се на екрану појави код грешке, погледајте комплетно упутство за употребу за конкретна значења и решења.

7. Спецификације

8. Гаранција и подршка

For warranty information and customer support, please refer to the warranty card included with your product or contact Edesa customer service directly. Keep your purchase receipt as proof of purchase.
