UNI-T UT526 Multifunction Electrical Installation Tester User Manual

1. Увод

The UNI-T UT526 is a multifunction electrical installation tester designed for comprehensive electrical system analysis. It accurately measures insulation resistance, RCD (Residual Current Device) status, low resistance continuity, and AC/DC voltage. This device is suitable for testing power distribution systems, lightning protection systems, and wiring systems to ensure safe operation and compliance with electrical standards.

Слика 1: Предња страна view of the UNI-T UT526 Multifunction Electrical Installation Tester.

2. Безбедносне информације

Before operating the UT526, read and understand all safety warnings and operating instructions. Failure to follow these instructions may result in electric shock, fire, or serious injury. Keep this manual for future reference.

• Увек се уверите да је уређај у добром радном стању пре употребе.
• Do not use the tester if it appears damaged or if the test leads are compromised.
• Verify the correct function of the tester on a known voltagе извор пре и после употребе.
• Adhere to all local and national safety codes.
• Носите одговарајућу личну заштитну опрему (ЛЗО), укључујући заштитне наочаре и изоловане рукавице.
• Avoid working alone when performing electrical tests.
• Не прекорачујте максималне улазне оптерећења за било коју функцију.
• Ensure the circuit under test is de-energized and locked out before making connections for resistance or continuity measurements.

3. Садржај пакета

Carefully unpack the box and ensure all items listed below are present and undamaged. If any item is missing or damaged, contact your supplier immediately.

• 1 x UT526 Earth Resistance Tester
• 1 x Test Lead Set
• 1 x Alligator Clip Set
• 1 к енглески приручник
• 1 к нараменица
• 1 к торба за ношење
• 1 к кутија у боји

Note: Batteries are not included and must be purchased separately (1.5V AA batteries x 6).

Figure 2: Included components of the UT526 package.

4. Карактеристике производа

The UNI-T UT526 offers a range of features for reliable electrical installation testing:

• Број приказа: 10000 for precise readings.
• Ручни опсег: Allows for specific range selection.
• Phase Switch (RCD): Supports 0° and 180° phase testing.
• Индикација слабе батерије: Упозорава када је потребно заменити батерије.
• Ауто АЦ/ДЦ Волtagе Идентификација: Simplifies voltagе мерења.
• Red Warning Lights: Visual alert for hazardous conditions.
• Сертификати: CE, UKCA compliant.

5. Подешавање

Before first use, install the batteries and prepare the test leads.

5.1 Инсталација батерије

1. Пронађите одељак за батерију на задњој страни уређаја.
2. Користите шрафцигер да отворите поклопац батерије.
3. Insert 6 x 1.5V AA batteries, observing the correct polarity.
4. Вратите поклопац батерије и причврстите га завртњем.

5.2 Повезивање мерних каблова

Connect the test leads to the appropriate input terminals on the UT526. The terminals are color-coded and labeled for clarity (e.g., LINE, N, E, L).

6. Упутство за употребу

The UT526 offers various measurement functions. Select the desired function using the rotary switch.

6.1 Measuring Insulation Resistance

This function measures the insulation resistance of electrical circuits and equipment.

1. Turn the rotary switch to one of the insulation test voltage settings: 100V, 250V, 500V, or 1000V.
2. Insert test leads into the input terminals (Red to LINE, Black to N) and connect them to the circuit under test. High voltagе излази са ЛИНЕ терминала.
3. For continuous measurement, press the ТЕСТ button. The tester will self-lock, output the test voltage, and emit a warning light simultaneously.
4. Once the measurement is finished, press ТЕСТ again to unlock and stop the continuous measurement.

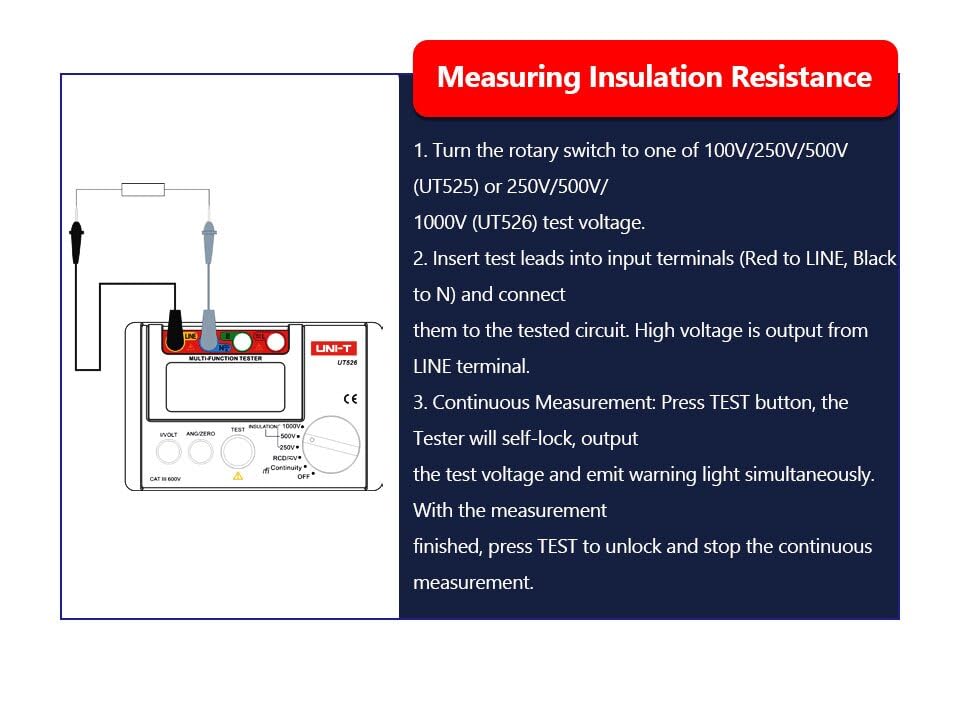

Figure 3: Setup for measuring insulation resistance.

Figure 4: UT526 performing an insulation resistance test with warning light activated.

6.2 RCD Test (Residual Current Device)

The RCD test function verifies the proper operation of Residual Current Devices, ensuring they trip within specified parameters.

1. Turn the rotary switch to the RCD function.
2. Connect the test leads to the appropriate terminals of the RCD or circuit.
3. Select the desired test current and phase (0° or 180°) using the function buttons.
4. Initiate the test. The device will measure the trip time and display the result.

Figure 5: UT526 connected for an RCD test.

6.3 Low Resistance Continuity Measurement

This function checks for continuity in circuits and measures low resistance values.

1. Turn the rotary switch to the Continuity function.
2. Connect the test leads across the component or circuit to be tested.
3. The display will show the resistance value. An audible beep indicates continuity (typically below a certain resistance threshold).

Figure 6: UT526 performing a low resistance continuity test on a motor.

6.4 АЦ/ДЦ Волtagе Мерење

The UT526 can measure both AC and DC voltagес.

1. Turn the rotary switch to the V (Voltage) function. The device will automatically identify AC or DC voltage.
2. Connect the test leads in parallel with the circuit or component where voltagе треба мерити.
3. На екрану ће се приказати измерена запреминаtagе вредност.

6.5 Ground Resistance Measurement

While the UT526 is primarily a multifunction electrical installation tester, it also supports ground resistance measurements.

1. Turn the rotary switch to the appropriate ground resistance setting (if available, or use continuity for basic checks).
2. Connect the test leads according to the specific ground resistance testing method (e.g., 3-pole or 4-pole method, if supported by the model).
3. Initiate the measurement and read the ground resistance value from the display.

Figure 7: UT526 connected for ground resistance testing.

7. Одржавање

Proper maintenance ensures the longevity and accuracy of your UT526 tester.

• Чишћење: Obrišite uređaj sa oglasomamp cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure the device is dry before storage.
• Замена батерије: Replace batteries promptly when the low battery indicator appears. Remove batteries if the device will not be used for an extended period to prevent leakage.
• Складиштење: Store the tester in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided carrying bag for protection.
• калибрација: For professional use, periodic calibration by an authorized service center is recommended to maintain measurement accuracy.

КСНУМКС. Решавање проблема

If you encounter issues with your UT526, refer to the following common problems and solutions:

9. Спецификације

Detailed technical specifications for the UNI-T UT526 Multifunction Electrical Installation Tester are provided below.

Figure 8: Comprehensive specifications for the UT526.

10. Гаранција

The UNI-T UT526 Multifunction Electrical Installation Tester comes with a 1 година гаранције from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or neglect. Please retain your proof of purchase for warranty claims.

11. Подршка

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact UNI-T customer support. Refer to the official UNI-T webсајт или паковање вашег производа за најновије контакт информације.

UNI-T Official Webсајт: ввв.уни-тренд.цом
