Prestige Royale Plus GT 03L Gas Stove

1. Увод

Thank you for choosing the Prestige Royale Plus GT 03L Hardened Black Glass Top Gas Stove. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read all instructions carefully before use and retain this manual for future reference.

2. Безбедносна упутства

Always follow basic safety precautions when using any gas appliance to reduce the risk of fire, electric shock, or injury.

• Обезбедите одговарајућу вентилацију у кухињи током рада.
• Не складиштите запаљиве материјале у близини гасног шпорета.
• Држите децу и кућне љубимце даље од уређаја током употребе.
• Увек користите одговарајуће посуђе за величину горионика.
• Do not leave the stove unattended while cooking.
• Turn off all burners and the gas supply when not in use.
• У случају цурења гаса, одмах искључите довод гаса, отворите прозоре и немојте користити електричне прекидаче или уређаје. Контактирајте квалификованог техничара.
• Ensure the gas stove is installed by a qualified technician according to local regulations.

3. Садржај пакета

Проверите да ли су све ставке присутне у пакету:

• 1 x Gas Stove with Baati/Tandoor Stand Inside
• 1 x Упутство за употребу (овај документ)
• 1 к Гарантни лист

4. Подешавање

4.1 Постављање

Place the gas stove on a stable, level, and heat-resistant surface. Ensure adequate clearance from walls and overhead cabinets for proper ventilation and safety.

Image: The gas stove shown with its dimensions (77 cm width, 44.5 cm depth, 13.5 cm height) to assist with placement planning.

4.2 Прикључак за гас

Connect the gas stove to a suitable LPG cylinder or piped natural gas supply using a certified gas hose and regulator. This connection must be performed by a qualified technician to prevent leaks and ensure safe operation.

4.3 Монтажа горионика

Place the brass burners and pan supports correctly on their respective positions. Ensure they are seated firmly to prevent wobbling during cooking.

5. Упутство за употребу

5.1 Паљење горионика

1. Ensure the gas supply to the stove is open.
2. Push and turn the desired burner knob counter-clockwise to the 'ON' position.
3. Simultaneously, use a gas lighter to ignite the burner. Hold the lighter near the burner until the flame ignites.
4. Once lit, adjust the flame intensity by rotating the knob between the 'HIGH' and 'LOW' settings.

Слика: Крупни план view of the ergonomic knob and the toughened glass top, highlighting the control mechanism for flame adjustment.

5.2 Using the Baati/Tandoor Holder

The stove includes a dedicated Baati/Tandoor holder. To use, place the holder over a lit burner. This accessory is designed for specific cooking methods requiring direct heat, such as roasting baati or tandoor items. Ensure the holder is stable before placing food items.

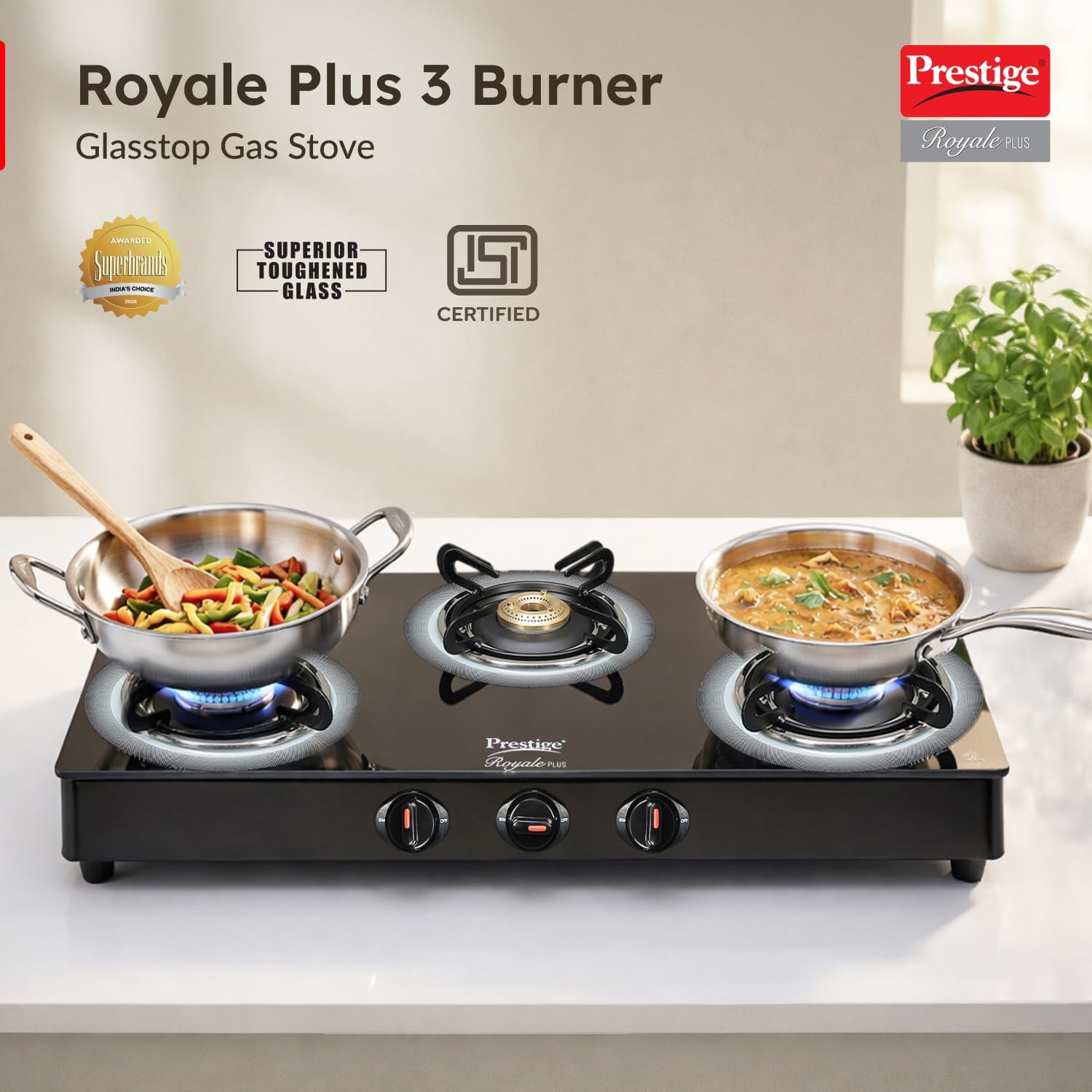

Image: The Prestige Royale Plus GT 03L Gas Stove with three burners in operation, showing cookware on two burners, demonstrating typical usage.

6. Одржавање

Редовно чишћење и одржавање осигураће дуготрајност и ефикасан рад вашег гасног шпорета.

6.1 Cleaning the Glass Top

Allow the glass top to cool completely before cleaning. Use a soft cloth and a mild cleaning solution to wipe away spills and stains. Avoid abrasive cleaners or scrubbers that can scratch the hardened glass surface.

6.2 Cleaning Burners and Pan Supports

Remove the pan supports and brass burners. Wash them with warm soapy water. For stubborn stains, a non-abrasive scrubber can be used. Ensure all parts are completely dry before reassembling them on the stove.

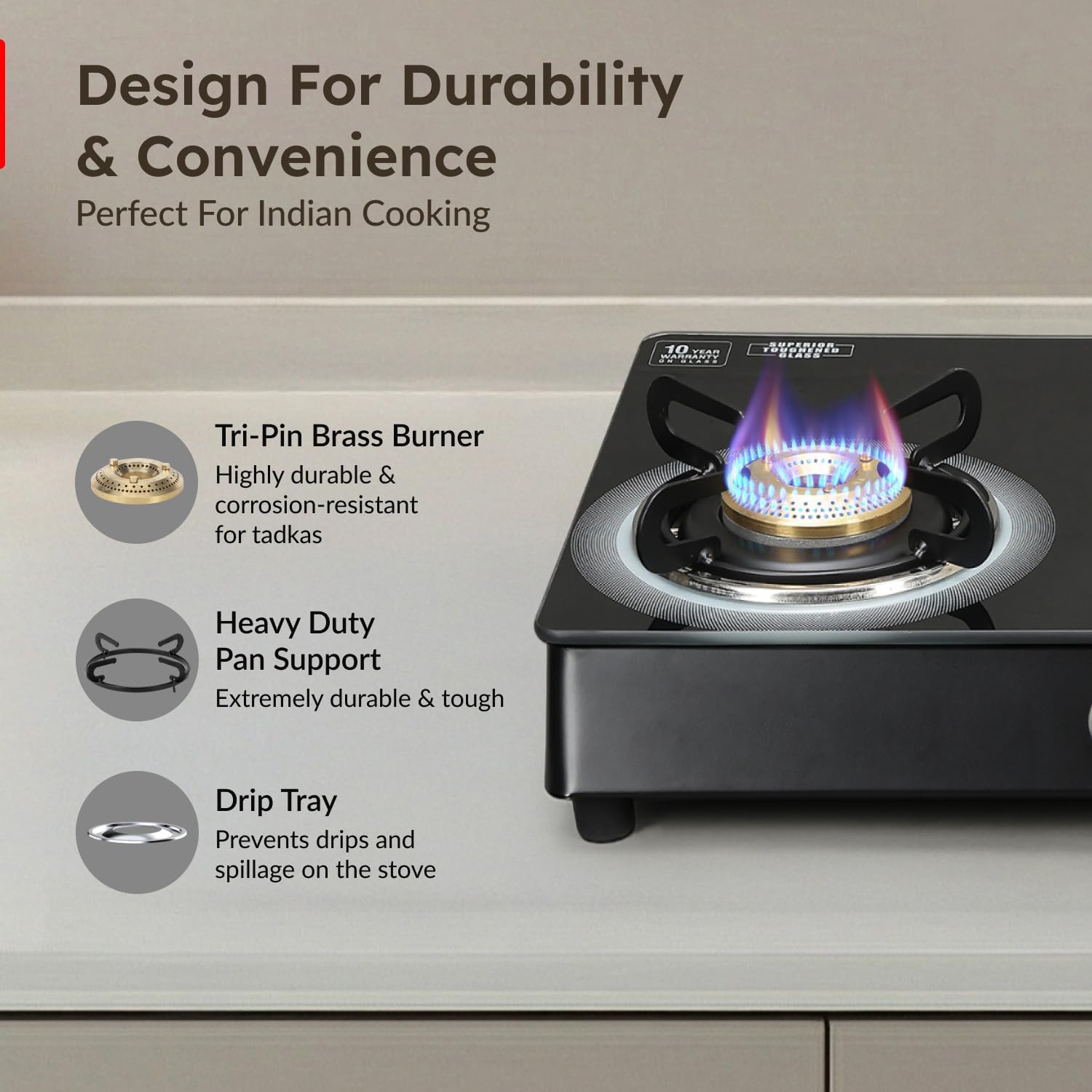

Слика: Детаљна view of the tri-pin brass burner, heavy-duty pan support, and drip tray, illustrating components that require regular cleaning.

6.3 Општа нега

Regularly check the gas hose for any signs of wear or damage. Ensure the area around the stove is kept clean and free from debris.

КСНУМКС. Решавање проблема

If you encounter issues with your gas stove, refer to the following common problems and solutions:

• Burner not lighting: Check if the gas supply is open. Ensure the burner cap is correctly placed. Clean the burner ports if they are clogged.
• Неправилан пламен: Clean the burner ports. Ensure the gas pressure is adequate.
• Мирис гаса: Immediately turn off the gas supply. Open windows for ventilation. Do not operate any electrical switches. Contact a qualified technician or your gas provider.
• Knob difficult to turn: Ensure the knob is clean and free from food debris. If the issue persists, contact customer support.

For problems not listed here or if troubleshooting steps do not resolve the issue, contact Prestige customer support.

8. Спецификације

9. Гаранција и подршка

9.1 Информације о гаранцији

This Prestige Royale Plus GT 03L Gas Stove comes with a 2-годишња гаранција на производ и а 10-year warranty on the glass top from the date of purchase. Please refer to the included warranty card for detailed terms and conditions.

9.2 Корисничка подршка

For any queries, service requests, or technical assistance, please contact Prestige customer support. Contact details can be found on the warranty card or the official Prestige webсајту.
