Kichler Landscape Path Lighting Fixture 15310BKT User Manual

1. Увод

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kichler Landscape Path Lighting Fixture, model 15310BKT. Please read this manual thoroughly before installation and retain it for future reference.

2. Производ је готовview

The Kichler Landscape Path Lighting Fixture is designed to illuminate sidewalks, pathways, and lawn areas, enhancing the aesthetic and safety of your outdoor environment. This fixture features a textured black finish and is suitable for various landscape applications.

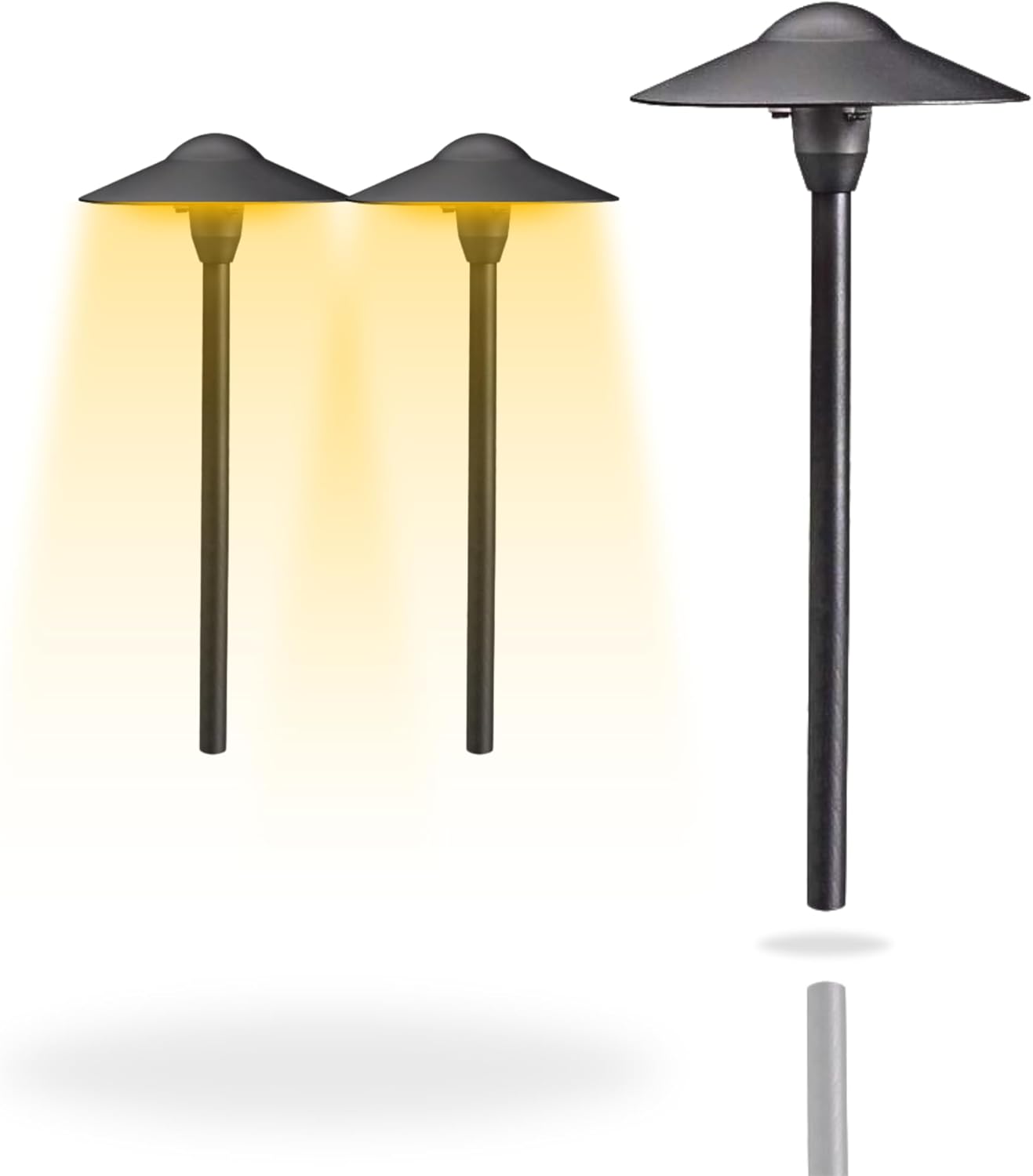

Image 2.1: Kichler Landscape Path Lighting Fixtures in operation.

Image 2.2: Kichler path light installed in a landscape setting.

Слика 2.3: Примерamples of Kichler path lights in multiple applications.

3. Садржај пакета

Пре почетка инсталације проверите да ли су све компоненте присутне:

• 2 Kichler Landscape Path Lighting Fixtures

4. Техничке спецификације

Слика 4.1: Димензије производа.

5. Важне информације о безбедности

Please observe the following safety precautions during installation and operation:

• Always disconnect power at the circuit breaker before installing or servicing the fixture.
• Consult a qualified electrician if you are unsure about wiring or electrical connections.
• Уверите се да су сви електрични прикључци изведени у складу са локалним прописима и прописима.
• Немојте прекорачити максималну снагуtagе наведено за сијалицу.
• Use only T5 Wedge Base bulbs compatible with 12-15 Volt systems.
• Држите запаљиве материјале даље од светиљке.
• This product is designed for outdoor use and is water-resistant, but not submersible.
• Упозорење о Предлогу 65: Овај производ може да садржи хемикалије за које је држава Калифорнија утврдила да изазивају рак и урођене мане или друге репродуктивне штете.

6. Водич за инсталацију

6.1 Пре-инсталација

Before you begin, ensure you have the following tools and materials (not included):

• Лов волtage transformer (12-15V)
• Лов волtage landscape wire
• Жице стриптизета
• Шрафцигер
• Shovel or trowel for digging
• T5 Wedge Base bulb (LED recommended)

6.2 Инсталација корак по корак

1. Изглед плана: Determine the desired location for each path light along your pathway or garden bed. Ensure adequate spacing for even illumination.
2. Припремите ожичење: Lay out your low voltage landscape wire from the transformer to the planned fixture locations. Bury the wire a few inches deep to protect it, or secure it along the ground if permitted by local codes.
3. Install Ground Stake: For each fixture, firmly push the integrated ground stake into the soil at the desired location. Ensure the fixture is level and stable.
4. Повежите ожичење: Locate the wiring leads from the fixture. Using wire connectors (typically included with landscape wire or transformer kits), connect the fixture's wires to the main low voltage landscape wire. Ensure a secure, waterproof connection.
5. Уметните сијалицу: Carefully insert a compatible T5 Wedge Base bulb into the fixture's socket. Refer to Section 8 for bulb replacement details.
6. Connect to Transformer: Connect the main landscape wire to your low voltage transformer according to the transformer's instructions.
7. Тест систем: Plug in the transformer and turn on the power to test the lights. If lights do not illuminate, refer to the Troubleshooting section.

Image 6.1: Path lights installed in a residential setting (daytime view).

Image 6.2: Path lights illuminating a pathway at night.

7. Упутство за употребу

Once installed and connected to a low voltage transformer, the Kichler Landscape Path Lighting Fixture operates based on the control method of your transformer. Common operating methods include:

• Ручно укључивање/искључивање: Use the switch on your transformer to turn the lights on or off.
• Контрола тајмера: Many transformers include a timer function to automatically turn lights on at dusk and off at a set time or dawn.
• Smart Control (App): If your transformer or landscape lighting system is compatible with a smart control app, you can manage the lights remotely via your smartphone or tablet. Refer to your smart control system's manual for specific instructions.

8. Нега и одржавање

8.1 Чишћење

Да бисте одржали изглед и перформансе вашег уређаја:

• Периодично обришите уређај меком крпомamp крпа за уклањање прљавштине и остатака.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or glass.

8.2 Замена сијалице

The fixture uses a T5 Wedge Base bulb. To replace the bulb:

1. Искључите напајање: Always turn off the power to the fixture at the circuit breaker or transformer before replacing the bulb.
2. Access Bulb: Carefully remove the top shade or glass enclosure to access the bulb socket.
3. Уклоните стару сијалицу: Gently pull the old T5 Wedge Base bulb straight out from its socket.
4. Убаците нову сијалицу: Insert a new, compatible T5 Wedge Base bulb (12-15V, max 16.25W) into the socket. Avoid touching the glass of the new bulb with bare hands, as oils can reduce bulb life. Use a clean cloth or gloves.
5. Поново саставите: Securely reattach the shade or glass enclosure.
6. Врати снагу: Turn the power back on at the circuit breaker or transformer.

Слика 8.1: Примерamples of T5 Wedge Base bulbs. Bulb is NOT included with the fixture.

9. Водич за решавање проблема

If your Kichler Landscape Path Lighting Fixture is not functioning as expected, consult the table below for common issues and solutions:

10. Гаранција и корисничка подршка

Kichler products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Kichler website. For technical assistance, replacement parts, or any other inquiries, please contact Kichler customer support through their official channels.

Кицхлер Webсајт: Visit the Kichler Store on Amazon
