INGCO 20V Cordless Heat Gun HGLI20025 Instruction Manual

1. Увод

Thank you for choosing the INGCO 20V Cordless Heat Gun HGLI20025. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your heat gun. Please read these instructions carefully before use and retain them for future reference.

2. Безбедносне информације

Operating a heat gun involves high temperatures and potential hazards. Always follow these safety guidelines:

• Лична заштитна опрема (ЛЗО): Always wear safety glasses or goggles to protect your eyes from debris and heat. Heat-resistant gloves are recommended.
• Упозорење о високој температури: The nozzle and surrounding area become extremely hot during and after use. Avoid touching hot surfaces. Allow the tool to cool completely before storing.
• Опасност од пожара: Do not point the heat gun at flammable materials or liquids. Ensure adequate ventilation to prevent the buildup of fumes, especially when removing paint or working with plastics.
• електрична безбедност: Use only the specified INGCO 20V battery and charger. Do not operate the tool in wet conditions.
• Заштита од преоптерећења: The heat gun is equipped with overload protection. If the battery current becomes abnormally high, the machine will automatically stop to prevent damage.
• Деца и посматрачи: Држите децу и пролазнике даље од радног подручја.

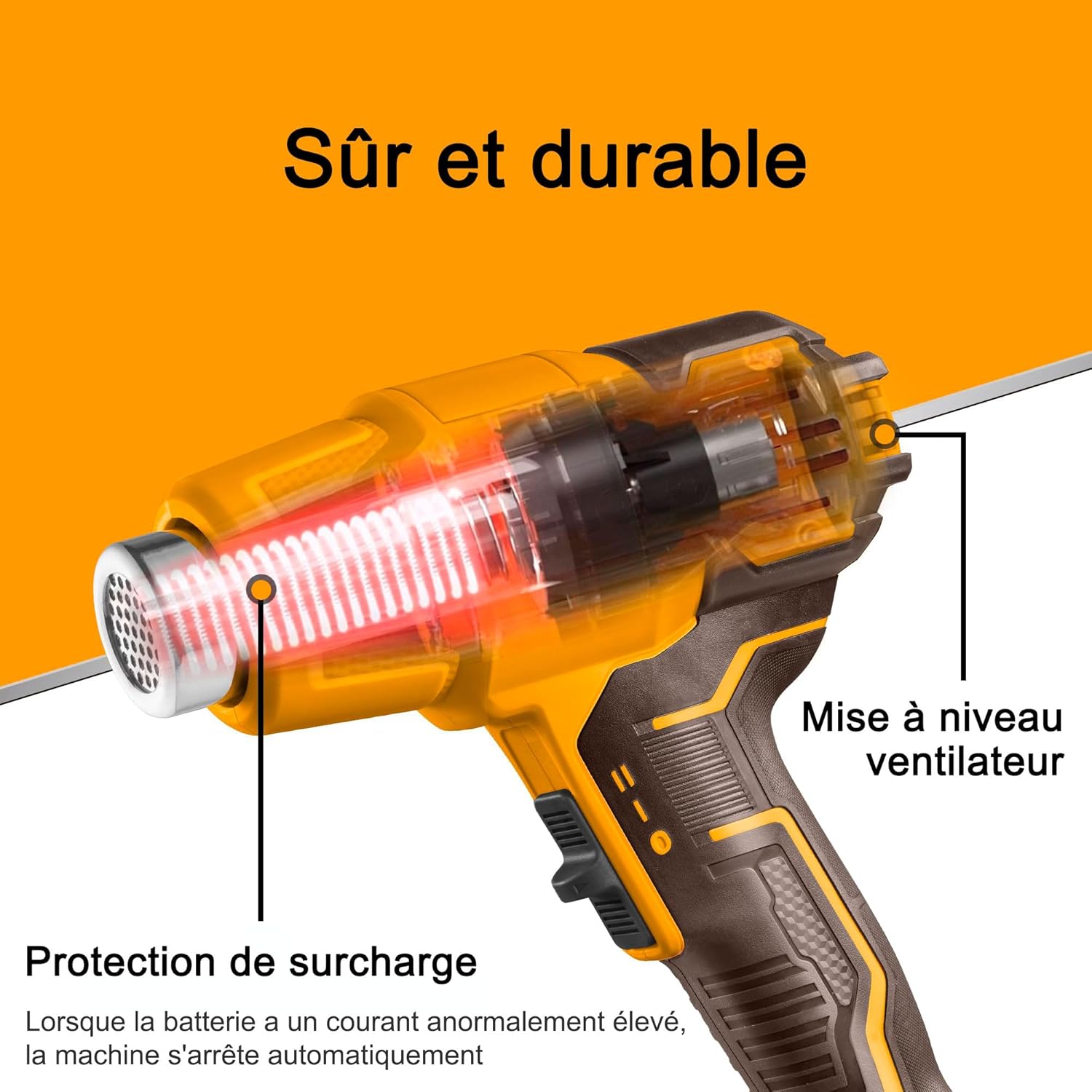

слика: Унутрашње view highlighting overload protection and upgraded fan for safe and durable operation.

3. Садржај пакета

Проверите да ли су све ставке присутне приликом отварања пакета:

• 1 x INGCO 20V Cordless Heat Gun
• 1 x 4.0 Ah литијум-јонска батерија
• 1 x Брзи пуњач
• 3 x Nozzles (Flat, Reflector, Reducer)
• 1 x Пластична кутија за складиштење

слика: The complete package contents, including the heat gun, battery, charger, and three types of nozzles, all stored in a durable plastic case.

4. Карактеристике производа

The INGCO HGLI20025 Cordless Heat Gun offers powerful and versatile performance:

• Велика излазна снага: Provides strong heat, reaching up to 550°C in seconds for efficient work.
• Двострука подешавања температуре: Easily switch between two temperature levels (300°C and 550°C) to suit various applications.
• Подесиви проток ваздуха: Two airflow settings (100 L/min and 200 L/min) for precise control.
• Свестране млазнице: Includes three specialized nozzles for different tasks:
  • Равна млазница: Directs a long, narrow heat pattern for broad surfaces.
  • Редукторска млазница: Concentrates heat into a small area for precise applications.
  • Рефлекторска млазница: Disperses heat evenly around a workpiece, ideal for shrinking tubing.
• Бежични дизајн: Powered by a 20V Lithium-Ion battery for maximum portability and convenience.
• Сигурносне карактеристике: Equipped with overload protection to automatically shut down the tool if the battery current is too high.

слика: The heat gun displaying its two-speed settings for temperature (300°C / 550°C) and airflow (100 L/min / 200 L/min).

5. Подешавање

5.1. Пуњење батерије

1. Connect the fast charger to a suitable power outlet (220-240V~ 50/60Hz).
2. Уметните литијум-јонску батерију од 4.0 Ah на пуњач док не кликне на своје место.
3. Allow the battery to charge fully. The charger's indicator light will show the charging status.
4. Када се батерија напуни, извадите је из пуњача.

слика: INGCO 20V 4.0Ah Lithium-Ion Battery and Fast Charger.

5.2. Постављање батерије

• Align the charged battery with the base of the heat gun.
• Slide the battery onto the tool until it locks securely into place. Ensure it is firmly attached before operation.

5.3. Причвршћивање млазница

• Select the appropriate nozzle for your task (Flat, Reflector, or Reducer).
• Slide the chosen nozzle onto the heat gun's outlet until it fits snugly. Ensure the tool is cool before attaching or removing nozzles.

слика: Demonstrating the use of a nozzle to bend a pipe, illustrating how the three included nozzles can meet different application needs.

6. Упутство за употребу

6.1. Укључивање/искључивање

• To turn on the heat gun, press the power switch located on the handle.
• To turn off the heat gun, release the power switch.

6.2. Adjusting Temperature and Airflow

• The heat gun features a switch for selecting between two temperature settings (300°C and 550°C) and two airflow settings (100 L/min and 200 L/min).
• Select the appropriate setting based on your application requirements. Lower temperatures and airflow are suitable for delicate tasks, while higher settings are for more demanding jobs.

6.3. General Applications

The INGCO HGLI20025 is suitable for a wide range of tasks:

• Heat Shrinking: Ideal for heat shrink tubing and packaging.
• PVC Bending: Softens PVC pipes and sheets for bending and shaping.
• Paint and Tile Removal: Loosens old paint, varnish, or adhesive for easier removal.
• Loosening Rusted Bolts: Applies heat to expand metal, helping to loosen stubborn or rusted fasteners.
• Одмрзавање: Can be used for defrosting frozen pipes or locks.

слика: The heat gun in action, quickly heating a surface to 550°C.

слика: Various applications of the heat gun, including heat shrink, thermal casing, hot melt glue, and defrosting.

7. Одржавање

Редовно одржавање осигурава дуготрајност и оптималне перформансе вашег топлотног пиштоља:

• Чишћење: After each use, ensure the tool is cool. Wipe the exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Keep the air vents clear of dust and debris.
• Складиштење: Store the heat gun, battery, charger, and nozzles in the provided plastic case in a dry, secure location, away from direct sunlight and extreme temperatures. Ensure the battery is removed from the tool before storage.
• Одржавање батерије: Store batteries in a cool, dry place. For long-term storage, charge the battery to approximately 50% capacity. Avoid fully discharging or overcharging the battery.

КСНУМКС. Решавање проблема

Ако наиђете на проблеме са топлотним пиштољем, погледајте следеће уобичајене проблеме и решења:

If troubleshooting steps do not resolve the issue, please contact INGCO customer support.

9. Спецификације

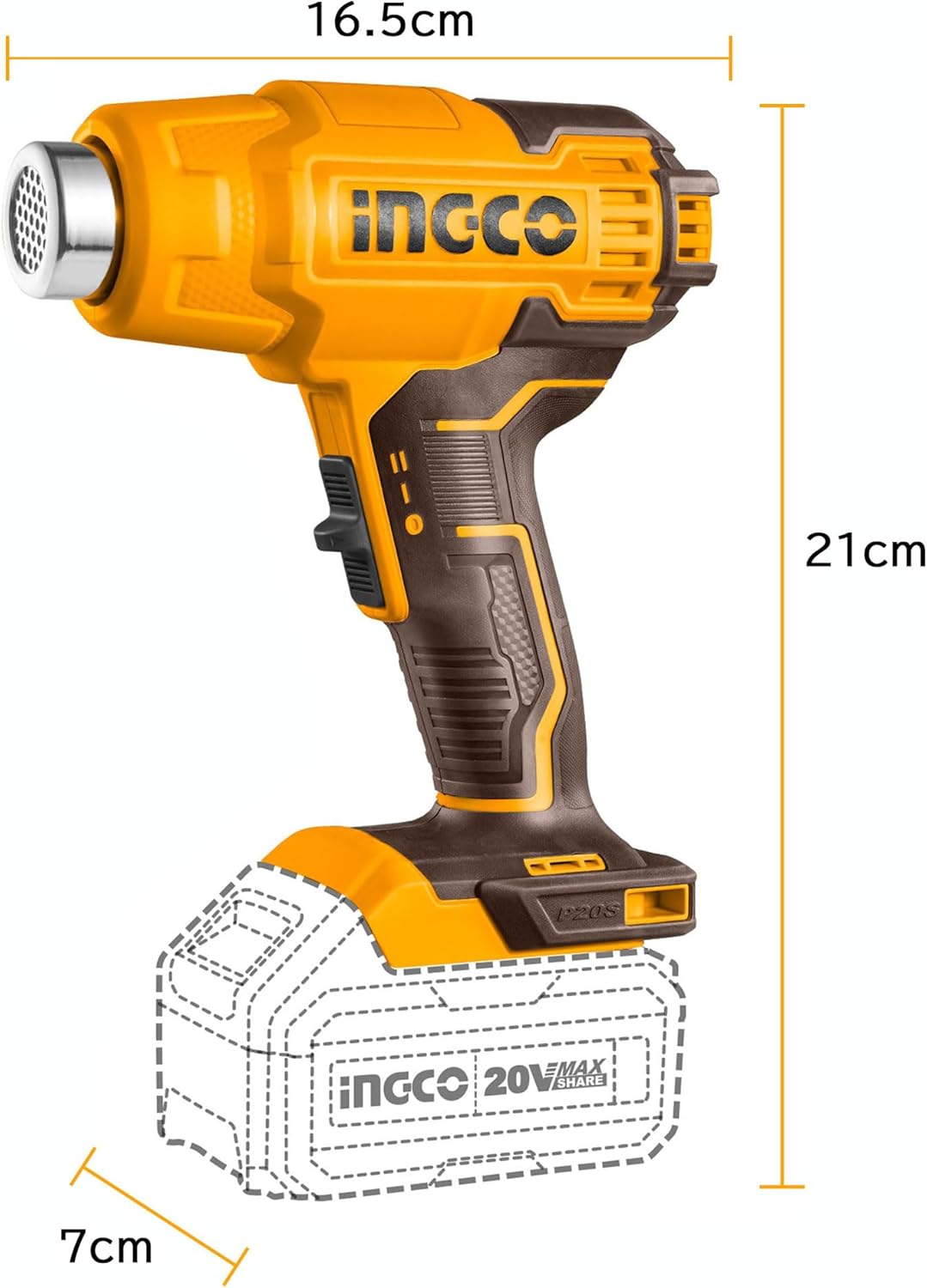

слика: Product dimensions for the INGCO 20V Cordless Heat Gun.

10. Гаранција и подршка

INGCO is committed to providing high-quality products and customer service. If you encounter any defects or have suggestions regarding your product, please do not hesitate to contact us. Our team is dedicated to assisting you.

• гаранција: Молимо погледајте документацију о куповини за конкретне услове гаранције.
• Корисничка подршка: For assistance, please visit the official INGCO webсајт или контактирајте продавца где је производ купљен.
