Quntis 5-Light Chrome Bathroom Vanity Light Instruction Manual

1. Производ је готовview

Thank you for choosing the Quntis 5-Light Chrome Bathroom Vanity Light. This modern lighting fixture is designed to provide versatile illumination with adjustable color temperatures and dimming capabilities, enhancing the ambiance of your bathroom or other indoor spaces. It features robust chrome-plated metal components and crystal bubble technology for a stylish and durable design.

Image: The Quntis 5-Light Chrome Bathroom Vanity Light, showcasing its sleek design and five clear glass shades with crystal bubble bulbs.

Кључне карактеристике:

• Цхроме завршетак: Robust chrome-plated metal components for durability and easy cleaning.
• Crystal Bubble Technology: Thick, clear glass cylinder lampshades with internal crystal bubble bulbs create a unique visual effect.
• 5 режима температуре боје: Adjustable from 2700K (Soft Warm White) to 6500K (Day White) to suit various preferences.
• Затамњење: Compatible with external dimmers (not included) for adjustable brightness.
• Енергетски ефикасна ЛЕД: High-quality 35W LED chip with up to 3300 lumens, bulbs included.
• Разноврсна примена: Suitable for bathrooms, vanity areas, mirrored cabinets, makeup rooms, living rooms, bedrooms, staircases, hallways, and more.

Шта је укључено:

• 1 x Chrome Base
• 5 x провидно стаклено абажур
• 5 x Crystal Bubble Bulb
• Монтажни хардвер
• Упутство за употребу

2. Безбедносне информације

Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause property damage.

• Always turn off the power supply at the main circuit breaker before installing or servicing the fixture.
• Консултујте квалификованог електричара ако нисте сигурни у процес инсталације.
• Уверите се да су сви електрични прикључци изведени у складу са локалним прописима и прописима.
• Немојте прекорачити препоручену количинуtagе за сијалице.
• Пажљиво рукујте стакленим компонентама како бисте спречили ломљење.
• Држите децу даље од области инсталације.

3. Инсталација

Ensure the electricity supply is cut off before beginning installation. This fixture is designed for wall-mount installation.

Водич корак по корак:

1. Уклоните монтажну плочу: Carefully remove the mounting plate from the fixture base. Save the two screw caps that were unscrewed.
2. Причврстите монтажну плочу: Attach the mounting plate to the electrical outlet box on your wall using appropriate screws.
3. Повежите жице: Connect all electrical wires correctly (live, neutral, ground). Use wire nuts caps to secure connections. Attach the copper ground wire to the ground screw on the mounting plate.
4. Install Fixture Base: Install the vanity light fixture onto the mounting plate, securing it with the previously removed screw caps.
5. Assemble Shades: Place the metal cover on each glass lampshade. Then, carefully attach each glass lampshade to the light fixture with the acrylic column.
6. Подесите температуру боје: After installation, adjust the color temperature using the CCT switch located on the fixture base to your desired setting (2700K, 3000K, 4000K, 5000K, or 6500K).

Image: Visual guide showing the six steps for installing the Quntis Bathroom Vanity Light, from removing the mounting plate to adjusting the color.

4. Упутство за употребу

The Quntis Vanity Light offers adjustable color temperature and dimming functionality to customize your lighting experience.

Подешавање температуре боје:

The fixture features a CCT (Correlated Color Temperature) switch, typically located on the fixture base, allowing you to select from five distinct color temperatures:

• 2700К: Soft Warm White for a cozy atmosphere.
• 3000К: Warm White for balanced natural light.
• 4000К: Neutral White for cool yet comfortable illumination.
• 5000К: Cool White for crisp, clear lighting.
• 6500К: Day White for bright, invigorating radiance.

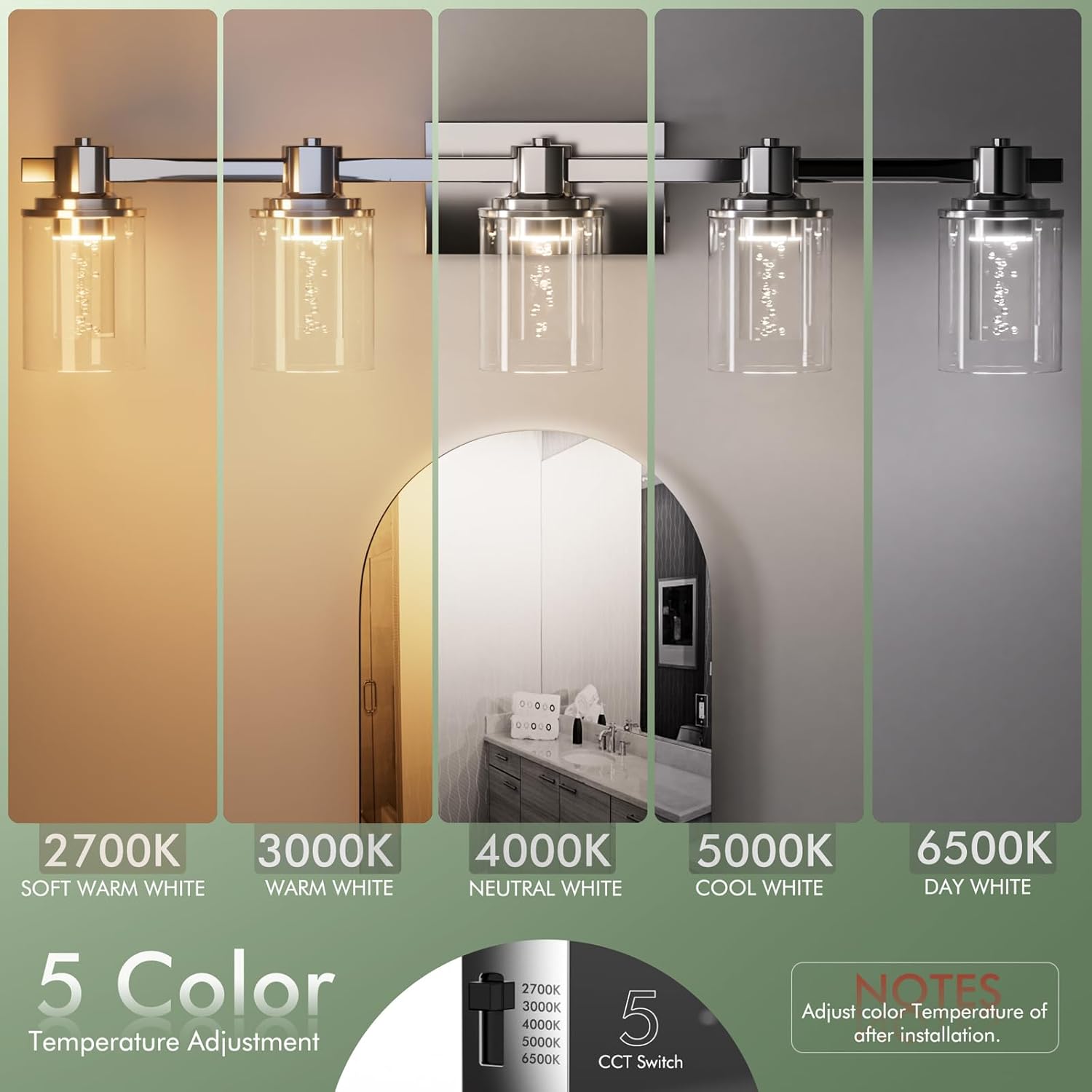

Image: Visual representation of the five color temperature modes (2700K, 3000K, 4000K, 5000K, 6500K) available on the Quntis Vanity Light.

Могућност затамњивања:

This light fixture is smoothly dimmable from 100% down to 10% brightness, without flickering or noise. To utilize the dimming feature, an external dimmer switch (not included) must be installed. Ensure the dimmer switch is compatible with LED lighting.

Image: Illustration showing the Quntis Vanity Light dimming from 100% to 10% brightness, highlighting the need for an external dimmer.

5. Одржавање

Regular maintenance will help preserve the appearance and functionality of your Quntis Vanity Light.

• Чишћење: Use a soft, dry cloth to wipe down the chrome finish and glass shades. For stubborn spots, a slightly damp cloth with mild soap can be used, followed by drying thoroughly. Avoid abrasive cleaners or solvents that may damage the finish.
• Замена сијалице: The fixture features integrated LED bulbs designed for an extended lifespan. If replacement is ever needed, consult the manufacturer or a qualified electrician.
• инспекција: Периодично проверавајте све спојеве и монтажне елементе како бисте били сигурни да су безбедно причвршћени.

КСНУМКС. Решавање проблема

If you encounter any issues with your Quntis Vanity Light, refer to the following common troubleshooting steps:

If these steps do not resolve the issue, please contact Quntis customer support for further assistance.

7. Спецификације

8. Гаранција и подршка

Quntis is committed to providing quality products and excellent customer service. If you encounter any issues with your product, please do not hesitate to contact us. We are here to provide assistance and resolve any problems you may have.

For support, please refer to the contact information provided in your product packaging or visit the official Quntis store on Amazon: Quntis Store.
