Fame UB-1 Electric Upright Bass

1. Увод

Thank you for choosing the Fame UB-1 Electric Upright Bass. This instrument combines the classic feel of an upright bass with the convenience and versatility of an electric instrument. This manual provides essential information for the proper setup, operation, and maintenance of your new bass, ensuring a long and enjoyable musical experience.

Figure 1: Fame UB-1 Electric Upright Bass, Sunburst finish.

2. Безбедносне информације

Please read and understand all safety instructions before using the Fame UB-1 Electric Upright Bass. Retain this manual for future reference.

• електрична безбедност: Do not expose the instrument to rain or moisture. Do not operate near water sources. Ensure all connections are secure before powering on.
• Руковање: Пажљиво рукујте инструментом. Избегавајте испуштање или излагање јаким ударцима.
• Чишћење: Disconnect from power before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or solvents.
• батерија: If the instrument uses batteries, ensure correct polarity. Remove batteries if the instrument will not be used for an extended period.
• вентилација: Не блокирајте вентилационе отворе.

3. Садржај пакета

Carefully unpack your Fame UB-1 Electric Upright Bass and verify that all items are present:

• Fame UB-1 Electric Upright Bass
• Бов
• Слушалице
• Audio Cable (6.35 mm jack)
• Гигбаг

Ако било који предмет недостаје или је оштећен, одмах контактирајте продавца.

4. Производ је готовview

Familiarize yourself with the main components of your Fame UB-1 Electric Upright Bass.

Слика 2: Предња страна view of the Fame UB-1 Electric Upright Bass, showing the body, neck, strings, and headstock.

Слика 3: Позади view of the Fame UB-1 Electric Upright Bass, showing the rear body and neck construction.

Слика 4: Предња страна view of the headstock with tuners and the Fame logo.

Слика 5: Задња страна view of the headstock, showing the string winding posts.

Figure 6: Control panel featuring Volume, Sub Bass, MP3 In, Phone output, and Power Batt indicator.

Figure 7: Bridge and integrated pickup system.

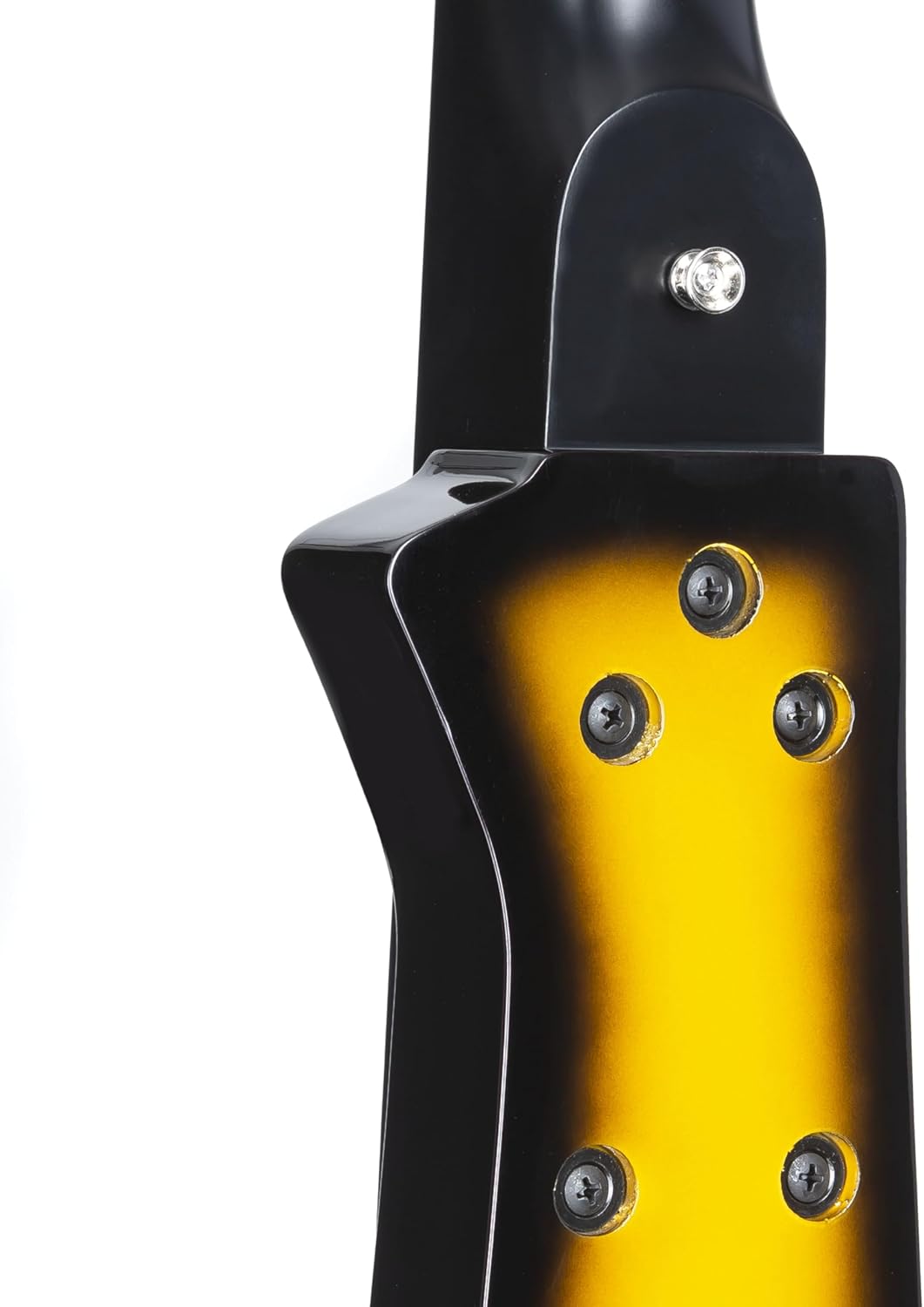

Figure 8: Detail of the neck-to-body attachment point.

5. Подешавање

Follow these steps to set up your Fame UB-1 Electric Upright Bass for playing:

1. Распакивање: Carefully remove the bass and all accessories from the gigbag.
2. Endpin Adjustment: The bass features an adjustable endpin. Loosen the locking screw, extend the endpin to a comfortable playing height, and then tighten the screw securely.
3. Инсталација батерије: The UB-1 features active electronics. Locate the battery compartment (typically on the back or side of the body). Insert a 9V battery, observing correct polarity. The "Power Batt" indicator light on the control panel will illuminate when the instrument is powered on and the battery has sufficient charge.
4. Повезивање са ан Ampдизалица: Use the provided 6.35 mm audio cable to connect the instrument's output jack to your ampлифиер или аудио интерфејс.
5. Повезивање слушалица: For silent practice, plug the included headphones into the "Phone" jack on the control panel.
6. подешавање: Tune the strings to standard bass tuning (E-A-D-G) using the tuners on the headstock. An electronic tuner is recommended for accuracy.

6. Оперативни

Once set up, you can begin playing your Fame UB-1 Electric Upright Bass.

• Контрола јачине звука: The "Volume" knob adjusts the overall output level of the instrument. Turn clockwise to increase volume, counter-clockwise to decrease.
• Sub Bass Control: The "Sub Bass" knob allows you to boost or cut the lower frequencies, shaping your tone. Experiment with this control to find your desired sound.
• MP3 In: Connect an external audio device (e.g., MP3 player, smartphone) to the "MP3 In" jack using an appropriate cable (not included) to play along with backing tracks. The volume of the external device is controlled by the device itself.
• Технике играња: The UB-1 can be played using a bow (arco) or plucked (pizzicato), similar to an acoustic upright bass. Practice proper posture and hand positioning for optimal sound and comfort.

7. Одржавање

Regular maintenance will help preserve the condition and playability of your instrument.

• Чишћење: After each use, wipe down the strings and body with a soft, dry, lint-free cloth to remove sweat and dirt. For stubborn grime, a slightly damp cloth can be used on the body, followed by a dry wipe. Avoid abrasive cleaners.
• Замена низа: Strings should be replaced periodically, depending on usage, to maintain optimal tone and playability. Replace one string at a time to maintain neck tension.
• Складиштење: When not in use, store the bass in its gigbag to protect it from dust, humidity fluctuations, and physical damage. Avoid storing in extreme temperatures or direct sunlight.
• Провера батерије: Regularly check the battery level. If the "Power Batt" indicator light dims or the sound becomes weak, replace the 9V battery.

КСНУМКС. Решавање проблема

If you encounter issues with your Fame UB-1, refer to the following troubleshooting guide:

Ако проблем и даље постоји након што сте испробали ова решења, обратите се корисничкој подршци.

9. Спецификације

10. Гаранција и подршка

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or inquiries, you may contact the importer:

Емаил: инфо@мусицсторе.де
