Увод
This manual provides detailed instructions for the installation, operation, and maintenance of your LEDIARY 42 Inch Chandelier Ceiling Fan. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Безбедносне информације
Увек се придржавајте основних мера предострожности приликом инсталирања и рада електричних уређаја како бисте смањили ризик од пожара, струјног удара и повреда.
- Уверите се да је напајање искључено на прекидачу пре инсталације или одржавања.
- All electrical wiring must be performed by a qualified electrician and conform to local codes and regulations.
- Монтажна конструкција мора бити способна да издржи тежину вентилатора (приближно 22.9 фунти).
- Не савијајте држаче сечива током инсталације, балансирања или чишћења.
- Држите руке даље од лопатица вентилатора док вентилатор ради.
- Не користите вентилатор са прекидачем за пригушивање који није посебно дизајниран за плафонске вентилаторе.
Садржај пакета
Проверите да ли су све компоненте присутне пре почетка инсталације.

Опис слике: A visual representation of all parts included in the package. This includes the canopy cover, two downrod options (4 and 8 inches), a coupling cover, a crystal stand, a lamp shade, the main motor host, an LED light panel, a remote control, a receiver, and 40 individual crystal strings.
- 1 x Canopy Cover
- 2 x Downrod (4"/8")
- 1 x Coupling Cover
- 1 x Crystal Stand
- 1 к Л.amp Схаде
- 1 x Motor Host
- 1 к ЛЕД светлосна плоча
- 1 к даљински управљач (батерије укључене)
- 1 к пријемник
- 40 x Crystal String
Подешавање и инсталација
Пратите ове кораке за правилну инсталацију плафонског вентилатора. Препоручује се професионална инсталација.
- Prepare the LED Light Board: Connect the LED light board to the motor host.
- Обезбедите Лampнијанса: Поправи лampshade to the fan assembly using screws.
- Инсталирајте Довнрод: Insert the chosen downrod into the mounting bracket.
- Уметните пријемник: Place the receiver into the mounting bracket.
- Причврстите кристалне нити: Hook the longest crystal bead string into the middle of the frame, then attach the remaining crystal strings.

Опис слике: A sequential diagram illustrating the five main steps for assembling the ceiling fan. It shows connecting the LED light board, securing the lampshade, installing the downrod, inserting the receiver, and finally, attaching the crystal strings.
Разматрања о монтажи
- The fan is designed for flush mount installation.
- Two downrod options (4" and 8") are provided for adjustable height.
- Adaptable for sloped ceilings up to 15 degrees.

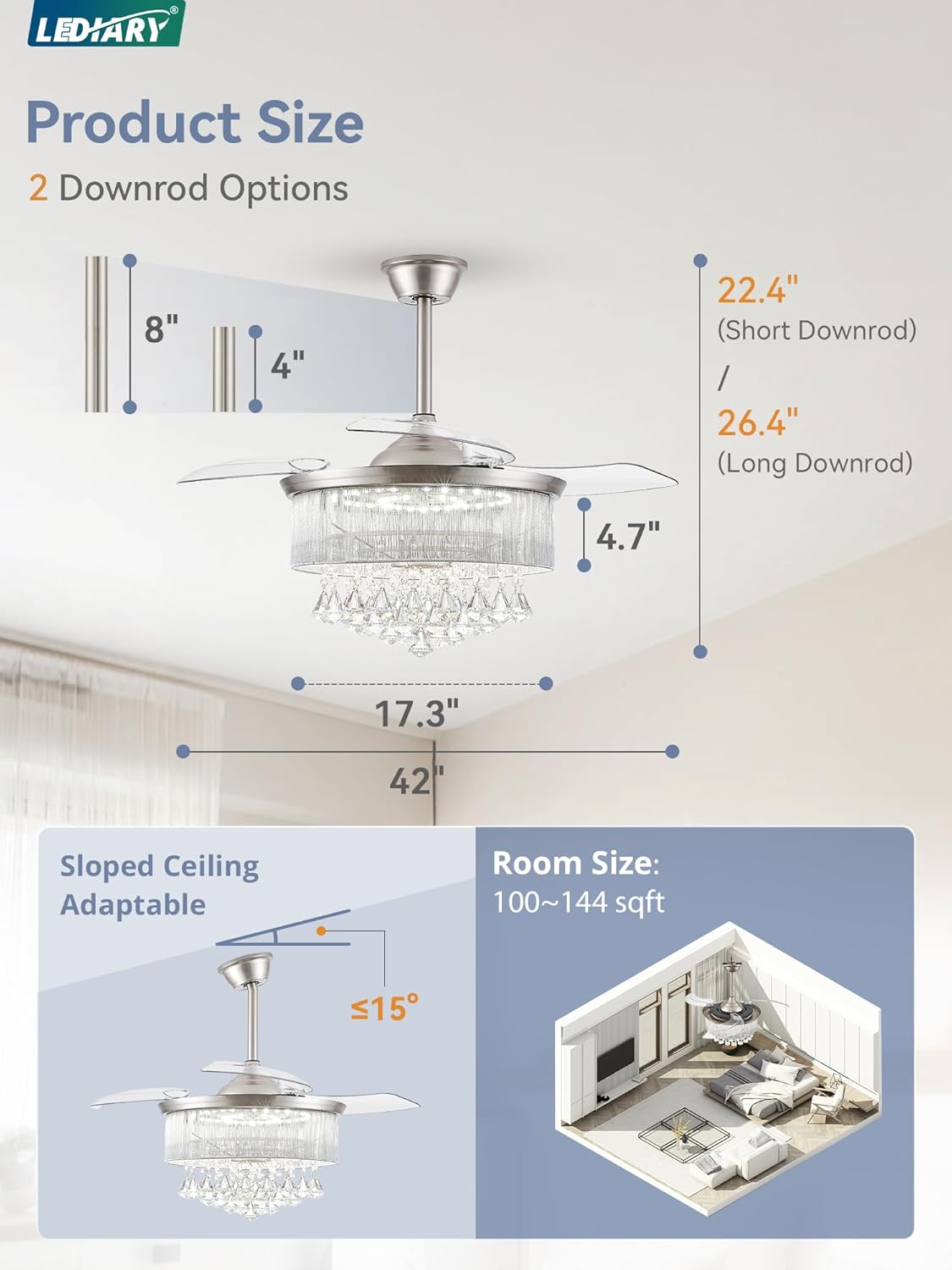

Опис слике: This image displays the fan's dimensions, including its 42-inch diameter and height with both 4-inch and 8-inch downrod options. It also illustrates how the fan can be installed on sloped ceilings (up to 15 degrees) and suggests a suitable room size of 100-144 square feet.
Упутство за употребу
Your LEDIARY ceiling fan can be controlled via the included remote control or a compatible smartphone application.
Remote Control and App Functions

Опис слике: This image illustrates both the physical remote control and a smartphone application interface used to operate the fan. Key functions highlighted include 6 fan speeds, adjustable brightness, timer settings, color temperature control, and a reverse function.
- Брзине вентилатора: Select from 6 available fan speeds for optimal airflow.
- Подешавање осветљености: Adjust the LED lighting brightness from 10% to 100%.
- Контрола температуре боје: Change the light color temperature between Warm White (3000K), Cool White (4500K), and Clear White (6000K).
- Подешавање тајмера: Set the fan to turn off automatically after a specified duration (e.g., 1H, 2H, 4H).
- Реверзна функција: Utilize the reversible DC motor for seasonal comfort.
- Ноћно светло: Activate a low-level light setting for nighttime use.

Опис слике: This visual shows the fan's lighting capabilities, displaying three distinct color temperatures: 3000K (Warm White), 4500K (Cool White), and 6000K (Clear White). Below these examples, a slider indicates the adjustable brightness range from 10% to 100%.
Reversible Motor Function
The fan features a reversible DC motor to optimize air circulation for different seasons.
- Летњи режим (снизу): Blades rotate counter-clockwise to create a cooling downdraft.
- Зимски режим (узлазни струјни погон): Blades rotate clockwise to create an updraft, circulating warm air near the ceiling.

Опис слике: This image visually explains the reversible motor function. On the left, 'Summer Mode' shows the fan creating a downward airflow for cooling. On the right, 'Winter Mode' depicts the fan generating an upward airflow to circulate warm air.
Ретрацтабле Бладес
The fan's transparent blades automatically retract and become invisible when the fan is turned off, and extend when the fan is in operation.

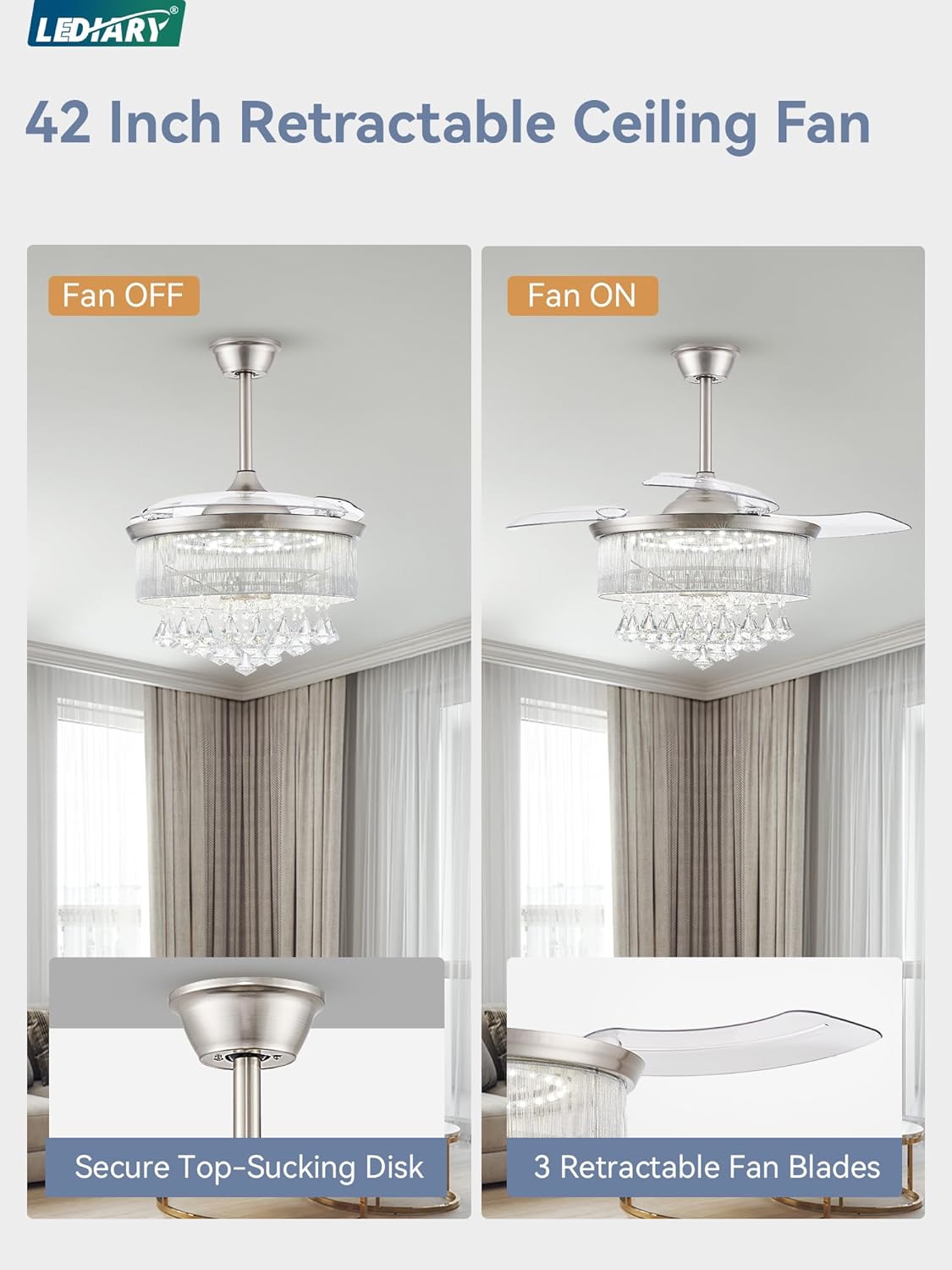

Опис слике: A comparison image showing the fan in two states: 'Fan OFF' where the transparent blades are retracted and concealed, and 'Fan ON' where the blades are extended for operation.
Одржавање
Редовно одржавање осигурава дуготрајност и оптималне перформансе вашег плафонског вентилатора.
- Чишћење: Turn off the power before cleaning. Use a soft, damp крпом обришите кућиште вентилатора и лопатице. Не користите абразивна средства за чишћење или раствараче.
- Цристал Царе: Gently wipe crystals with a soft, lint-free cloth.
- Затегните причвршћиваче: Periodically check and tighten all screws and fasteners to ensure secure operation.
Решавање проблема
Ако наиђете на проблеме са вентилатором, погледајте следеће уобичајене проблеме и решења.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Вентилатор се не покреће | Нема напајања вентилатора; Лабаве жице; Батерија даљинског управљача је празна. | Проверите осигурач; Проверите да ли су сви прикључци жица безбедни; Замените батерије даљинског управљача. |
| Вентилатор прави буку | Loose screws; Unbalanced blades; Motor hum. | Tighten all screws; Ensure blades are balanced; Motor hum is normal for DC motors, but should be minimal (under 30dB). |
| Светло не ради | Loose wire connection; LED panel issue. | Check light wiring connections; Contact customer support if LED panel is faulty. |
| Даљински управљач не ради | Low battery; Remote not paired. | Replace batteries (Zinc Carbon); Refer to remote pairing instructions (if applicable). |
If problems persist after attempting these solutions, please contact LEDIARY customer support.
Спецификације
| Феатуре | Детаљ |
|---|---|
| Бранд | ЛЕДИАРИ |
| Број модела | f384470f-a39d-45ac-bc7a-928e6ff337a5 |
| Димензије производа | 42 cm D x 42 cm Š x 26.4 cm V |
| Тежина артикла | 22.9 фунти |
| Материјал | Acrylonitrile Butadiene Styrene, Crystal, Iron |
| Боја | Brush Nickel |
| Врста инсталације | Флусх Моунт |
| Извор напајања | DC |
| Мотор Еффициенци | 30В |
| Тип извора светлости | ЛЕД |
| ЛЕД Ватtage | 40В |
| Температура боје светлости | 3000K (Warm), 4500K (Cool), 6000K (Clear) |
| Осветљеност | Adjustable (10%-100%) |
| Контролни метод | Remote Control, APP Control |
| Брзине вентилатора | 6 |
| Ниво буке | Испод 30dB |
| Посебне карактеристике | Adjustable Height, Color Changing, Crystal, Dimmable, Timer, Retractable Blades, Reversible Motor |
| Обавезна монтажа | Да |
| Батерије за даљински | Zinc Carbon (Included) |
Гаранција и подршка
LEDIARY offers a 2-year warranty for this product. If you encounter any issues or require technical assistance, please contact LEDIARY customer support.
Your satisfaction is our priority. For support, please refer to the contact information provided with your purchase or visit the official LEDIARY webсајту.
