YINMIK YK-7C 7-in-1 pH Measurement Probe Instruction Manual

1. Увод

This manual provides comprehensive instructions for the YINMIK YK-7C 7-in-1 pH Measurement Probe. This replaceable electrode is designed for use with compatible 7-in-1 pH meters, offering accurate measurements for various applications. Please read this manual carefully before use to ensure proper operation and maintenance.

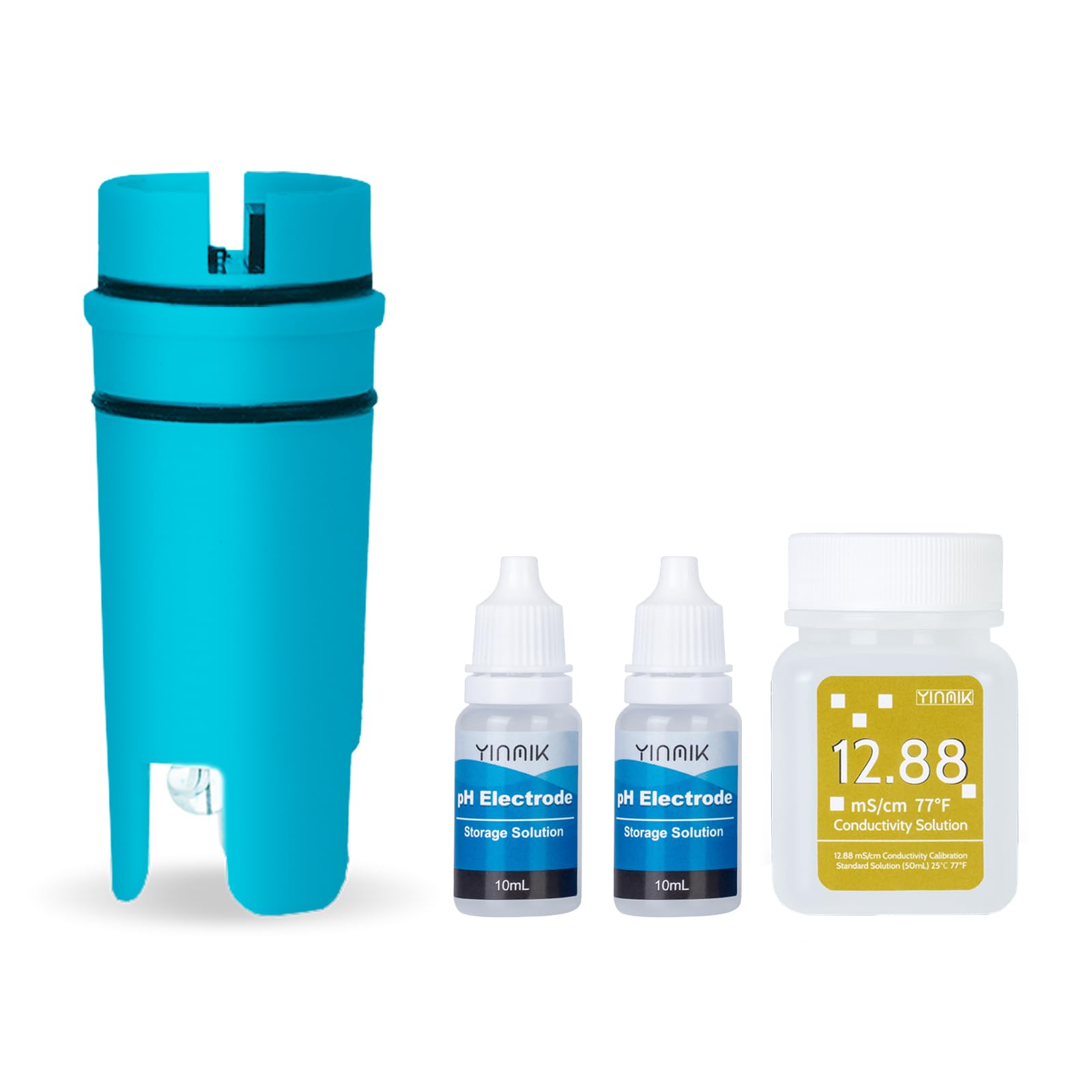

2. Садржај пакета

Проверите да ли се у вашем пакету налазе све ставке наведене у наставку:

• 1 x Replaceable pH Probe (YK-7C)
• 1 x EC Calibration Solution (12.88 mS/cm)
• 2 x 10 ml KCL Probe Storage Solution

3. Подешавање и инсталација

This section details the process of replacing the pH probe on your compatible 7-in-1 pH meter.

1. Искључивање: Ensure your 7-in-1 pH meter is powered off before attempting to replace the probe.
2. Remove Old Probe: Carefully unscrew or detach the existing pH probe from the meter's main unit.
3. Инсталирајте нову сонду: Gently screw or attach the new YK-7C replaceable pH probe to the meter. Ensure a secure connection to prevent leaks or inaccurate readings.
4. Прво испирање: Before first use or calibration, rinse the probe tip with distilled or deionized water.

4. Калибрација

After replacing the probe, it is crucial to calibrate both pH and EC functions for accurate measurements. Always use appropriate calibration solutions.

4.1 пХ калибрација

For pH calibration, use standard buffer solutions of pH 7.00, pH 4.00, and pH 10.01. Refer to your 7-in-1 pH meter's specific calibration procedure for detailed steps.

4.2 EC Calibration

For EC calibration, select the solution appropriate for your application:

• Хидропоника: Use 1413 µS/cm EC calibration solution.
• Базени: Use 12.88 mS/cm EC calibration solution (one bottle included in this package).

Follow your meter's instructions for the EC calibration process.

5. Operation and Application

The YINMIK YK-7C probe is designed for a wide range of applications:

• Laboratory testing
• Swimming pools and spas
• Hydroponic systems
• Aquariums and fish tanks
• Other water quality monitoring applications

To take a measurement, immerse the probe tip into the liquid sample. Allow sufficient time for the reading to stabilize on your connected pH meter before recording the result.

6. Одржавање и складиштење

Proper maintenance and storage are essential to extend the lifespan and ensure the accuracy of your pH probe.

• Чишћење: After each use, rinse the probe tip thoroughly with distilled or deionized water to remove any residue. Do not wipe the glass bulb, as this can damage it.
• Складиштење: Always store the pH probe with its cap filled with KCL probe storage solution (2 x 10 ml bottles included). This prevents the electrode from drying out, which can lead to inaccurate readings and shorten its lifespan. If the probe dries out, soak it in KCL storage solution for several hours before use.
• Учесталост калибрације: Calibrate your probe regularly, especially if you notice inconsistent readings, after prolonged storage, or before critical measurements.

КСНУМКС. Решавање проблема

If you encounter issues with your YINMIK YK-7C probe, consider the following common problems and solutions:

• Нетачна очитавања:
  • Ensure the probe is properly calibrated. Recalibrate if necessary.
  • Check if the probe tip is clean and free from debris.
  • Verify that the probe is stored in KCL solution when not in use. A dry probe can give unstable readings.
  • Confirm the sample temperature is within the meter's operating range.
• Slow Response Time:
  • The probe might be dirty or partially dehydrated. Clean and rehydrate in KCL solution.
  • The probe might be nearing the end of its lifespan and may require replacement.
• Грешка калибрације:
  • Ensure calibration solutions are fresh and not expired.
  • Verify that you are using the correct calibration solutions for pH (7.00/4.00/10.01) and EC (1413 µS/cm or 12.88 mS/cm).
  • The probe might be damaged or worn out.

8. Спецификације

9. Гаранција и подршка

For warranty information or technical support regarding your YINMIK YK-7C pH Measurement Probe, please refer to the documentation provided with your main 7-in-1 pH meter unit or contact YINMIK customer service directly. Contact details can typically be found on the manufacturer's webсајт или паковање производа.
