1. Увод
This manual provides essential instructions for the safe and efficient use of your FNRIDS Type 2 Electric Car Charging Cable. Please read this manual thoroughly before operating the device and retain it for future reference. This charging cable is designed to provide a reliable and convenient charging solution for electric vehicles equipped with a Type 2 charging port.
2. Безбедносна упутства
Да бисте осигурали безбедан рад и спречили оштећења, придржавајте се следећих мера предострожности:
- Always ensure the charging cable and connectors are free from damage before use. Do not use if any part is damaged.
- Do not attempt to open, disassemble, or modify the charging cable or control box.
- Keep the charging cable away from children and pets.
- Ensure the power outlet used is properly grounded and rated for the charger's specifications (AC 1PH 230V, 16A).
- Avoid submerging the control box or connectors in water, despite its IP65 rating.
- Do not use the charger in explosive or flammable environments.
- Disconnect the charger from the power source and the vehicle before cleaning or maintenance.
- The intelligent chip provides protection against leaks, overcharging, and overheating. The cable is also IP65 waterproof, suitable for various weather conditions.
This product is certified by UKCA, CE, and TUV, ensuring compliance with relevant safety standards.
Слика 2.1: Готовоview of the FNRIDS charging cable's comprehensive safety protections and certifications.
3. Садржај пакета
Проверите да ли су све ставке присутне у пакету:
- 1 x Electric Vehicle Charger (Type 2 Charging Cable with Control Box)
- 1 к Упутство за употребу
- 1 x Преносна торба
- 1 x USB Charger (Note: This item is listed in the product details but may not be directly related to the EV charger's primary function.)
- 2 x USB Cables (Note: These items are listed in the product details but may not be directly related to the EV charger's primary function.)
- 1 x Remote Control (Note: This item is listed in the product details but may not be directly related to the EV charger's primary function.)

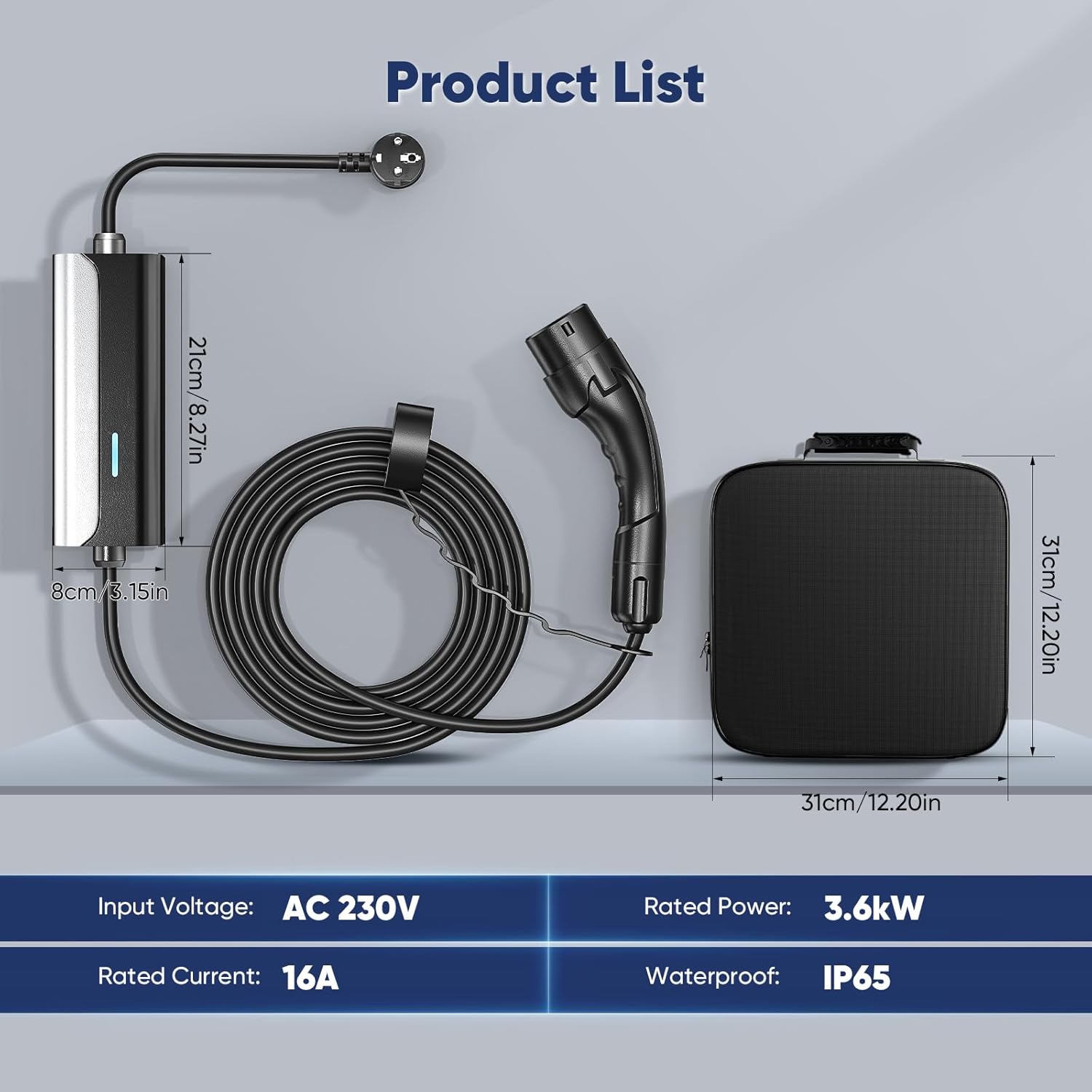

Слика 3.1: Contents of the FNRIDS charging cable package, including the charger, control box, and carry bag.
4. Производ је готовview
4.1. Кључне карактеристике
- Ефикасно пуњење: Delivers 16A output current and 3.6kW rated power, offering faster charging compared to standard 10A chargers.
- Универзална компатибилност: Complies with IEC 62196-2 standards, making it compatible with most Type 2 electric vehicles and plug-in hybrid cars in Europe.
- Intuitive Monitoring: Features an LED indicator on the control box for real-time charging status and error identification.
- Поуздана заштита: Equipped with an intelligent chip for protection against leaks, overcharging, overheating, and is IP65 waterproof.
- Погодност без премца: Portable design with an included carry bag allows for charging at home, office, garage, or during travel.
Слика 4.1: The FNRIDS Type 2 Electric Car Charging Cable and its components.
Слика 4.2: The FNRIDS charging cable demonstrating universal compatibility with Type 2 electric vehicles.
Слика 4.3: Visual representation of the FNRIDS charging cable's efficient charging capabilities.
Слика 4.4: The FNRIDS charging cable's control box demonstrating its robust and durable construction.
Слика 4.5: The FNRIDS charging cable's suitability for both indoor and outdoor use in various weather conditions.
5. Спецификације
| Спецификација | Валуе |
|---|---|
| Број модела | YH-0E7W-HH8M |
| Цабле Ленгтх | 8 meters (Other lengths may be available) |
| Улазни волtage | AC 1PH 230V ±20% |
| Инпут Фрекуенци | 50 ±3Хз |
| Називна снага | 3.6 кВ |
| Оутпут Волtage | AC 1PH 230V ±20% |
| Излазна струја | 16А |
| Потрошња енергије у стању приправности | <5В |
| Радна температура | -25°Ц до +50°Ц |
| Температура складиштења | -25°Ц до +50°Ц |
| Воркинг Хеигхт | <2000м |
| Оцена заштите | ИП65 |
| Цертификати | UKCA, CE, TUV, IEC 62196-2 |
| Тип конектора | Тип 2 |
| Компатибилни уређаји | Electric Vehicles, Plug-in Hybrid Cars |
6. Подешавање
Follow these steps to prepare your charging cable for use:
- Raspakujte: Carefully remove the charging cable and all accessories from the portable bag.
- Прегледајте: Visually inspect the cable, connectors, and control box for any signs of damage. Do not proceed if damage is found.
- позиција: Place the control box on a stable surface or hang it securely if possible, ensuring it is not in a position where it can be driven over or damaged. Ensure the cable reaches both the power outlet and your vehicle without being stretched or creating a tripping hazard.
- Повежите се са напајањем: Insert the Schuko power plug firmly into a compatible, properly grounded AC 230V 16A wall outlet.
- Иницијална провера: The LED indicator on the control box should illuminate blue, indicating standby mode.
7. Упутство за употребу
Charging your electric vehicle is a simple plug-and-play process:
- Припремите возило: Ensure your electric vehicle is turned off and the charging port cover is open.
- Повежите се са возилом: Firmly insert the Type 2 connector into your vehicle's charging port. Ensure it clicks into place.
- Покрените пуњење: Once connected, the charging process should begin automatically. The LED indicator on the control box will flash green to indicate active charging.
- Пуњење монитора: Observe the LED indicator for charging status. Refer to Section 8 for details on LED indications.
- Complete Charging: When charging is complete, the LED indicator will turn solid green.
- Искључите се из возила: Safely disconnect the Type 2 connector from your vehicle's charging port. Some vehicles may require unlocking the charging port via the vehicle's controls before disconnection.
- Искључите напајање: Unplug the Schuko power plug from the wall outlet.
- продавница: Coil the cable neatly and store it in the provided portable bag in a dry, safe place.
8. Водич за ЛЕД индикаторе
The LED indicator on the control box provides visual feedback on the charging status:
- Чврсто плаво светло: Indicates the charger is in standby mode, connected to power but not actively charging.
- Трепћуће зелено светло: Indicates the charger is actively charging the vehicle.
- Стално зелено светло: Означава да је пуњење завршено.
- Чврсто црвено светло: Indicates an error or safety precaution. Refer to the Troubleshooting section for assistance.
Слика 8.1: FNRIDS charging cable LED indicator status guide.
9. Одржавање
Proper maintenance ensures the longevity and safe operation of your charging cable:
- Чишћење: Disconnect the charger from both the power source and the vehicle before cleaning. Use a soft, dry cloth to wipe down the cable, connectors, and control box. Do not use abrasive cleaners or solvents.
- Складиштење: When not in use, coil the cable neatly and store it in the provided portable bag. Keep it in a dry, cool place, away from direct sunlight and extreme temperatures.
- инспекција: Regularly inspect the cable and connectors for any signs of wear, cuts, cracks, or corrosion. If any damage is observed, discontinue use immediately and contact customer support.
- Услови животне средине: The IP65 rating allows for outdoor use, but prolonged exposure to harsh weather conditions should be minimized when possible. Ensure connectors are clean and dry before use.
КСНУМКС. Решавање проблема
If you encounter issues, refer to the following troubleshooting guide:
| Проблем | Могући узрок | Решење |
|---|---|---|
| No LED light when plugged into power. | No power from the outlet; faulty outlet; damaged cable/control box. | Check the power outlet with another device. Try a different outlet. Inspect the cable for damage. If damaged, discontinue use. |
| LED shows solid red light. | Error detected (e.g., over-voltagе, под-волtage, over-current, leakage, overheating, short-circuit). | Disconnect the charger from both the vehicle and the power outlet. Wait a few minutes, then reconnect. If the error persists, contact customer support. |
| Charging does not start (LED remains blue). | Type 2 connector not fully inserted into vehicle; vehicle not ready to charge; vehicle charging port issue. | Ensure the Type 2 connector is firmly and correctly inserted into the vehicle's charging port. Check vehicle's dashboard or app for charging status. Try restarting the vehicle. |
| Charging stops unexpectedly. | Power interruption; vehicle charging fault; charger safety mechanism activated. | Check the power supply. Check vehicle for error messages. If the LED is red, refer to the 'Solid red light' solution. |
For issues not covered here or if problems persist, please contact FNRIDS customer support.
11. Гаранција и подршка
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact FNRIDS customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
Произвођач: ФНРИДС
Датум прве доступности: 25. јануара 2024. године
