Tacwise Z4-140 Heavy Duty 4-in-1 Staple/Nail Gun Instruction Manual

Увод

The Tacwise Z4-140 is a robust and versatile 4-in-1 staple and nail gun designed for various fastening tasks. This tool is capable of firing four different types of fasteners: Type 140 flat wire staples, Type 91 narrow crown staples, 18G nails, and 180 series headless pins. Its die-cast aluminum body ensures durability and reliability, while the ergonomic design and adjustable power feature provide comfort and control for prolonged use across different materials.

Безбедносне информације

Always wear appropriate personal protective equipment, including safety glasses, when operating the staple/nail gun. Ensure the tool is unloaded before performing any maintenance or adjustments. Keep hands and body parts clear of the firing mechanism and fastener exit point. Do not point the tool at yourself or others. Store the tool in a safe place, out of reach of children.

Сетуп

1. Утовар причвршћивача

The Z4-140 features a bottom-loading magazine. To load fasteners:

1. Ensure the tool is unloaded and the safety catch is engaged.
2. Locate the magazine release mechanism at the bottom rear of the tool.
3. Pull the magazine follower rod out until it locks into place.
4. Insert the desired fasteners (staples, nails, or pins) into the magazine channel. Important: Do not load fasteners of different types or lengths together.
5. Gently push the magazine follower rod forward until it engages with the fasteners.

Слика 1: Illustration showing the correct method for loading fasteners into the magazine (top) and an incorrect method (bottom).

2. Adjusting Power

The tool includes a simple power adjuster to match the material's hardness or softness. Locate the power adjustment dial, typically near the handle, and rotate it to increase or decrease the firing force as needed for your application.

3. Attaching Margin Edge Adjuster

For accurate and exact stapling, attach the supplied margin edge adjuster. This accessory helps maintain a consistent distance from the edge of your material.

Слика 2: Demonstrates how to attach the margin edge adjuster for precise fastening.

Упутство за употребу

1. Fastener Compatibility

The Tacwise Z4-140 is compatible with the following fastener types and sizes:

• Type 140 Flat Wire Staples: 6 - 14mm length
• Type 91 Narrow Crown Staples: 6 - 14mm length
• 18G Nails: 10 - 15mm length
• 180 Series Headless Pins: 15 мм дужине

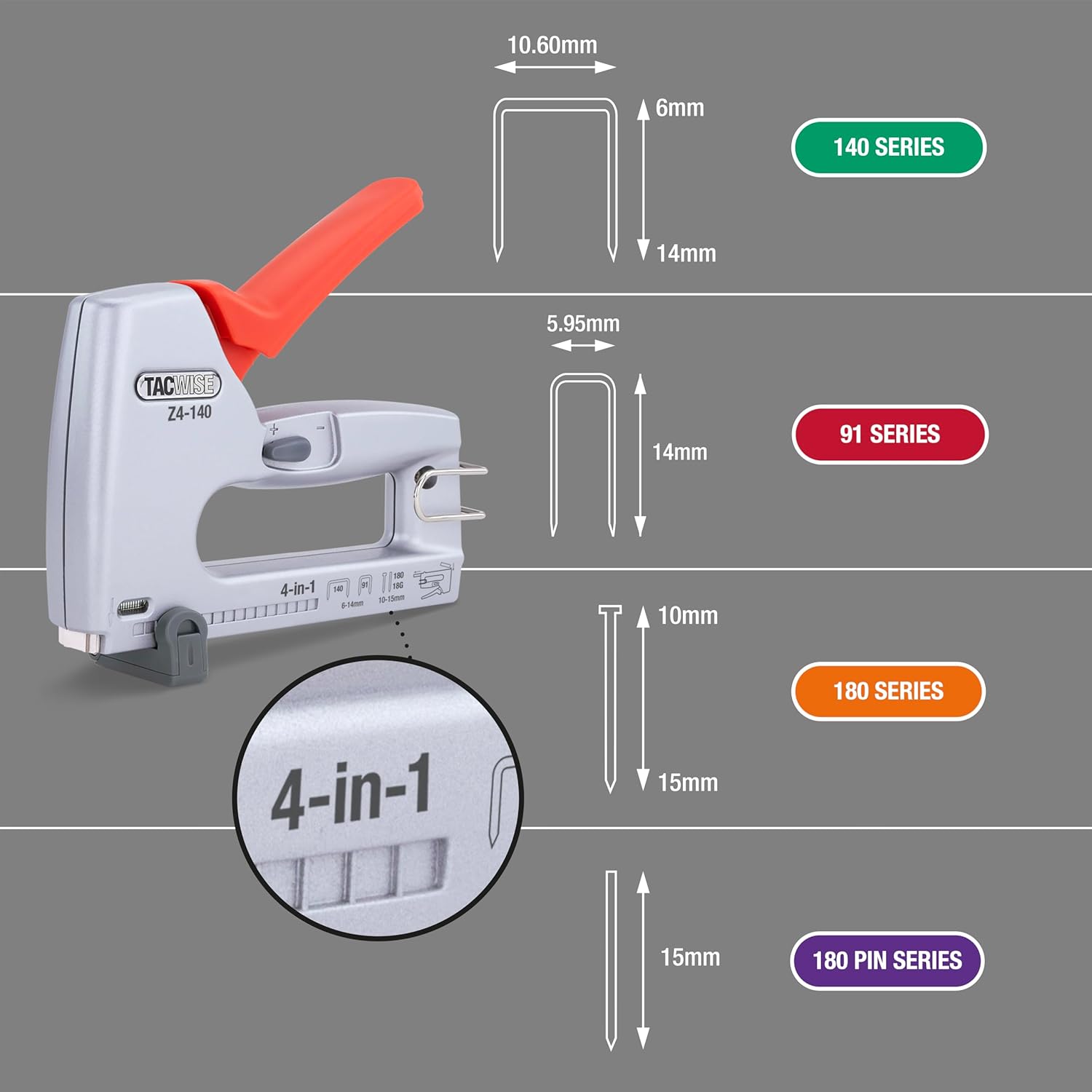

Слика 3: Visual guide to the four types of fasteners compatible with the Z4-140, including their dimensions.

2. Firing the Tool

Once loaded and power adjusted:

1. Position the nose of the tool firmly against the workpiece where the fastener is to be driven.
2. Squeeze the handle firmly and completely to fire the fastener.
3. Release the handle to reset the firing mechanism for the next fastener.

Слика 4: The Z4-140 being used to secure insulation, demonstrating a typical application.

3. Пријаве

The Z4-140 is suitable for a wide range of professional and DIY tasks, including but not limited to:

• Carpets and underlay installation
• Netting and wire fencing
• Plastic sheeting and breather membrane attachment
• Insulation fastening
• Upholstery and fabric work
• Picture framing

Одржавање

1. Општа нега и чишћење

Keep the tool clean and free from dust and debris. Periodically wipe down the exterior with a dry cloth. Ensure the magazine channel is clear of any obstructions to prevent feeding issues.

2. Складиштење

Store the staple/nail gun in a dry, secure location. It is recommended to unload the tool before long-term storage.

3. Еколошка одговорност

This tool is designed for disassembly to minimize environmental impact and promote sustainability. Please dispose of the product responsibly at the end of its life cycle, following local regulations for recycling and waste management.

Решавање проблема

If you encounter issues with your Tacwise Z4-140, consider the following common troubleshooting steps:

• Fastener Not Firing:
  • Check if the magazine is loaded correctly and contains fasteners.
  • Ensure the power adjuster is set appropriately for the material.
  • Verify that the tool is pressed firmly against the workpiece.
• Fasteners Jamming:
  • Ensure you are using the correct type and size of fasteners for the tool.
  • Confirm that only one type of fastener is loaded at a time.
  • Clear any jammed fasteners carefully after ensuring the tool is unloaded.
• Fasteners Not Driving Fully:
  • Increase the power setting using the power adjuster.
  • Ensure the material is not excessively hard for the tool's capacity.

For persistent issues, contact Tacwise customer support or refer to their official webсајт за даљу помоћ.

Спецификације

Слика 5: Key dimensions of the Tacwise Z4-140 staple/nail gun.

Слика 6: The Tacwise Z4-140 held in hand, highlighting its lightweight design (0.64 kg).

Гаранција и подршка

For information regarding product warranty, technical support, or service, please refer to the official Tacwise webсајт или директно контактирајте њихову службу за кориснике. Сачувајте рачун као доказ о куповини за евентуалне рекламације по гаранцији.

Official Tacwise Webсајт: ввв.тацвисе.цом (Напомена: Ово је резервисано место URL. Please refer to the actual manufacturer's website for accurate contact information.)
