Bed Bath & Beyond 25-inch Electric Fireplace Insert User Manual

1. Увод

This manual provides essential information for the safe operation, installation, and maintenance of your Bed Bath & Beyond 25-inch Electric Fireplace Insert, Model OS03EF23B. Please read all instructions carefully before use and retain this manual for future reference.

2. Безбедносне информације

Your safety and the safety of others are very important. Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Ensure the fireplace is connected to a 120V power supply.
• Do not operate the fireplace if the cord or plug is damaged.
• Keep combustible materials at least 3 feet (0.9 meters) away from the front of the fireplace.
• The fireplace is equipped with overheat protection, which automatically turns off the unit if it becomes too hot. If this occurs, unplug the unit, wait 10 minutes, and then plug it back in.
• Не убацујте или не дозволите да страни предмети уђу у било који вентилациони или издувни отвор јер то може изазвати струјни удар или пожар, или оштетити камин.
• SGS certification ensures product quality and user safety.

3. Садржај пакета

Молимо вас да проверите да ли су све компоненте присутне:

• Електрични уложак за камин
• Ремоте Цонтрол
• Упутство за употребу

4. Подешавање и инсталација

This electric fireplace insert is designed for built-in wall installation. Careful planning and measurement are crucial for proper fit and function.

1. Припремите отварање: Ensure the wall opening dimensions match the fireplace insert's specifications. Refer to the dimensions diagram below for precise measurements.
2. Position the Insert: Carefully slide the electric fireplace insert into the prepared opening. Ensure it is level and securely seated.
3. Прикључите напајање: Plug the fireplace into a standard 120V electrical outlet. Ensure the outlet is easily accessible.

Слика 1: Dimensions of the Electric Fireplace Insert. This diagram illustrates the precise measurements required for the wall opening, including the overall width of 40 inches, height of 27.52 inches, and depth of 6.50 inches, along with internal component dimensions.

Слика 2: Installed Electric Fireplace Insert. This image shows the fireplace insert seamlessly integrated into a decorative stone mantel, demonstrating its aesthetic appearance when operational with glowing logs and flames.

5. Упутство за употребу

The electric fireplace can be operated using the touch screen controls on the unit or the included remote control.

5.1 Контроле прекоview

Слика 3: Touch Screen and Remote Control Functions. This image highlights the various control icons available on both the fireplace's touch screen and the remote control, including Power ON/OFF, 3 Flame Color Settings, 1-9 Hours Timer, and Heater settings (750W/1500W). An LCD display shows the current status.

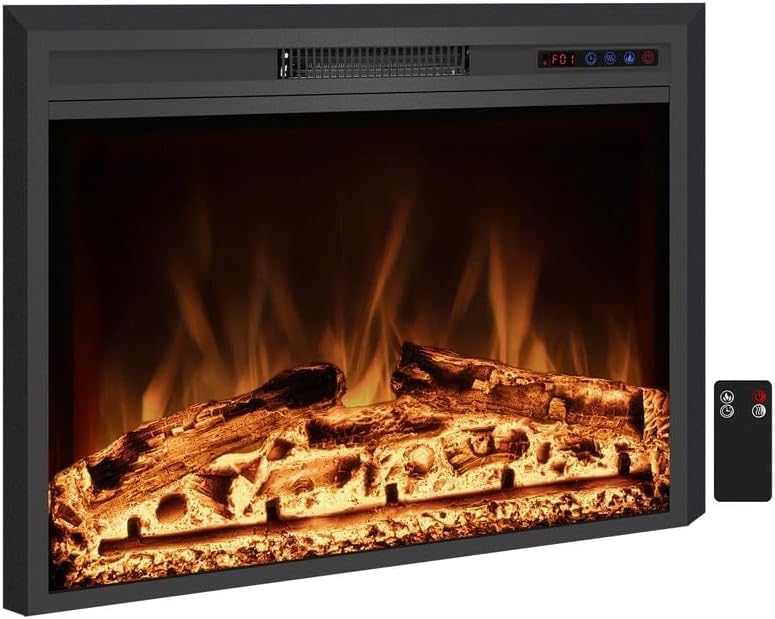

Слика 4: Electric Fireplace Insert with Remote Control. This view shows the fireplace insert with its realistic flame effect and the compact remote control, which allows for convenient adjustment of settings from a distance.

5.2 Основни рад

1. Укључивање/искључивање: Притисните дугме за напајање (U) on the control panel or remote to turn the unit on or off. The LCD display will show the current status.
2. Подешавања грејања: Press the heater button (ССС) to cycle between 750-Watt and 1500-Watt heat settings. The heater and flame functions can be used independently.
3. Flame Color Settings: Press the flame button (икона пламена) to cycle through 3 dancing flame colors (yellow, blue, and mixed colors). The resin logs and glowing embers simulate a traditional fireplace ambiance.
4. Функција тајмера: Притисните дугме тајмера (икона сата) to set the automatic shut-off timer from 1 to 9 hours. This is ideal for unattended operation.

6. Одржавање

Редовно одржавање осигурава оптималне перформансе и дуготрајност вашег електричног камина.

• Чишћење: Пре чишћења проверите да ли је уређај искључен и искључен из струје. Користите меку,amp крпу за брисање спољашњих површина. Не користите абразивна средства за чишћење или спрејеве.
• вентилација: Keep the air intake and exhaust vents clear of dust and debris to ensure proper airflow.
• Складиштење: If storing the unit for an extended period, unplug it and store it in a dry, dust-free location.

КСНУМКС. Решавање проблема

Ако наиђете на проблеме са електричним камином, погледајте следеће уобичајене проблеме и решења:

8. Спецификације

9. Гаранција и подршка

Овај производ долази са а 1 година гаранције from the date of purchase, covering manufacturing defects. For warranty claims or technical support, please contact Bed Bath & Beyond customer service.

Please have your model number (OS03EF23B) and proof of purchase ready when contacting support.
