Areyourshop Voltage Regulator Rectifier User Manual

1. Увод

This manual provides essential information for the installation, operation, and maintenance of your Areyourshop Voltage Regulator Rectifier, model 21066-1014. This component is designed to convert alternating current (AC) generated by the stator into direct current (DC) to charge the battery and power the motorcycle's electrical system, while also regulating the voltagе да би се спречило прекомерно пуњење.

2. Безбедносне информације

Always prioritize safety when working with electrical components. Failure to follow these instructions may result in injury or damage to the product or vehicle.

• Disconnect the battery's negative terminal before beginning any electrical work to prevent accidental short circuits.
• Носите одговарајућу личну заштитну опрему, укључујући заштитне наочаре и рукавице.
• Ensure the motorcycle's engine is off and cool before handling components.
• Ако нисте сигурни у вези са било којим кораком, консултујте квалификованог механичара.
• Do not modify the product or its wiring.

3. Производ је готовview

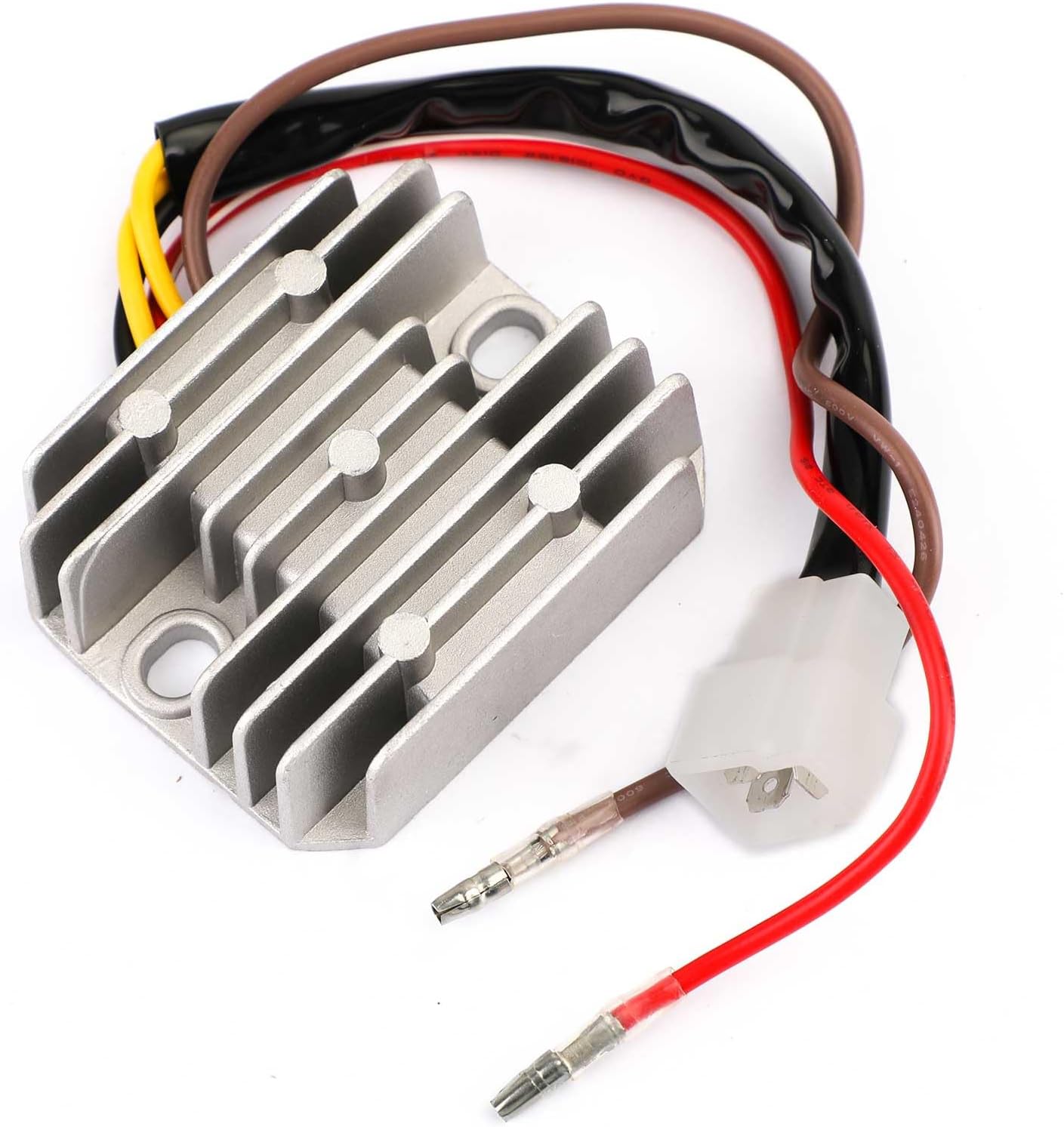

The Areyourshop Voltage Regulator Rectifier (Model 21066-1014) is a direct replacement unit designed for specific Kawasaki motorcycle models. It features a robust aluminum heat sink for improved heat dissipation and high-grade electrical components for reliable performance.

Кључне карактеристике:

• Direct replacement for OEM part number 21066-1014.
• Plug-and-play design for easy installation.
• Improved heat sink and charging capabilities.
• Constructed with higher-grade electrical components for durability.

4. Упутства за инсталацију (Подешавање)

Ова волtage regulator rectifier is designed for direct replacement. Please ensure the motorcycle's ignition is off and the battery is disconnected before proceeding.

1. Locate the Existing Unit: Identify the current voltage regulator rectifier on your motorcycle. Its location may vary by model, but it is typically found near the battery, frame, or under a side cover.
2. Искључите ожичење: Carefully disconnect all electrical connectors attached to the old regulator rectifier. Note the orientation and connection points if necessary.
3. Уклоните стару јединицу: Unbolt or unmount the old regulator rectifier from its mounting location.
4. Инсталирајте нову јединицу: Position the new Areyourshop Voltage Regulator Rectifier (Model 21066-1014) in the same location. Secure it using the existing mounting hardware. Ensure a snug fit to allow for proper heat transfer if mounted to a metal frame.
5. Повежите ожичење: Reconnect all electrical connectors to the new unit. The plug-and-play design ensures a direct fit. Verify all connections are secure.
6. Поново повежите батерију: Reconnect the negative terminal of your motorcycle's battery.
7. Тест систем: Start the motorcycle and check the charging system. Use a multimeter to verify that the battery is receiving a stable charging voltage (typically between 13.5V and 14.5V at idle, varying slightly with RPM).

Note: Always refer to your motorcycle's specific service manual for detailed instructions regarding component locations and wiring diagrams.

5. Принципи рада

Once installed, the voltage regulator rectifier operates automatically as part of your motorcycle's electrical system. Its primary functions are:

• Исправљање: Converts the AC output from the stator (alternator) into DC power.
• Волtagе Уредба: Maintains a consistent voltage level (typically 13.5V to 14.5V) to the battery and electrical components, preventing overcharging or undercharging.
• Расипање топлоте: The integrated heat sink helps dissipate excess heat generated during operation, ensuring optimal performance and longevity of the unit.

No user interaction is required for its operation after proper installation.

6. Одржавање

The Areyourshop Voltage Regulator Rectifier is designed to be maintenance-free. However, periodic checks of the surrounding components can help ensure its longevity and proper function:

• Инспекција ожичења: Periodically inspect all wiring connected to the regulator rectifier for signs of wear, fraying, or corrosion. Ensure all connections are clean and secure.
• Сигурност монтаже: Verify that the unit remains securely mounted. A loose mounting can affect heat dissipation.
• чистоћа: Keep the heat sink fins free of dirt, debris, and excessive grease, which can impede heat dissipation.
• Здравље батерије: Ensure your motorcycle's battery is in good condition. A failing battery can put undue stress on the charging system, including the regulator rectifier.

КСНУМКС. Решавање проблема

If you experience issues with your motorcycle's charging system after installing the new regulator rectifier, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, it is recommended to consult a professional motorcycle mechanic.

8. Спецификације

Detailed specifications for the Areyourshop Voltage Regulator Rectifier (Model 21066-1014):

• стање: Aftermarket 100% Brand New
• Количина: 1 ПЦ
• Тип: Волtage Regulator Rectifier
• Reference Part Number(s): 21066-1014
• Димензије:
  • Length: 71mm / 2.791 inches
  • Width: 58.9mm / 2.32 inches
  • Height: 23.4mm / 0.92 inches
  • 2 Oval Mounting Holes Distance: 64.6mm (Outer) / 47mm (Inner)
• Електричне везе:
  • Number of plug interface pins: 5
  • Number of Plugs: 3
  • Број жица: 5
• Тежина: Отприлике 5.3 унци
• Димензије производа (паковање): 3.94 к 3.94 к 1.57 инча

9. Fitment / Compatible Models

This Areyourshop Voltage Regulator Rectifier (Model 21066-1014) is compatible with the following Kawasaki motorcycle models. Please verify your specific year and model before purchase and installation.

• Kawasaki KZ1000 CSR M1 1981
• Kawasaki KZ1000 LTD B4 1980
• Kawasaki KZ1000 LTD K2 1982
• Kawasaki KZ250 CSR L1 1982
• Kawasaki KZ250 CSR D1 1980
• Kawasaki KZ250 LTD W1 1983
• Kawasaki KZ440 B1 B2 1980 1981
• Kawasaki KZ440 A3 1982
• Kawasaki KZ440 D2 D3 D4 1981-1982
• Kawasaki KZ650 B1 1977
• Kawasaki KZ750 CSR M1 1982
• Kawasaki KZ750 LTD G1 1980
• Kawasaki KLT200 A1 A2 A3 A4 1981-1983
• Kawasaki KLT200 A4A 1983
• Kawasaki KLT200 B1 1983
• Kawasaki KLT200 C1 1983
• Kawasaki KLT250 Prairie 250 A1 A2 1982 1983
• Kawasaki KLT250 Prairie 250 C1 1983

10. Гаранција и подршка

For warranty information or technical support regarding your Areyourshop Voltage Regulator Rectifier, please contact Areyourshop directly through their official channels or the retailer from whom you purchased the product. Keep your purchase receipt as proof of purchase.

Visit the official Areyourshop store for more products and information: Areyourshop Store on Amazon
