Antennas Direct DAX8 8-Output TV Antenna Distribution Ampлифиер Упутство за употребу

1. Увод

The Antennas Direct DAX8 is an 8-output distribution amplifier designed to boost and distribute TV signals from your indoor or outdoor antenna or CATV system to up to eight televisions. This amplifier helps overcome signal loss that can occur when distributing signals to multiple TVs or using long coaxial cables, ensuring clear and consistent picture quality and reception. It is compatible with HDTV, analog, and digital antenna installations, as well as legacy CATV systems, supporting ATSC 3.0 NEXTGEN TV, 4K, and 8K UHD signals.

The DAX8 features a precision machine-sealed zinc diecast housing, providing protection against dust, water droplets, and electrostatic discharge. It also offers excellent surge protection on all ports. While primarily recommended for indoor use, it can be installed outdoors when equipped with 75 Ohm F-termination caps, watertight F-connectors, and weather boots. For outdoor installations, a power inserter (not included) is required to supply power through the coaxial cable.

2. Производ је готовview

2.1 Укључене компоненте

• Antennas Direct DAX8 8-Output HDTV Distribution Ampлифиер
• 12V DC Power Adapter (for indoor use)
• 40-inch High-performance coaxial cable
• 2 к Зидни шрафови
• 2 x Grounding screws
• Упутства за инсталацију

2.2 Кључне карактеристике

• 8-Output Distribution: Distributes amplified signal to up to eight televisions.
• Signal Boost: Strengthens weak TV signals to improve reception and picture quality.
• Широки опсег фреквенција: Operates within 54-1000 MHz.
• Слика ниске буке: Less than 3 dB for minimal signal degradation.
• Високи добитак: Provides 6.5 dB gain per port.
• Издржљива конструкција: Zinc diecast housing with excellent surge protection.
• Разноврсна употреба: Suitable for indoor and outdoor (with proper weatherproofing) installations.

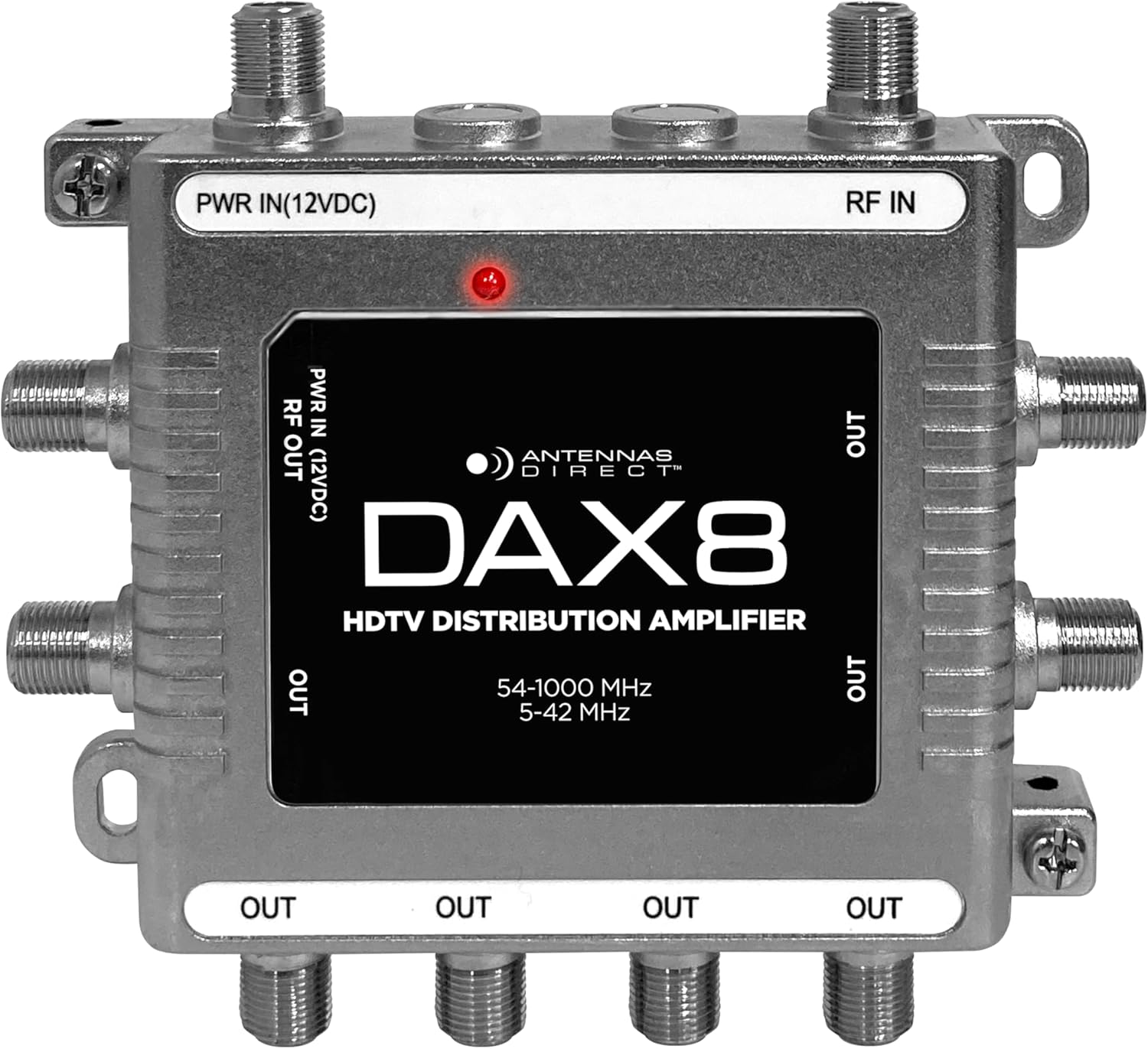

2.3 AmpЛифиер Диаграм

3. Подешавање и инсталација

Before beginning installation, ensure all equipment is powered off. Handle coaxial cables carefully to avoid bending or damaging the center conductor.

3.1 Инсталација у затвореном простору

1. Монтажа: Choose a dry, protected location near your antenna's main coaxial cable entry point and a power outlet. Mount the amplifier to a solid vertical or horizontal surface using the provided wall screws.
2. Connect Antenna/CATV: Connect the coaxial cable from your TV antenna or CATV system to the РФ ИН лука на ampлифиер.
3. Connect TVs: Connect coaxial cables from each television or digital converter box to the РФ ОУТ луке на amplifier. You can use up to 8 outputs.
4. Прикључите напајање: Connect the included 12V DC power adapter to the PWR IN (12VDC) лука на amplifier. Plug the power adapter into a standard electrical outlet. The LED light on the amplifier will illuminate red when power is connected.
5. Grounding (Recommended): For added protection, connect a grounded copper wire (not included) to the grounding screws on the amplifier and to a suitable ground point (e.g., a cold water pipe or electrical ground rod).

3.2 Outdoor Installation (Under an Eave)

The DAX8 can be used outdoors under an eave, provided specific weatherproofing measures are taken. A power inserter (not included) is required for outdoor power delivery.

1. Отпорност на временске утицаје: Ensure all unused RF OUT ports are sealed with 75 Ohm F-termination caps. Use coaxial cables with watertight F-connectors and weather boots for all connections to prevent moisture ingress.
2. Монтажа: Монтирајте amplifier in a sheltered outdoor location, such as under an eave, to minimize direct exposure to elements.
3. Connect Antenna/CATV: Connect the coaxial cable from your TV antenna or CATV system to the РФ ИН лука.
4. Connect TVs: Connect coaxial cables from each television to the РФ ОУТ луке.
5. Power with Inserter: Connect a power inserter (not included) to one of the coaxial cables leading from a designated output of the amplifier to an indoor location. The included 12V DC power adapter will then connect to the power inserter indoors, which will send power through the coaxial cable to the ampлифиер.
6. уземљење: Always connect a grounded copper wire to the grounding screws on the amplifier and to a suitable outdoor ground point for protection against lightning and static discharge.

4. Упутство за употребу

Once the DAX8 amplifier is installed and powered, it operates automatically to boost and distribute your TV signal.

1. Укључено: Ensure the 12V DC power adapter is securely connected to the amplifier and plugged into a live electrical outlet. The red LED light on the amplifier indicates that it is receiving power.
2. Скенирај за канале: On each connected television, perform a channel scan (also known as auto-tune or auto-program) to detect available broadcast channels. Refer to your TV's instruction manual for specific steps.
3. Оптимизација сигнала: If you experience issues with certain channels, consider adjusting the orientation of your outdoor antenna (if applicable) and re-scanning for channels.

5. Одржавање

The Antennas Direct DAX8 ampСпајалица захтева минимално одржавање.

• Редовна инспекција: Periodically check all coaxial cable connections to ensure they are tight and free from corrosion, especially in outdoor installations.
• Чишћење: If necessary, gently wipe the amplifier's housing with a dry, soft cloth. Do not use liquid cleaners or solvents.
• Заштита на отвореном: For outdoor installations, regularly inspect the 75 Ohm F-termination caps, watertight F-connectors, and weather boots for any signs of wear or damage. Replace them if necessary to maintain weatherproofing.

КСНУМКС. Решавање проблема

If you encounter issues with your DAX8 ampлифиер, погледајте следеће кораке за решавање проблема:

• No Power / LED Off:
  • Ensure the 12V DC power adapter is securely plugged into the amplifier and a working electrical outlet.
  • If using an outdoor power inserter, verify its connection and power supply.
• No Signal / Poor Picture Quality:
  • Verify all coaxial cable connections are tight at the amplifier, antenna, and televisions.
  • Confirm your antenna is properly aimed towards broadcast towers. Obstructions like trees and building materials can affect reception.
  • Perform a channel scan on all connected televisions after installation or any adjustments.
  • Check if the issue persists on all TVs or only specific ones. If only one TV, the issue might be with that TV's cable or tuner.
  • Осигурајте amplifier is receiving power (red LED should be on).
• Испрекидани сигнал:
  • Check for loose connections or damaged coaxial cables.
  • In outdoor installations, ensure weatherproofing is intact to prevent moisture from affecting connections.

7. Спецификације

8. Гаранција и подршка

8.1 Информације о гаранцији

The Antennas Direct DAX8 8-Output TV Antenna Distribution AmpЛифиер долази са а 90-дневна гаранција произвођача for accessories. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

8.2 Корисничка подршка

For technical assistance, troubleshooting, or warranty inquiries, please contact Antennas Direct customer support. Visit the official Antennas Direct webсајт за контакт информације и додатне ресурсе.
