1. Увод
Хвала вам на куповиниasing the Rinnai RCK-30MA Gas High-Speed Oven. This large-capacity oven is designed for efficient and even cooking of various dishes using advanced hot air circulation technology. Please read this manual thoroughly before use to ensure safe and optimal operation.
Кључне карактеристике:
- High-Speed Cooking: A sirocco fan circulates gas hot air throughout the oven cavity, enabling quick cooking of large quantities of food while minimizing uneven baking.
- Истовремено кување: Dishes requiring lower cooking temperatures can be prepared simultaneously.
- Функција меморије: Microcomputer control allows you to store up to 9 temperature and time settings for frequently used recipes.
- Soft Finish Function: This feature helps prevent food from drying out, ensuring moist and delicious results.
2. Безбедносне информације
Your safety and the safety of others are very important. Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury.
Важне безбедносне напомене:
- Овај апарат је дизајниран за city gas use. Ensure your gas supply matches the appliance specifications.
- Installation must be performed by a qualified professional in accordance with local regulations and the provided installation instructions.
- Обезбедите одговарајућу вентилацију у простору за инсталацију.
- Не складиштите или користите запаљиве материјале у близини пећнице.
- The front door of the oven is није уклоњиво. Do not attempt to remove it.
- Be aware that when cooking items like cakes, the shape of the food may make it more susceptible to hot air, potentially causing uneven baking or deformation. Adjust cooking times and temperatures as needed.
- Temperature-sensitive dishes such as chawanmushi (savory egg custard) or pudding may develop 'su' (air bubbles) due to the hot air circulation.
- Always use oven mitts when handling hot trays or food.
- Држите децу и кућне љубимце подаље од уређаја током рада.
3. Подешавање
Proper setup is crucial for the safe and efficient operation of your Rinnai RCK-30MA oven.
3.1 Инсталација
This gas oven requires professional installation. Refer to the separate installation manual provided with the appliance for detailed instructions. Ensure the oven is installed on a stable, level surface and connected to the correct gas supply and electrical outlet.
3.2 Почетне провере
- After installation, verify that all gas connections are secure and leak-free.
- Ensure the power cord is properly plugged into a grounded outlet.
- Remove all packaging materials and accessories from inside the oven cavity before first use.
- For the first use, it is recommended to run the oven empty at a high temperature (e.g., 200°C for 30 minutes) to burn off any manufacturing residues. Ensure the area is well-ventilated during this process.
4. Упутство за употребу
This section provides instructions for the basic operation of your Rinnai RCK-30MA oven.
4.1 Основни рад
- Укључено: Press the Power button to turn on the oven. The display will illuminate.
- Подешена температура: Use the Temperature adjustment buttons (e.g., Up/Down arrows) to select your desired cooking temperature. The temperature range is typically between 100°C and 300°C.
- Подесите време: Use the Time adjustment buttons to set the cooking duration.
- Почните да кувате: Press the Start button to begin the preheating and cooking process. The oven will preheat to the set temperature, then begin the cooking timer.
- Крај кувања: Once the set time expires, the oven will beep and automatically turn off the heating elements. Open the door carefully to remove food.
4.2 Меморијска функција
The oven can store up to 9 customized temperature and time settings for quick recall.
- To Store a Setting:
- Set the desired temperature and cooking time using the respective adjustment buttons.
- Press and hold the 'Memory' button (or a designated 'Store' button) until a memory slot number flashes on the display.
- Use the adjustment buttons to select a memory slot (1-9).
- Press the 'Memory' button again to confirm and save the setting.
- To Recall a Setting:
- Press the 'Memory' button. A memory slot number will flash.
- Use the adjustment buttons to select the desired stored memory slot.
- Press the 'Start' button to begin cooking with the recalled settings.
4.3 Soft Finish Function
Activate the Soft Finish function to prevent food from drying out, especially useful for delicate items or when reheating.
- To activate, press the 'Soft Finish' button (or designated button) before or during the cooking cycle. An indicator light will confirm activation.
- This function subtly adjusts the heating process to retain moisture.
- To deactivate, press the 'Soft Finish' button again.
5. Одржавање
Редовно чишћење и одржавање ће осигурати дуготрајност и оптималне перформансе ваше рерне.
5.1 Чишћење унутрашњости рерне
- Увек се уверите да је рерна хладна и искључена из струје пре чишћења.
- Обришите унутрашње површине огласомamp cloth and mild detergent. Avoid abrasive cleaners or scouring pads that can damage the finish.
- For stubborn stains, use a specialized oven cleaner, following the product's instructions carefully. Ensure thorough rinsing to remove all chemical residues.
- Clean the oven trays, grilling racks, and oil drip pan after each use. These can typically be washed with warm soapy water.
5.2 Чишћење спољашњости
- Обришите спољашње површине меком, дamp cloth. For stainless steel finishes, use a stainless steel cleaner to maintain its luster.
- Не прскајте воду директно на контролну таблу или електричне компоненте.
КСНУМКС. Решавање проблема
If you encounter any issues with your oven, refer to the following common problems and solutions. If the problem persists, contact customer support.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Пећница се не укључује. | Нема напајања. | Проверите да ли је кабл за напајање добро прикључен и да ли је осигурач активирао. |
| Пећница се не греје. | Gas supply off or igniter issue. | Ensure the gas supply valve is open. If the issue persists, contact a qualified technician. |
| Uneven cooking/browning. | Improper food placement or oven overloaded. | Ensure food is placed centrally and not overcrowding the oven. Rotate trays if necessary. For cakes, be aware of potential unevenness due to hot air circulation. |
| Храна се суши. | Soft Finish function not activated. | Activate the Soft Finish function. Consider using a water bath for delicate items. |
| Дисплеј приказује код грешке. | Унутрашњи квар. | Note the error code and refer to the full service manual or contact customer support. |
7. Спецификације
Detailed technical specifications for the Rinnai RCK-30MA Gas High-Speed Oven.

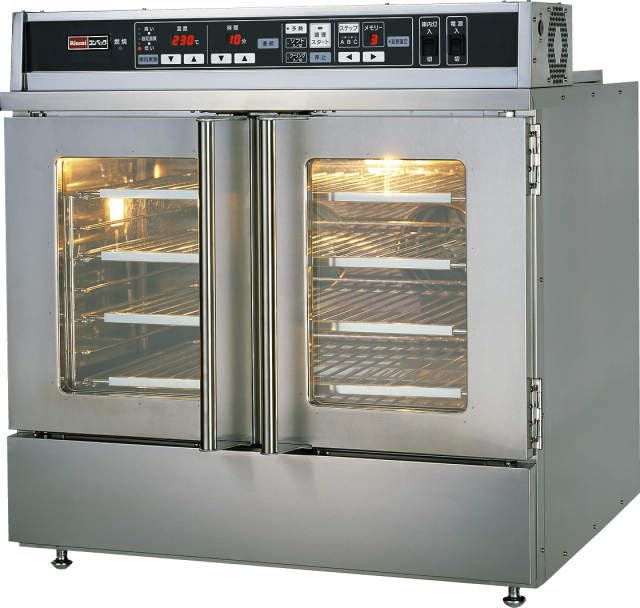

Слика 1: Предња страна view of the Rinnai RCK-30MA Gas High-Speed Oven.
| Спецификација | Детаљ |
|---|---|
| Бранд | Риннаи |
| Број модела | RCK-30MA |
| Врста производа | Gas High-Speed Oven, Large Type |
| Боја | Сребро |
| Димензије производа (Д x Ш x В) | 36 цм к 54.5 цм к 51.8 цм |
| ASIN | B0CW35J9LC |
| Укључена додатна опрема |
|
| Oven Tray Dimensions (Outer) | 458 мм к 292 мм к 26 мм |
| Oven Tray Dimensions (Inner) | 410 мм к 262 мм к 14 мм |
8. Гаранција и подршка
Rinnai products are manufactured to high-quality standards and come with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage.
For technical assistance, service, or to inquire about replacement parts, please contact Rinnai customer support. Have your model number (RCK-30MA) and purchase date ready when contacting support.
You can find contact information for Rinnai customer service on the official Rinnai webсајту или у документацији која је достављена уз ваш уређај.
