AMIR Projection Alarm Clock WA146-AMUS User Manual

1. Увод

This manual provides detailed instructions for the setup, operation, and maintenance of your AMIR Projection Alarm Clock (Model WA146-AMUS). This digital alarm clock features a 7.9-inch LED display, a 180° rotatable projector, adjustable brightness, multiple alarm modes, and temperature display. Please read this manual thoroughly before use to ensure proper functionality and to maximize your product experience.

Слика 1.1: Предња страна view of the AMIR Projection Alarm Clock showing its 7.9-inch display and key features like time, alarm, 12/24H, snooze, projection, 4-level brightness, temperature, and night mode.

2. Садржај пакета

Проверите да ли су све ставке присутне у пакету:

• AMIR Projection Alarm Clock (WA146-AMUS)
• USB кабл за пуњење (1.5 метра)
• Упутство за употребу

3. Карактеристике производа

• 7.9-инчни ЛЕД дисплеј: Large, clear digital display for easy viewинг.
• 180° Rotatable Projector: Projects time onto walls or ceilings, adjustable for optimal viewинг.
• Подесива осветљеност: Four levels of display brightness (Bright, Medium, Low, Off) to suit different environments.
• Вишеструки режими аларма: Set alarms for Monday-Friday, Monday-Saturday, or Everyday.
• Одгода функција: Customizable snooze interval from 1 to 60 minutes.
• Вишенаменски дисплеј: Shows time, date, and indoor temperature.
• Формат 12/24 сата: Easily switch between 12-hour and 24-hour time formats.
• Ноћни режим: Automatically dims the display between 18:00 and 6:00 (adjustable time range).
• Двоструко напајање: Operates via USB cable (for constant display) or 3 AAA batteries (for memory function during power outagес).

4. Контроле и дисплеј

Familiarize yourself with the clock's buttons and display elements.

Слика 4.1: Позади view of the alarm clock, indicating the power port, battery compartment, projection lamp, and control buttons (SWAP, +, -, ALARM, MODE, PROJECT/SNOOZE).

• Екран: Shows time, date, temperature, and alarm status.
• Пројекција Л.amp: Смештен са стране, пројектује време на површину.
• Power Port (DC 5V): For connecting the USB power cable.
• Одељак за батерије: Holds 3 AAA batteries for backup power.
• SWAP Button: Користи се за подешавање различитих подешавања.
• Дугмад „+“ / „-“: Adjust values during settings, or change display brightness.
• Дугме АЛАРМ: Used to set and activate alarms.
• Дугме МОДЕ: Cycles through display modes and enters setting modes.
• PROJECT/SNOOZE Button: Activates/deactivates projection, or triggers snooze during an alarm.

5. Подешавање

5.1 Напајање сата

The alarm clock can be powered in two ways:

• USB Cable Power (Recommended): Connect the provided USB cable to the DC 5V power port on the back of the clock and plug the other end into a USB power adapter (not included) or a USB port. The LED screen will remain constantly on.
• Снага батерије: Insert 3 AAA batteries (not included) into the battery compartment. When powered by batteries, the display will turn off after a short period to conserve power. Press any button to activate the display. Batteries also provide a memory feature, retaining time settings during power outages when using USB power.

5.2 Почетна припрема

Before first use, ensure you remove the protective film from the display screen.

6. Упутство за употребу

6.1 Setting the Time and 12/24 Hour Format

1. Притисните и држите МОДЕ button for 3 seconds. The 12/24H format will flash. Use the „+“ or '-' дугмад да бисте изабрали жељени формат.
2. Притисните МОДЕ again. The hour digits will flash. Use „+“ or '-' да подесите сат.
3. Притисните МОДЕ again. The minute digits will flash. Use „+“ or '-' за прилагођавање минута.
4. Притисните МОДЕ again to confirm and exit time setting.

Image 6.1: Visual guide for setting the time and selecting 12-hour or 24-hour format using the MODE, '+' and '-' buttons.

6.2 Подешавање аларма

1. Притисните и држите АЛАРМ button for 3 seconds. The alarm hour digits will flash. Use „+“ or '-' да подесите сат аларма.
2. Притисните АЛАРМ again. The alarm minute digits will flash. Use „+“ or '-' да подесите минуте аларма.
3. Притисните АЛАРМ again. The snooze time (default 5 minutes) will flash. Use „+“ or '-' to set the snooze interval from 1 to 60 minutes.
4. Притисните АЛАРМ again. The alarm mode (1-5, 1-6, or 1-7) will flash. Use „+“ or '-' да бисте изабрали:
• 1-5: Од понедељка до петка
• 1-6: Од понедељка до суботе
• 1-7: Свакодневно
5. Притисните АЛАРМ again to confirm and exit alarm setting.

Image 6.2: Visual guide for setting the alarm time, snooze duration, and selecting one of the three alarm modes.

6.3 Активирање/деактивирање аларма

After setting the alarm, a small alarm icon will appear on the display, indicating the alarm is active. To deactivate the alarm, short press the АЛАРМ дугме док икона аларма не нестане.

6.4 Коришћење функције одлагања

Када се огласи аларм, притисните велико PROJECT/SNOOZE button to activate snooze. The alarm will pause for the set snooze interval and then sound again. To turn off the alarm completely, press any other button.

Image 6.3: Illustration of the snooze function, showing a person pressing the large PROJECT/SNOOZE button for extra sleep time.

6.5 Подешавање осветљености екрана

Кратко притисните на „+“ or '-' buttons to cycle through the four display brightness levels: Bright, Medium, Low, and Off.

Image 6.4: Demonstrates the four adjustable brightness levels of the clock's display: Bright, Medium, Dim, and Off.

6.6 Using the Projection Feature

The clock can project the time onto a wall or ceiling. The projection distance ranges from 1.6ft to 16ft.

• Активирај/деактивирај пројекцију: Кратко притисните на PROJECT/SNOOZE дугме да бисте укључили или искључили пројекцију.
• Подесите угао пројекције: Manually rotate the projection lamp on the side of the clock to adjust the projection angle.
• 180° Flip Projection: If the projected time appears upside down, press and hold the СВАП button to flip the projection 180 degrees.

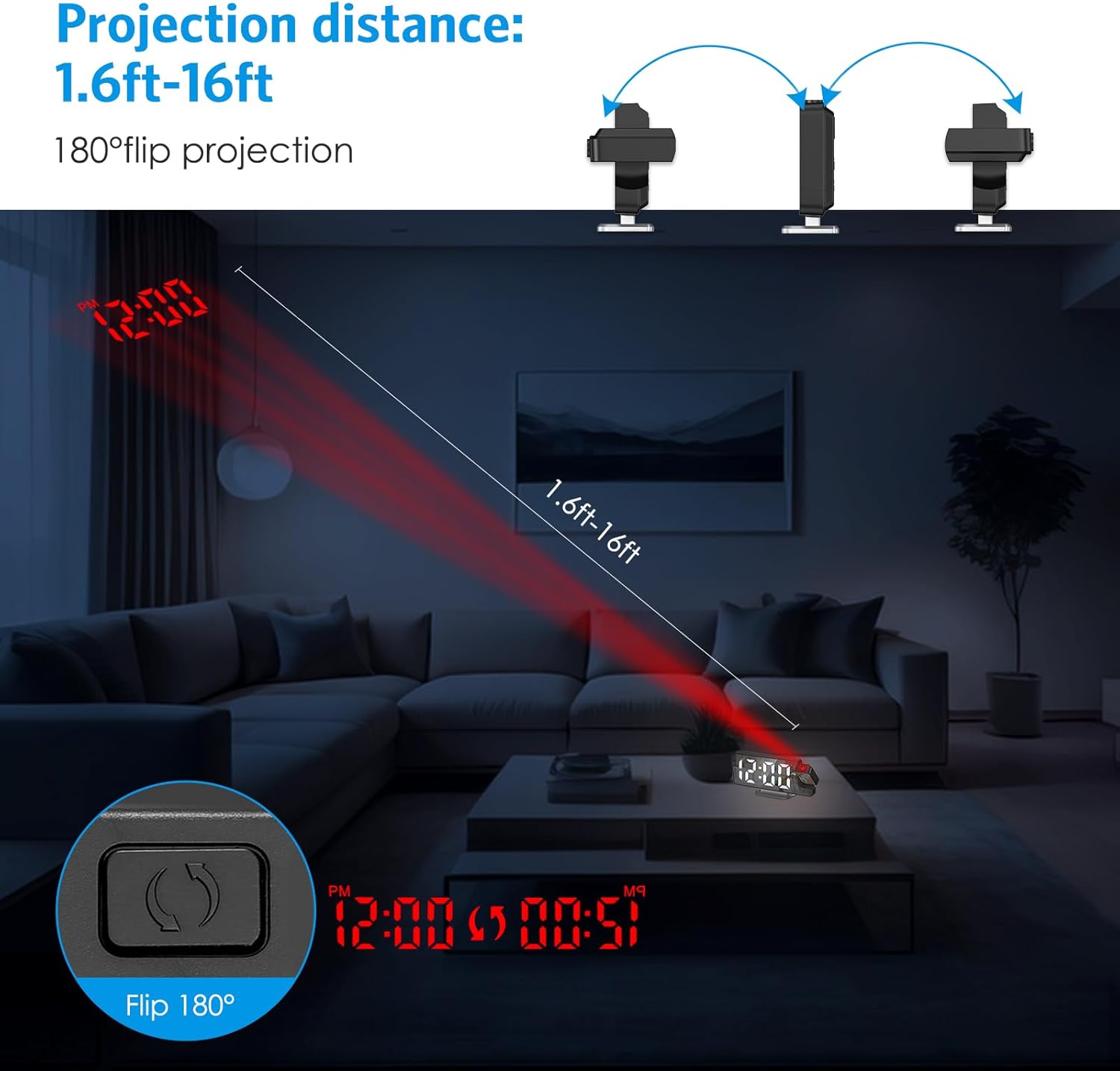

Image 6.5: Illustrates the projection distance range (1.6ft-16ft) and the 180° flip projection capability.

6.7 Ноћни режим

Night mode automatically dims the display during a specified period to reduce light disturbance. The default night mode period is from 18:00 to 6:00.

• Activate/Deactivate Night Mode: Притисните тастер МОДЕ button repeatedly until 'ON' or 'OFF' appears next to the night mode icon. Use „+“ or '-' да искључи.
• Adjust Night Mode Time Range: When night mode is active, press and hold the МОДЕ button until the start hour flashes. Use „+“ or '-' да подесите. Притисните МОДЕ to move to the start minute, then end hour, and end minute, adjusting each with „+“ or '-'. Притисните МОДЕ да спасе.

Image 6.6: The alarm clock operating in Night Mode, showing the display dimmed and time projected onto the wall.

7. Одржавање

To ensure the longevity and optimal performance of your AMIR Projection Alarm Clock, follow these maintenance guidelines:

• Чишћење: Use a soft, dry cloth to wipe the display and exterior surfaces. Avoid abrasive cleaners or solvents, which can damage the finish.
• Пласман: Поставите сат на стабилну, равну површину, даље од директне сунчеве светлости, екстремних температура и високе влажности.
• Снага: If not using the clock for an extended period, remove the AAA batteries to prevent leakage.

КСНУМКС. Решавање проблема

If you encounter issues with your alarm clock, refer to the following common problems and solutions:

9. Спецификације

10. Гаранција и подршка

The AMIR Projection Alarm Clock (WA146-AMUS) comes with a Lifetime Warranty, ensuring long-term reliability. For any questions, technical assistance, or support needs, please contact AMIR customer service. Refer to the product packaging or the official AMIR webсајт за контакт информације.
