SnapFresh 20V Cordless Weed Eater

1. Безбедносне информације

Read and understand all safety warnings and instructions before operating this tool. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Always wear safety glasses and gloves when using the weed eater.
• Држите децу и кућне љубимце даље од оперативног простора.
• Do not use the tool near flammable materials.
• Keep the cutting head away from your body while in use.
• The integrated safety lock mechanism is designed to prevent accidental startup. Always engage the safety lock when the tool is not in use or during adjustments.
• The durable flower protection frame helps prevent accidental trimming of desired plants.

Figure 1.1: Safety lock on the handle to prevent accidental operation.

2. Производ је готовview

The SnapFresh 20V Cordless Weed Eater is a versatile tool designed for lawn trimming and edging tasks. It features a lightweight design and adjustable components for user comfort and efficient operation.

• 2-у-1 тример и ивичњак: Easily converts between string trimmer and lawn edger modes by adjusting the cutter head.
• Adjustable Cutting Head & Height: The pole height can be adjusted from 36.6 inches to 45.7 inches. The four-position cutting head allows for multi-angle cutting and access to hard-to-reach areas.
• Rugged Resin Blades: Equipped with 20 durable resin blades suitable for trimming ordinary lawns and tougher shrub branches.
• Бежични рад: Powered by a 2.0Ah battery for extended use, with a fast charger providing a full charge in approximately 50 minutes.
• Лагани дизајн: The tool weighs approximately 3.4 lbs, reducing user fatigue during operation.
• Anti-Collision Protection: Features a protective frame to prevent damage to the cutting head when working near obstacles.

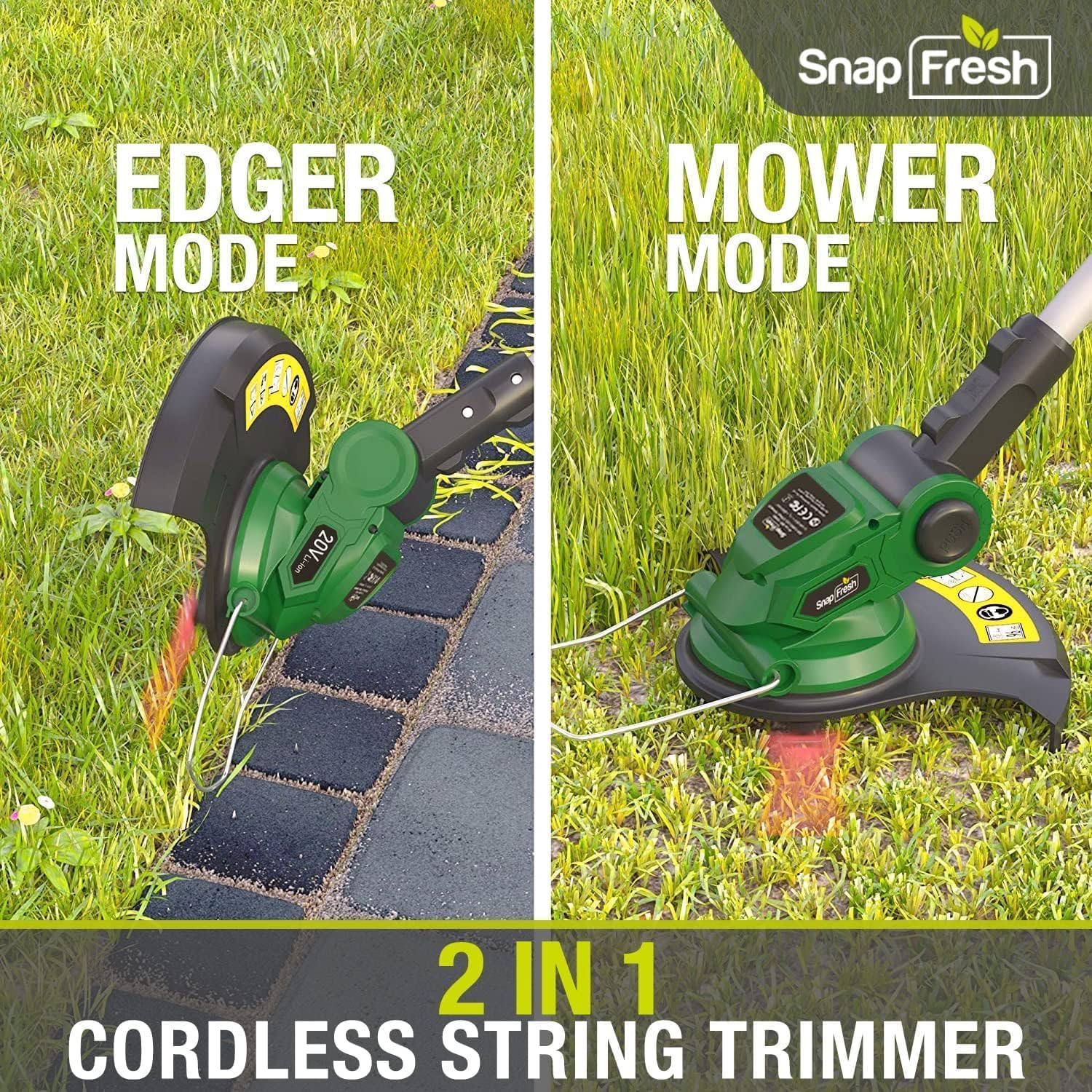

Figure 2.1: The 2-in-1 functionality for trimming and edging.

Figure 2.2: Lightweight design for comfortable use.

Figure 2.3: Anti-collision protection for durability.

3. Шта је у кутији

Проверите да ли су све компоненте присутне приликом распакивања:

• SnapFresh 20V Cordless Weed Eater Main Unit
• Адјустабле Поле
• Аукилиари Хандле
• Цуттинг Гуард
• 20 x Resin Blades
• Литијум-јонска батерија од 2.0 Ah
• Фаст Цхаргер

Слика 3.1: Садржај паковања производа.

4. Скупштина

Follow these steps to assemble your SnapFresh weed eater:

1. Attach the Cutting Guard: Secure the cutting guard to the trimmer head using the provided screws. Ensure it is firmly in place to protect against debris.
2. Инсталирајте помоћну ручку: Slide the auxiliary handle onto the adjustable pole and tighten it to a comfortable position.
3. Подесите дужину штапа: Extend or retract the adjustable pole to your desired operating height. Secure the locking mechanism.
4. Install Resin Blade: The weed eater features tool-free blade installation. Align the blade with the mounting point and secure it as shown in Figure 4.1.

Figure 4.1: Tool-free blade installation.

Figure 4.2: Adjusting the auxiliary handle.

Figure 4.3: Adjusting the pole length.

5. Пуњење батерије

The 2.0Ah Lithium-Ion battery provides reliable power for your weed eater. Ensure the battery is fully charged before first use and subsequent operations.

1. Insert the 2.0Ah battery into the fast charger.
2. Plug the fast charger into a standard electrical outlet.
3. Monitor the indicator lights on the charger. A red light typically indicates charging, and a green light indicates a full charge.
4. A full charge takes approximately 50 minutes. Do not overcharge the battery.
5. Уклоните батерију из пуњача када је потпуно напуњена.

Figure 5.1: Charging the 20V battery.

6. Упутство за употребу

Before operation, ensure the battery is fully charged and all safety precautions are observed.

1. Покретање алата: Insert the charged battery into the tool. Disengage the safety lock (if applicable) and press the power button to start.
2. Режим тримера: For general grass trimming, hold the tool comfortably with both hands. Adjust the pole length and auxiliary handle position to maintain an ergonomic posture. Move the cutting head across the area to be trimmed in a sweeping motion.
3. Режим ивице: To convert to edger mode, rotate the cutting head 90 degrees. The integrated edging wheel will assist in maintaining a straight line along sidewalks, driveways, or garden beds. Guide the wheel along the edge while operating the tool.

Figure 6.1: Operating in Trimmer Mode.

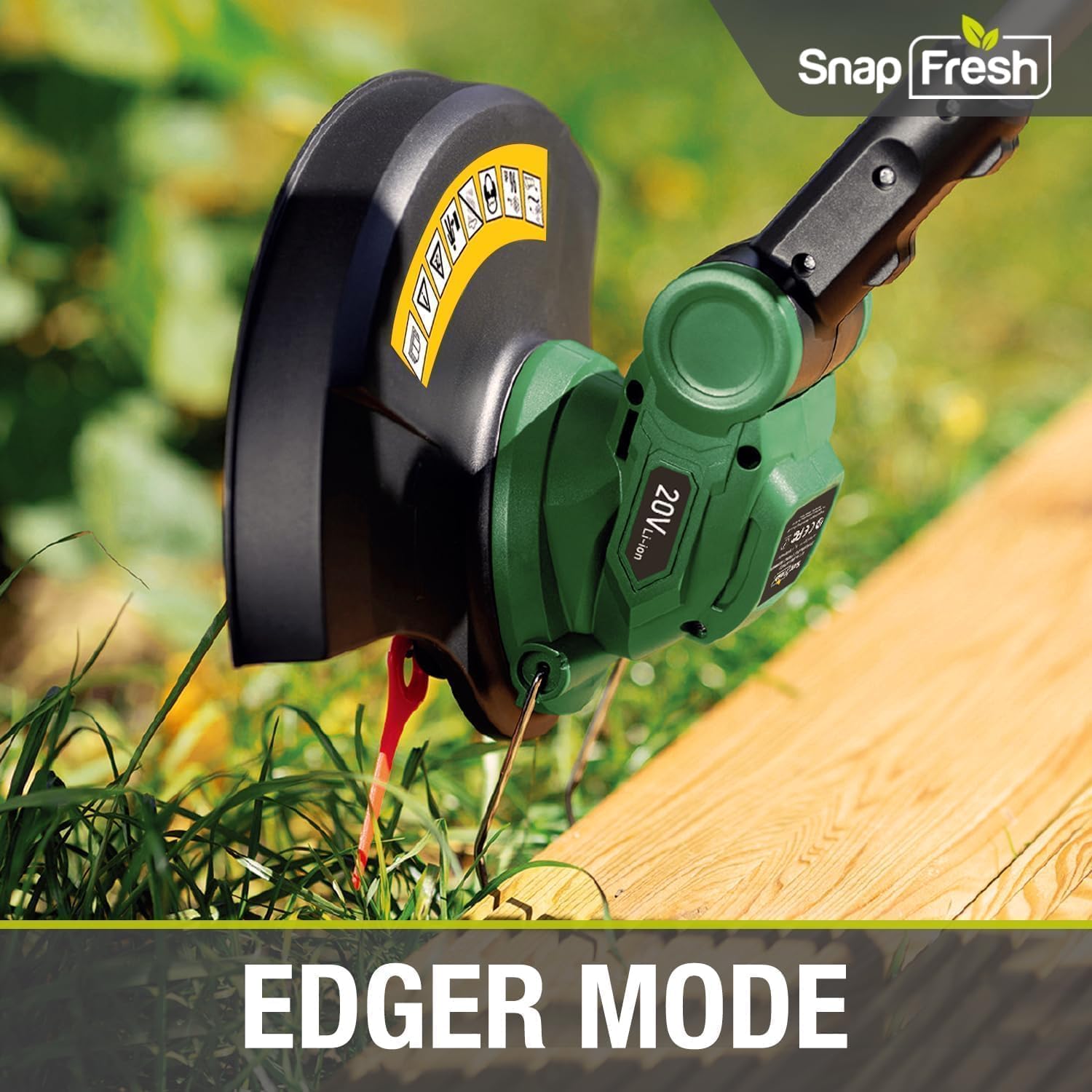

Figure 6.2: Operating in Edger Mode.

4. Adjusting Cutting Head Angle: The four-position cutting head can be tilted to various angles to reach under bushes, around obstacles, or for specific trimming tasks. Press the adjustment button and rotate the head to the desired position, ensuring it locks securely.

Figure 6.3: Adjusting the cutting head to one of four positions.

7. Одржавање

Редовно одржавање обезбеђује оптималне перформансе и продужава век трајања вашег алата. Увек искључите батерију пре него што извршите било какво одржавање.

• Замена оштрице: Inspect resin blades regularly for wear or damage. Replace blades as needed following the tool-free installation method described in Section 4. Use only genuine SnapFresh replacement blades.
• Чишћење: After each use, disconnect the battery and clean the cutting head, guard, and housing with a damp крпом. Уклоните накупљену траву, прљавштину или остатке. Не користите јаке хемикалије или абразивна средства за чишћење.
• Складиштење: Store the tool in a dry, secure location, out of reach of children. Remove the battery for long-term storage.

КСНУМКС. Решавање проблема

If you encounter issues with your weed eater, refer to the following common troubleshooting steps:

Ако проблем и даље постоји након покушаја ових решења, обратите се корисничкој подршци.

9. Спецификације

10. Гаранција и подршка

This SnapFresh product is covered by a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, replacement parts, or warranty claims, please contact SnapFresh customer service through the retailer where the product was purchased or visit the official SnapFresh webсајту.

Сачувајте рачун као доказ о куповини за потребе гаранције.
