Topsung M920 Walkie Talkies User Manual

Увод

Thank you for choosing Topsung M920 Walkie Talkies. This manual provides essential information for setting up, operating, and maintaining your new two-way radios. Please read it thoroughly before use to ensure optimal performance and safety. These FRS radios are designed for clear communication over long distances, featuring rechargeable batteries, VOX hands-free operation, and NOAA weather alerts, making them ideal for family activities and outdoor adventures.

Садржај пакета

Проверите да ли су све ставке присутне у вашем пакету:

• 3 x Topsung M920 Walkie Talkies
• 3 x 3000mAh AA Rechargeable Batteries
• 3 x Detachable Lanyards & Belt Clips
• 1 x Multi-port USB Charging Cable
• 1 к Упутство за употребу

The image above displays the complete set of items included with your purchase: three walkie talkie units, three sets of rechargeable AA batteries, three lanyards with belt clips for easy carrying, a multi-port USB charging cable for simultaneous charging, and this user manual.

Производ је завршенview

Familiarize yourself with the components and controls of your Topsung M920 Walkie Talkie.

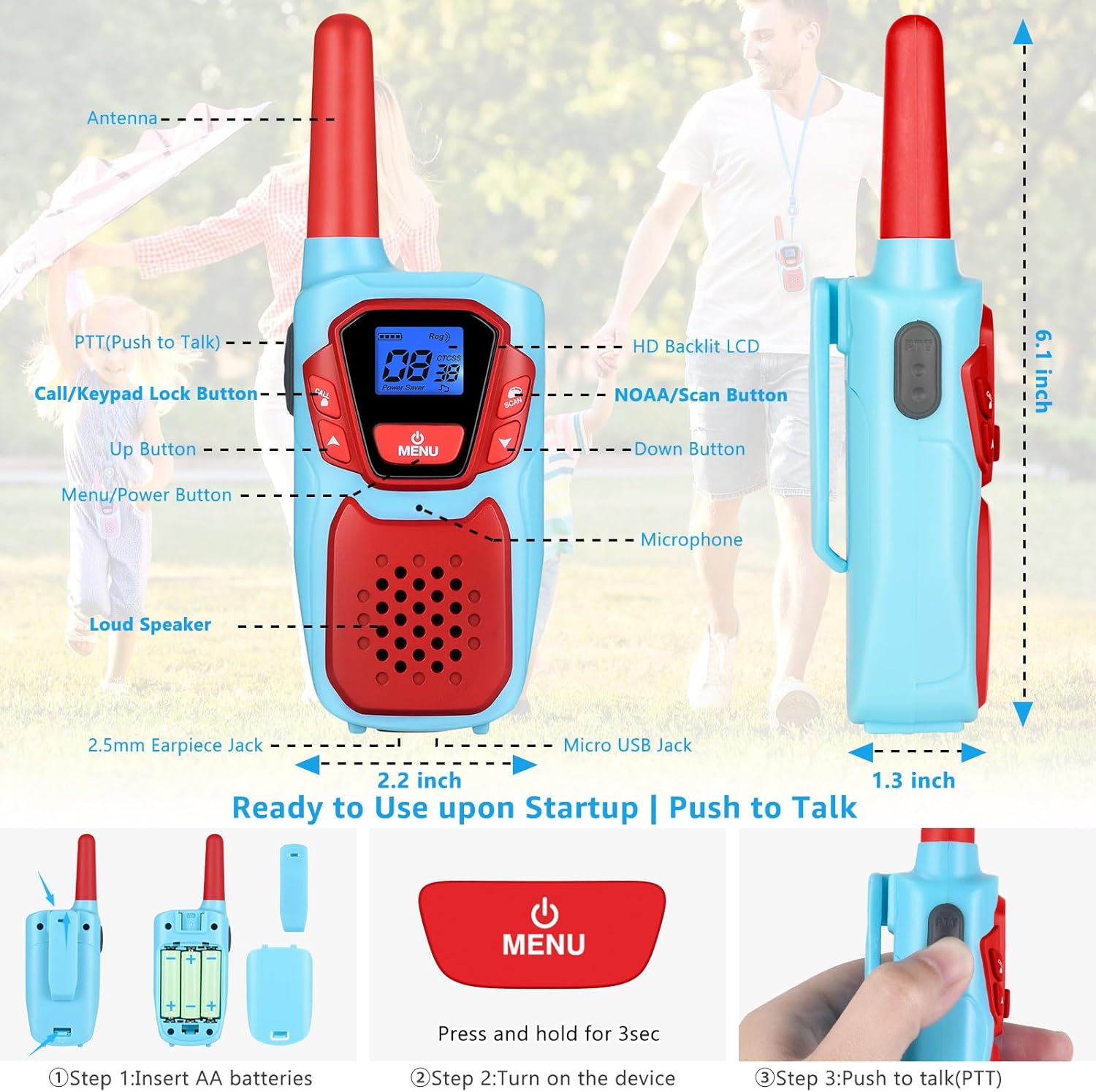

This diagram highlights the key features of the walkie talkie, including the antenna for signal transmission, the Push-to-Talk (PTT) button for communication, the Call/Keypad Lock button, Up and Down buttons for navigation, the Menu/Power button, an HD Backlit LCD display, NOAA/Scan button for weather alerts, microphone, loud speaker, 2.5mm earpiece jack, and Micro USB charging port. Dimensions are also indicated for reference.

Сетуп

1. Инсталација батерије

1. Open the battery compartment cover on the back of the walkie talkie.
2. Insert the three provided 3000mAh AA rechargeable batteries, ensuring correct polarity (+/-).
3. Добро затворите поклопац одељка за батерије.

The image demonstrates the process of opening the battery cover and correctly inserting the AA rechargeable batteries into the compartment. Ensure the cover is firmly closed after installation to protect the batteries.

2. Пуњење батерија

Use the included multi-port USB charging cable to charge all three walkie talkies simultaneously. The original charging kit is designed for efficiency and environmental friendliness.

• Connect the multi-port USB cable to the Micro USB Jack on each walkie talkie.
• Plug the USB end of the cable into a compatible USB power source (e.g., PC, car charger, power bank, or wall adapter).
• The battery icon on the LCD display will indicate charging status.
• A full charge provides approximately 72 hours of average battery life.

This image illustrates a walkie talkie being charged using the USB cable. It highlights the rechargeable nature of the device, emphasizing the 3000mAh battery capacity and features like auto power saving and low battery alerts to extend usage time and reduce the need for frequent battery replacements.

Основна операција

1. Укључивање/искључивање

Притисните и држите МЕНУ/ПОВЕР button for 3 seconds to turn the device ON or OFF.

2. Подешавање јачине звука

Користите UP и ДОВН buttons to adjust the speaker volume.

3. Притисни и говори (PTT)

Да бисте послали, притисните и држите ПТТ button. Speak clearly into the microphone. Release the ПТТ дугме за слушање.

4. Избор канала

1. Притисните тастер МЕНУ дугме једном. Број канала ће трептати.
2. Користите UP or ДОВН buttons to select one of the 22 available FRS channels.
3. Притисните ПТТ or МЕНУ поново да потврдите свој избор.

5. Закључавање тастатуре

Да бисте спречили случајне промене, притисните и држите CALL/KEYPAD LOCK button for 3 seconds to lock or unlock the keypad.

Напредне функције

1. VOX (Гласовно управљана централа)

The iVOX feature allows for hands-free communication. When activated, the radio transmits automatically when you speak, without needing to press the PTT button. This is useful for activities like climbing, cycling, or cooking.

1. Притисните тастер МЕНУ button multiple times until the VOX icon appears.
2. Користите UP or ДОВН buttons to select a VOX sensitivity level (1-3, with 3 being most sensitive).
3. Притисните ПТТ or МЕНУ потврдити.

2. NOAA метеоролошко упозорење

Stay informed about weather conditions with the integrated NOAA All Hazards Weather Service. This feature provides real-time weather alerts, crucial for outdoor safety, especially in areas without cell service.

1. Притисните тастер NOAA/SCAN button to activate the weather scan.
2. The radio will scan for active NOAA weather channels.
3. Притисните тастер NOAA/SCAN дугме поново да бисте изашли из временског режима.

This image illustrates the NOAA Weather Service functionality, emphasizing its role in keeping users informed about various weather hazards such as snow storms, tsunamis, fires, and earthquakes, even when cellular service is unavailable.

3. Кодови за приватност (CTCSS/DCS)

The M920 supports 121 privacy codes (38 CTCSS codes and 83 DCS codes) per channel. These codes help filter out unwanted transmissions from other radios on the same channel, ensuring more private conversations.

1. Након што изаберете канал, притисните дугме МЕНУ button twice (for CTCSS) or three times (for DCS). The privacy code will flash.
2. Користите UP or ДОВН buttons to select your desired code.
3. Притисните ПТТ or МЕНУ to confirm. All radios in your group must use the same channel and privacy code for communication.

Одржавање

• Keep the walkie talkies dry. Do not expose them to rain or moisture.
• Очистите уређаје меком крпомamp крпу. Избегавајте јаке хемикалије или абразивна средства за чишћење.
• Чувати на хладном и сувом месту када се не користи.
• Ensure batteries are fully charged before long periods of storage to maintain battery health.
• The walkie talkies feature a drop-proof design (ABS material) for enhanced durability.

Решавање проблема

Спецификације

• Број модела: М920
• ФЦЦ ИД: 2АЦВФМ-920Б
• Број канала: 22 канала ФРС
• Кодови приватности: 121 (38 CTCSS, 83 DCS)
• Фреквенцијски опсег: ФРС
• Максимални домет говора: Up to 3 miles (actual range varies based on terrain and conditions)
• батерија: 3000mAh AA Rechargeable Batteries (included)
• Просечан век трајања батерије: 72 сата
• Волtage: 3.6 Волтс
• Ниво водоотпорности: Not Water Resistant (IP5X rated for dust resistance)
• Посебне карактеристике: Keypad Lock, iVOX Hands-free, Drop Protection, Adjustable Lanyards, NOAA Hazards Weather Service, Auto Power Saver, Auto Squelch System, Auto Scan FRS Channels, Auto Low Battery Alert, Auto Memory Function, LCD Screen with Backlight, License-free Communication, Compatible with Most Brands' FRS Devices, Crystal-clear Sound (Noise Reduction, Loud Speaker)

The image provides a visual guide to the expected communication range under different real-world conditions. It shows that the maximum range can be achieved in open areas like mountain-to-valley (3-5 miles), reduced over open water (2-3 miles), and further reduced in urban or neighborhood settings (up to 1 mile) due to obstacles.

Званични видео снимци производа

Гаранција и подршка

Topsung offers a 3-year manufacturer service for the M920 Walkie Talkies. For any product-related inquiries, technical assistance, or warranty claims, please contact Topsung Technology directly. Seller customer service can provide personalized after-sales support, including single piece or accessory replacement.

To contact the seller:

1. Go to the product detail page on Amazon.
2. Click on the store name "topsung technology" located below the "Add to Cart" button.
3. Click "Ask a question" and follow the Messaging Assistant instructions: select "An item for sale" → "Something else" → "Other", then send your message.
