Увод
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SEAFLO 33W Series 12V DC Brushless Automatic Demand Diaphragm Water Pressure Pump. This pump is designed for reliable water transfer in various applications, including medical, sanitation, RV, marine, and off-grid systems. Its brushless motor technology ensures quiet operation, extended lifespan, and energy efficiency.

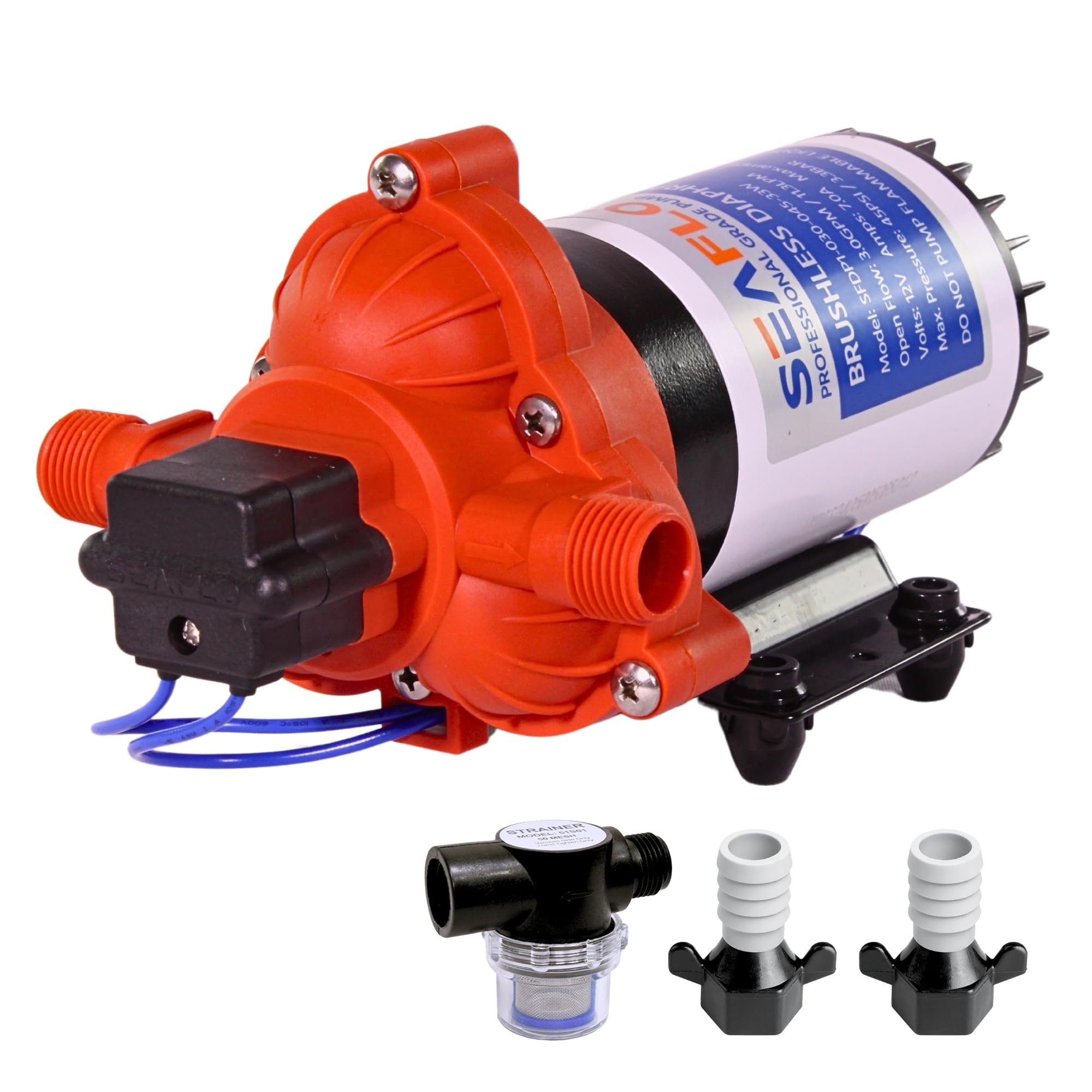

Слика 1: Предња страна view of the SEAFLO 33W Series Water Pressure Pump.
Безбедносне информације
- Пажљиво прочитајте сва упутства пре инсталације и рада.
- Уверите се да напајање одговара снази пумпеtagзахтеви (12V једносмерне везе).
- Не пумпајте запаљиве течности.
- Заштитите пумпу од ниских температура.
- Обезбедите одговарајућу вентилацију како бисте спречили прегревање.
- Увек искључите напајање пре него што извршите било какво одржавање или сервисирање.
- This pump is certified to NSF/ANSI/CAN 61 & 372 (potable water safety), NSF 24 (RV plumbing), UL 778 (motor-operated pumps), CSA C22.2 No.108 (liquid pumps), and IAPMO TS-14 (RV-specific standard).
Figure 2: The SEAFLO 33W Series pump is certified for safety and potable water use.
Спецификације
| Спецификација | Валуе |
|---|---|
| Број модела | SFDP1-030-045-33W |
| Волtage | 12В ДЦ |
| Флов Рате | 3.0 о / мин (11.3 о / мин) |
| Shut-Off Pressure | 45 ПСИ (3.1 БАР) |
| Priming Lift | 6 стопа (1.8 метра) |
| Максимална температура течности | 140°Ф (60°Ц) |
| Materials (Valves) | ЕПДМ |
| Materials (Diaphragm) | Сантопрене |
| Materials (Pump Body) | Алуминијумска легура |
| Портс | 1/2"-14 MNPT |
| Тежина артикла | 3.64 фунти (1.65 кг) |
| Димензије производа (Д к Ш к В) | 5.63 cm x 5.12 cm x 10.39 cm |
Укључене компоненте
The following components are included with your SEAFLO 33W Series pump:
- (1) Inline 50 Mesh Strainer (Model: 51S01)
- (2) 1/2" Barb Straight Fittings (Model: 51F001)
- (1) User Instruction Manual (this document)
- (1) 4-Year Warranty Card

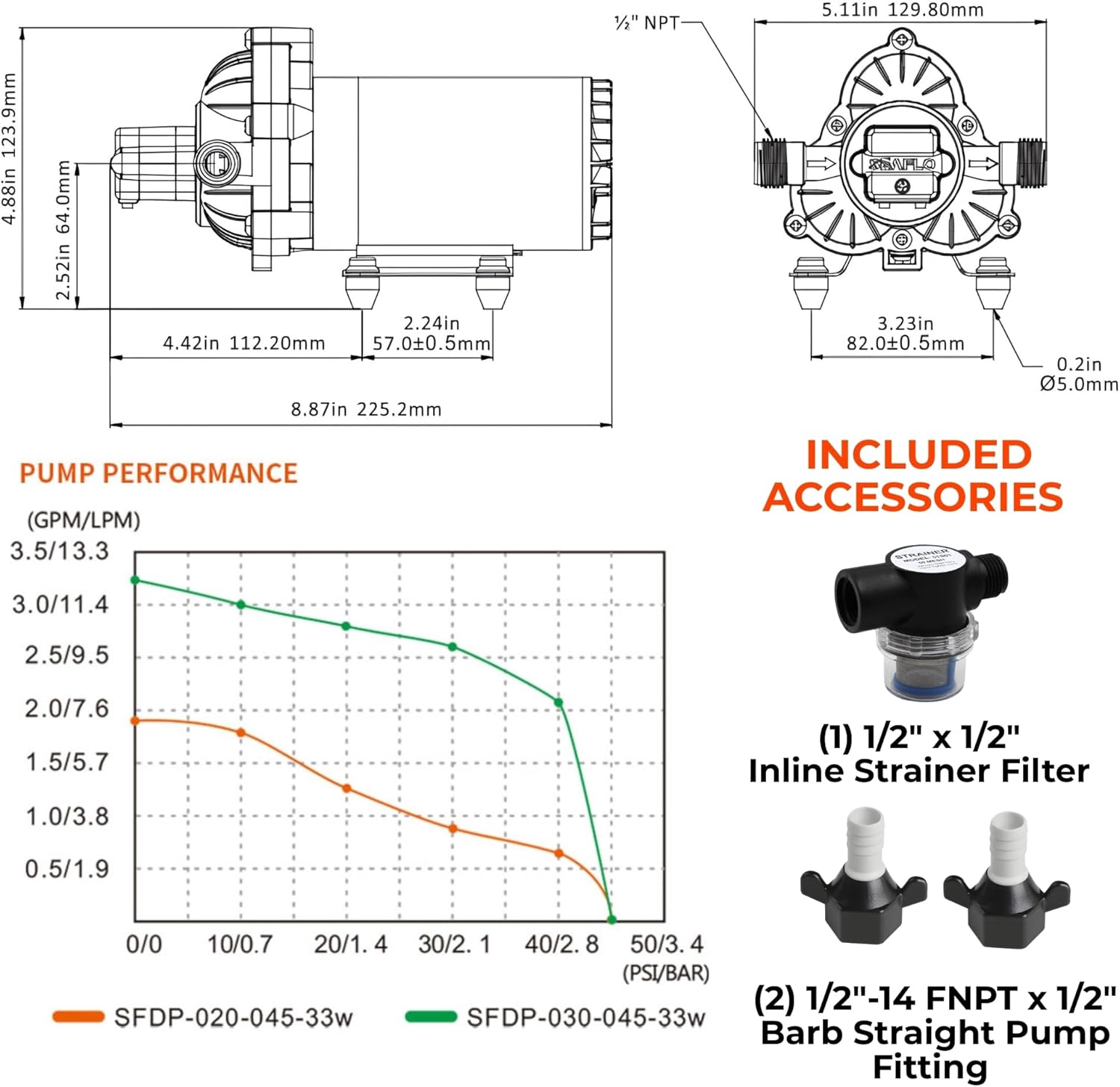

Figure 3: Pump dimensions and included accessories.
Сетуп
1. Монтажа
Mount the pump in a dry, well-ventilated area, protected from direct sunlight and freezing temperatures. Use the anti-vibration rubber mounts provided to secure the pump to a solid surface. Ensure there is sufficient space around the pump for air circulation and access for maintenance.
2. Водоводне везе
Connect the inlet side of the pump to your water source and the outlet side to your water system using the 1/2"-14 MNPT ports. It is recommended to install the included 50 mesh inline strainer on the inlet side to prevent debris from entering the pump. Use appropriate thread sealant on all connections to ensure a watertight seal. The pump is self-priming up to 6 feet (1.8 meters).
Figure 4: Key components and connection points of the pump.
3. Електричне везе
Connect the pump to a 12V DC power source. Ensure the wiring is correctly polarized (red wire to positive, black wire to negative). Install an appropriate fuse or circuit breaker in the positive line, close to the power source, to protect the pump and wiring. Refer to the pump label for maximum ampераге драв.
Figure 5: Internal components and wiring details.
Упутство за употребу
The SEAFLO 33W Series pump features an automatic pressure switch. This means the pump will automatically start when a faucet or fixture is opened and the system pressure drops, and it will stop when the faucet is closed and the pressure builds back up. This provides on-demand water flow and conserves energy.
The pump is designed with run-dry capability, meaning it can operate safely without damage even if the water source temporarily runs dry. However, continuous dry running is not recommended and should be avoided.
The advanced brushless motor technology ensures exceptionally quiet operation with minimal vibration, making it suitable for noise-sensitive environments.
Figure 6: The brushless motor ensures ultra-quiet operation.
For a visual demonstration of the pump's operation, please refer to the video below:
Video 1: Demonstration of the SEAFLO 33 Series Brushless Motor Water Pressure Pump in operation, showing its automatic demand feature.
Одржавање
- Редовна инспекција: Periodically check all connections for leaks and ensure the mounting is secure. Inspect the wiring for any signs of wear or damage.
- Чишћење цедиљке: The inline strainer should be regularly inspected and cleaned to ensure optimal flow and prevent debris from entering the pump. To clean, unscrew the clear housing, remove the mesh screen, rinse it thoroughly, and reassemble.
- Зимљење: If the pump is installed in an environment where freezing temperatures may occur, it must be properly winterized. Drain all water from the pump and plumbing system to prevent damage from ice expansion. Running RV antifreeze through the system is also an option.
- Мотор без четкица: The brushless motor requires minimal maintenance compared to traditional brushed motors, offering a longer service life (over 10,000 hours).
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Пумпа се не укључује | No power, blown fuse/tripped breaker, loose wiring, faulty pressure switch. | Check power supply, replace fuse/reset breaker, tighten connections, test/replace pressure switch. |
| Низак проток или притисак | Clogged strainer, air in system, restricted inlet/outlet, low voltage. | Clean strainer, bleed air from system, check for kinks in hoses, verify voltage. |
| Pump runs continuously or cycles rapidly | Leak in system, faulty pressure switch, air in system. | Check for leaks in plumbing, test/replace pressure switch, bleed air from system. |
| Бучан рад | Air in system, loose mounting, debris in pump head. | Bleed air, secure mounting, inspect pump head for foreign objects. |
Гаранција и подршка
The SEAFLO 33W Series pump is backed by a 4-годишња ограничена гаранција. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase and the included warranty card for any claims.
For technical support, troubleshooting assistance, or warranty claims, please contact SEAFLO customer service through the official SEAFLO website or your point of purchase. Provide your model number (SFDP1-030-045-33W) and a detailed description of the issue to expedite service.
