1. Увод
Thank you for choosing the EMKE Asymmetric LED Bathroom Mirror. This mirror combines quality, functionality, and modern design to enhance your bathroom space. Inspired by the natural elegance of a water droplet, its unique asymmetric shape and high-quality LED lighting provide both optimal illumination and a comfortable ambiance. This manual provides essential information for safe installation, operation, and maintenance of your new mirror.

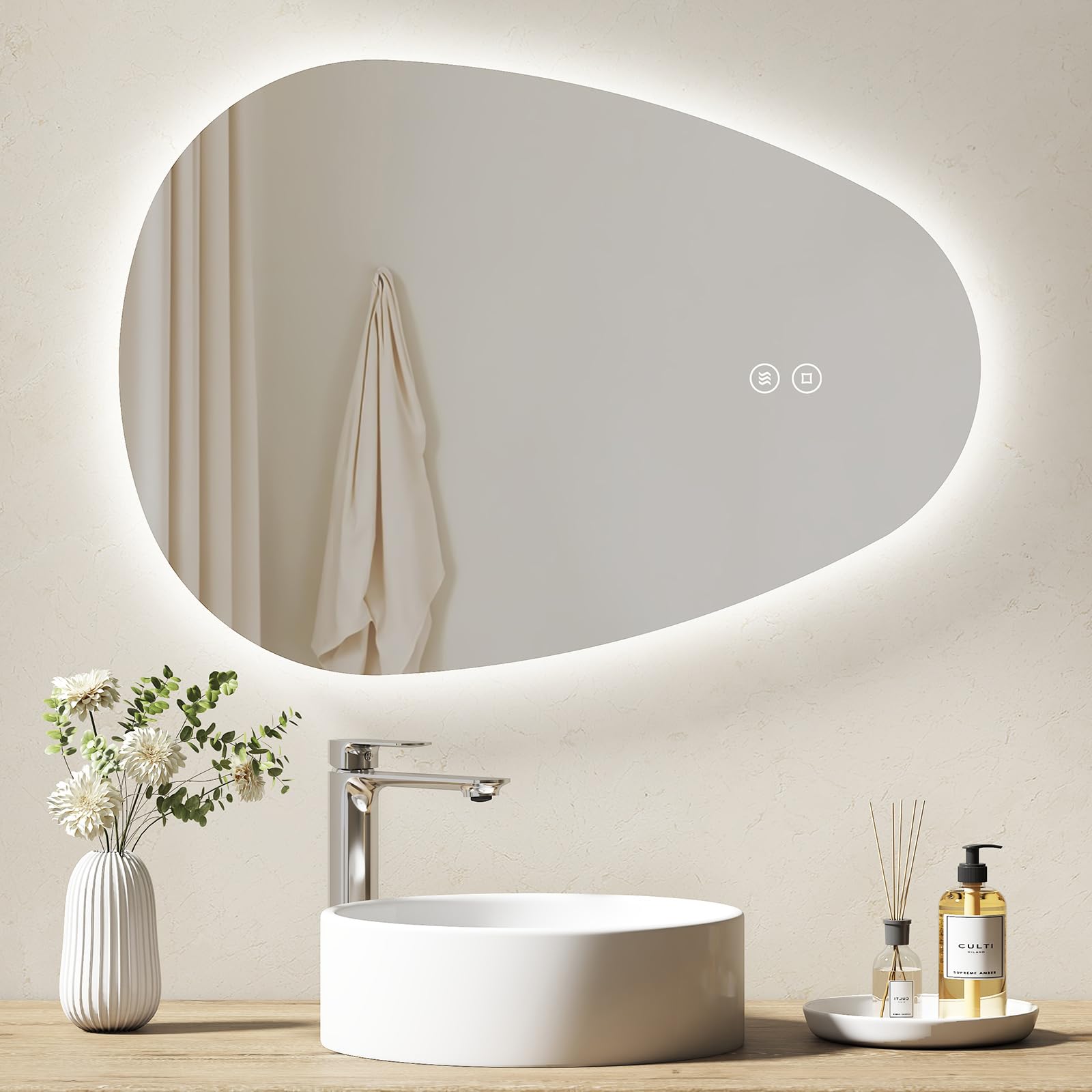

Figure 1: EMKE Asymmetric LED Bathroom Mirror in a modern bathroom setting.
2. Безбедносне информације
- Препоручена професионална инсталација: For electrical installation, it is strongly recommended to consult a qualified electrician to ensure safety and compliance with local regulations.
- Avoid Injury: Maintain a safe distance from the mirror during installation and use to prevent accidental injury.
- електрична безбедност: Ensure the power supply is disconnected before any installation, maintenance, or cleaning procedures.
- Пажљиво рукујте: The mirror is made of glass and can break if dropped or mishandled.
- Само за унутрашњу употребу: This product is designed for indoor use in bathrooms or similar environments. Do not expose to extreme outdoor conditions.
3. Карактеристике производа
- Modern Asymmetric Design: Unique water-droplet inspired shape with clean lines for a contemporary aesthetic.
- Подесиво осветљење: Features 3 light colors (cool white, neutral white, warm white) and adjustable brightness from 0% to 100%.
- Функција против магле: A separate anti-fog button prevents condensation, ensuring a clear reflection.
- Функција паметне меморије: The mirror remembers the last used light setting.
- Уштеда енергије: Automatic shut-off after 3 hours of inactivity.
- Разноврсна контрола: Can be controlled via a simple touch switch on the mirror or a compatible wall switch (not included).
- High-Definition Reflection: Made with eco-friendly, copper-free silver mirror for clear and precise imaging.
- Издржљива конструкција: Robust aluminum alloy frame for long-lasting use.
- Флексибилна инсталација: Supports both horizontal and vertical mounting to suit various spaces.

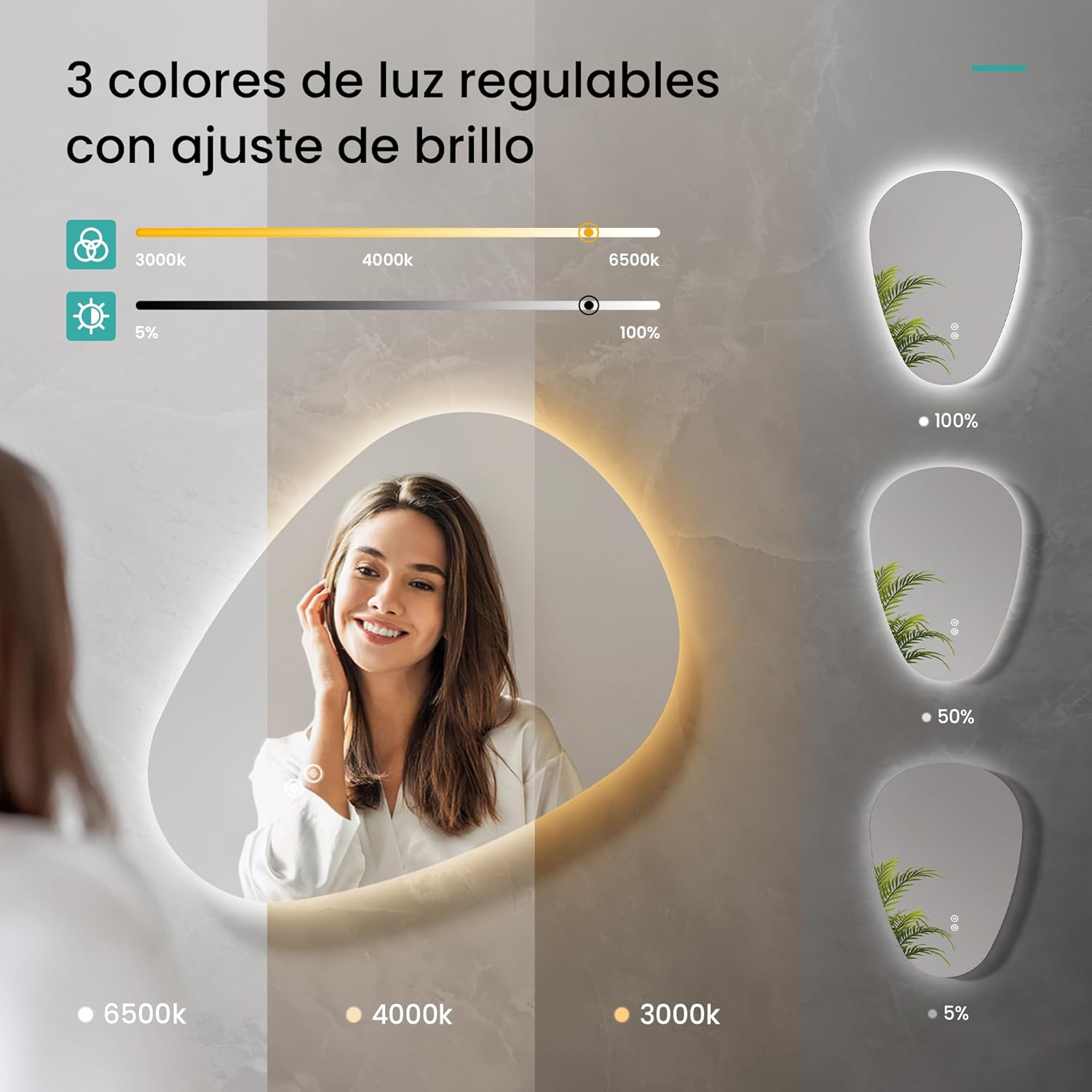

Figure 2: Illustration of the 3 adjustable light colors (3000K, 4000K, 6500K) and brightness adjustment from 5% to 100%.
Figure 3: The effective anti-fog function ensures a clear reflection even in steamy conditions.

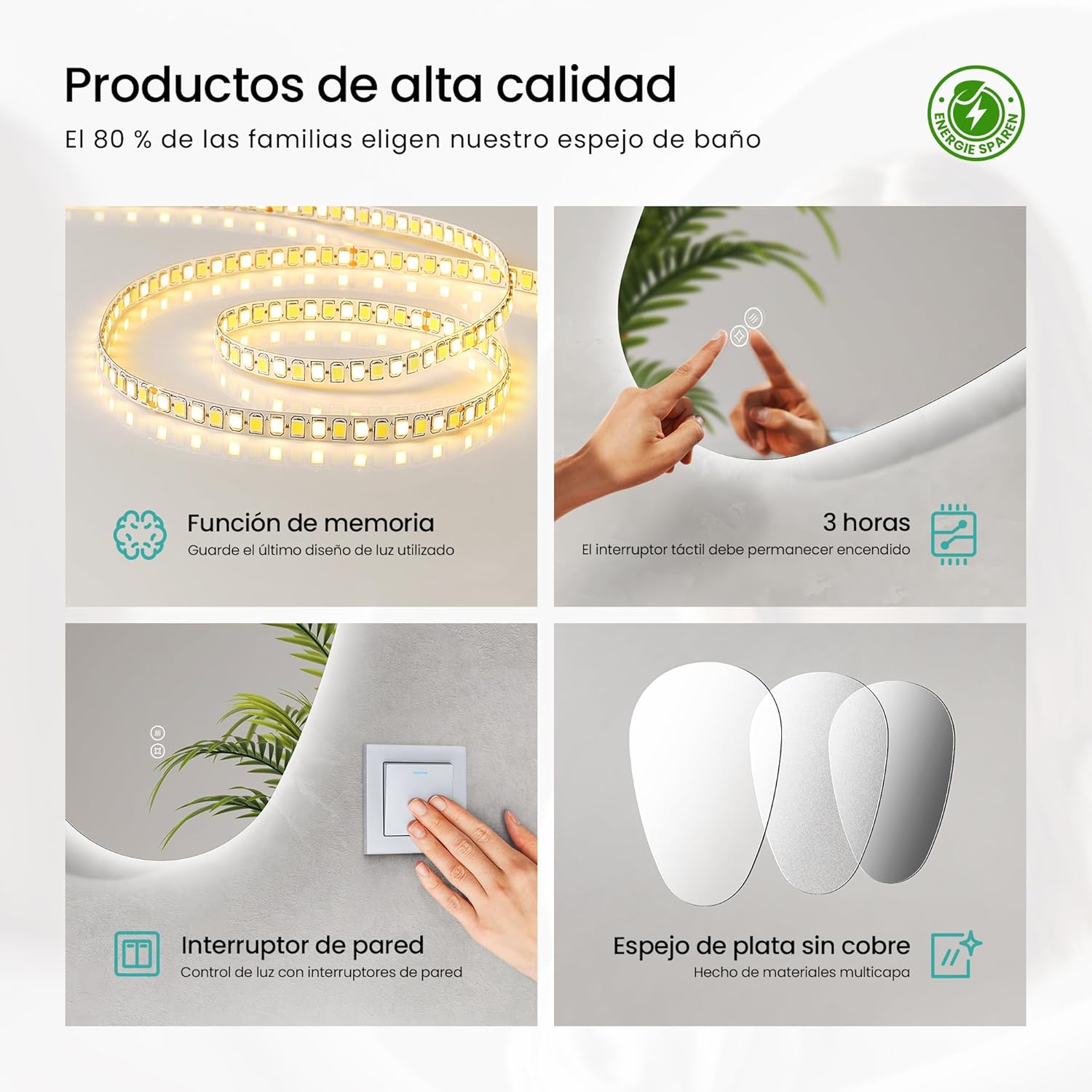

Figure 4: Key features including the LED strip, smart memory function, wall switch compatibility, and multi-layer copper-free silver mirror construction.
4. Спецификације
| Атрибут | Валуе |
|---|---|
| Број модела | XLM337050KD |
| Димензије (Д к Ш к Д) | 70 цм к 50 цм к 2.9 цм |
| Тежина | Прибл. 5.3 кг |
| Материјали | Eco-friendly copper-free silver mirror, high-definition glass, aluminum frame |
| Материјал оквира | Алуминијум |
| Боја оквира | Сребро |
| Светле боје | Cool White, Neutral White, Warm White |
| Подешавање осветљености | 0% - 100% |
| Тип монтаже | Валл Моунт |
| Обавезна монтажа | Да |
Figure 5: Detailed dimensions of the mirror (Unit: mm). This specific model is 700x500mm.
5. Подешавање и инсталација
The EMKE LED Bathroom Mirror is designed for easy installation, typically within 10 minutes. However, for electrical connections, professional assistance is recommended.
5.1. Пре инсталације
- Прегледајте садржај: Ensure all necessary accessories are included and the mirror is undamaged.
- Потребни алати: Drill, measuring tape, level, pencil, screwdriver.
- Искључивање: Always disconnect the main power supply to the installation area before beginning.
5.2. Упутства за монтирање
- Изаберите локацију: Select a suitable wall location. The mirror supports both horizontal and vertical mounting.
- Означите тачке бушења: Using a pencil and level, mark the drilling points on the wall. The distance between fixing points is approximately 25.5 cm x 31.5 cm (refer to Figure 5 for precise measurements for your specific model).
- Избушене рупе: Drill holes at the marked points and insert wall plugs suitable for your wall type.
- Сигурне заграде: Attach the mounting brackets securely to the wall using screws.
- Електрични прикључак: Connect the mirror's electrical wiring to your household wiring. This step should ideally be performed by a qualified electrician. Ensure all connections are secure and insulated.
- Виси огледало: Carefully hang the mirror onto the wall brackets, ensuring it is stable and level.
Figure 6: The mirror's versatile design allows for 360° installation, adapting to various room layouts and preferences.
6. Упутство за употребу
Your EMKE LED Bathroom Mirror features intuitive touch controls for easy operation.
6.1. Укључивање/искључивање
- Прекидач на додир: Lightly touch the power icon on the mirror surface to turn the LED lighting on or off.
- Зидни прекидач: If connected to a wall switch, you can control the mirror's lighting directly from the wall switch. The touch button on the mirror must be activated for wall switch control to function.
6.2. Adjusting Light Color
- With the light on, repeatedly touch the light color icon to cycle through the three available color temperatures: Cool White, Neutral White, and Warm White.
6.3. Подешавање осветљености
- With the light on, press and hold the power icon. The brightness will gradually adjust from 0% to 100%. Release your finger when the desired brightness is reached.
6.4. Anti-fog Function
- Touch the separate anti-fog icon to activate or deactivate the defogger. This function helps maintain a clear reflection in humid conditions.
6.5. Функција паметне меморије
- The mirror automatically saves your last used light color and brightness settings. When you turn the mirror back on, it will resume with these settings.
6.6. Аутоматско искључивање
- To conserve energy, the mirror's lighting will automatically turn off after 3 hours of continuous operation.
7. Одржавање
Proper care will ensure the longevity and optimal performance of your EMKE LED Bathroom Mirror.
- Чишћење површине огледала: Користите меку крпу која не оставља влакна и неабразивно средство за чишћење стакла. Попрскајте средство за чишћење по крпи, а не директно по огледалу, како бисте спречили продирање течности у електричне компоненте.
- Чишћење оквира: Обришите алуминијумски оквир меком крпомamp cloth. Avoid harsh chemicals or abrasive materials that could damage the finish.
- Електричне компоненте: Ensure the mirror is completely dry before reconnecting power after cleaning. Do not attempt to clean or repair internal electrical components yourself.
- Редовна инспекција: Periodically check mounting hardware for tightness and ensure all electrical connections are secure.
КСНУМКС. Решавање проблема
If you encounter any issues with your mirror, please refer to the following common solutions before contacting customer support.
| Проблем | Могући узрок | Решење |
|---|---|---|
| ЛЕД светла се не пале. | No power supply, loose connection, faulty touch switch. | Check power outlet and circuit breaker. Ensure all electrical connections are secure (consult an electrician if unsure). Try touching the switch firmly. |
| Функција против замагљивања не ради. | Anti-fog function not activated, power issue. | Ensure the anti-fog button is pressed. Check if the main LED light is working, indicating power. |
| Brightness or color adjustment not responding. | Incorrect operation, temporary glitch. | Refer to operating instructions for correct touch gestures. Try turning the mirror off and on again. |
| Mirror fogs up despite anti-fog being on. | Extreme humidity, anti-fog element malfunction. | Allow more time for the anti-fog to work in very humid conditions. If the issue persists, contact customer support. |
9. Гаранција и подршка
EMKE is committed to providing a worry-free customer experience.
- гаранција: Your EMKE LED Bathroom Mirror comes with a 2 година гаранције од датума куповине. Ова гаранција покрива производне недостатке и кварове при нормалној употреби.
- Политика враћања: Нудимо 14-day hassle-free return policy. Please refer to your purchase documentation for specific return instructions.
- Служба за кориснике: Our professional customer service team is available to answer your questions and provide support. We aim to respond to all inquiries within 24 hours.
- Контакт информације: For support, please refer to the contact details provided with your product packaging or visit the official EMKE webсајту.
