1. Увод

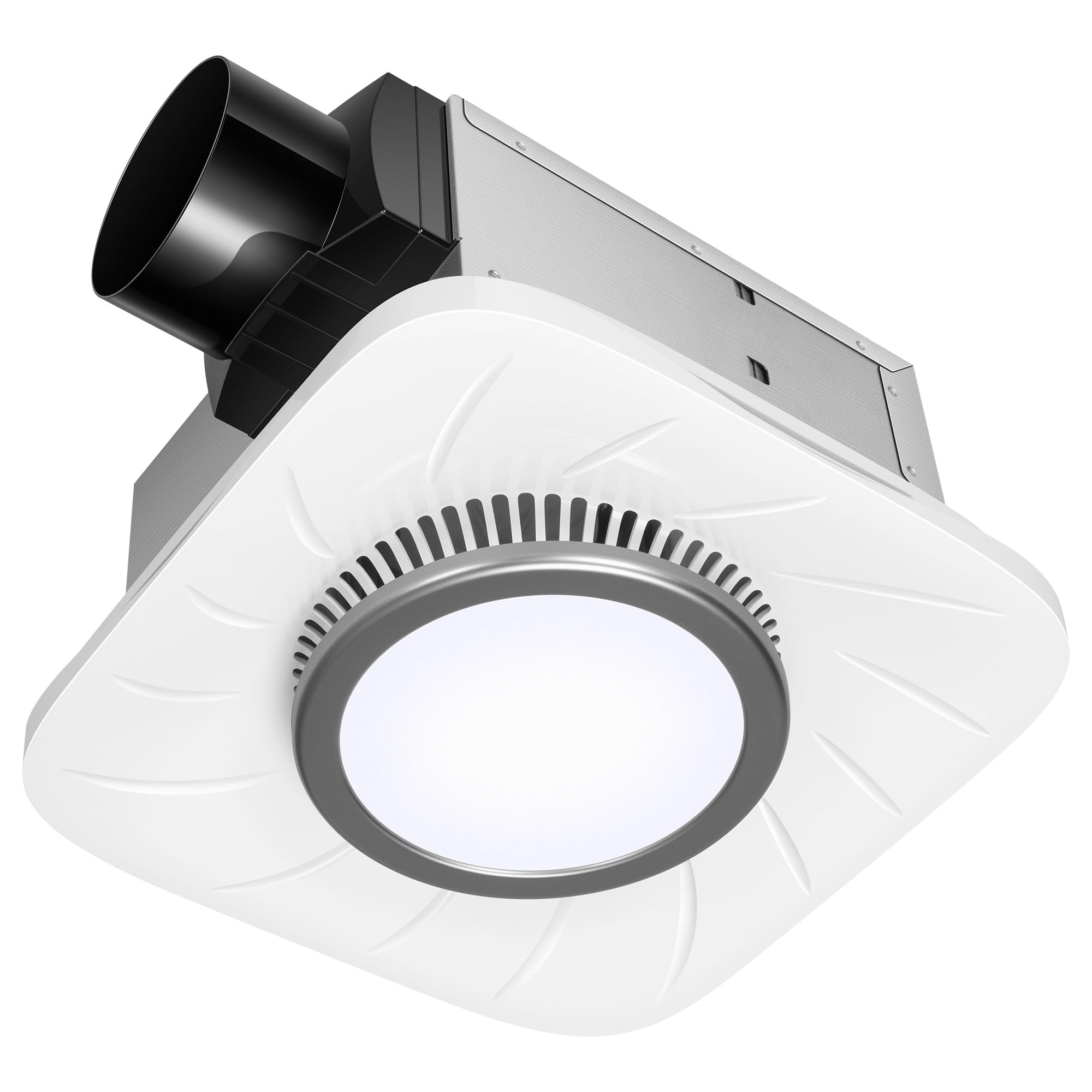

This manual provides instructions for the installation, operation, and maintenance of your VIVOHOME Bathroom Exhaust Fan with Light. This unit is designed to effectively ventilate moisture, smoke, and odors from bathrooms and similar indoor spaces, while providing illumination.
Image 1.1: VIVOHOME Bathroom Exhaust Fan with Light installed in a modern bathroom ceiling, providing both ventilation and illumination.
2. Безбедносне информације
Молимо вас да прочитате и разумете сва безбедносна упутства пре инсталације и употребе. Непоштовање ових упутстава може довести до струјног удара, пожара или озбиљних повреда.
- Always disconnect power at the circuit breaker before installing or servicing the fan.
- All wiring must comply with local and national electrical codes. If you are unsure, consult a qualified electrician.
- Do not install this fan in a ceiling with insulation that exceeds the maximum recommended thickness.
- Ensure the fan is securely mounted to a structural element of the building.
- Do not use this fan in areas where flammable gases or vapors may be present.
3. Карактеристике производа
- Ефикасна вентилација: Provides 110 CFM (Cubic Feet Per Minute) airflow, suitable for rooms 100 to 135 sq. ft. Operates at 900 RPM to effectively remove moisture and odors.
- Тих рад: Engineered to operate at a low noise level of less than 1 sone, ensuring a peaceful environment.
- Интегрисано ЛЕД светло: Features a 10W round LED light with 6000K cool white color temperature and 1000 lumens brightness for ampле иллуминатион.
- Издржљива конструкција: Aluminum alloy housing provides durability and corrosion resistance. The ABS panel enhances appearance.
- Неповратни вентил: An integrated check valve at the air outlet prevents backflow of odors, smoke, and water vapor when the fan is off. It opens automatically when the fan is powered on.
- Једноставна инсталација: Designed for straightforward ceiling mount installation with detailed instructions provided. The fan and light can be wired for simultaneous or separate operation.
Слика 3.1: Унутрашњи view of the fan, illustrating the aluminum alloy housing, ABS plastic panel, and the check valve mechanism that prevents backflow.
Image 3.2: The integrated 10W LED light provides 6000K cool white illumination at 1000 lumens.
4. Спецификације
| Спецификација | Валуе |
|---|---|
| Број модела | VH1591CA |
| Капацитет протока ваздуха | 110 ЦФМ |
| Ниво буке | 1 Соне |
| Мотор Спеед | 900 РПМ |
| Ватtage | 45 Ваттс |
| Волtage | 120 Волтс |
| Лигхт Типе | ЛЕД |
| Температура боје светлости | 6000К (хладно бело) |
| Светлоћа светлости | 1000 лумена |
| Димензије производа (Д x Ш x В) | 12.4 cm x 12.4 cm x 5.7 cm |
| Ceiling Opening Size | 9.4 cm x 10.2 cm |
| Duct Connector Diameter | 3.8" |
| Материјал | Aluminum Alloy (Housing), ABS (Panel) |
| Тип монтаже | Плафонски носач |
Image 4.1: Detailed dimensions of the fan unit and the recommended ceiling opening for installation.
5. Инсталација
Follow these steps for proper installation. Ensure power is disconnected before beginning.
- Припремите отвор на плафону: Mark and cut a ceiling opening of 9.4 inches by 10.2 inches. Ensure there is sufficient space above the ceiling for the fan housing and ductwork.
- Mount Fan Housing: Insert the fan housing into the prepared opening. Secure the housing to a ceiling joist or suitable structural support using appropriate fasteners.
- Повезивање канала: Connect a 4-inch diameter duct to the fan's duct connector. Secure with duct tape or clampс како би се осигурало херметичко заптивање.
- Електричне инсталације: Refer to the wiring diagram below for electrical connections. Connect the fan and light wires to your household electrical supply. Ensure all connections are secure and insulated.
- Attach Grille/Panel: Connect the LED light's electrical connector. Secure the grille/panel to the fan housing using the provided springs or clips.
Video 5.1: An official VIVOHOME video demonstrating the installation process of the 110 CFM Bathroom Exhaust Fan with Light, including preparing the ceiling opening, mounting the unit, and connecting the grille.
6. Dijagram ožičenja
The fan unit features a 4-wire port for electrical connections. Ensure correct wiring to prevent damage and ensure proper function.
- Уземљење: Typically yellow or green/yellow. Connect to the household ground wire.
- Lead Wire (Fan): Typically black. Connect to the switched hot wire for fan operation.
- Lead Wire (LED): Typically brown. Connect to the switched hot wire for light operation.
- Неутрална жица: Typically white. Connect to the household neutral wire.
You can wire the fan and light to operate independently using separate switches, or together using a single switch.
Image 6.1: Wiring connections for the fan and light, showing the color-coded wires for ground, fan power, LED power, and neutral.
7. Операција
Once installed and wired correctly, operate the fan and light using your wall switches. Depending on your wiring configuration, you can control the fan and light either simultaneously or independently.
- Рад вентилатора: Turn on the switch connected to the fan's lead wire to activate ventilation.
- Лагана операција: Turn on the switch connected to the LED light's lead wire to activate illumination.
8. Одржавање
Редовно одржавање обезбеђује оптималне перформансе и дуговечност вашег издувног вентилатора. Увек искључите напајање пре него што извршите било какво одржавање.
- Cleaning the Grille/Panel: Periodically remove the grille/panel and wash it with mild soap and water. Rinse thoroughly and dry completely before reattaching.
- Чишћење лопатица вентилатора: With the power off, gently wipe the fan blades and interior of the housing with a damp крпом да бисте уклонили прашину и остатке. Не користите абразивна средства за чишћење.
- Мотор: Мотор је трајно подмазан и не захтева додатно подмазивање.
КСНУМКС. Решавање проблема
Ако наиђете на проблеме са вентилатором, погледајте следеће уобичајене проблеме и решења:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Вентилатор не ради | Нема струје, лабаво ожичење, неисправан прекидач | Check circuit breaker. Verify all wiring connections. Test the switch. |
| Светлост не светли | No power, loose wiring, faulty LED connector | Check circuit breaker. Verify light wiring. Ensure LED connector is fully seated. |
| Вентилатор је бучан | Loose mounting, debris in fan blades, damaged motor | Ensure fan housing is securely mounted. Clean fan blades. If noise persists, contact support. |
| Лоша вентилација | Blocked ductwork, dirty fan blades, incorrect room size | Check ductwork for obstructions. Clean fan blades. Ensure fan capacity matches room size. |
10. Гаранција и подршка
За информације о гаранцији или техничку подршку, обратите се корисничкој служби VIVOHOME. Сачувајте рачун као доказ о куповини.
Contact information can typically be found on the VIVOHOME official webсајту или на паковању производа.
