CSCPEXCZ SU900 Variable Frequency Drive (VFD)

1. Увод

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the CSCPEXCZ SU900 series Variable Frequency Drive (VFD). The SU900 VFD is designed to control the speed of AC motors, offering precise control and energy efficiency for various industrial applications. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage or injury.

2. Безбедносне информације

УПОЗОРЕЊЕ: Improper installation or operation can lead to serious injury or death. Only qualified personnel should install, operate, and maintain this equipment.

• Always disconnect power before performing any installation, wiring, or maintenance. Wait at least 5 minutes after power-off for capacitors to discharge.
• Обезбедите правилно уземљење VFD-а и мотора.
• Do not touch electrical components when power is applied.
• Проверите да ли је улазна волtage matches the VFD's rated voltage.
• Protect the VFD from moisture, dust, and corrosive gases.
• Install the VFD in a well-ventilated area to prevent overheating.

3. Спецификације

The CSCPEXCZ SU900 VFD series offers various power ratings. This manual focuses on the 18.5KW 380V model, which is a high-power, high-performance VFD with 485 communication capability.

Figure 3.1: SU900 VFD Product Information and Dimensions. This image displays key specifications including weight, adapted motor power, and physical dimensions.

• Модел: SU900 Series (Specific model: 18.5KW 380V)
• Улазни волtage: 380V Three-phase
• Оутпут Волtage: 380V Three-phase
• Називна снага: 18.5KW (25-30 HP adapted motor)
• Тежина: Приближно 5 кг
• Димензије (В к Ш к Д): 297 мм к 165 мм к 206 мм
• Комуникација: RS485 (Modbus RTU)

4. Карактеристике и компоненте производа

The SU900 VFD features an intuitive control panel for easy operation and monitoring. Key components include the display, control buttons, and terminals for power and control wiring.

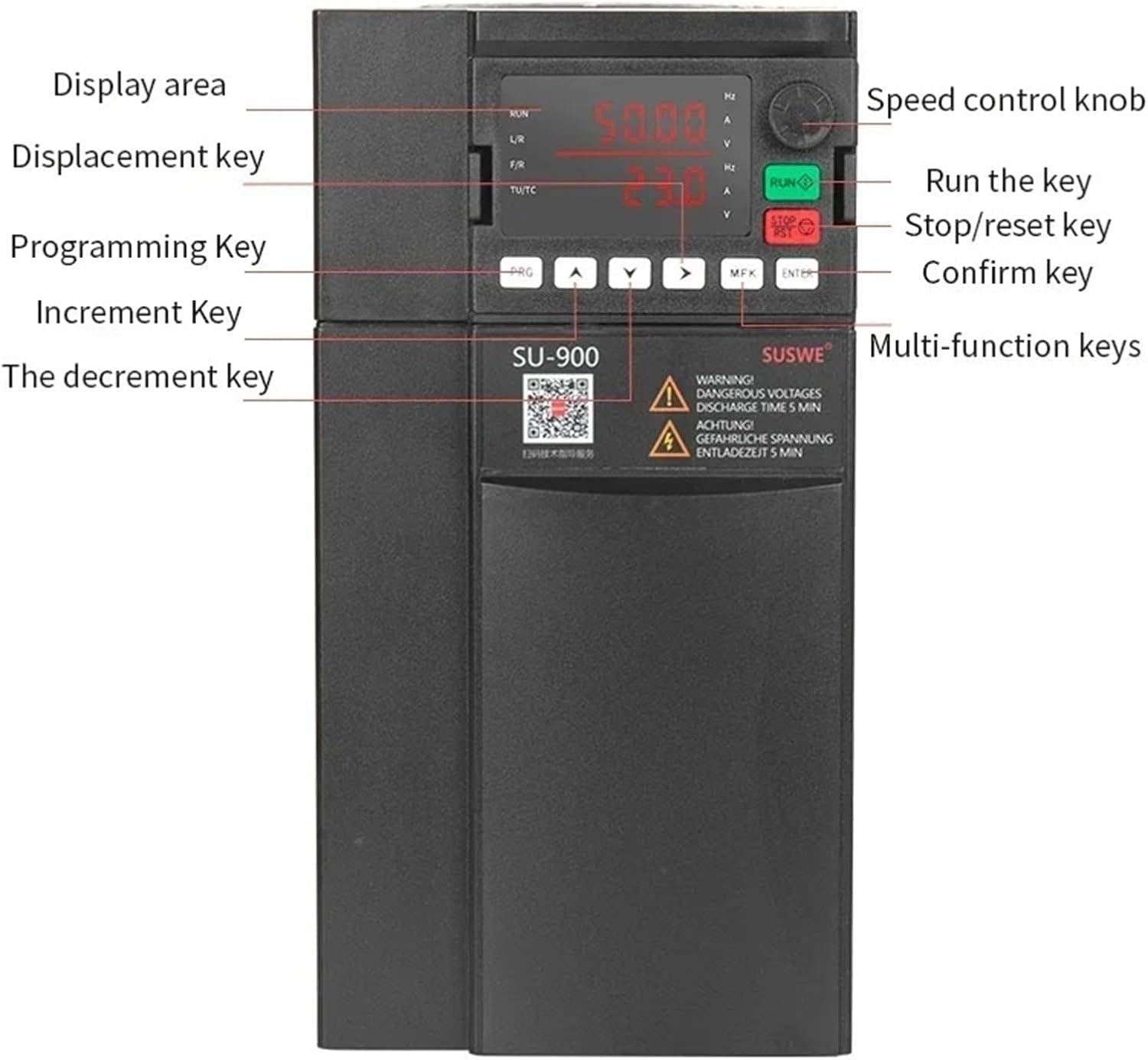

Figure 4.1: SU900 VFD Control Panel. This image highlights the display area, speed control knob, and various function keys.

• Област приказа: Shows operational parameters such as frequency (Hz), voltagе (V) и струја (A).
• Дугме за контролу брзине: Used for manual adjustment of output frequency/motor speed.
• РУН тастер: Покреће рад мотора.
• Тастер СТОП/РЕСЕТУЈЕ: Stops motor operation or clears fault codes.
• PRG (Programming) Key: Enters or exits parameter programming mode.
• Тастери са стрелицама (горе/доле/лево/десно): Used for navigating menus and adjusting parameter values. The 'Displacement key' (left arrow) moves the cursor, 'Increment Key' (up arrow) increases value, 'Decrement key' (down arrow) decreases value.
• MFK (Multi-function) Keys: Programmable keys for specific functions.
• ENTER Key: Confirms parameter settings or menu selections.

5. Инсталација

5.1 Монтажа

Mount the VFD vertically on a sturdy, non-flammable surface in an environment free from excessive vibration, dust, moisture, and direct sunlight. Ensure adequate clearance around the unit for proper ventilation and heat dissipation. Refer to the dimensions in Section 3 for space planning.

5.2 Ожичење

All wiring must comply with local and national electrical codes. Use appropriate wire gauges for the VFD's power rating. Ensure all connections are tight and secure.

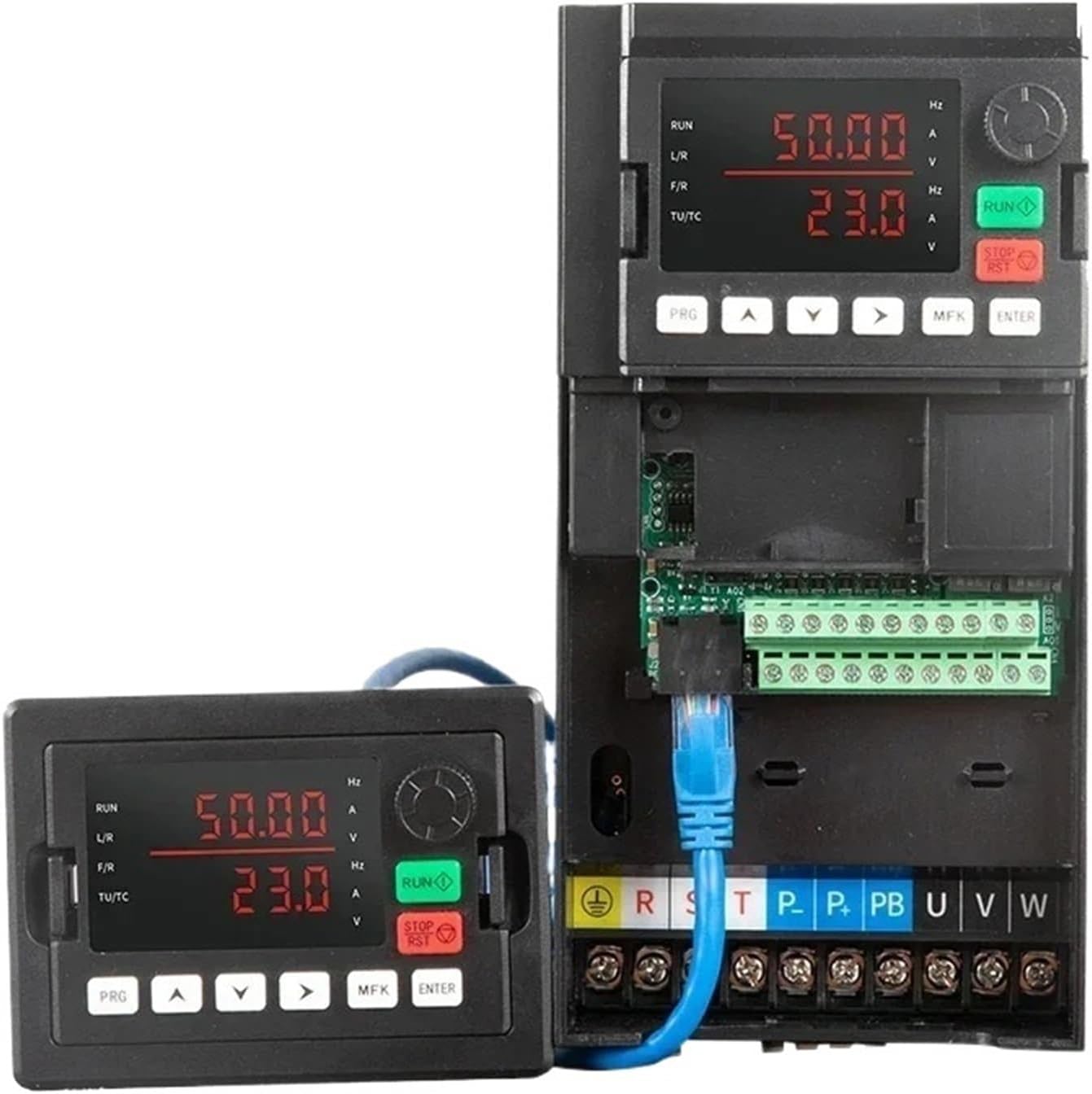

Figure 5.1: SU900 VFD Wiring Terminals. This image shows the main power terminals and control wiring connections.

• Улазна снага (R, S, T): Connect the three-phase 380V AC power supply to these terminals.
• Ground (PE): Connect the protective earth ground to the PE terminal. This is critical for safety.
• DC Bus (+, -): These terminals are for connecting external DC components or braking resistors (if applicable).
• Braking Resistor (PB): Connect an optional braking resistor here if dynamic braking is required.
• Излаз мотора (U, V, W): Connect the three-phase motor leads to these terminals. Ensure correct phase sequence for desired motor rotation.
• Контролни терминали: The VFD includes various control terminals for external start/stop signals, analog inputs for speed reference, and digital inputs/outputs. Refer to the detailed wiring diagram in the full product manual for specific connections.
• РС485 комуникација: The VFD supports RS485 communication for remote control and monitoring. Connect the communication cable to the designated terminals.

6. Упутство за употребу

6.1 Основни рад

1. Укључено: After verifying all wiring is correct and secure, apply power to the VFD. The display will illuminate.
2. Подесите брзину: Use the Speed Control Knob to set the desired output frequency (motor speed). Alternatively, if configured for external control, provide the speed reference via analog input or communication.
3. Покрените мотор: Притисните тастер РУН key on the control panel. The motor will accelerate to the set speed.
4. Заустави мотор: Притисните тастер СТОП/РЕСЕТ key. The motor will decelerate and stop.

6.2 Програмирање параметара

The SU900 VFD has a comprehensive set of parameters to customize its operation. Refer to the full programming manual for a complete list and detailed descriptions.

1. Уђите у режим програмирања: Притисните тастер ПРГ key. The display will show a parameter group or number.
2. Параметри навигације: Use the Up/Down arrow keys to scroll through parameter groups or individual parameters. Use the Left/Right (Displacement) keys to move between digits when editing a value.
3. Select/Edit Parameter: Притисните ЕНТЕР to select a parameter for editing. Use the Up/Down arrow keys to change its value.
4. Сачувај подешавање: Притисните ЕНТЕР поново да бисте сачували нову вредност.
5. Изађите из режима програмирања: Притисните тастер ПРГ key to exit programming mode and return to the main display.

7. Одржавање

Regular maintenance ensures the longevity and reliable operation of your VFD.

7.1 Чишћење

Periodically clean the VFD to prevent dust accumulation, especially on the cooling fins and fan. Dust can impede heat dissipation and lead to overheating.

Figure 7.1: SU900 VFD Cooling Fan. Regular cleaning of the fan and vents is crucial for thermal management.

• учесталост: Clean at least once every six months, or more frequently in dusty environments.
• Процедура: Disconnect all power. Use compressed air to blow dust out of the cooling fan and heat sink. Use a soft, dry cloth to wipe down the exterior. Do not use liquid cleaners.

7.2 Инспекција

• Check for loose connections, damaged wiring, or signs of overheating (discoloration).
• Inspect the cooling fan for proper operation and any unusual noises.
• Ensure the VFD's environment remains within specified temperature and humidity ranges.

КСНУМКС. Решавање проблема

This section provides guidance for common issues. For complex problems or persistent faults, contact technical support.

9. Гаранција и подршка

The CSCPEXCZ SU900 VFD comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, please refer to your purchase documentation or contact your supplier.

For technical assistance, troubleshooting beyond this manual, or spare parts inquiries, please contact CSCPEXCZ customer support through the contact information provided with your product or on the official CSCPEXCZ webсајту.
