BONKZEBU DIDEEP 1L Mini Diving Tank Set Instruction Manual

1. Увод

Thank you for choosing the BONKZEBU DIDEEP 1L Mini Diving Tank Set. This portable diving system is designed for recreational diving, snorkeling, and emergency backup air. It provides approximately 15 to 20 minutes of underwater breathing time, depending on individual skill and vital capacity. Please read this manual thoroughly before use to ensure safe operation and proper maintenance of your equipment.

2. Безбедносне информације

Diving is an activity that carries inherent risks. Improper use of this equipment can lead to serious injury or death.

• Потребна обука: This product is intended for use by individuals who have received proper diving training and certification. Do not use this equipment without adequate training and understanding of diving safety procedures.
• Границе притиска: The safe working pressure for the diving cylinder must not exceed 20 MPa (200 BAR / 3000 PSI). Overfilling can cause serious damage and injury.
• Gas Exhaustion: It is recommended to exhaust the gas from the tank within 48 hours after filling if not used. Do not store the tank pressurized for extended periods.
• Редовна инспекција: Before each use, inspect all components for damage, leaks, or wear. Do not use if any part is compromised.
• Ascent Rate: Always ascend slowly to prevent decompression sickness. Never hold your breath while ascending.
• Depth and Time Limits: Be aware of your depth and time limits. This 1L tank provides limited air supply (approx. 15-20 minutes). Plan your dives accordingly.
• Одржавање: Follow all maintenance instructions to ensure the longevity and safe operation of the equipment.
• деца: Држати ван домашаја деце. Ово није играчка.

3. Производ је готовview и компоненте

The BONKZEBU DIDEEP 1L Mini Diving Tank Set includes the following main components:

• 1L Oxygen Cylinder (Aviation Aluminum 6061)
• Reducer with Hose and Breather (Second Stagе Регулатор)
• Diving Goggles (Liquid Silicone, PC Lens)
• Cylinder Strap Bag
• Vulnerable Accessories Bag (Spare parts)

Кључне карактеристике:

• Silicone Mouthpiece: Food-grade silicone, odorless, durable, and crack-resistant. Features a high-precision dust filter.
• Imported Rubber Rings: Effectively prevent air leakage and water ingress, enhancing safety.
• Сигурносни вентил за притисак: Located on top of the breathing valve for easy pressure release and air venting.
• Waterproof Luminous Pressure Gauge: Clearly visible up to 80 meters depth.
• Large-to-Small Bottle Adapter: Facilitates refilling the 1L tank from a larger diving cylinder. Features an 8mm inflation interface with a ball-lock design for easy and secure connection.
• 360° Rotating Valve Head: Prevents medium-pressure hose entanglement and reduces potential safety risks.
• Main Valve Control Switch: Allows gas flow during inflation and breathing, and can be closed to prevent gas leakage when not in use.

Слика 3.1: Завршеноview of the BONKZEBU DIDEEP 1L Mini Diving Tank Set, including the tank, regulator, hose, and goggles.

4. Подешавање

4.1 Assembling the Regulator and Tank

1. Ensure the 1L oxygen cylinder is clean and free of debris.
2. Carefully screw the reducer (first stage regulator) onto the top of the oxygen cylinder. Ensure a snug fit to prevent leaks. Do not overtighten.
3. Connect the medium-pressure hose from the first stage regulator to the second stage regulator (breather with mouthpiece).
4. Attach the diving goggles strap to the goggles if not already assembled.

Figure 4.1: Close-up of the regulator assembly, showing the silicone mouthpiece, dust filter, and rubber sealing rings.

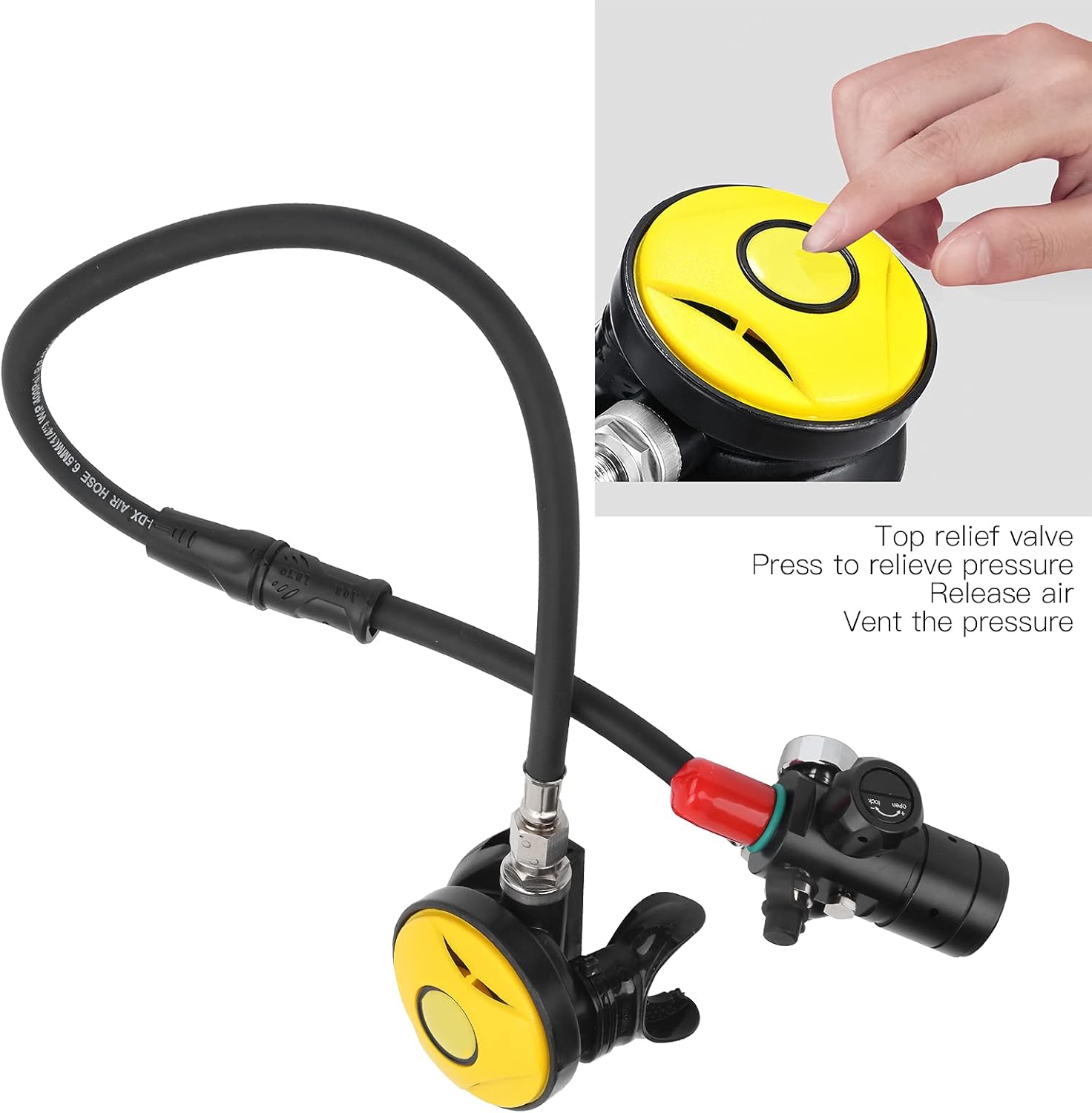

Figure 4.2: The pressure gauge and top relief valve on the regulator.

4.2 Filling the Oxygen Cylinder

The 1L oxygen cylinder can be filled using a high-pressure air pump or by transferring air from a larger diving tank using the provided adapter.

• Using a Large Tank Adapter:
  1. Connect the large-to-small bottle adapter to a larger diving cylinder.
  2. Connect the 8mm inflation interface of the 1L tank to the adapter. Ensure the ball-lock design is securely engaged.
  3. Slowly open the valve on the larger tank to transfer air to the 1L tank. Monitor the pressure gauge on the 1L tank.
  4. Do not exceed the safe inflation pressure of 20 MPa (200 BAR / 3000 PSI).
  5. Once filled, close the valve on the larger tank, then disconnect the 1L tank.
• Using a High-Pressure Air Pump (Not included):
  1. Connect the 1L tank to a compatible high-pressure air pump.
  2. Pump air into the tank, carefully monitoring the pressure gauge.
  3. Do not exceed the safe inflation pressure of 20 MPa (200 BAR / 3000 PSI).
  4. Once filled, disconnect the pump.

Before diving, ensure the main valve control switch on the regulator is open to maintain gas flow.

Figure 4.3: The adapter for refilling the mini tank from a larger cylinder.

5. Упутство за употребу

5.1 Провера пре зарона

• Verify the tank is filled to the correct pressure (max 20 MPa).
• Check all connections for tightness and absence of leaks.
• Ensure the mouthpiece is clean and securely attached.
• Confirm the main valve control switch is open.
• Inspect diving goggles for proper seal and strap adjustment.

5.2 Подводна употреба

• Place the mouthpiece in your mouth and bite gently on the tabs.
• Breathe normally and calmly. Avoid rapid or shallow breathing to conserve air.
• Continuously monitor the luminous pressure gauge to track your remaining air supply.
• The tank provides approximately 15-20 minutes of breathing time (around 132 breaths at the surface), which varies with depth, activity level, and individual lung capacity.
• If you need to release pressure from the tank, press the top relief valve on the breathing valve.

Слика 5.1: Прample of the mini diving tank in use.

Figure 5.2: The included diving goggles, designed for a comfortable and secure fit.

5.3 Post-Dive Procedures

• After surfacing, close the main valve control switch to prevent any remaining gas from leaking.
• Rinse all equipment thoroughly with fresh water to remove salt, sand, and chlorine.
• Allow all components to air dry completely before storage.
• It is recommended to exhaust any remaining gas from the tank within 48 hours if it will not be used again soon.

6. Одржавање

6.1 Чишћење

• After each use, rinse the entire diving set with fresh, clean water.
• Pay special attention to the mouthpiece, regulator, and pressure gauge.
• Do not use harsh chemicals or abrasive cleaners, as these can damage the materials.
• Allow all components to air dry completely in a shaded, well-ventilated area. Avoid direct sunlight.

6.2 Складиштење

• Store the diving set in a cool, dry place, away from direct sunlight and extreme temperatures.
• Ensure the tank is depressurized before long-term storage.
• The cylinder strap bag can be used for convenient transport and storage.
• For air travel, the cylinder body and pressure reducer can be disassembled after pressure release.

Figure 6.1: The 360° rotating valve head on the regulator, designed to prevent hose entanglement.

Figure 6.2: The mini diving tank set, including the cylinder strap bag for easy transport.

КСНУМКС. Решавање проблема

• цурење ваздуха:
  • Check all connections (regulator to tank, hose to regulator) for tightness.
  • Inspect O-rings and rubber seals for damage or wear. Replace if necessary using components from the vulnerable accessories bag.
  • Ensure the main valve control switch is fully closed when not in use.
• Тешкоће са дисањем:
  • Check the pressure gauge to ensure sufficient air supply.
  • Ensure the main valve control switch is fully open.
  • Inspect the mouthpiece and regulator for any obstructions.
• Pressure Gauge Malfunction:
  • If the gauge is not displaying correctly, do not use the equipment. Contact support for assistance.

8. Спецификације

Figure 8.1: Detailed dimensions of the 1L mini diving tank.

9. Информације о гаранцији

This BONKZEBU product comes with a Двогодишња гаранција произвођача from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper maintenance. Please retain your proof of purchase for warranty claims.

10. Подршка

For technical assistance, warranty claims, or any questions regarding the use and maintenance of your BONKZEBU DIDEEP 1L Mini Diving Tank Set, please contact the seller or manufacturer through the platform where you purchased the product. Please have your model number (BONKZEBUdw8a3guoek-11) and proof of purchase ready when contacting support.
