TALOYA 42 Inch Ceiling Fan with LED Light and Remote Control User Manual

1. Увод

This manual provides detailed instructions for the installation, operation, and maintenance of your TALOYA 42 Inch Ceiling Fan with LED Light and Remote Control. Please read this manual thoroughly before installation and keep it for future reference. This ceiling fan is designed to provide both air circulation and illumination for various indoor and covered outdoor spaces.

2. Безбедносне информације

Увек се придржавајте основних мера предострожности приликом инсталирања и рада електричних уређаја како бисте смањили ризик од пожара, струјног удара и повреда.

• Уверите се да је напајање искључено на прекидачу пре инсталације или одржавања.
• Све ожичење мора бити у складу са националним и локалним електричним прописима. Ако нисте упознати са ожичењем, консултујте квалификованог електричара.
• The mounting bracket must be securely fastened to the building structure.
• Не савијајте држаче сечива током инсталације или чишћења.
• Држите децу даље од вентилатора током рада.
• This fan is suitable for indoor and covered outdoor use. Do not expose to direct rain or sunlight.

3. Садржај пакета

Пре почетка инсталације проверите да ли су све компоненте присутне:

• Склоп мотора плафонског вентилатора
• КСНУМКС Фан Лопатице
• Комплет ЛЕД светла
• Ремоте Цонтрол
• Монтажни хардвер
• Довнрод
• Упутство за употребу

4. Подешавање и инсталација

The TALOYA 42 Inch Ceiling Fan is designed for easy installation, with most complex procedures pre-completed. It can be installed on a 12° inclined ceiling or flat mounted using the included downrod. The fan blades feature a dual-finish design (Black and Wood Grain), allowing you to choose the aesthetic that best suits your space.

4.1 Инсталација оштрице

The fan includes 5 dual-finish blades. Decide whether to display the black side or the wood grain side before attaching them to the motor assembly. Secure each blade using the provided screws.

Image: Fan blade showing reversible black and wood grain finishes.

4.2 Монтажа вентилатора

Attach the downrod to the motor assembly and then secure the entire unit to the ceiling mounting bracket. Ensure all electrical connections are made correctly according to the detailed wiring diagrams in the included instruction manual.

Image: Illustration of the fan's mounting options, including angled and flat ceiling installations, and recommended room sizes.

4.3 Attaching the LED Light Kit

Once the fan is mounted and wired, attach the round 15W LED light kit to the bottom of the motor housing. Ensure it is securely fastened.

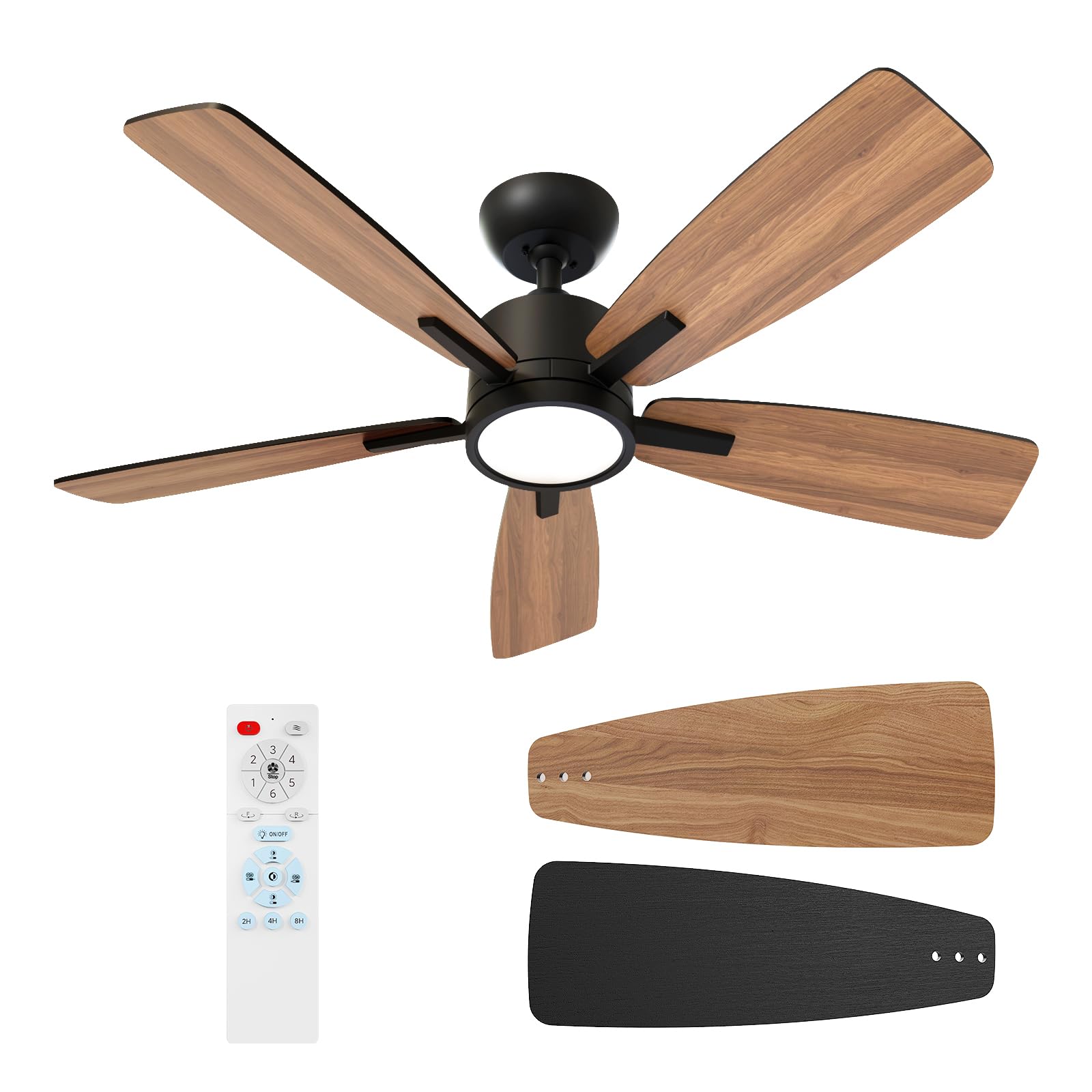

Image: The fully assembled TALOYA 42 Inch Ceiling Fan with its integrated LED light.

5. Упутство за употребу

Your TALOYA ceiling fan is controlled by a multifunctional remote control, offering convenience and customization.

Image: The remote control highlighting its various functions for fan and light operation.

5.1 Рад вентилатора

• Укључивање/искључивање: Press the power button on the remote to turn the fan and light on or off.
• Брзина вентилатора: Select from 6 adjustable wind speeds (1-6) using the dedicated buttons on the remote.
• Реверзибилни једносмерни мотор: The fan features a multi-speed reversible quiet DC motor. Use the 'F' (Forward) button for downward airflow in summer to keep cool, and the 'R' (Reverse) button for upward airflow in winter to distribute warm air.

Image: Visual representation of the fan's reversible function for seasonal comfort.

5.2 Рад светла

• Укључено/искључено светло: Use the dedicated light button on the remote.
• ЛЕД са могућношћу затамњивања: The 15W LED light is dimmable (Brightness from 10% to 100%). Use the dimming buttons on the remote to adjust the light intensity.
• Температура боје: Choose from 3 color temperatures: 3000K (warm yellow light), 4000K (natural light), and 6500K (cool white light) using the remote control.
• Функција светлосне меморије: The fan remembers your last selected color temperature and brightness if the power is turned off for more than 15 seconds.

Image: Details on the fan's LED light features, including dimming and color temperature options.

5.3 Подешавање тајмера

The fan includes a timer function, allowing you to set it to turn off automatically after 2, 4, or 8 hours. Select the desired duration using the timer buttons on the remote.

Image: The fan operating in sleep mode, emphasizing its quiet operation and timer functionality.

6. Одржавање

Редовно одржавање осигурава оптималне перформансе и дуготрајност вашег плафонског вентилатора.

• Чишћење: Периодично чистите лопатице вентилатора и кућиште мотора меком крпомamp тканина. Немојте користити абразивна средства за чишћење или раствараче.
• Баланс сечива: If the fan wobbles, check that all blade screws are tight and that the blades are evenly balanced.
• Електричне везе: Periodically check all electrical connections for tightness.

КСНУМКС. Решавање проблема

Ако наиђете на проблеме са вентилатором, погледајте следеће уобичајене проблеме и решења:

• Вентилатор се не покреће: Check power supply, circuit breaker, and ensure all wiring connections are secure. Verify remote control batteries are functional.
• Светло не ради: Check power supply and wiring to the light kit. Ensure the light is turned on via the remote.
• Excessive wobbling: Ensure all blade screws are tightened. Check that the mounting bracket is securely installed.
• No remote control function: Replace remote batteries. Ensure the remote is within range and not obstructed.

8. Спецификације

9. Гаранција и подршка

For any questions or concerns regarding your TALOYA product, please do not hesitate to contact the TALOYA After-sales service team. You can find contact information on the official TALOYA webсајту или путем ваше платформе за куповину.

TALOYA Technology, established in 2002, is committed to providing quality-reliable products and support.
