ZJchao A80 Portable Thermal Printer User Manual

1. Увод

This manual provides detailed instructions for the ZJchao A80 Portable Thermal Printer. This compact, inkless printer utilizes thermal technology to produce clear prints from various devices, making it suitable for office, travel, and personal use. Please read this manual thoroughly before operating the device to ensure proper usage and longevity.

Image: The ZJchao A80 Portable Thermal Printer connected to a smartphone and laptop, demonstrating its versatility for printing documents on the go.

2. Карактеристике производа

• Термално штампање без мастила: Utilizes advanced thermal technology, eliminating the need for ink cartridges or toners. This ensures faster operation, reduced environmental impact, and requires only thermal printing paper.
• Беспрекорна мобилна повезаност: Easily connects to smartphones (iOS and Android) and PCs via Bluetooth 2.0/4.0 or USB. Supports printing of various file types including PDF, Word, Excel, Txt, and Jpg with high resolution.
• Компактан и преносив дизајн: With dimensions of approximately 290 x 90 x 60mm (11.4 x 3.5 x 2.4 inches) and a durable ABS shell, this mini printer is lightweight and designed for portability, fitting easily into bags for business trips, travel, or mobile learning.
• Бежични рад: Equipped with a built-in 2600mAh battery, allowing for printing anytime, anywhere without being tethered to a power outlet.
• Разноврсна примена: Ideal for a wide range of users including professionals, students, teachers, and shop staff, providing convenience and efficiency for various printing needs.

Image: A visual comparison highlighting the clear and detailed print quality achieved by the ZJchao A80 Thermal Printer compared to another printer.

3. Садржај пакета

Приликом распакивања, проверите да ли се у вашем пакету налазе све следеће ставке:

• 1 x ZJchao A80 Cordless Thermal Printer
• 1 к УСБ кабл за пуњење (тип-Ц)
• 1 x Thermal Printing Paper Roll
• 1 к Упутство за употребу

Image: The ZJchao A80 Portable Thermal Printer, a USB charging cable, and a roll of thermal paper, representing the standard package contents.

4. Спецификације

Image: A diagram illustrating the physical dimensions (length, width, height) of the ZJchao A80 Portable Thermal Printer.

5. Водич за подешавање

5.1 Почетно пуњење

Before first use, ensure the printer is fully charged. Connect the provided USB Type-C charging cable to the printer's charging port and a compatible power adapter (not included). The charging indicator light will typically show charging status and turn off or change color when fully charged. Charging time is approximately 1.5 hours.

5.2 Укључивање/искључивање

To power on the printer, long press the power button located on the top surface until the indicator light illuminates. To power off, long press the power button again until the indicator light turns off.

Слика: Крупни план view of the circular power button on the top of the ZJchao A80 Portable Thermal Printer.

5.3 Installing the Application

For mobile device printing, you need to install the dedicated application. Scan the QR code provided in the physical user manual or on the product packaging with your smartphone. The app is compatible with both iOS and Android devices.

5.4 Убацивање термалног папира

1. Gently open the printer's paper compartment cover.
2. Insert a roll of thermal printing paper into the compartment, ensuring the printing surface of the paper faces the print head.
3. Pull a small length of paper out beyond the cutting edge.
4. Чврсто затворите поклопац одељка за папир док не кликне на место.

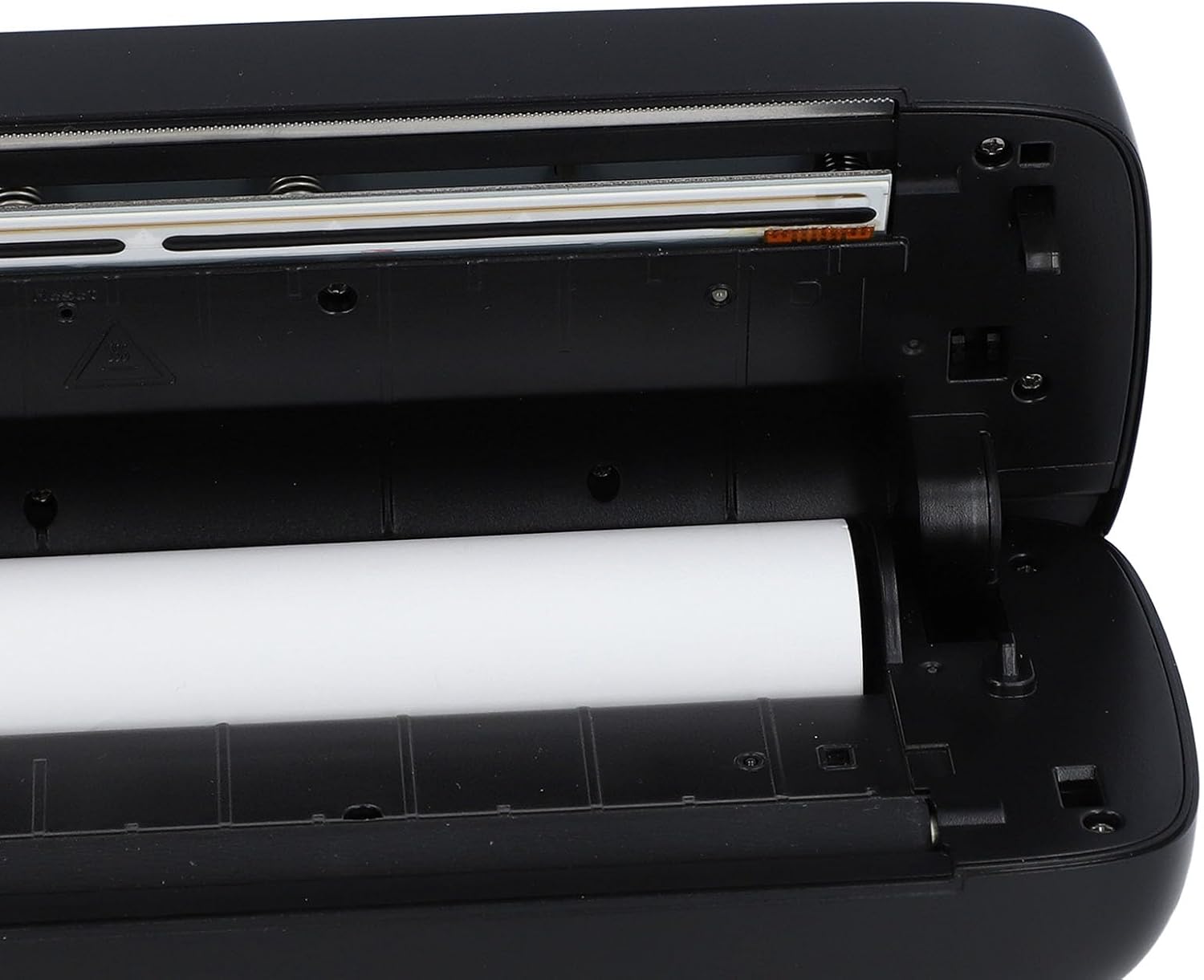

Слика: Отворено view of the ZJchao A80 Portable Thermal Printer's interior, showing the correct placement of a thermal paper roll.

Image: The ZJchao A80 Portable Thermal Printer with its cover open, illustrating the process of loading thermal paper into the device.

6. Упутство за употребу

6.1 Повезивање преко Блуетоотх-а

1. Уверите се да је штампач укључен и да се налази у домету Bluetooth везе вашег мобилног уређаја.
2. Open the installed ZJchao printer application on your smartphone.
3. Within the app, navigate to the device connection settings (usually indicated by a Bluetooth icon or 'Connect Printer').
4. Select your printer from the list of available Bluetooth devices. The printer's name typically includes 'A80' or 'ZJchao'.
5. Once connected, the app will indicate a successful connection.

6.2 Штампање докумената

1. After connecting the printer, open the document or image you wish to print within the ZJchao app. The app supports various formats like PDF, Word, Excel, Txt, and Jpg.
2. Adjust print settings such as print density, number of copies, or paper size if available within the app.
3. Initiate the print command. The printer will begin feeding the thermal paper and printing your document.
4. Once printing is complete, tear off the printed document using the serrated edge on the printer.

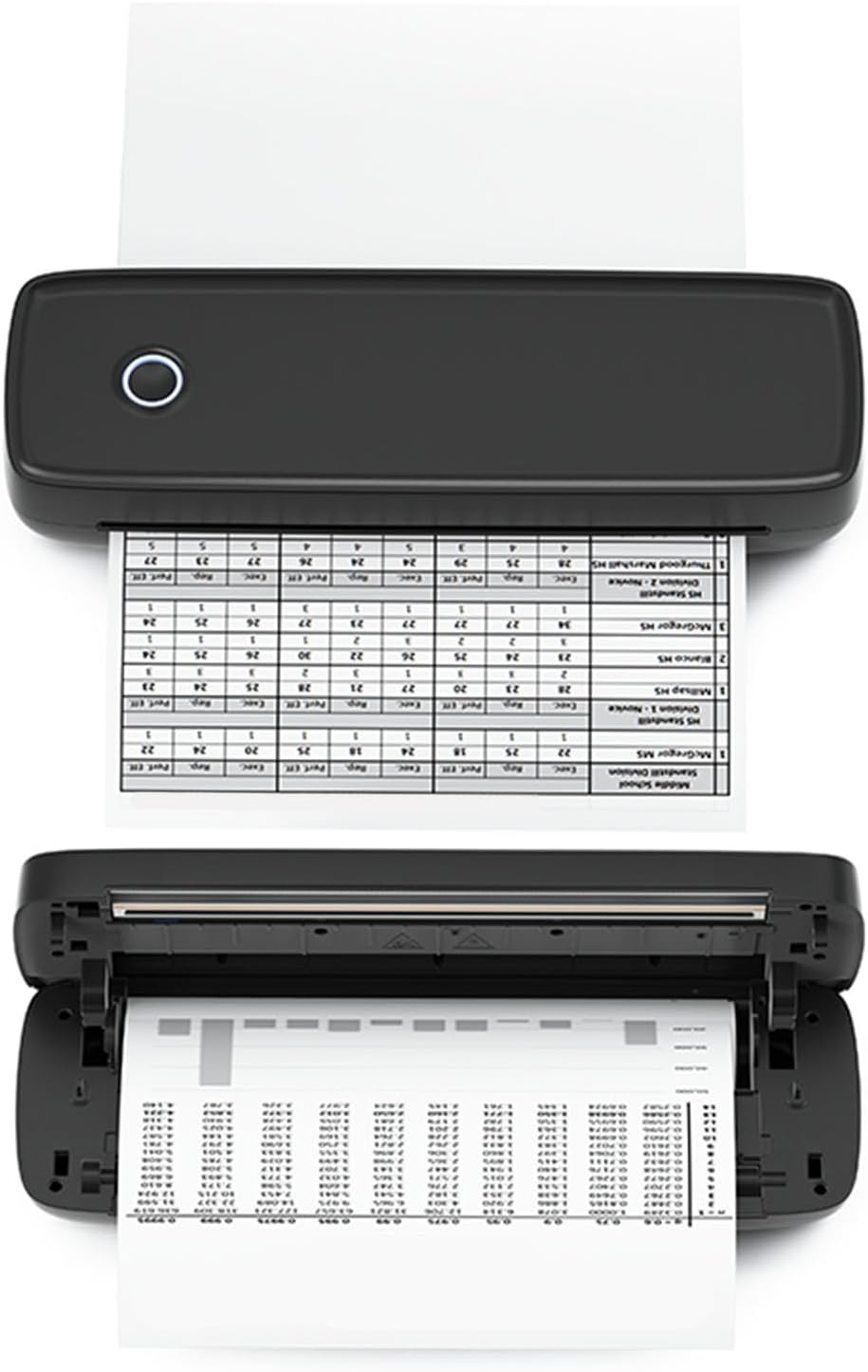

Image: The ZJchao A80 Portable Thermal Printer actively printing a document, with the paper emerging from the output slot.

7. Одржавање

7.1 Чишћење главе за штампање

To maintain optimal print quality, periodically clean the print head. Ensure the printer is turned off and cooled down before cleaning. Use a soft, lint-free cloth lightly dampнатопљен изопропил алкохолом да бисте нежно обрисали главу за штампање. Избегавајте додиривање главе за штампање голим рукама.

7.2 Складиштење термалног папира

Store thermal paper in a cool, dry place away from direct sunlight, heat, and humidity. Exposure to these elements can degrade the paper's thermal coating, leading to faded or unreadable prints.

7.3 Одржавање батерије

To prolong battery life, avoid fully discharging the printer frequently. If the printer will not be used for an extended period, charge it to approximately 50% before storage and recharge it every few months.

КСНУМКС. Решавање проблема

8.1 Штампач не реагује

• Проверите снагу: Ensure the printer is turned on and has sufficient battery charge. Connect it to a power source if the battery is low.
• Поново покрени: Искључите штампач, а затим га поново укључите.

8.2 Лош квалитет штампе

• Проверите папир: Ensure you are using thermal paper and it is loaded correctly with the printing side facing the print head.
• Чиста глава за штампање: A dirty print head can cause streaks or faded prints. Refer to Section 7.1 for cleaning instructions.
• Adjust Density: If available in the app, try increasing the print density setting.

8.3 Проблеми са Bluetooth везом

• Printer On: Confirm the printer is powered on and its Bluetooth indicator is active.
• Блутут уређаја: Ensure Bluetooth is enabled on your mobile device or PC.
• Заборави уређај: If previously paired, try 'forgetting' the printer in your device's Bluetooth settings and re-pairing.
• Веза са апликацијом: Ensure you are connecting through the ZJchao application, not directly through your device's Bluetooth settings.

9. Гаранција и подршка

The ZJchao A80 Portable Thermal Printer comes with a standard manufacturer's warranty. For specific warranty terms, duration, and conditions, please refer to the warranty card included in your product packaging or contact ZJchao customer support directly. If you encounter any issues not covered in this manual or require further assistance, please reach out to the manufacturer's support team through their official webсајт или контакт информације које сте добили уз куповину.
