1. Увод
Thank you for choosing the FNRIDS 7.2KW EV Charger Type 2. This portable electric vehicle charger is designed to provide efficient and reliable charging for your Type 2 compatible electric vehicle. Please read this manual thoroughly before use to ensure safe operation and optimal performance.
Image: The FNRIDS 7.2KW EV Charger Type 2 main control unit.
2. Безбедносна упутства
Always follow basic safety precautions when using electrical products to reduce the risk of fire, electric shock, and personal injury. This charger is designed for use with Type 2 electric vehicles only.
- електрична безбедност: Ensure the power outlet used is properly grounded and rated for the charger's specifications (32A). Do not use damaged cables or adapters.
- Услови животне средине: The charger is designed to be weather-resistant (IP67), but avoid submerging it in water. Operate within the specified temperature range (-25°C to 50°C).
- Руковање: Do not drop, crush, or step on the charger or cable. Keep children and pets away from the charging area.
- Одржавање: Do not attempt to open or repair the charger yourself. Contact qualified service personnel for any issues.
3. Садржај пакета
Након отварања пакета, молимо вас да проверите да ли су укључене све следеће ставке:

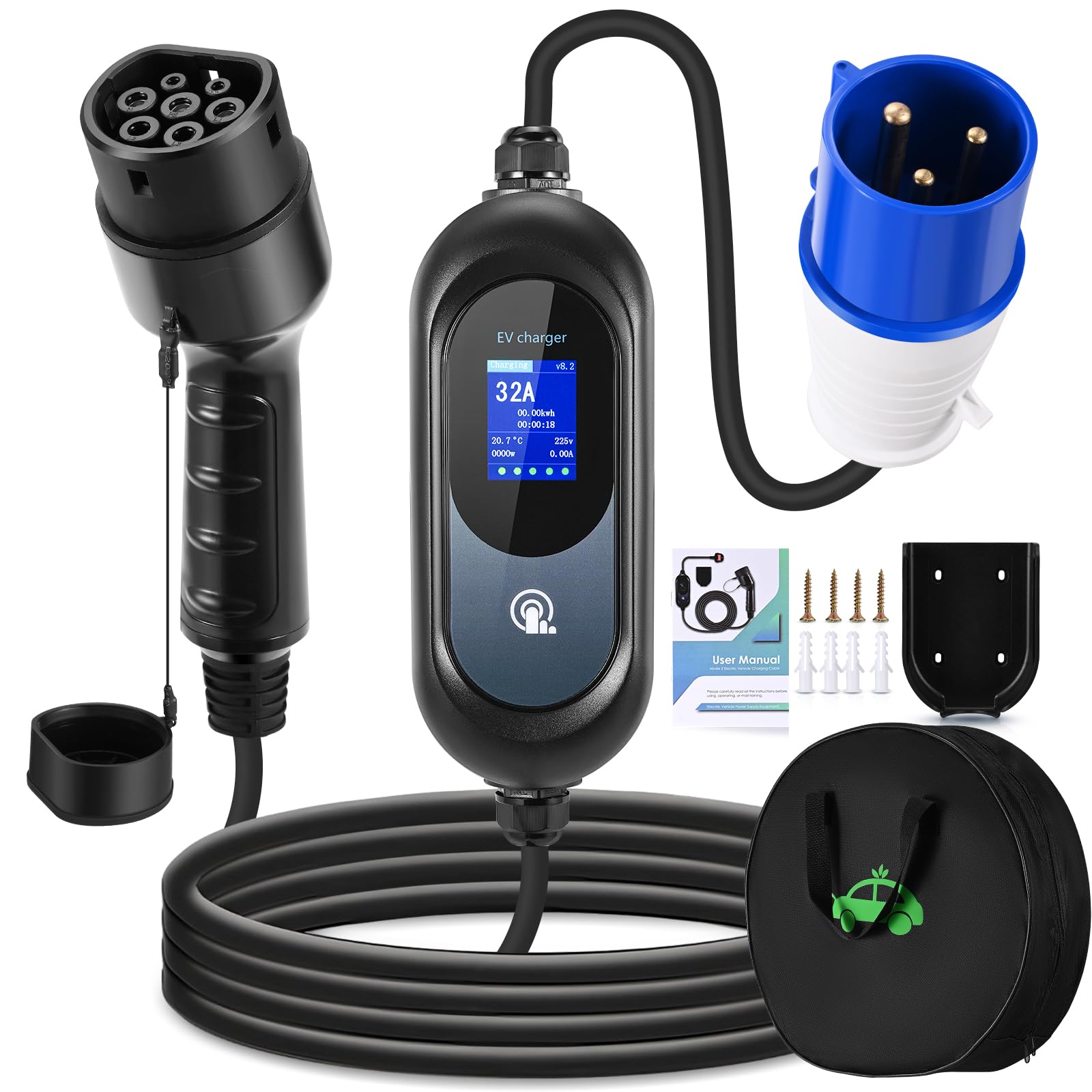

Image: All components included in the FNRIDS 7.2KW EV Charger Type 2 package.
- FNRIDS 7.2KW EV Charger Type 2 (Main Unit) x 1
- 32A CEE Socket (Wall Plug Adapter) x 1
- Cable Storage Bag x 1
- Упутство за употребу к 1
- Charger Holster x 1
- Вијци за монтажу к 4
- Expansion Anchors x 4
4. Подешавање и инсталација
The FNRIDS EV Charger can be used as a portable charger or mounted for a dedicated charging station.
4.1 Wall-Mounted Installation (Optional)
To create a fixed charging point, use the included charger holster:
- Choose a suitable location near your parking spot, ensuring it's within reach of your vehicle's charging port and a power outlet.
- Mark the positions for the four screws using the holster as a template.
- Drill holes and insert the expansion anchors.
- Secure the holster to the wall using the provided screws.
- Place the charger control unit into the holster.
Image: Illustration of wall-mounted holster installation.
4.2 Почетно повезивање
- Connect the 32A CEE plug to a compatible power outlet.
- The charger's digital display will illuminate, indicating it is ready for operation.
5. Упутство за употребу
The FNRIDS EV Charger offers flexible charging options with adjustable current and timed charging features.
5.1 Повезивање са вашим возилом
- Уверите се да је пуњач прикључен на извор напајања.
- Отворите прикључак за пуњење вашег возила.
- Insert the Type 2 charging connector firmly into your vehicle's charging port. A click sound confirms a secure connection.
- The charger will automatically begin charging or wait for your settings if timed charging is active.
Image: An electric vehicle being charged by the FNRIDS EV Charger.
5.2 Подешавање струје пуњења
The charger allows you to select the charging current to match your power supply capacity or desired charging speed.
- Before connecting to the vehicle, press the button on the control unit to cycle through available current options: 8A, 10A, 13A, 16A, 32A.
- Select the desired current. The display will show the chosen ampераге.
- Once connected to the vehicle, the charger will operate at the selected current.
Image: The charger's display showing adjustable current options and delayed time settings.
5.3 Timed Charging
You can set a delay for charging to start, useful for off-peak electricity rates.
- Before connecting to the vehicle, press and hold the button on the control unit to enter timed charging mode.
- Cycle through the delay options: 2H, 4H, 6H, 8H, 10H, 12H.
- Select your desired delay. The charger will start charging after the set time has elapsed.
5.4 Разумевање дигиталног дисплеја
The integrated LCD screen provides real-time charging information:
- Статус пуњења: Indicates if the charger is actively charging.
- Струја (А): Displays the selected and active charging current.
- Волtagе (В): Приказује тренутну јачину звукаtage.
- Снага (В): Indicates the real-time charging power.
- Energy (kWh): Tracks the total energy delivered during the current session.
- Температура (°Ц): Displays the internal temperature of the control unit.
- Време пуњења: Shows the duration of the current charging session.
Слика: Детаљна view of the charger's smart display for easy monitoring.
6. Карактеристике
The FNRIDS EV Charger is built with advanced features for durability, safety, and convenience.
6.1 Weather-Resistant Design
The charger boasts an IP67 rating, making it highly resistant to dust and water ingress. It is also UL94-V0 fireproof, ensuring safe operation in various outdoor and indoor conditions, with an operating temperature range of -25°C to 50°C.
Image: The charger's weather resistance in extreme temperatures.
6.2 Durable Cable and Connectors
The 6-meter charging cable is constructed from pure copper for stable current delivery. The connectors feature silver-plated contacts for enhanced conductivity and corrosion resistance. The cable is designed to withstand a 0.5-ton car drive-over test and a 2-meter high drop test, ensuring long-term durability.
Image: Details of the cable's pure copper core, silver-plated contacts, and durability tests.
7. Одржавање
Proper maintenance ensures the longevity and safe operation of your FNRIDS EV Charger.
- Чишћење: Wipe the charger and cable with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the connectors are free from dust and moisture before use.
- Складиштење: When not in use, store the charger in the provided cable bag in a dry, cool place, away from direct sunlight and extreme temperatures.
- инспекција: Regularly inspect the cable and connectors for any signs of damage, wear, or corrosion. If any damage is found, discontinue use immediately and contact customer support.
КСНУМКС. Решавање проблема
If you encounter issues with your FNRIDS EV Charger, refer to the following common problems and solutions:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Пуњач се не укључује | No power from outlet; damaged cable/plug | Check power outlet; inspect cable for damage. |
| Пуњење не почиње | Connector not fully inserted; vehicle not ready to charge; timed charging active | Ensure secure connection; check vehicle status; verify timed charging settings. |
| Пуњење се неочекивано зауставља | Overheating; power fluctuation; vehicle fault | Allow charger to cool; check power supply; consult vehicle manual. |
| Дисплеј приказује код грешке | Internal fault; connection issue | Disconnect and reconnect; if error persists, contact customer support. |
If the problem persists after attempting these solutions, please contact FNRIDS customer support for assistance.
9. Спецификације
| Спецификација | Валуе |
|---|---|
| Бранд | ФНРИДС |
| Број модела | YH-0E7X-TYCE |
| Оутпут Волtage | 389.2 волти (номинално) |
| Цуррент Ратинг | 32 A (Adjustable: 8A, 10A, 13A, 16A, 32A) |
| Број портова | 1 (Type 2) |
| Цабле Ленгтх | 6 метара |
| Оцена заштите од уласка (ИП). | ИП67 (водоотпоран и отпоран на прашину) |
| Отпорност на ватру | УЛ94-В0 |
| Радна температура | -25°Ц до 50°Ц |
| Цертификати | ЦЕ Цомплиант |
10. Видео производа прекоview
Watch this short video for an unboxing and overview of the FNRIDS Type 2 EV Charger's features.
Video: Unboxing and feature highlights of the FNRIDS Type 2 EV Charger.
11. Гаранција и подршка
FNRIDS is committed to providing high-quality products and excellent customer service.
Image: FNRIDS customer support details.
- Једногодишња гаранција: Your FNRIDS EV Charger is covered by a one-year limited warranty from the date of purchase.
- Lifetime Technical Assistance: FNRIDS provides lifetime technical support for its products.
- 24/7 корисничка служба: Our dedicated customer service team is available 24/7 to assist you with any inquiries or issues.
- Hassle-Free Replacement and Returns: We offer a straightforward process for product replacement or returns if necessary.
For support, please refer to the contact information provided in your product packaging or visit the official FNRIDS webсајту.
