JONR ED12 PRO Replacement Roller Brush Instruction Manual

Увод

This manual provides instructions for the installation and maintenance of the JONR ED12 PRO Replacement Roller Brush. This brush is specifically designed for the JONR ED12 Pro wet dry vacuum mop to ensure optimal cleaning performance.

The JONR ED12 PRO Replacement Brush is engineered to effectively pick up dirt, debris, and pet hair from hard floors. Its durable and flexible design allows it to reach into corners and crevices, maintaining your vacuum mop’s performance for both wet and dry cleaning tasks.

Компатибилност

This replacement roller brush is designed exclusively for the JONR ED12 PRO wet dry vacuum mop. Before installation, verify your vacuum mop model to ensure proper compatibility.

Инсталација

Follow these steps to replace the roller brush in your JONR ED12 PRO vacuum mop:

1. Ensure the JONR ED12 PRO vacuum mop is powered off and unplugged from any charging source.
2. Locate the brush cover on the bottom of the vacuum mop.
3. Open the brush cover. Refer to your JONR ED12 PRO vacuum mop's main manual for specific instructions on opening the brush compartment.
4. Carefully remove the old roller brush.
5. Insert the new JONR ED12 PRO Replacement Roller Brush into the designated slot. Ensure it is properly seated. The brush is designed for easy, tool-free installation.
6. Close the brush cover securely.

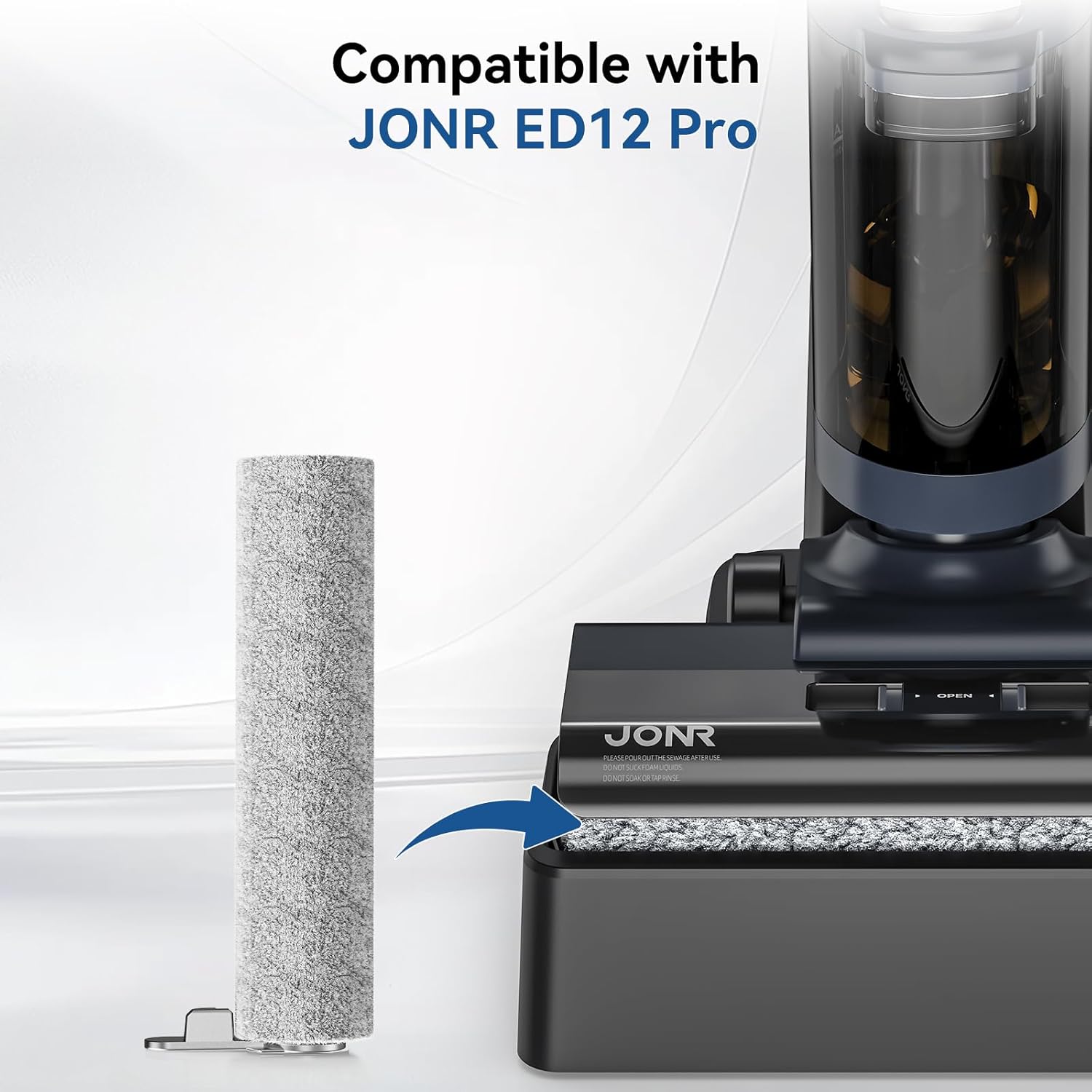

Figure 1: Installation of the JONR ED12 PRO Replacement Roller Brush. The image displays the roller brush being slid into the brush compartment of the JONR ED12 Pro vacuum mop, with an arrow indicating the direction of insertion.

Рад и карактеристике

Once installed, the JONR ED12 PRO Replacement Roller Brush works seamlessly with your JONR ED12 PRO wet dry vacuum mop.

• Чишћење тврдих подова: Made with high-quality microfiber, this brush effectively vacuums and mops simultaneously, especially when utilizing the JONR ED12 PRO's hot air drying function.
• Dual-Edge Structure: The unique dual-edge design allows for efficient cleaning of narrow spaces, baseboards, and corners, ensuring comprehensive coverage.

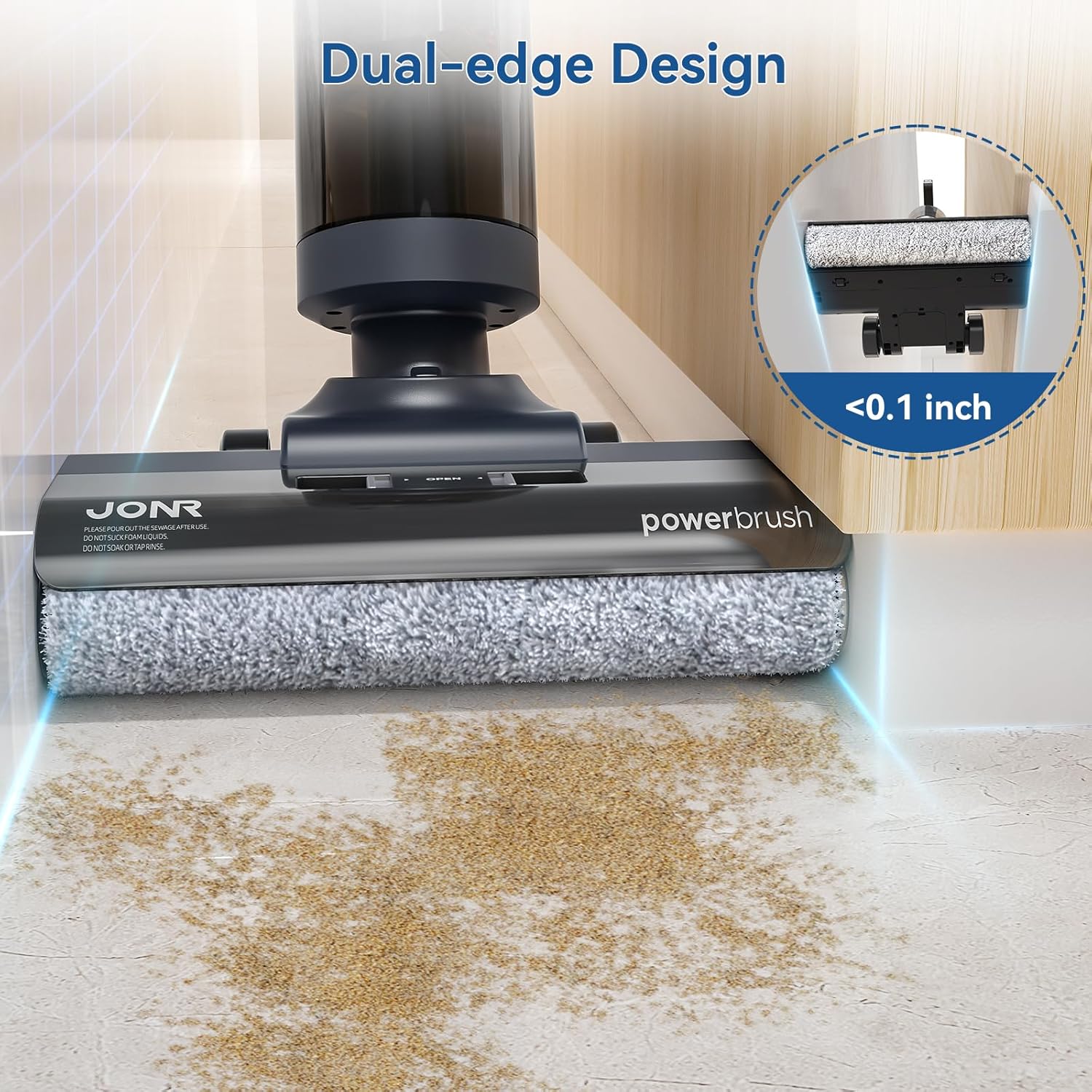

Figure 2: Dual-edge design in action. The image shows the JONR ED12 Pro vacuum mop with the roller brush cleaning dirt near a wall, highlighting its ability to reach edges with a clearance of less than 0.1 inch.

Одржавање

Regular maintenance of your JONR ED12 PRO Replacement Roller Brush is essential for optimal performance and longevity.

• Чишћење: The roller brush is washable. After each use, remove the brush and rinse it under running water to remove trapped debris and dirt.
• Сушење: Allow the brush to air dry completely before reinstalling it into the vacuum mop.
• Циклус замене: For best results, it is recommended to replace the roller brush every 3-4 months, depending on usage frequency and cleaning habits. The brush is reusable after cleaning.

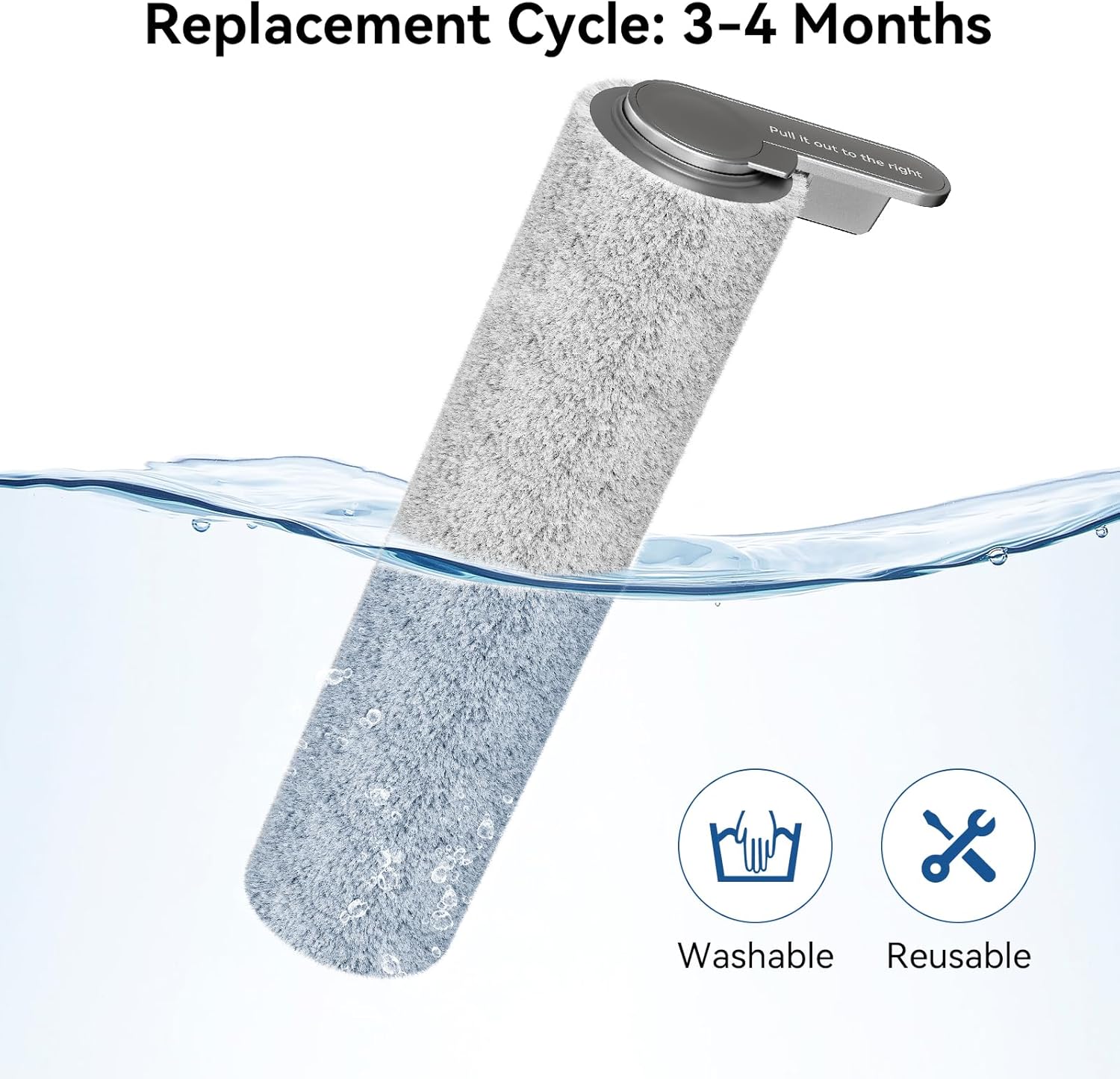

Figure 3: Maintenance guidelines. This image shows the roller brush partially submerged in water, with icons indicating "Washable" and "Reusable," and text recommending a "Replacement Cycle: 3-4 Months."

Figure 4: Brush construction details. The image highlights three key features: a durable brush roll tab, a well-fitted slot for secure installation, and the high-quality microfiber material of the brush.

Решавање проблема

If you encounter issues with your JONR ED12 PRO Replacement Roller Brush, consider the following:

• Четка се не окреће:
  • Ensure the brush is correctly installed and seated in its slot.
  • Check for any hair or debris tangled around the brush ends or within the brush compartment. Clean as necessary.
  • Verify that the brush cover is securely closed.
• Смањене перформансе чишћења:
  • Clean the roller brush thoroughly to remove accumulated dirt and grime.
  • If the brush appears worn or damaged, it may be time for a replacement (recommended every 3-4 months).

For further assistance, refer to the main JONR ED12 PRO vacuum mop user manual or contact JONR customer support.

Спецификације

Figure 5: Product dimensions. The image provides a visual representation of the roller brush with its length labeled as 9.45 inches and width as 1.97 inches.

Гаранција и подршка

For information regarding warranty coverage or technical support for your JONR ED12 PRO Replacement Roller Brush or the JONR ED12 PRO vacuum mop, please refer to the official JONR website or contact JONR customer service directly. Contact details can typically be found in the main vacuum mop's user manual or on the manufacturer's webсајту.
