FUDTYSVC Refrigerator Variable Frequency Board Compressor Drive Board Instruction Manual

Увод

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the FUDTYSVC Refrigerator Variable Frequency Board Compressor Drive Board, model daishengbaihuo524gs. This component is designed as a replacement part for compatible refrigerator systems. Please read these instructions carefully before proceeding with installation or use to ensure proper function and safety.

Important Safety Notice: Installation of this component should only be performed by qualified technicians. Disconnect power to the appliance before beginning any installation or maintenance procedures.

Производ је завршенview

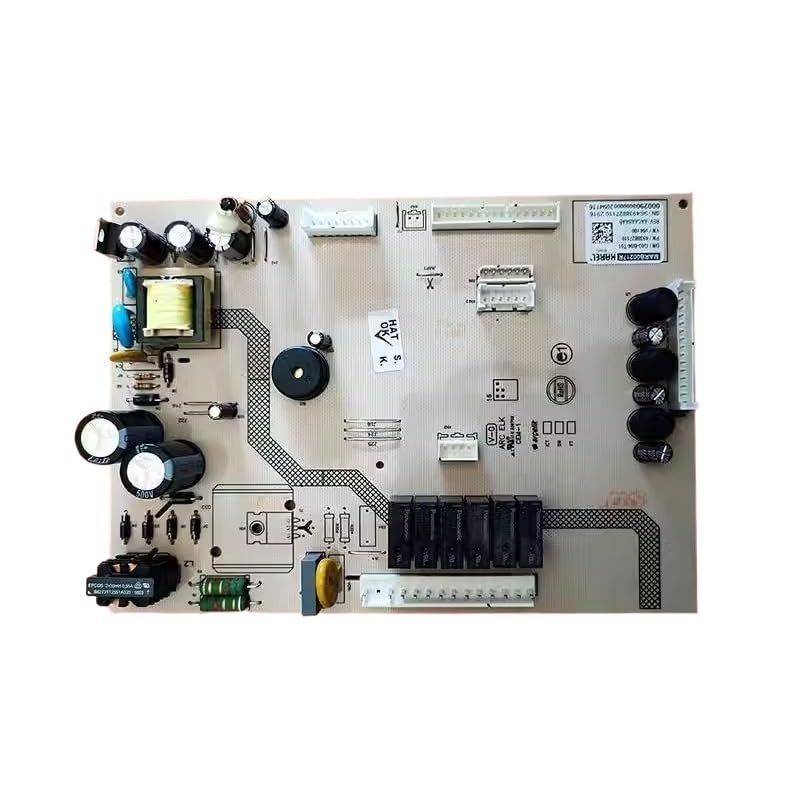

Image 1: FUDTYSVC Refrigerator Variable Frequency Board Compressor Drive Board. This image displays the electronic circuit board, highlighting its various components and connectors.

The FUDTYSVC Refrigerator Variable Frequency Board Compressor Drive Board is a critical electronic component responsible for controlling the compressor's speed and operation in compatible refrigerators. It ensures efficient cooling and energy management within the appliance.

Подешавање и инсталација

1. Провера компатибилности: Before installation, verify that this replacement board (Model: daishengbaihuo524gs, Part Number: daishengbaihuo524gs) is compatible with your refrigerator's model. Compare the board image and motherboard label model number with your existing component.
2. Безбедност на првом месту: Ensure the refrigerator is completely disconnected from the power supply before attempting any installation.
3. Приступите компоненти: Carefully locate and access the existing compressor drive board within your refrigerator. This may involve removing panels or covers.
4. Уклањање старе плоче: Disconnect all wiring harnesses and mounting screws from the old board. Note the orientation and connection points for reassembly.
5. Инсталација нове плоче: Mount the new FUDTYSVC board in the same position as the old one. Secure it with appropriate screws.
6. Повежите ожичење: Reconnect all wiring harnesses to the new board, ensuring each connection is secure and correctly oriented. Refer to the refrigerator's service manual for specific wiring diagrams if necessary.
7. Препоручена професионална инсталација: Due to the complexity and electrical nature of this component, professional installation by a certified appliance technician is strongly recommended to prevent damage to the appliance or personal injury.

Упутство за употребу

Once the FUDTYSVC Refrigerator Variable Frequency Board Compressor Drive Board is correctly installed, the refrigerator's compressor operation should return to normal. This board functions automatically to regulate the compressor's speed based on the refrigerator's cooling demands.

• Укључено: After installation, restore power to the refrigerator.
• Прво покретање: The compressor may take a few minutes to start and stabilize its operation.
• Нормалан рад: The board will continuously monitor and adjust the compressor to maintain the set temperature efficiently.

Одржавање

The FUDTYSVC Refrigerator Variable Frequency Board Compressor Drive Board is designed for long-term reliability and typically requires minimal maintenance. However, adhering to general appliance maintenance practices can prolong its lifespan and ensure optimal performance:

• Одржавајте простор чистим: Ensure the area around the compressor and the board is free from dust and debris, which can impede cooling and affect electronic components.
• вентилација: Verify that the refrigerator's ventilation grilles are not obstructed to allow for proper airflow and heat dissipation.
• Regular Appliance Checks: Follow your refrigerator manufacturer's recommendations for routine maintenance, such as cleaning condenser coils.
• Избегавајте влагу: Protect the board from direct exposure to water or excessive humidity.

Решавање проблема

If your refrigerator experiences issues after the installation of the new compressor drive board, consider the following troubleshooting steps:

• Без рада компресора:
  • Check if the refrigerator is properly plugged into a working power outlet.
  • Verify all wiring connections to the board are secure and correctly seated.
  • Ensure the refrigerator's thermostat is set to a cooling temperature.
  • If the issue persists, the board or other refrigerator components may require further diagnosis by a qualified technician.
• Inconsistent Cooling:
  • Check for proper door seals and ensure the refrigerator door is closing completely.
  • Verify that the condenser coils are clean and not obstructed.
  • Ensure there is adequate space around the refrigerator for ventilation.
• Необични звуци:
  • Inspect the compressor area for any loose components or obstructions.
  • If the noise originates from the compressor itself, it may indicate a separate issue with the compressor unit, not the drive board.

If troubleshooting steps do not resolve the issue, contact a professional appliance repair technician for assistance. Do not attempt to repair the board yourself.

Спецификације

Информације о гаранцији

This FUDTYSVC Refrigerator Variable Frequency Board Compressor Drive Board comes with a warranty of 90 days from the date of paymentОва гаранција покрива недостатке у материјалу и изради при нормалној употреби. Молимо вас да сачувате доказ о куповини за потребе подношења захтева за гаранцију.

The warranty does not cover damage resulting from improper installation, misuse, neglect, unauthorized repair, or acts of nature.

Корисничка подршка

For further assistance, technical inquiries, or warranty claims regarding your FUDTYSVC Refrigerator Variable Frequency Board Compressor Drive Board, please contact the seller or manufacturer directly. When contacting support, please provide the following information:

• Product Model Number: daishengbaihuo524gs
• Датум куповине
• Детаљан опис проблема
• Your refrigerator's make and model

Providing a clear image of the board and its label can also assist in faster resolution.
