Prestige Efficia LP Gas Stove (Model 40599) User Manual

1. Увод

Thank you for choosing the Prestige Efficia LP Gas Stove, Model 40599. This manual provides essential information for the safe installation, operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before using the gas stove and retain it for future reference.

This gas stove features a durable powder-coated body, a toughened glass top, and three high-efficiency brass burners designed for reliable cooking performance.

2. Безбедносна упутства

Always follow these safety precautions to prevent accidents and ensure proper operation:

• цурење гаса: If you smell gas, immediately turn off the gas supply, open windows and doors for ventilation, and do not operate any electrical switches or appliances. Contact your gas supplier or a qualified technician.
• вентилација: Ensure adequate ventilation in the kitchen area during operation.
• Инсталација: Installation should only be performed by a qualified and authorized technician in accordance with local regulations and the manufacturer's instructions.
• Деца и кућни љубимци: Keep children and pets away from the gas stove during operation and when it is hot.
• Запаљиви материјали: Do not store or use flammable materials near the gas stove.
• Pan Stability: Use stable cookware appropriate for the burner size. Ensure pots and pans are centered on the burner grates.
• Чишћење: Always allow the stove to cool completely before cleaning.

3. Компоненте производа

Your Prestige Efficia LP Gas Stove includes the following main components:

• Toughened Glass Top: A durable and easy-to-clean surface.
• Brass Burners (3): High-efficiency, corrosion-resistant burners for even heat distribution.
• Носачи за тигањ: Sturdy supports for cookware.
• Ergonomic Knobs: For precise flame control.
• Drip Trays: Designed to collect spills and facilitate cleaning.
• Powder-Coated Body: Provides durability and a sleek finish.

Слика 3.1: Укупно view of the Prestige Efficia 3 Burner Gas Stove.

Слика 3.2: Детаљно view of the Tri-Pin Brass Burner, Heavy Duty Pan Support, and Drip Tray.

Image 3.3: Close-up showing the Toughened Glass Top and an Ergonomic Knob.

4. Подешавање и инсталација

Proper installation is crucial for the safe and efficient operation of your gas stove. It is highly recommended that installation be carried out by a certified gas technician.

4.1 Распакивање

1. Пажљиво извадите гасни шпорет из амбалаже.
2. Check for any damage during transit. If damaged, do not install and contact customer support.
3. Уверите се да су присутне све компоненте наведене у Одељку 3.

4.2 Постављање

• Place the gas stove on a stable, level, and non-combustible surface.
• Ensure there is adequate clearance from walls and overhead cabinets as per local safety standards.
• The area should be well-ventilated.

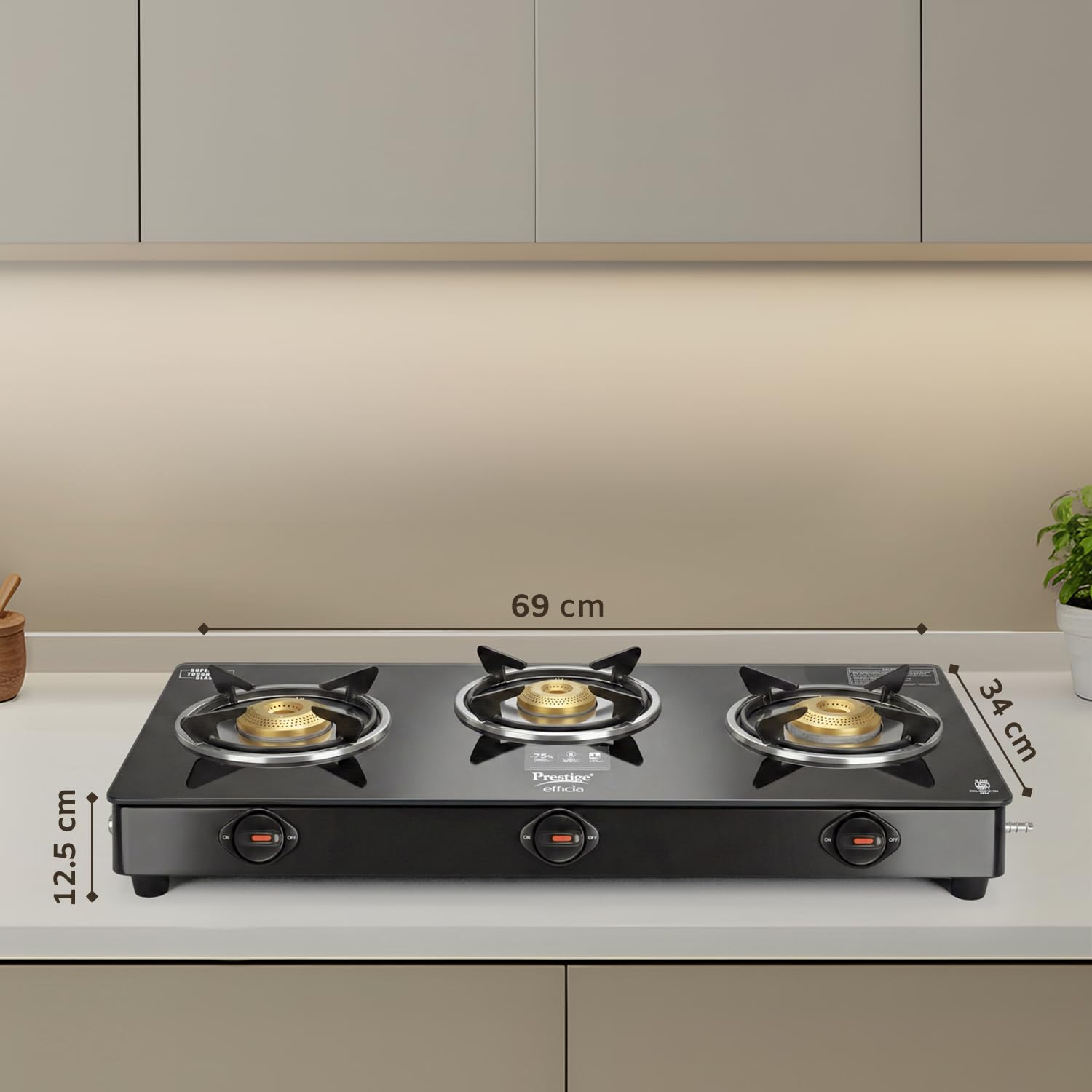

Image 4.1: Gas stove dimensions for proper placement (approx. 69 cm W x 34 cm D x 12.5 cm H).

4.3 Прикључак за гас

• Connect the gas stove to an LP gas supply using a certified gas hose and regulator.
• Ensure all connections are tight and leak-free. Use soapy water to check for bubbles, indicating a leak.
• Do not use open flames to check for leaks.

4.4 Монтажа горионика

1. Place the brass burner caps correctly on the burner bases.
2. Position the pan supports securely over the burners.

5. Упутство за употребу

Follow these steps for safe and effective operation of your gas stove:

5.1 Паљење горионика

1. Ensure the gas supply is open.
2. Place your cookware on the pan support.
3. Push and turn the corresponding knob counter-clockwise to the 'ON' position.
4. Simultaneously, use an external lighter or matchstick to ignite the burner. Hold the knob in for a few seconds after ignition to allow the flame to stabilize.
5. If the burner does not light within a few seconds, turn the knob to 'OFF', wait for the gas to dissipate, and try again.

5.2 Adjusting the Flame

• Once lit, rotate the knob to adjust the flame intensity. Turn clockwise for a lower flame (SIM) and counter-clockwise for a higher flame.
• The ergonomic knobs allow for precise control over the flame.

Image 5.1: A burner operating with a stable blue flame, indicating efficient gas combustion.

5.3 Искључивање горионика

• Turn the knob clockwise until it clicks into the 'OFF' position.
• Ensure the flame is completely extinguished.
• After cooking, turn off the main gas supply valve.

6. Одржавање и чишћење

Regular cleaning and maintenance will prolong the life of your gas stove and ensure optimal performance.

6.1 Дневно чишћење

• Оставите пећ да се потпуно охлади пре чишћења.
• Wipe the toughened glass top with a soft cloth and mild detergent. Avoid abrasive cleaners that can scratch the surface.
• The spill-proof design helps contain spills, making cleaning easier.

6.2 Burner and Pan Support Cleaning

• Remove the pan supports and brass burners.
• Wash them with warm soapy water. For stubborn stains, use a non-abrasive scrubber.
• Ensure burners are completely dry before reassembling to prevent ignition issues.
• Clean the drip trays regularly to prevent accumulation of food particles.

6.3 Општа нега

• Do not use harsh chemicals or steel wool, as they can damage the finish.
• Regularly check the gas hose for cracks or damage. Replace if necessary.

КСНУМКС. Решавање проблема

If you encounter issues with your gas stove, refer to the table below for common problems and solutions. If the problem persists, contact customer support.

8. Спецификације

Key specifications for the Prestige Efficia LP Gas Stove (Model 40599):

9. Информације о гаранцији

Your Prestige Efficia LP Gas Stove comes with a manufacturer's warranty. Please refer to the Warranty Card included in the product packaging for detailed terms, conditions, and the warranty period. Keep your purchase receipt as proof of purchase for warranty claims.

10. Корисничка подршка

For any queries, assistance, or service requests regarding your Prestige Efficia LP Gas Stove, please contact Prestige customer support:

• Телефон: 080-46824000
• Емаил: CUSTOMERCARE@TTKPRESTIGE.COM
• Произвођач: TTK PRESTIGE LIMITED, REGISTERED OFFICE PLOT NO. 38. SIPCOT INDUSTRIAL COMPLEX, HOSUR-635126, INDIA.

When contacting support, please have your model number (40599) and purchase details ready.
