SPORTNOW A90-353V00BK Indoor Exercise Bike User Manual

1. Увод

Thank you for choosing the SPORTNOW A90-353V00BK Indoor Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before use and keep it for future reference.

Важне информације о безбедности

• Консултујте се са лекаром пре него што започнете било који програм вежбања.
• Пре сваке употребе уверите се да су сви делови безбедно причвршћени.
• Држите децу и кућне љубимце подаље од опреме током рада.
• Поставите бицикл за вежбање на равну, стабилну површину.
• Одмах престаните са вежбањем ако осетите слабост, вртоглавицу или бол.
• Максимална тежина корисника: 120 кг.

2. Производ је готовview

The SPORTNOW A90-353V00BK is an indoor exercise bike designed for cardio training. It features adjustable resistance, an LCD display, and ergonomic adjustments for a comfortable and effective workout.

Кључне карактеристике:

• Подесиви отпор: Customize your workout intensity with the adaptable resistance system, mimicking road cycling. Includes an emergency brake for immediate and safe stopping.
• Optimal Adjustable Comfort: Height-adjustable seat and handlebar for ergonomic positioning. Adjustable pedals with toe cages ensure stability and comfort for all foot sizes.
• Silent and Mobile: Equipped with a 4 kg flywheel for smooth and quiet operation. Integrated wheels allow for easy relocation and storage.
• Multifunctionality and Robustness: LCD screen displays time, speed, distance, and calories. Features a tablet holder and two bottle holders. Steel frame with powder coating ensures exceptional durability.

Компоненте производа:

Свеукупно view of the SPORTNOW A90-353V00BK Indoor Exercise Bike.

Детаљно view of the exercise bike's features, including tablet holder, non-slip grip, bottle holder, comfortable seat, wheels, and toe cage pedals.

Close-up of the exercise bike's flywheel and pedal system, highlighting smooth and silent operation.

LCD monitor displaying workout data such as time, speed, distance, and calories.

3. Подешавање и монтажа

This exercise bike requires assembly. Please refer to the separate assembly guide included in your package for detailed step-by-step instructions. Ensure all components are present and undamaged before beginning assembly.

Adjusting the Seat and Handlebar

The seat and handlebar can be adjusted to ensure a comfortable and ergonomic riding position. This bike offers 6 levels of height adjustment for both the seat and the handlebar, and the seat can also be adjusted horizontally.

• Подешавање седишта: Loosen the adjustment knob below the seat. Adjust the seat vertically to your desired height and horizontally (forward/backward). Tighten the knob securely.
• Подешавање управљача: Loosen the adjustment knob on the handlebar post. Adjust the handlebar vertically to your desired height. Tighten the knob securely.

Adjustable seat and handlebar positions for optimal comfort.

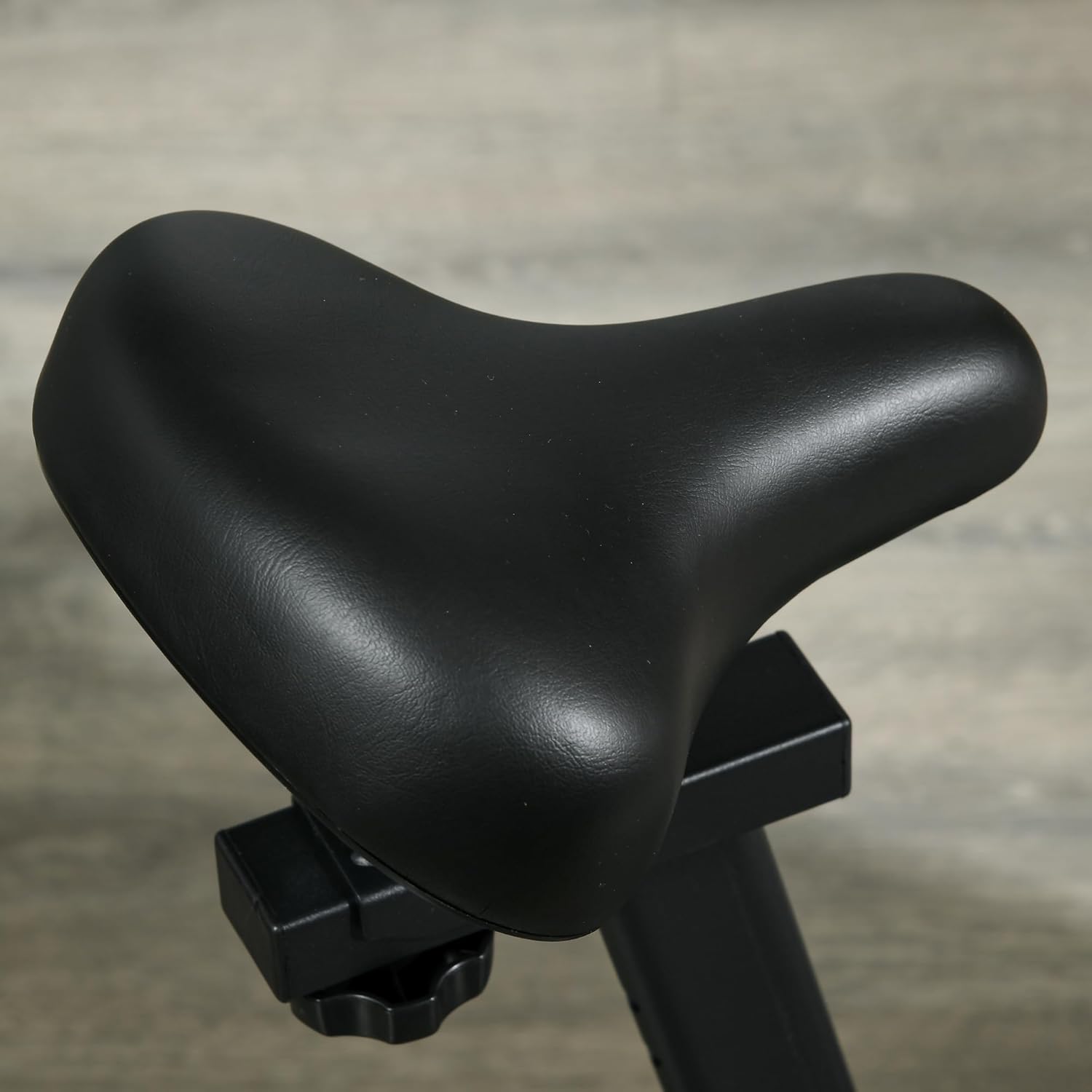

Close-up of the comfortable, adjustable seat.

4. Упутство за употребу

Започињање тренинга

1. Mount the bike carefully, ensuring your feet are securely placed in the pedal toe cages and straps are tightened.
2. Adjust the seat and handlebar to your preferred position.
3. Почните да окрећете педале. ЛЦД монитор ће се аутоматски активирати и приказивати ваше податке о тренингу.

Подешавање отпора

The exercise bike features an adjustable resistance knob. Turn the knob clockwise to increase resistance for a more challenging workout, and counter-clockwise to decrease resistance. For emergency stops, press down firmly on the resistance knob.

Adjustable resistance knob and emergency brake.

Коришћење ЛЦД монитора

The LCD monitor tracks your workout progress. It displays the following metrics:

• ВРЕМЕ: Трајање вашег тренинга.
• SPD (Брзина): Тренутна брзина вожње бицикла.
• DST (Distance): Distance covered during the current workout.
• ЦАЛ (калорије): Процењене сагореле калорије.
• ODO (Километража): Укупна акумулирана удаљеност.
• ПУЛС: Heart rate (measured via handlebar sensors).
• СКЕНИРАЈ: Аутоматски се циклично мења кроз све функције екрана.

To reset the monitor, press and hold the MODE button for a few seconds.

Праћење откуцаја срца

Grip the heart rate sensors on the handlebars to display your pulse on the LCD monitor. Ensure both hands are firmly on the sensors for an accurate reading.

Држач таблета

The integrated tablet holder allows you to place your smartphone or tablet for entertainment or guided workouts during your session.

Преносивост

To move the exercise bike, tilt it forward onto its integrated transport wheels and roll it to your desired location.

5. Одржавање

Редовно одржавање осигурава дуготрајност и безбедан рад вашег бицикла за вежбање.

• Чишћење: Обришите бицикл огласомamp крпом након сваке употребе да бисте уклонили зној и прашину. Избегавајте абразивна средства за чишћење.
• инспекција: Периодично проверавајте затегнутост свих вијка, навртки и покретних делова. Затегните све лабаве компоненте.
• подмазивање: Lubricate moving parts as recommended in the assembly guide or if you notice any squeaking.
• Складиштење: Store the bike in a dry, cool place away from direct sunlight and moisture.

КСНУМКС. Решавање проблема

• Шкрипави звук: Check for loose bolts or parts. Apply lubricant to moving joints if necessary.
• Unstable Bike: Ensure the bike is on a flat surface. Adjust the leveling feet on the base stabilizers if your floor is uneven.
• Проблеми отпора: If resistance is too loose or too tight, adjust the resistance knob. If the issue persists, check the resistance mechanism for any obstructions.
• ЛЦД монитор не ради: Check the battery. Ensure all cable connections to the monitor are secure.

7. Спецификације

Dimensions of the SPORTNOW A90-353V00BK Indoor Exercise Bike.

8. Гаранција и подршка

For warranty information, please refer to the documentation included with your purchase or contact SPORTNOW customer support. If you encounter any issues or have questions not covered in this manual, please reach out to our customer service team for assistance.
