SENCOR Fully Automatic Espresso Machine SES 6000BK User Manual

1. Увод

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your SENCOR SES 6000BK Fully Automatic Espresso Machine. Please read this manual thoroughly before first use and keep it for future reference.

1.1 Безбедносна упутства

• Увек се уверите да је машина постављена на стабилну, равну површину.
• Не потапајте машину, кабл за напајање или утикач у воду или друге течности.
• Држите уређај ван домашаја деце.
• Unplug the machine from the power outlet before cleaning or when not in use for extended periods.
• Не користите машину са оштећеним каблом или утикачем.
• Користите само хладну, свежу воду у резервоару за воду.
• Never open the brewing unit during operation.
• The machine is not dishwasher safe.

2. Компоненте производа

Familiarize yourself with the main parts of your SENCOR SES 6000BK espresso machine.

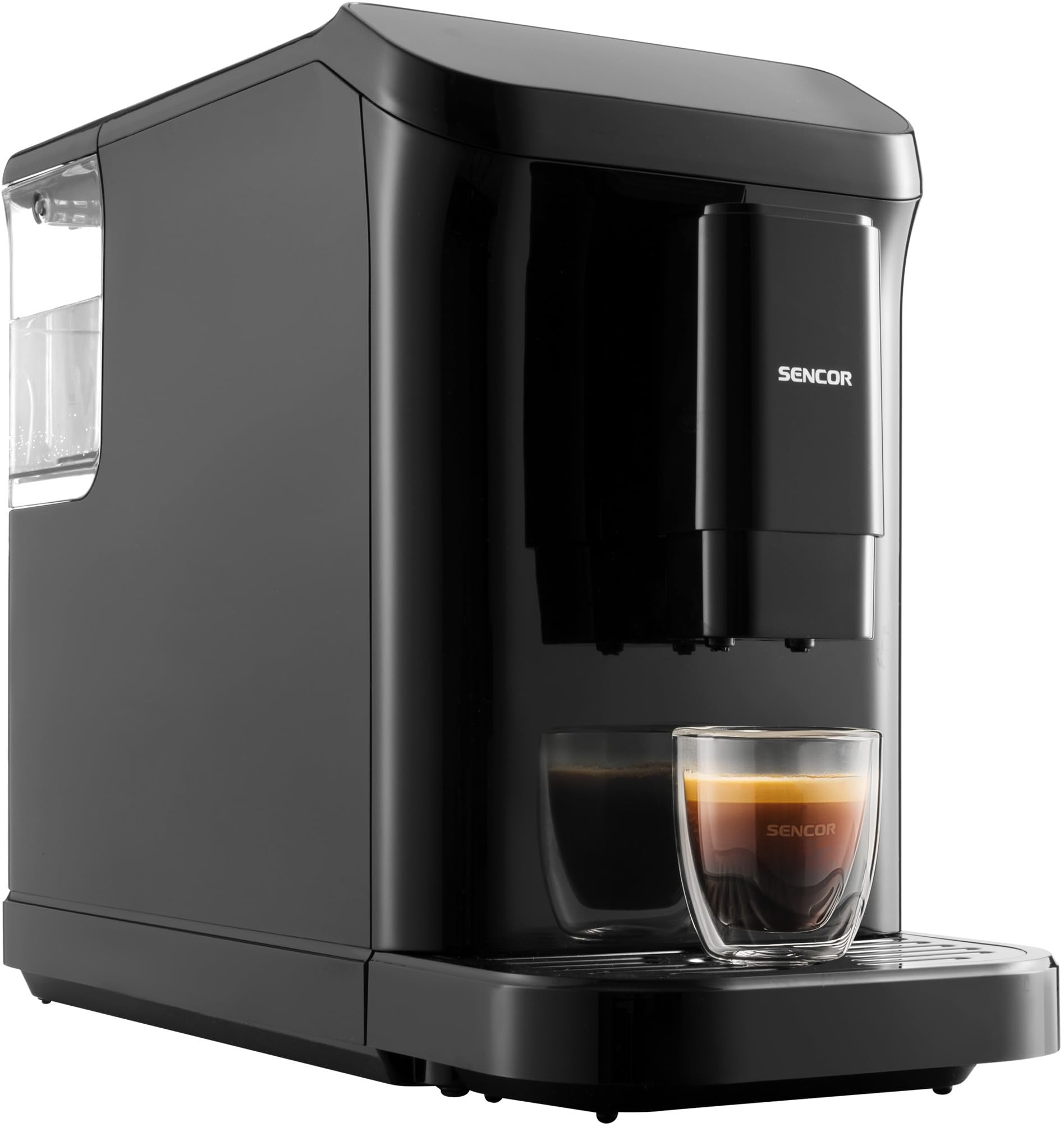

Слика 2.1: Фронт view of the SENCOR SES 6000BK Fully Automatic Espresso Machine, showcasing its compact design and coffee spout with a cup of coffee.

• Контролна табла: LED panel with touch buttons for various functions.
• Резервоар за воду: Removable 1.5-liter capacity tank for fresh water.
• Хоппер за пасуљ: 200g capacity for whole coffee beans.
• брусилица: Integrated stainless steel grinder with 15 grind settings.
• Јединица за кување: Уклоњиво за лако чишћење.
• Излив за кафу: Height-adjustable to accommodate different cup sizes.
• Drip Tray & Grounds Container: Сакупља вишак воде и искоришћени талог кафе.

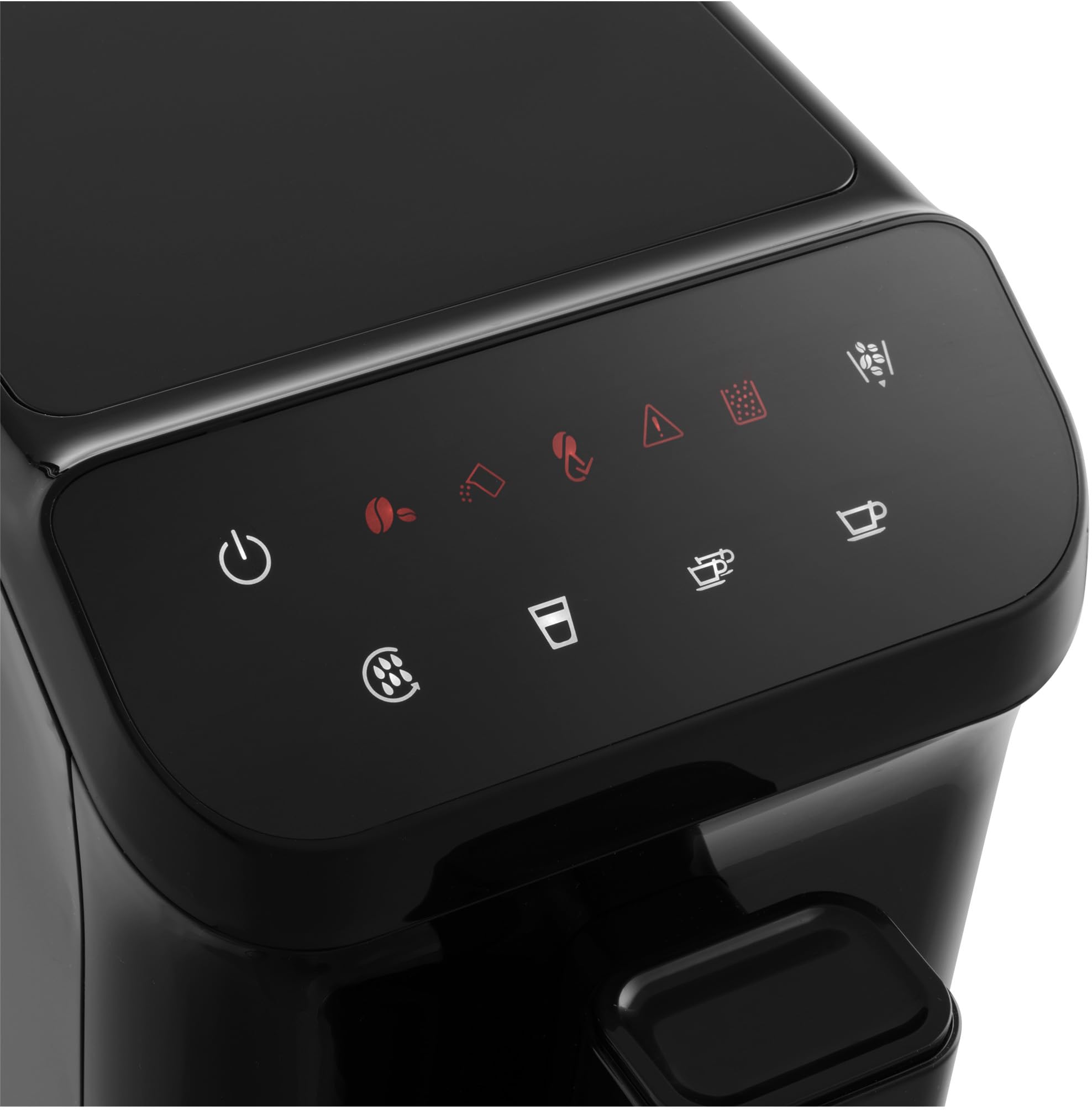

Слика 2.2: Детаљно view of the LED control panel with touch buttons for power, coffee selection, and warning indicators.

3. Подешавање и прва употреба

Follow these steps to prepare your espresso machine for its first use.

1. Распакујте машину: Пажљиво уклоните сав материјал за паковање и уверите се да су све компоненте присутне.
2. Поставите машину: Place the machine on a flat, stable, and heat-resistant surface, away from direct sunlight or heat sources. Ensure adequate ventilation.
3. Напуните резервоар за воду: Remove the 1.5-liter water tank, fill it with fresh, cold water up to the MAX level, and reinsert it securely.
4. Напуните резервоар за пасуљ: Open the lid of the 200g bean hopper and fill it with your preferred whole coffee beans. Close the lid firmly.
5. Прикључите напајање: Укључите кабл за напајање у уземљену електричну утичницу.
6. Почетни циклус испирања: Upon first power-on, the machine will perform an automatic rinse cycle. Place a container under the coffee spout. The machine will heat up and dispense hot water. This process ensures the internal system is clean and ready for use.

4. Упутство за употребу

Learn how to brew your favorite coffee beverages with ease.

4.1 Кување кафе

1. Укључено: Press the power button on the control panel. The machine will perform a brief self-check and heating process.
2. Куп за место: Position your cup under the height-adjustable coffee spout.
3. Изаберите пиће: Use the touch buttons on the LED panel to select your desired beverage:
   • Еспрессо: За концентровану шољицу кафе.
   • Лунго: For a longer coffee with more water.
   • Топла вода: For Americano or tea preparation.
4. Почните да кувате: Press the corresponding button. The machine will grind the beans, pre-infuse, and brew your coffee. The first drop of coffee is typically dispensed within 40 seconds.
5. Cup Size Memory: The machine features a memory function for cup size. To program, press and hold the desired coffee button until the desired volume is reached, then release. The machine will remember this setting for future brews.

Слика 4.1: A user initiating the coffee brewing process by pressing a button on the touch control panel.

4.2 Подешавање подешавања млевења

The integrated grinder offers 15 settings for precise grinding. Adjust the grind fineness according to your preference and coffee bean type. Finer grinds produce stronger coffee, while coarser grinds result in a milder taste. Adjust the setting only when the grinder is operating.

5. Одржавање и чишћење

Редовно чишћење и одржавање осигуравају оптималне перформансе и дуготрајност вашег апарата за еспресо.

5.1 Removable Brewing Unit

The brewing unit is removable for easy cleaning. It is recommended to rinse it under running water weekly.

1. Искључивање: Уверите се да је машина искључена и искључена из струје.
2. Приступ: Open the side access panel.
3. Уклони: Press the "PUSH" buttons (if present) or follow the specific release mechanism to carefully pull out the brewing unit.
4. Испирање: Rinse the brewing unit thoroughly under lukewarm running water until all coffee residues are removed. Do not use detergents.
5. Dry & Reinsert: Allow the brewing unit to air dry completely before reinserting it into the machine. Ensure it clicks into place securely.

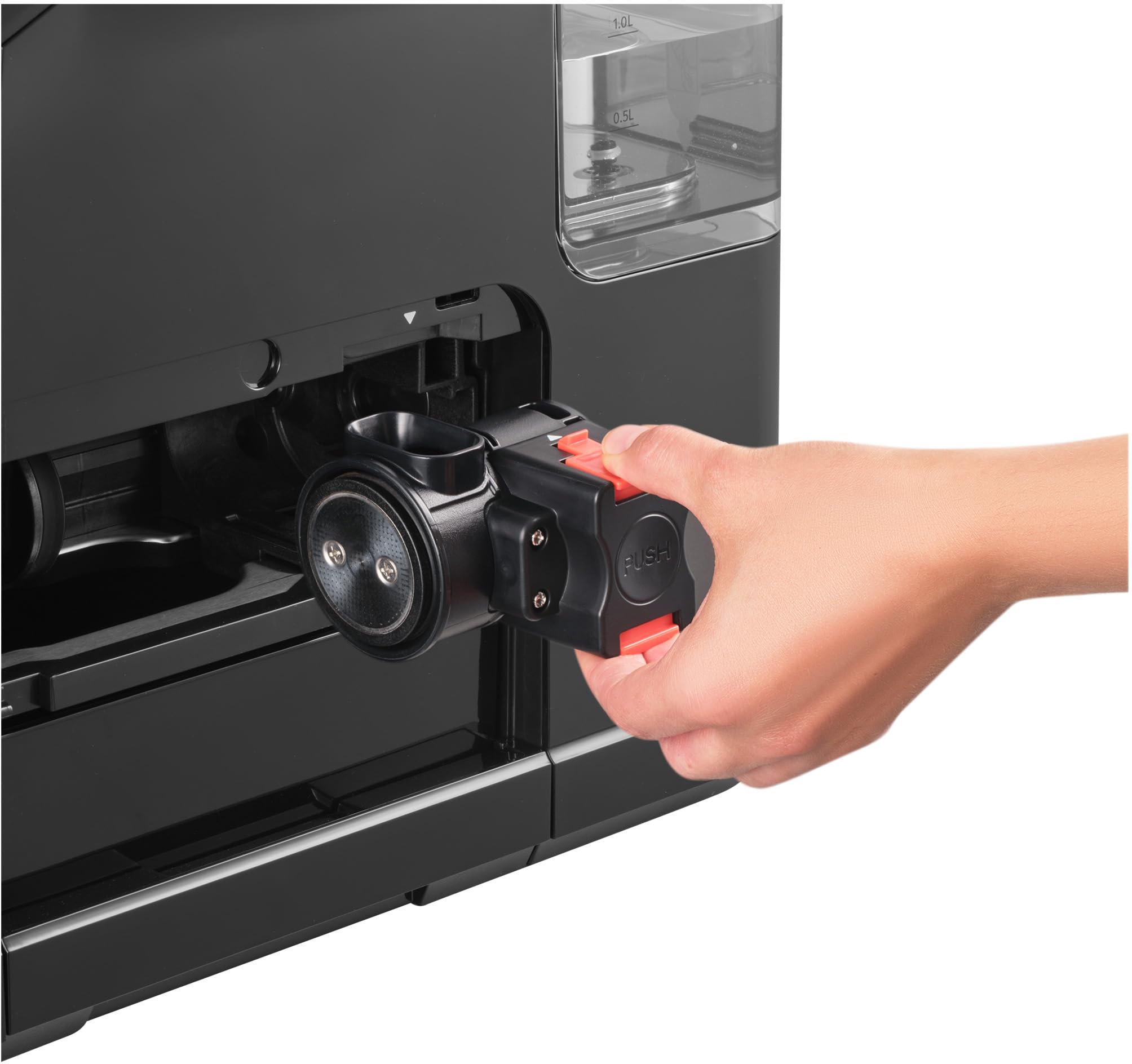

Слика 5.1: Illustration of how to remove the brewing unit for cleaning, highlighting the 'PUSH' mechanism.

5.2 Emptying Grounds Container and Drip Tray

The machine will indicate when the grounds container is full. Empty and clean both the grounds container and the drip tray regularly to prevent blockages and maintain hygiene.

5.3 Програм за уклањање каменца

The machine features an indicator for descaling. When the descaling indicator illuminates, it is time to run the automatic descaling program. Refer to the machine's display or specific instructions for initiating the descaling cycle using a suitable descaling solution (not included).

5.4 Аутоматско самочишћење

The machine performs an automatic self-cleaning cycle upon power-on and power-off to maintain internal hygiene. Ensure a cup is placed under the spout during these cycles.

КСНУМКС. Решавање проблема

This section addresses common issues indicated by the machine's warning lights.

7. Техничке спецификације

8. Гаранција и подршка

For warranty information, product registration, or technical support, please refer to the warranty card included with your product or visit the official SENCOR webсајт. Сачувајте доказ о куповини за евентуалне рекламације по гаранцији.
