Wiltec Portable Gas Heater 4.2 kW with Integrated Wheels

1. Увод

Thank you for choosing the Wiltec Portable Gas Heater. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new heater. Please read all instructions carefully before use and retain this manual for future reference.

This heater is designed for indoor use, providing adjustable heat with three power levels (1.4 kW, 2.8 kW, and 4.2 kW). It operates with LPG (Liquefied Petroleum Gas), including butane and propane, and features integrated wheels for easy mobility, piezoelectric ignition, and advanced safety systems.

2. Важна безбедносна упутства

Failure to follow these safety instructions can result in fire, explosion, carbon monoxide poisoning, property damage, personal injury, or death.

• Само за унутрашњу употребу: This appliance is designed exclusively for indoor use in well-ventilated areas. Do not use outdoors or in bathrooms, bedrooms, or recreational vehicles.
• вентилација: Ensure adequate ventilation when the heater is in operation. Do not use in unventilated spaces.
• Тип гаса: Use only butane or propane gas as specified. Do not use natural gas or any other fuel.
• цурење гаса: Before each use and after changing the gas cylinder, check all gas connections for leaks using a soapy water solution. Never use an open flame to check for leaks. If you smell gas, immediately turn off the gas supply, ventilate the area, and do not operate the heater or any electrical switches.
• Одобрење: Maintain a safe distance from flammable materials (curtains, furniture, paper, etc.). Do not place objects on or near the heater.
• Стабилност: Always place the heater on a firm, level surface. The integrated anti-tip system will automatically shut off the gas supply if the heater is accidentally knocked over.
• Сензор недостатка кисеоника (ОДС): The heater is equipped with an ODS system that will automatically shut off the heater if oxygen levels in the room become too low. If this occurs, ventilate the area immediately and do not restart the heater until the cause has been identified and corrected.
• Flame Supervision Device (DSL): This device ensures that gas flow is cut off if the flame extinguishes.
• Померање грејача: Do not move the heater while it is operating or hot. Allow it to cool down completely before relocating.
• Деца и кућни љубимци: Keep children and pets away from the heater. The surfaces become hot during operation.
• Одржавање: Не покушавајте сами да поправљате или модификујете грејач. Сво сервисирање препустите квалификованом особљу.
• Гасни цилиндар: Always store gas cylinders in a well-ventilated area, away from heat sources and direct sunlight.

3. Садржај пакета

Приликом распакивања, уверите се да су све компоненте присутне и да нису оштећене:

• Wiltec Portable Gas Heater (Model 65067)
• Упутство за употребу

Напомена: The gas hose and pressure regulator are not included and must be purchased separately. Ensure they are compatible with your gas cylinder and local regulations.

4. Подешавање

1. Распакивање: Carefully remove the heater from its packaging. Inspect for any damage incurred during transit.
2. Позиционирање: Place the heater on a stable, level surface in the desired indoor location. Ensure there is adequate ventilation and maintain safe distances from walls and flammable objects.
3. Gas Cylinder Installation:


   Image: Product dimensions and internal gas cylinder placement. The heater measures 420mm (depth) x 450mm (width) x 757mm (height). It can accommodate a gas cylinder with a maximum load capacity of 13 kg.

   • Open the rear panel of the heater.
   • Carefully place the gas cylinder (butane or propane, max 13 kg) into the designated compartment.
   • Connect the gas hose (not included) to the gas cylinder valve and then to the heater's gas inlet. Ensure all connections are tight and secure.
   • Attach the pressure regulator (not included) to the gas cylinder valve according to its instructions.
   • Perform a leak test: Apply a soapy water solution to all gas connections. If bubbles appear, there is a leak. Tighten connections or replace faulty parts. Do not use the heater if a leak is detected.
   • Затворите задњу плочу.

5. Упутство за употребу

1. Отворено снабдевање гасом: Slowly open the valve on the gas cylinder.
2. Паљење:


   Image: Product details highlighting 360-degree universal wheels, piezoelectric ignition, and handles. The ignition button is red and located near the control knob.

   • Press and hold the control knob down.
   • While holding the knob, press the piezoelectric ignition button repeatedly until the pilot flame ignites.
   • Continue to hold the control knob down for approximately 10-20 seconds after ignition to allow the thermocouple to heat up and activate the flame supervision device.
   • Release the control knob. If the flame goes out, repeat the ignition process.
3. Подешавање топлотног излаза:

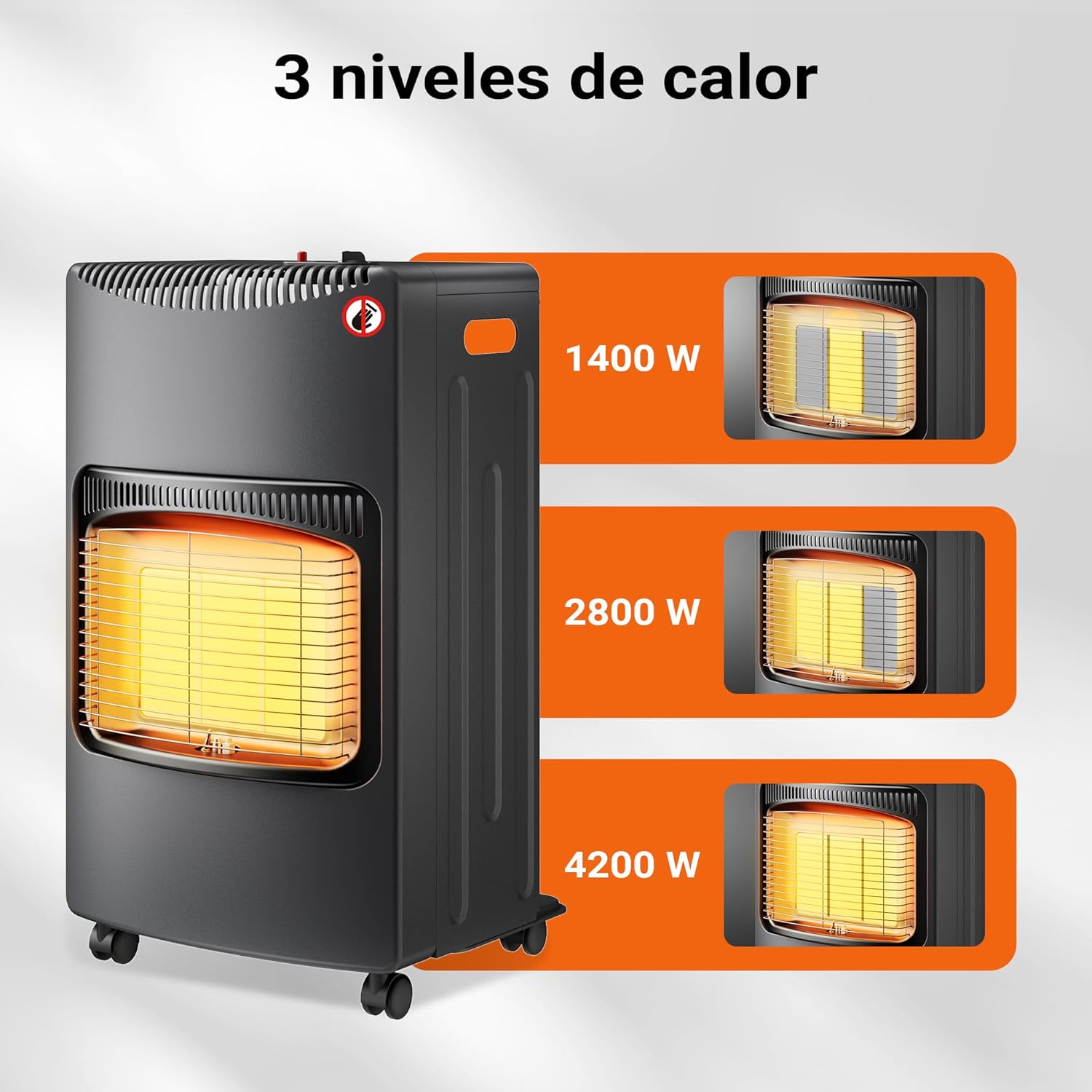

   Image: Three heat levels (1400W, 2800W, 4200W) indicated by the glowing heating elements.

   • Rotate the control knob to select one of the three power levels: 1.4 kW (low), 2.8 kW (medium), or 4.2 kW (high).
4. Искључивање:
   • Rotate the control knob to the 'OFF' position.
   • Затворите вентил на боци за гас.

6. Одржавање

Редовно одржавање осигурава дуготрајност и безбедан рад вашег грејача.

• Чишћење:
  • Ensure the heater is completely cool and the gas supply is turned off before cleaning.
  • Обришите спољашње површине меком, дamp тканина. Немојте користити абразивна средства за чишћење или раствараче.
  • Keep the air inlets and outlets clear of dust and debris. Use a soft brush or vacuum cleaner to gently remove any blockages.
• Замена гасног цилиндра:
  • Always replace the gas cylinder in a well-ventilated area, away from any ignition sources.
  • Ensure the heater is off and the gas cylinder valve is closed.
  • Disconnect the empty cylinder and connect the new one, following the setup instructions (Section 4).
  • Always perform a leak test after replacing the cylinder.
• Складиштење:

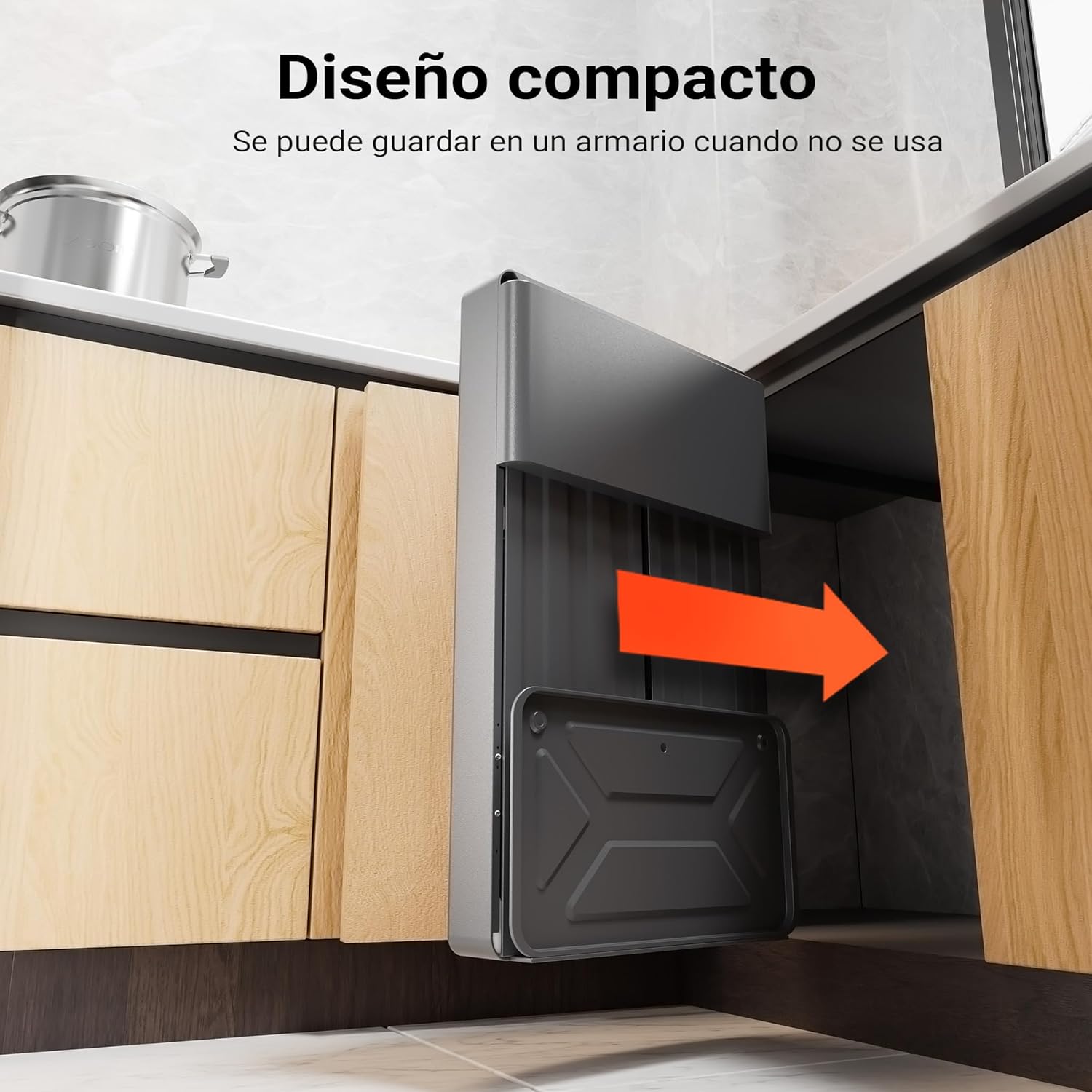

  Image: Compact design for storage. The heater can be folded and stored in a cabinet when not in use.

  • When not in use, especially during warmer months, ensure the heater is clean and dry.
  • Disconnect the gas cylinder and store it separately in a cool, well-ventilated area.
  • The heater's compact design allows for convenient storage in a cabinet or similar space.

КСНУМКС. Решавање проблема

If you encounter issues with your heater, refer to the following table before contacting support.

8. Спецификације

9. Гаранција и подршка

For warranty information or technical support, please refer to the documentation provided with your purchase or contact your retailer or the manufacturer directly. Keep your proof of purchase for any warranty claims.
