Goplus Garden Seat with Wheels (Model SU-4029/30/31) Instruction Manual

1. Увод

Thank you for choosing the Goplus Garden Seat with Wheels. This rolling garden cart is designed to provide comfort and convenience for various gardening tasks, reducing strain on your back and knees. It features a durable metal frame, an adjustable 360° swivel seat, and ample storage for your tools. Please read this manual thoroughly before assembly and use to ensure safe and efficient operation.

Image 1.1: The Goplus Garden Seat with Wheels in use.

2. Безбедносне информације

Увек се придржавајте следећих мера предострожности како бисте спречили повреде или оштећење производа:

• Капацитет тежине: Не прекорачујте максималну носивост од 150 кг (330 фунти).
• Стабилна површина: Use the garden seat on level and stable ground. Avoid steep inclines or uneven terrain where the cart could tip over.
• Деца и кућни љубимци: Keep children and pets away from the product during assembly and use.
• Скупштина: Ensure all bolts, nuts, and fasteners are securely tightened before each use. Regularly check for loose parts.
• Притисак у гумама: Maintain proper tire pressure for optimal stability and maneuverability.
• Складиштење: Store the garden seat in a dry, protected area when not in use to prevent rust and prolong its lifespan.
• Покретних делова: Be aware of moving parts, especially the wheels and swivel seat, to avoid pinching or injury.

3. Садржај пакета

Проверите да ли су све компоненте присутне пре почетка монтаже. Ако неки делови недостају или су оштећени, контактирајте корисничку подршку.

• Скупштина главног оквира
• Adjustable Swivel Seat with Cushion
• Backrest with Cushion and Tool Pouch
• 4 Pneumatic Tires (10-inch diameter)
• Extendable Steering Handle
• Under-Seat Tool Tray
• Корпа за складиштење
• Hardware Kit (bolts, nuts, washers, cotter pins)
• Упутство за употребу

Image 3.1: Product dimensions and key features.

4. Подешавање и монтажа

Assembly is required for this product. Please follow the detailed instructions provided in the separate assembly guide included in your package. Ensure you have all parts listed in Section 3 before starting. A basic overview процес монтаже укључује:

1. Attach the wheels to the main frame using the provided axles, washers, and cotter pins.
2. Secure the under-seat tool tray to the frame.
3. Mount the adjustable swivel seat and backrest assembly onto the frame.
4. Attach the storage basket to the rear of the cart.
5. Install the extendable steering handle.
6. Verify all connections are tight and secure before first use.

Note: Some users have reported that the printed instructions can be small or difficult to read. Refer to the included assembly guide for precise steps and diagrams.

Слика 4.1: Готовоview of the assembled garden seat, showing different color options and dimensions.

5. Упутство за употребу

5.1 Using the Adjustable Swivel Seat

The seat height can be adjusted to suit your preference and the task at hand, typically from 30 to 34 inches. To adjust the height, locate the adjustment mechanism beneath the seat and follow the instructions in your assembly guide. The seat also swivels 360° for easy access to different areas without needing to reposition the entire cart.

Image 5.1: Seat height adjustment and 360° swivel functionality.

5.2 Utilizing Storage Features

The garden seat is equipped with multiple storage options:

• Under-Seat Tool Tray: Ideal for keeping frequently used hand tools, gloves, or small accessories within easy reach.
• Корпа за складиштење: Located at the rear, this basket is suitable for larger items like watering cans, plant pots, or bags of seeds.
• Back Tool Pouch: Attached to the backrest, this pouch provides organized storage for various gardening tools.

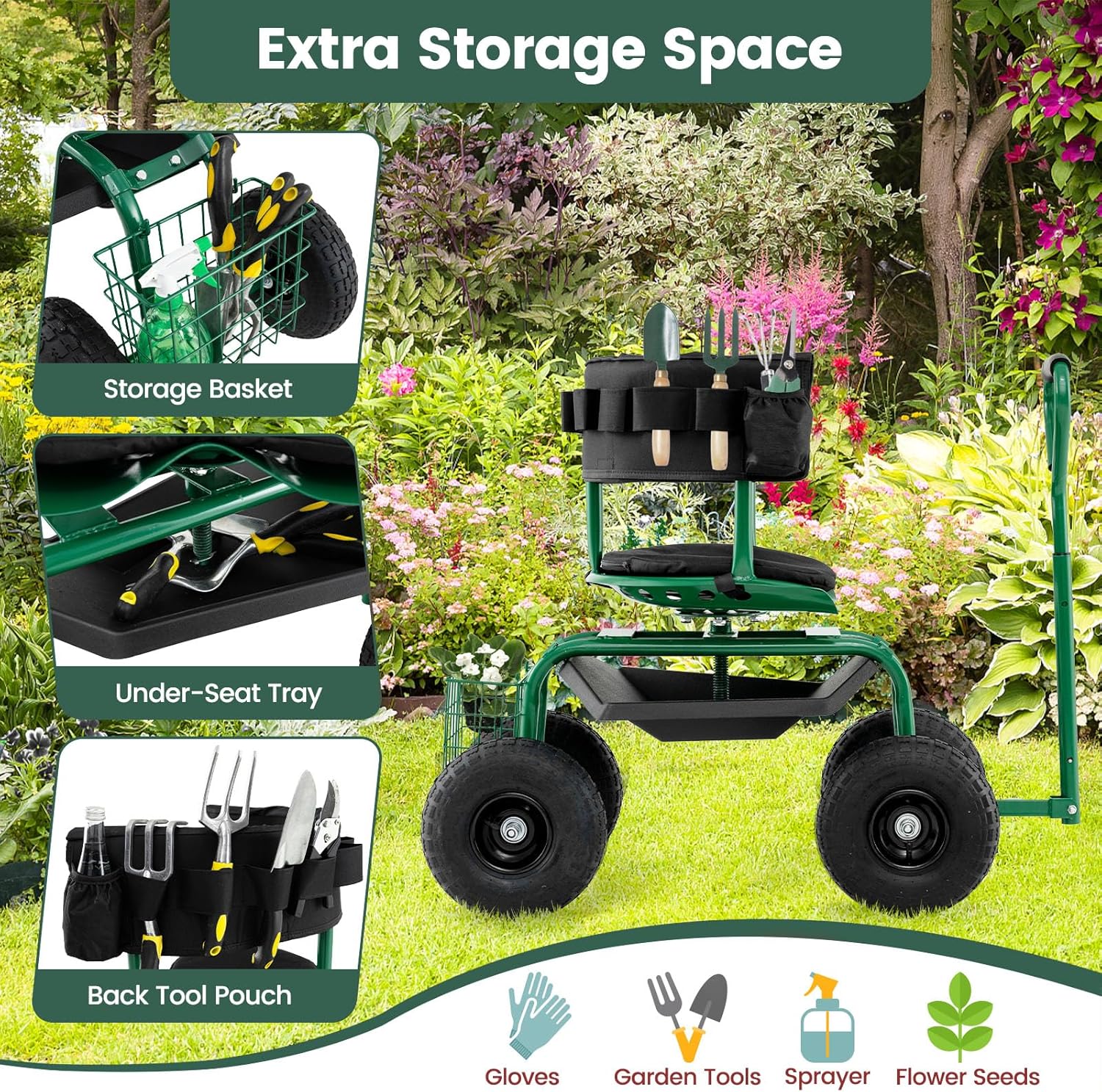

Image 5.2: Various storage compartments for gardening tools.

5.3 Using the Extendable Handle and Mobility

The steering handle can be extended to two lengths (22.5 inches or 32 inches) and can be rotated or detached. This allows for comfortable pulling or pushing of the cart across your garden. The four 10-inch pneumatic tires provide stability and smooth movement over various terrains, including lawn, gravel, cement, and sand.

Image 5.3: Extendable handle and pneumatic tires for easy transport.

6. Одржавање

Regular maintenance will ensure the longevity and optimal performance of your Goplus Garden Seat:

• Чишћење: Обришите метални оквир огласомamp cloth after use to remove dirt and debris. The seat cushion is removable and washable for easy cleaning.
• Нега гума: Periodically check the tire pressure and inflate as needed. Inspect tires for wear or damage.
• Причвршћивачи: Regularly inspect all bolts, nuts, and cotter pins. Tighten any loose fasteners to maintain structural integrity.
• подмазивање: Apply a small amount of lubricant to the swivel mechanism of the seat and wheel axles if movement becomes stiff.
• Складиштење: Store the cart in a dry, covered area to protect it from weather elements, which can cause rust or material degradation.

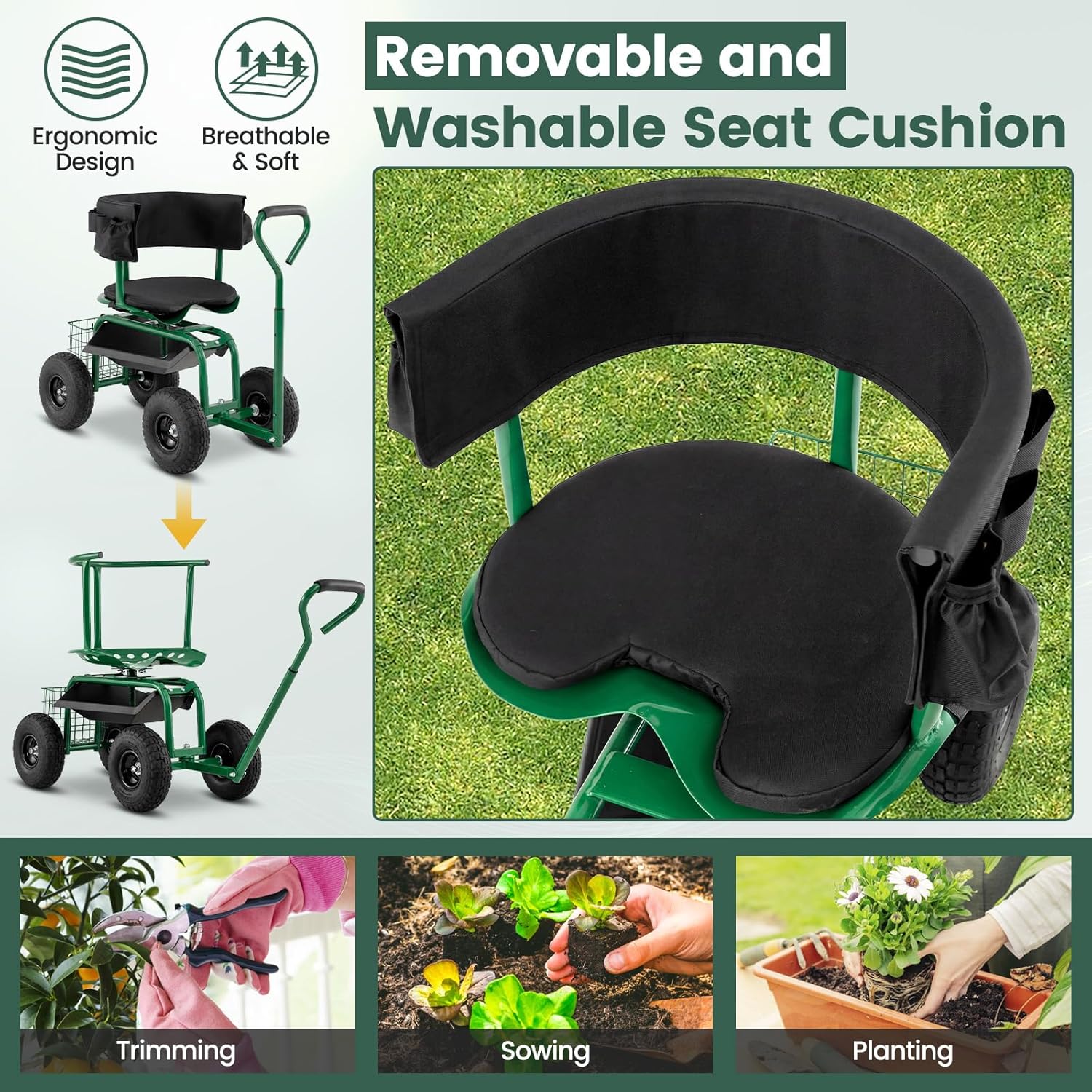

Image 6.1: Removable and washable seat cushion for easy maintenance.

КСНУМКС. Решавање проблема

8. Спецификације

9. Гаранција и подршка

This product is typically covered by a 30-day refund/replacement policy from the date of purchase. For specific warranty details, returns, or technical support, please refer to your purchase documentation or contact the seller directly. The seller for this product is GoplusUS.

For further assistance, you may visit the Goplus store on Amazon: Goplus Store
