1. Увод

Thank you for choosing the P.I.T. PHP170-C1 High Pressure Washer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pressure washer. Please read this manual thoroughly before first use and keep it for future reference. Proper use and maintenance will ensure a long and reliable service life for your appliance.

2. Безбедносна упутства

УПОЗОРЕЊЕ: When using this product, basic precautions should always be followed to reduce the risk of injury, electric shock, and fire.

  • Always wear appropriate personal protective equipment, including safety glasses, hearing protection, and protective footwear.
  • Never direct the water jet at people, pets, electrical devices, or the appliance itself. High-pressure jets can be dangerous if misused.
  • Уверите се да је напајање волtage matches the rating plate on the pressure washer. Use a properly grounded outlet.
  • Do not operate the pressure washer if the power cord or other essential parts are damaged.
  • Држите децу и кућне љубимце даље од оперативног простора.
  • Увек искључите напајање пре него што извршите било какво одржавање или чишћење.
  • Do not use the pressure washer in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
  • Ensure all connections are secure and leak-free before starting the unit.

3. Садржај пакета

Carefully unpack all items and ensure you have received all components. If any parts are missing or damaged, contact your retailer immediately.

P.I.T. PHP170-C1 High Pressure Washer and accessories laid out

Слика 3.1: All components included with the P.I.T. PHP170-C1 High Pressure Washer. This image shows the main unit, high-pressure hose, spray gun, various nozzles, detergent tank, and other accessories.

  • P.I.T. PHP170-C1 High Pressure Washer Unit
  • Црево високог притиска
  • Spray Gun with Lance
  • Подесива млазница
  • Резервоар за детерџент
  • Конектор за довод воде
  • Пин за чишћење млазнице
  • Упутство за употребу
P.I.T. PHP170-C1 High Pressure Washer product box

Слика 3.2: The packaging box for the P.I.T. PHP170-C1 High Pressure Washer, indicating key features and model number.

4. Производ је готовview

Упознајте се са главним деловима вашег перача под притиском пре почетка рада.

Close-up of the water inlet and power switch on the P.I.T. PHP170-C1

Слика 4.1: Детаљ view of the water inlet connection point and the main power switch on the pressure washer unit.

  • Главна јединица: Houses the motor and pump.
  • High-Pressure Outlet: Прикључна тачка за црево високог притиска.
  • Улаз воде: Место прикључивања за баштенско црево.
  • ОН/ОФФ прекидач: Контролише напајање јединице.
  • Резервоар за детерџент: За наношење раствора за чишћење.
  • Колут за црево: For convenient storage of the high-pressure hose.
  • Точкови и ручка: За лаку преносивост.

5. Подешавање

5.1 Скупштина

  1. Причврстите ручку: Гурајте ручку у предвиђене отворе на главној јединици док не кликне на своје место.
  2. Причврстите точкове: Secure the wheels to the axle using the provided pins or fasteners.
  3. Mount the Hose Reel: If not pre-assembled, attach the hose reel to the unit according to the instructions in the separate assembly diagram (if provided).

5.2 Прикључак за воду

  1. Connect a standard garden hose (not supplied) to the water inlet connector on the pressure washer. Ensure the connection is tight to prevent leaks.
  2. Connect the other end of the garden hose to a water tap.
  3. Turn on the water tap completely to ensure a steady water supply to the pressure washer.
  4. Connect the high-pressure hose to the high-pressure outlet on the unit and to the spray gun. Ensure all connections are secure.

5.3 Прикључак за напајање

Ensure the ON/OFF switch is in the "OFF" position before plugging in the unit.

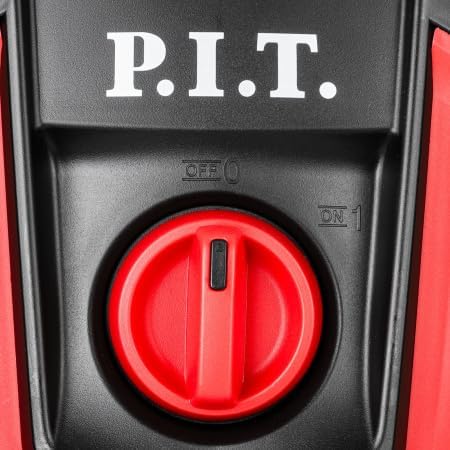

Close-up of the main ON/OFF switch on the P.I.T. PHP170-C1

Слика 5.1: The main power switch with "OFF" and "ON" positions clearly marked.

Plug the power cord into a grounded electrical outlet. Do not use extension cords unless absolutely necessary, and if so, ensure it is rated for outdoor use and the correct gauge for the power requirements of the pressure washer.

6. Упутство за употребу

6.1 Покретање перача под притиском

  1. Ensure all water and power connections are secure.
  2. Потпуно укључите довод воде.
  3. Squeeze the trigger on the spray gun to purge air from the system until a steady stream of water emerges. This prevents air pockets from damaging the pump.
  4. Окрените прекидач УКЉУЧЕНО/ИСКЉУЧЕНО у положај „УКЉУЧЕНО“. Мотор ће се покренути.
  5. Отпустите окидач да бисте омогућили мотору да створи притисак.

6.2 Using Detergent (if applicable)

Close-up of the integrated detergent tank on the P.I.T. PHP170-C1

Слика 6.1: The transparent detergent tank, showing its placement on the unit.

  1. Fill the integrated detergent tank with a pressure washer safe detergent. Do not use bleach or abrasive cleaners.
  2. Attach the appropriate low-pressure nozzle (often a black or wide-spray nozzle) to the spray gun. High-pressure nozzles will not draw detergent.
  3. Operate the pressure washer. The detergent will be mixed with the water at a low pressure.
  4. After applying detergent, switch to a high-pressure nozzle and rinse the surface thoroughly.

6.3 Искључивање и складиштење

  1. Окрените прекидач УКЉУЧЕНО/ИСКЉУЧЕНО у положај „ИСКЉУЧЕНО“.
  2. Искључите довод воде.
  3. Стисните окидач на пиштољу за прскање да бисте испустили преостали притисак у систему.
  4. Одвојите баштенско црево и црево високог притиска.
  5. Испустите сву воду из пумпе и црева како бисте спречили оштећења услед смрзавања.
  6. Чувајте машину за прање под притиском на сувом месту, заштићеном од мраза.

7. Одржавање

Редовно одржавање обезбеђује оптималне перформансе и продужава век трајања вашег перача под притиском.

  • Чишћење млазница: Use the provided nozzle cleaning pin to clear any blockages from the nozzle tips.
  • Филтер за улаз воде: Regularly check and clean the water inlet filter to prevent debris from entering the pump. Remove the filter, rinse it under running water, and reinsert.
  • Преглед црева и кабла: Periodically inspect the high-pressure hose, power cord, and water supply hose for any signs of damage, cuts, or leaks. Replace damaged parts immediately.
  • Зимљење: If storing the unit in an area where temperatures may drop below freezing, use a pump protector or antifreeze solution to prevent damage to the pump. Follow the instructions on the pump protector product.

КСНУМКС. Решавање проблема

ПроблемМогући узрокРешење
Мотор се не покрећеNo power supply; ON/OFF switch in OFF position; Thermal overload activated.Check power connection and outlet; Turn switch to ON; Allow motor to cool down.
Низак притисакInsufficient water supply; Clogged nozzle; Air in pump; Leaks in hose connections.Ensure full water supply; Clean nozzle; Purge air from system; Tighten connections.
Вода цуриLoose connections; Damaged O-rings or seals; Cracked hose.Tighten all connections; Replace damaged O-rings/seals; Replace hose.
Detergent not drawingWrong nozzle used; Detergent tank empty; Clogged detergent intake.Use low-pressure nozzle; Refill tank; Clean detergent intake.

9. Спецификације

  • Модел: PHP170-C1
  • Извор напајања: Електрични
  • Максимални притисак: 170 Бар
  • Брзина протока: 450 Liters/Hour
  • Потрошња енергије: 2200 Ваттс
  • Тежина артикла: 7.5 кг

10. Гаранција и подршка

This P.I.T. product is covered by a manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact your retailer or the authorized service center. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official P.I.T. webсајту или контактирајте корисничку подршку.
