Generic Portable Clothes Dryer User Manual

1. Важна безбедносна упутства

Пажљиво прочитајте сва упутства пре употребе овог уређаја како бисте осигурали безбедан рад и спречили повреде или оштећења. Сачувајте ово упутство за будуће потребе.

• Always plug the dryer into a grounded electrical outlet. Do not use extension cords.
• Do not dry articles that have been soiled with cooking oils, gasoline, dry-cleaning solvents, or other flammable or explosive substances.
• Clean the lint filter before or after each load. Failure to do so can increase drying time and fire risk.
• Do not allow children to play on or in the dryer. Close supervision is necessary when the dryer is used near children.
• Не постављајте нити складиштите машину за сушење тамо где ће бити изложена временским приликама.
• The dryer features an automatic shutoff if the door is opened during operation. For safety, avoid interrupting cycles unnecessarily.
• Ensure adequate ventilation around the dryer.
• Do not overload the dryer. Refer to the capacity guidelines in the specifications.

2. Производ је готовview

The Generic Portable Clothes Dryer is designed for efficient drying in compact spaces. It features a stainless steel drum, multiple drying modes, and a transparent door for monitoring.

Слика 2.1: Предња страна view of the Portable Clothes Dryer in a typical home environment.

Кључне компоненте и карактеристике:

• Контролна табла: Located on the front, used to select drying modes and power settings.
• Transparent Door Window: Allows visual monitoring of the drying process without opening the door.
• Унутрашњи бубањ од нерђајућег челика: Durable and designed to minimize wrinkles and tangles.
• Дршка за ношење: Интегрисана ручка за лако преношење.
• Air Inlet Filter Screen: Located inside the door, filters air entering the drum.
• Заштитни јастучићи за стопала: Stabilize the unit and protect surfaces.
• Air Vent Connector: Located at the rear for exhaust ventilation.

Слика 2.2: Детаљно view of the transparent door, stainless steel drum, and carry handle.

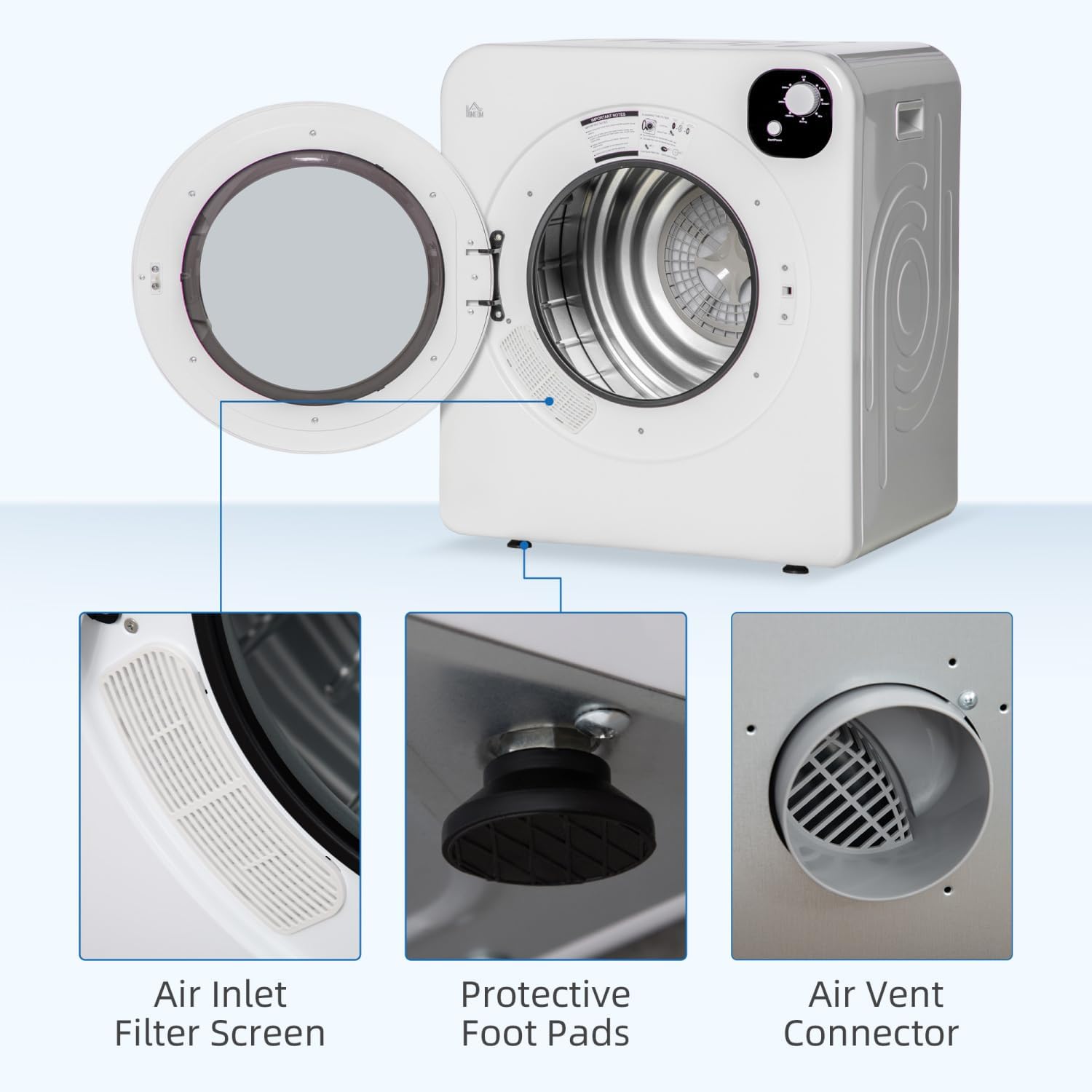

Figure 2.3: Location of the air inlet filter screen, protective foot pads, and air vent connector.

3. Подешавање и инсталација

3.1 Распакивање

Carefully remove the dryer from its packaging. Inspect for any shipping damage. Retain packaging materials for future transport if needed.

3.2 Постављање

Place the dryer on a firm, level surface. Ensure there is adequate space around the unit for proper ventilation. The compact design (23.5" x 20" x 27.5") allows for placement in various small spaces.

Figure 3.1: Dryer dimensions for placement planning.

3.3 Вентилација

Connect the air vent connector at the rear of the dryer to an appropriate exhaust system or vent outdoors. Proper ventilation is crucial for efficient drying and preventing moisture buildup.

3.4 Монтажа на зид (опционо)

For space-saving, this dryer can be mounted on a wall using the included brackets. Ensure the wall structure can support the weight of the dryer and a full load of wet laundry. Follow the detailed instructions provided with the mounting kit for secure installation.

4. Упутство за употребу

4.1 Пуњење машине за сушење веша

• Ensure the lint filter is clean before loading.
• Load laundry into the stainless steel drum. Do not exceed the maximum capacity of 13 lbs (3.2 cu.ft). Overloading can reduce drying efficiency and increase wrinkles.
• Чврсто затворите врата сушилице.

4.2 Избор режима сушења

Turn the control knob to select one of the seven available drying modes:

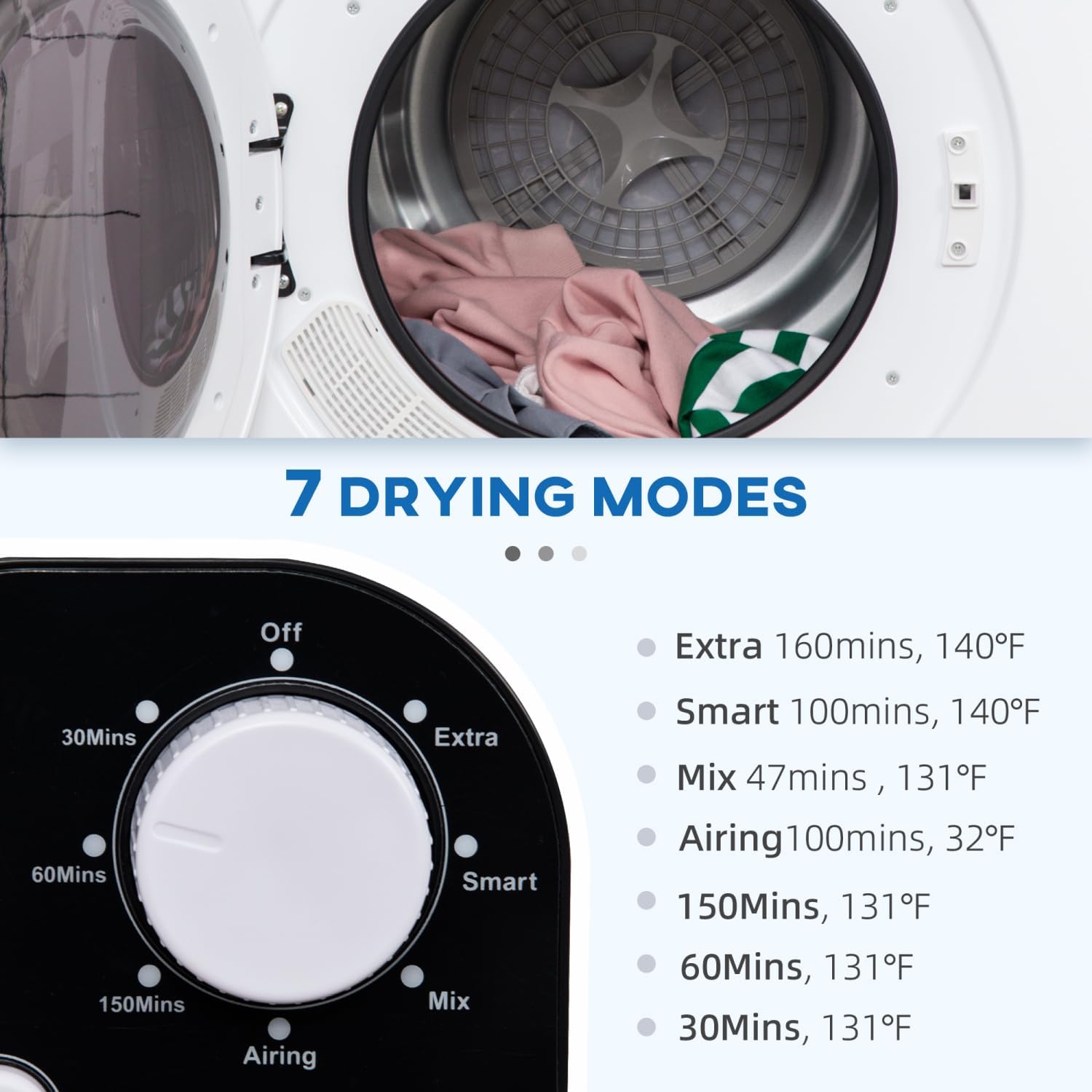

Figure 4.1: Dryer control panel with drying mode options.

• екстра: 160 minutes at 140°F (60°C) for heavily damp ставке.
• паметно: 100 minutes at 140°F (60°C) for standard loads.
• микс: 47 minutes at 131°F (55°C) for mixed fabric loads.
• Емитовање: 100 minutes at 32°F (0°C) for refreshing items without heat.
• Timed Modes (30/60/150 Mins): Manual selection for specific drying durations at 131°F (55°C).

4.3 Покретање и заустављање

• After selecting a mode, the dryer will begin operation.
• To stop the dryer mid-cycle, turn the control knob to 'Off' or open the door. The dryer will automatically pause if the door is opened.
• Once the cycle is complete, remove laundry promptly to minimize wrinkles.

5. Одржавање

Редовно одржавање обезбеђује оптималне перформансе и продужава век трајања ваше сушаре.

5.1 Чишћење филтера за влакна

• The two-layer lint filter should be cleaned before or after every load.
• Open the dryer door and locate the lint filter inside the drum.
• Remove the filter and gently pull off any accumulated lint.
• Reinsert the clean lint filter securely before the next use.

5.2 Спољашње чишћење

Обришите спољашње површине меком, дamp тканина. Немојте користити абразивна средства за чишћење или раствараче.

5.3 Чишћење ентеријера

Повремено обришите унутрашњост бубња адитивомamp cloth. Ensure the drum is dry before loading laundry.

КСНУМКС. Решавање проблема

Ако наиђете на проблеме са сушилицом, погледајте табелу испод за уобичајене проблеме и решења.

7. Спецификације

Technical specifications for the Generic Portable Clothes Dryer.

Figure 7.1: Summary of key product specifications.

8. Гаранција и корисничка подршка

For warranty information or customer support, please refer to the documentation included with your purchase or contact the retailer. Keep your purchase receipt as proof of purchase.
